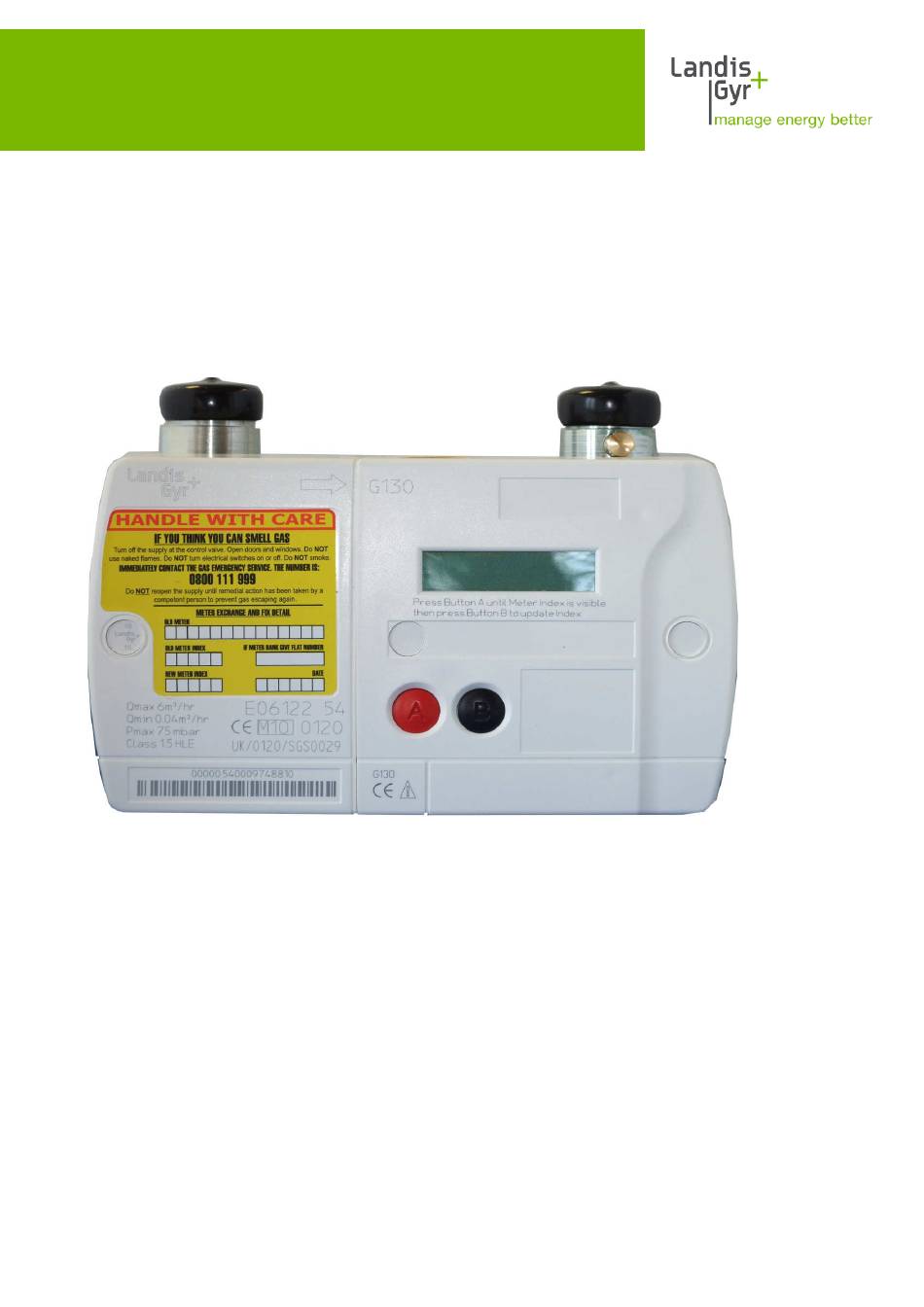

- Page 1 L+G Confidential Advanced Metering Infrastructure L+G Electronic Smart Ready Gasmeter G130 Installation Manual G130 Installation and Commissioning Manual July 2012 ver 01 © 2012 Landis+Gyr Ltd...
- Page 2 Issue:1 2/10 Revision history Issue Date Comments July 2012 First revision of G130 Installation and Commissioning Manual Subject to change without notice. Landis+Gyr , 1 Lysander Drive, Northfields Industrial Estate, Market Deeping, Peterborough PE68FB www.Landisgyr.com Tel: +44-1778-349700 Fax: +44-1778-349701 G130 Installation and Commissioning Manual July 2012 ver 01 ©...
-
Page 3: Table Of Contents
Accessing the Service Menu _________________________________________________ 8 Installation_______________________________________ Error! Bookmark not defined. The safe removal of the existing meter. ________________________________________ 6 The safe connection of the G130 Smart gas meter _______________________________ 6 Customer displays ________________________________ Error! Bookmark not defined. Display cycle ___________________________________ Error! Bookmark not defined. -
Page 4: Introduction
Issue:1 4/10 Introduction This specification describes the procedure to install a Landis + Gyr E6V meter with G130 module fitted. Scope This guide applies to the G130 Smart Ready Gas meter, E6 residential gas meter. Purpose This manual contains information required to install and commission the G130 Smart meter. -
Page 5: Safety
(or the manufacturer). • The meter must on no account be cleaned with running water or with high- pressure devices. Water penetration can cause short-circuits. G130 Installation and Commissioning July 2012 ver 01 © 2012 Landis+Gyr Ltd... -
Page 6: Installation Procedure
2. Confirm the installation is leak tight via the locally approved methodology. 3. Ensure that the air within the installation / new meter is safely purged. If the G130 Smart Ready gas meter is supplied with the valve closed the open valve procedure should be used to open the valve to enable the flow of gas. - Page 7 If the valve is closed the screen will display OFF and the option to open the valve will be shown (Press B for Gas). To open the valve the instructions in section 6 should be followed. G130 Valve Status displays Display cycle The full display cycle is shown in the diagram below.
-
Page 8: The Service Menu
Accessing the Service Menu The Service Menu is accessed from the index display by pressing button A to move to the valve status display and then holding button B for more than 5 seconds. The G130 meter then shows the Engineer Access screen:- Pressing button A will then show the Pin code Access Screen. -
Page 9: Rolling Register Displays
Issue:1 9/10 Rolling Register Displays The G130 has a single rolling register which displays the module firmware version:- G130 Installation and Commissioning July 2012 ver 01 © 2012 Landis+Gyr Ltd... -
Page 10: Opening The Valve For Operation
Default display – Valve Open If the High Flow Open Interlock option is active and causes the valve to reclose then the “Press B for Gas” display will become available again. Repeat G130 Installation and Commissioning July 2012 ver 01 © 2012 Landis+Gyr Ltd...
