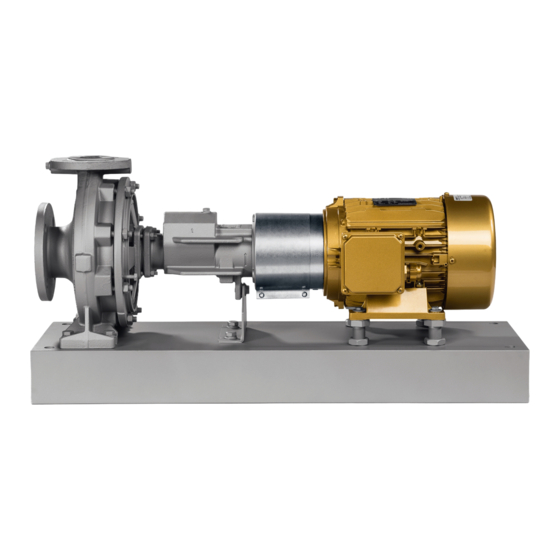

KSB Etanorm SYT Manual
Thermal oil / hot water pump
Hide thumbs
Also See for Etanorm SYT:
- Installation & operating manual (84 pages) ,
- Installation & operating manual (66 pages)
Subscribe to Our Youtube Channel
Related Manuals for KSB Etanorm SYT
Summary of Contents for KSB Etanorm SYT

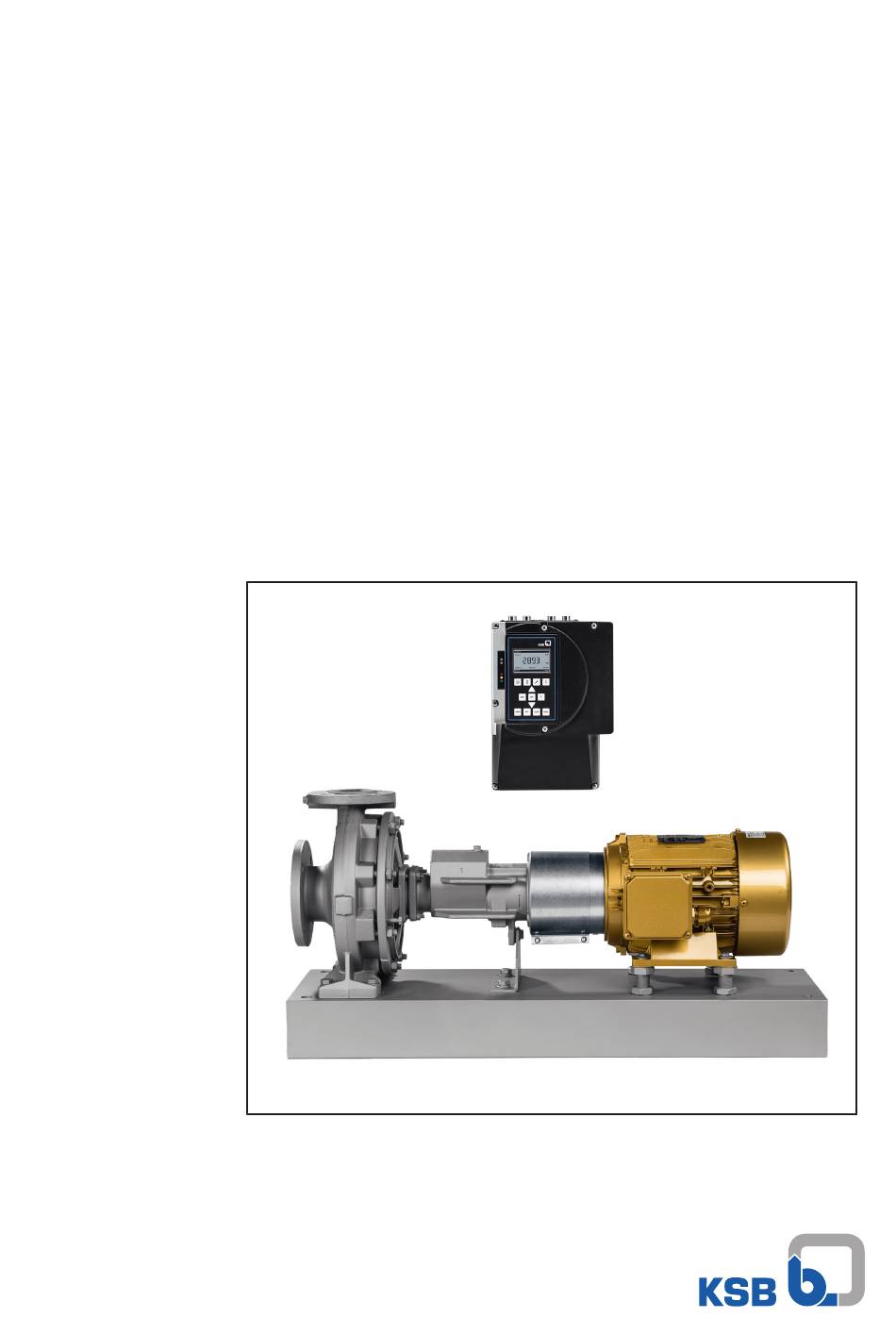

- Page 1 Thermal Oil / Hot Water Pump Etanorm SYT Fixed Speed / Variable Speed 50 Hz / 60 Hz Europe (EU) Middle East (ME) North Africa (NA) Type Series Booklet...
- Page 2 All rights reserved. The contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without the manufacturer's express written consent. Subject to technical modification without prior notice. © KSB SE & Co. KGaA, Frankenthal 04/09/2020...
-
Page 3: Table Of Contents
Technical data ................................ 13 Etanorm SYT ................................ 13 Selection charts ................................ 14 Etanorm SYT (fixed speed version), n = 2900 rpm .................... 14 Etanorm SYT (fixed speed version), n = 1450 rpm .................... 14 Etanorm SYT (fixed speed version), n = 960 rpm .................... 15 Etanorm SYT (fixed speed version), n = 3500 rpm .................... 15 Etanorm SYT (fixed speed version), n = 1750 rpm .................... 16... -
Page 4: Centrifugal Pumps With Shaft Seal
Centrifugal Pumps with Shaft Seal Operating data Operating properties in standard applications Thermal Oil Pumps / Hot Water Pumps Characteristic Value 50 Hz 60 Hz Etanorm SYT (EU / ME / NA) Flow rate Q [m ≤ 625 ≤ 754 Head H [m] ≤ 102 ≤ 100 Fluid temperature T [°C]... -
Page 5: Design Details
▪ Self-cooling frequency inverter of modular design for the continuously variable speed control of asynchronous ▪ KSB surface-cooled IEC three-phase current squirrel-cage motors and synchronous reluctance motors, such as KSB motor SupremE motors or permanent magnet synchronous ▪ Efficiency class IE2 / IE3 to IEC 60034-30... - Page 6 Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Drive end: ▪ Grease-packed deep groove ball bearing Pump-end: ▪ Carbon bearing / SiC/SiC bearing lubricated by fluid handled Etanorm SYT (EU / ME / NA)
-
Page 7: Designation
Motor rating P [kW] 0075 0,75 1320 132,00 Number of motor poles Product generation Etanorm SYT 2014 33-36 Design Fixed speed version Variable speed version, with PumpDrive 2 PD2E Variable speed version, with PumpDrive 2 Eco Etanorm SYT (EU / ME / NA) -
Page 8: Materials
▪ Warranties are given within the scope of the valid terms chamber and conditions of sale and delivery. ▪ Top reliability with double mechanical seal in tandem arrangement ▪ High resistance by anti-seize product-lubricated carbon plain bearing or SIC/SIC bearing Etanorm SYT (EU / ME / NA) -
Page 9: Overview Of Product Features / Selection Tables
Thermal Oil Pumps / Hot Water Pumps Overview of product features / selection tables Overview of variants Other designs on request Overview of Etanorm SYT / Etabloc SYT / Etaline SYT variants Main applications [°C] SG08 Nodular cast iron Grey cast iron EN- Mech. -
Page 10: Overview Of Fluids Handled
KSB EasySelect, selection software for all applications KSB EasySelect is a comprehensive selection tool for all applications. It guides users to an optimal solution for their projects by offering a fast, easy and user-friendly way to select and configure pumps and valves. All that is required are some project-specific criteria and a few minutes’... -
Page 11: Overview Of Functions
Integrated dual-pump configuration (1×100 % with redundant pump or 2×50 % ✘ ✘ without redundant pump) Multiple pump configuration with up to 6 pumps ✘ ✘ Waste water function: start-up at maximum speed ✘ Waste water function: rinsing function ✘ Operation Etanorm SYT (EU / ME / NA) -
Page 12: Pressure Limits And Temperature Limits
Pressure/temperature correlation for flanges, material E, to EN 1092-1 and flanges drilled to ASME 150 Some functions can only be parameterised and/or displayed using the KSB ServiceTool (see operating manual). Only available via KSB ServiceTool or app The casing components are checked for leakage by means of internal pressure tests to AN 1897/75-03D00 with water. -
Page 13: Technical Data
3600 125-100-250 27,0 145,0 3600 125-100-315 23,0 142,0 1900 150-125-200 40,7 159,0 3600 150-125-250 37,0 162,4 2000 150-125-315 30,9 162,0 1900 150-125-400 25,9 162,4 1800 200-150-315 39,7 191,5 1800 200-150-400 33,0 191,4 1800 Etanorm SYT (EU / ME / NA) -
Page 14: Selection Charts
Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Selection charts Etanorm SYT (fixed speed version), n = 2900 rpm 1000 2000 3000 US.gpm IM.gpm 1000 2000 Q [m³/h] Etanorm SYT (fixed speed version), n = 1450 rpm... -
Page 15: Etanorm Syt (Fixed Speed Version), N = 960 Rpm
Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Etanorm SYT (fixed speed version), n = 960 rpm 400 500 1000 US.gpm 400 500 1000 IM.gpm 50-32-200 50-32-160 Q [m³/h] Etanorm SYT (fixed speed version), n = 3500 rpm... -
Page 16: Etanorm Syt (Fixed Speed Version), N = 1750 Rpm
Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Etanorm SYT (fixed speed version), n = 1750 rpm 400 500 1000 2000 3000 [US.gpm] 400 500 1000 2000 [IM.gpm] 65-40-315 50-32-200 [ft] Q [m³/h] 400 500 [l/s] KE1227.4064 / 1... -
Page 17: Dimensions And Connections
1227.5/09-EN Dimensions and connections Pump (Fig. 0 bare-shaft pump) Fig. 2: Dimensions of Etanorm SYT pump (Fig. 0) - Page 18 Dimensions of Etanorm SYT pump (Fig. 0) Etanorm SYT Bearing bracket [mm] 040-025-160 WS_25_LS 040-025-200 WS_25_LS 050-032-125.1 WS_25_LS 050-032-160.1 WS_25_LS 050-032-200.1 WS_25_LS 050-032-160 WS_25_LS 050-032-200 WS_25_LS 050-032-250 WS_25_LS 225 47,5 065-040-160 WS_25_LS 065-040-200 WS_25_LS 065-040-250 WS_25_LS 225 47,5 065-040-315 WS_35_LS 250 47,5 065-050-160 WS_25_LS 065-050-200...
-
Page 19: Pumpdrive 2
M6 × 12 12,6 15,00 M8 × 14 27,6 18,50 M8 × 14 22,00 M8 × 14 30,00 M8 × 14 37,00 M8 × 14 57,6 45,00 M8 × 14 55,00 M8 × 14 The dimensions provided refer to the frequency inverter including the wall-mounting brackets. Without motor adapter Etanorm SYT (EU / ME / NA) -
Page 20: Auxiliary Connections For Double Mechanical Seal
Auxiliary connections for double mechanical seal and monitoring equipment Fig. 5: Connections for double mechanical seal and monitoring equipment Overview Connection Description Temperature measurement 6D.1 Fluid priming and venting Leakage drain Quench liquid outlet Quench liquid inlet Shock pulse measurement Etanorm SYT (EU / ME / NA) -
Page 21: Connections
Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Connections Fig. 7: Connection of Etanorm SYT with single mechanical seal Fig. 8: Connection of Etanorm SYT with double mechanical seal Connections Connection Design Configuration Position * = optional Pressure gauge... - Page 22 G 1/2 G 1/4 150-125-250 WS_35_LS G 1/2 G 1/4 150-125-315 WS_55_LS G 1/2 G 1/4 150-125-400 WS_55_LS G 1/2 G 1/4 200-150-200 WS_55_LS G 1/2 G 1/4 200-150-400 WS_55_LS G 1/2 G 1/4 Etanorm SYT (EU / ME / NA)
-
Page 23: Flange Design
▪ Coupling guard DN 80 machined like DN 100, drilled to ASME Flange DN 80 on suction side; applies to sizes 080-065-160, 080-065-200, 080-065-250, 080-065-315. Also see the table on Equivalents. DN 80 machined like DN 100 Etanorm SYT (EU / ME / NA) -
Page 24: General Assembly Drawings
Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps General assembly drawings Version with bearing bracket WS_25_LS Fig. 10: Exploded view of an Etanorm SYT, bearing bracket WS_25_LS List of components Part No. Description Part No. Description Volute casing... -
Page 25: Version With Bearing Bracket Ws_25_Ls With Double Mechanical Seal
Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Version with bearing bracket WS_25_LS with double mechanical seal Fig. 11: Exploded view of an Etanorm SYT; bearing bracket WS_25_LS with double mechanical seal List of components Part No. Description Part No. -
Page 26: Version With Bearing Brackets Ws_25_Ls / Ws_55_Ls With Sic Plain Bearing
Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Version with bearing brackets WS_25_LS / WS_55_LS with SiC plain bearing Fig. 12: Exploded view of Etanorm SYT, bearing brackets WS_25_LS / WS_55_LS with SiC plain bearing List of components Part No. - Page 27 Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Version with bearing brackets WS_35_LS / WS_55_LS Fig. 13: Exploded view of an Etanorm SYT, bearing brackets WS_35_LS / WS_55_LS For WS_55 only For WS_35 only List of components Part No.
-
Page 28: Version With Bearing Brackets Ws_35_Ls / Ws_55_Ls With Double Mechanical Seal
Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Version with bearing brackets WS_35_LS / WS_55_LS with double mechanical seal Fig. 14: Exploded view of an Etanorm SYT, bearing brackets WS_35_LS / WS_55_LS with double mechanical seal For WS_55 only For WS_35 only List of components Part No. -
Page 29: Version With Bearing Bracket Ws_35_Ls With Sic Plain Bearing
Centrifugal Pumps with Shaft Seal Thermal Oil Pumps / Hot Water Pumps Version with bearing bracket WS_35_LS with SiC plain bearing Fig. 15: Exploded view of Etanorm SYT, bearing bracket WS_35_LS with SiC plain bearing List of components Part No. Description Part No. - Page 30 Glossary Glossary Back pull-out design The complete back pull-out unit can be pulled out without having to remove the pump casing from the piping. Efficiency class to IEC 60034-30: 1 = Standard Efficiency (IE = International Efficiency) Efficiency class to IEC 60034-30: 2 = High Efficiency (IE = International Efficiency) Efficiency class to IEC 60034-30: 3 = Premium Efficiency (IE = International Efficiency)
