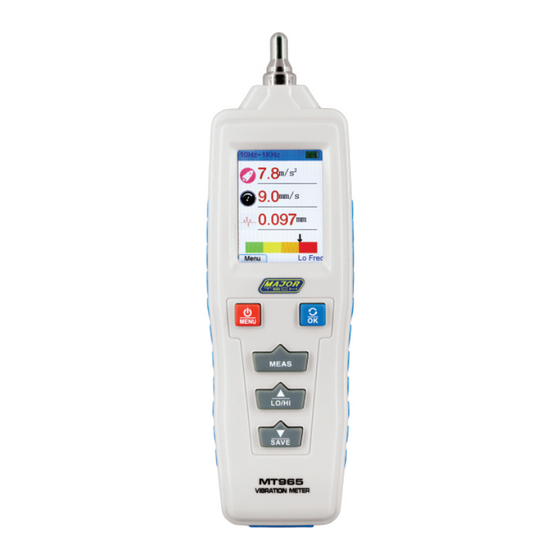

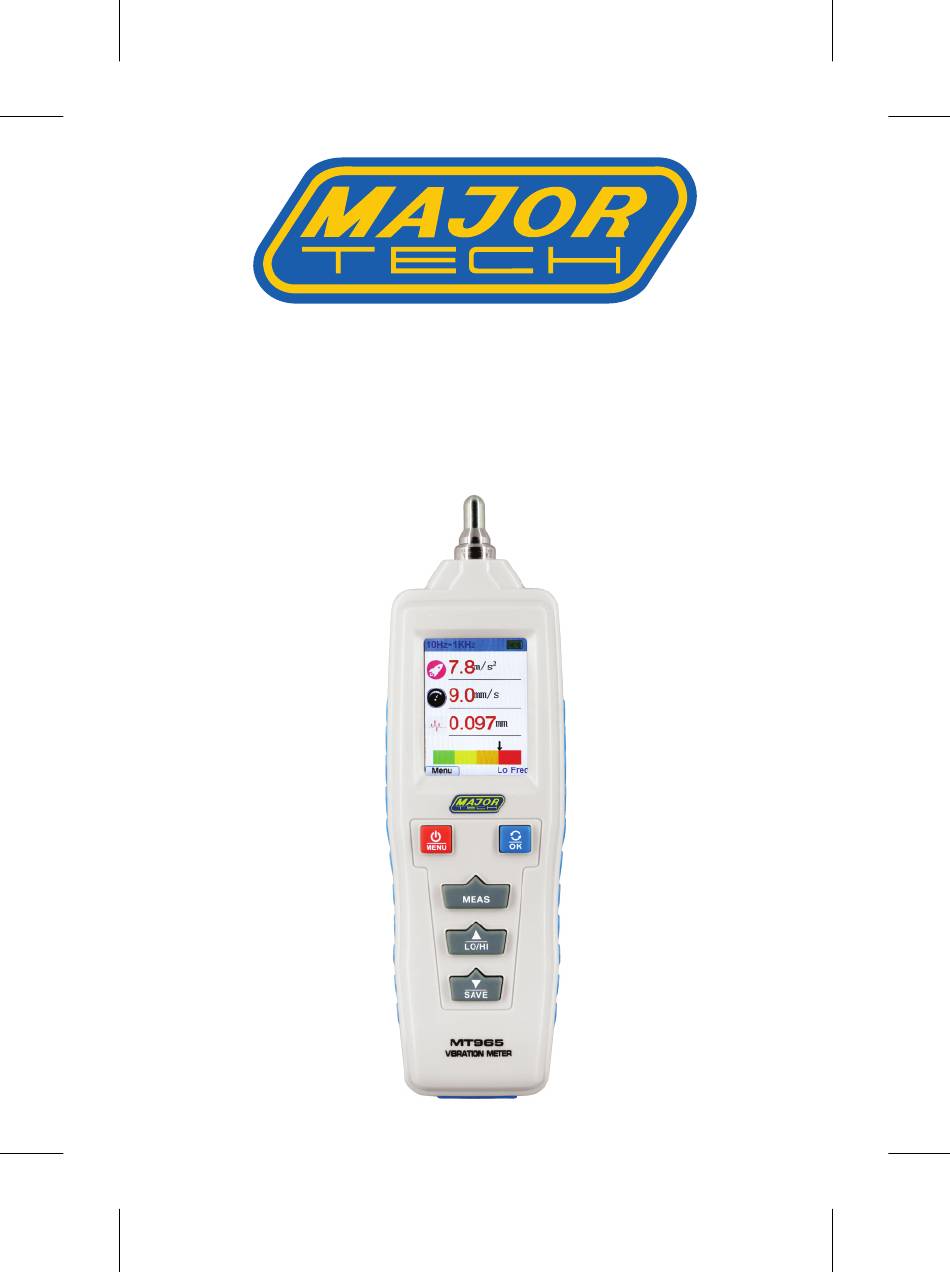

- Page 1 INSTRUCTION MANUAL MT965 VIBRATION METER...
- Page 3 Contents Page no 1. Introduction ..................4 2. Notices.....................4 3. Functions ..................4 4. Parts and Display Interface Instructions..........5 4.1. Parts..................5 4.2. Instruction of Full Display Interface..........6 4.3. Menu Interface Description / Menu Structure Diagram....7 5. Preparation For Measurement.............8 5.1. Installing batteries..............8 5.2.
- Page 4 1. INTRODUCTION The MT965 utilizes the piezoelectric effect of artificially polarized ceramics. It is designed for traditional vibration measurement in mechanical equipment, with a particular focus on rotating and reciprocating machinery. Capable of measuring vibration displacement, velocity, and acceleration, it finds extensive application in industries such as machinery manufacturing, electrical engineering, metallurgy, and general aerospace.
- Page 5 4. PARTS AND DISPLAY INTERFACE INSTRUCTIONS 4.1. Parts (as Shown in picture) Buttons Battery Compartment Door...
- Page 6 Buttons Names of parts Function Description Power On/Off/Menu Press to turn meter on. Hold down to Button turn meter off. While ON, press to switch to the Menu or to exit when in the Menu. Rotate Screen/OK During measurement, short press to Button rotate the screen.
- Page 7 4.3. Menu Interface Description / Menu Structure Diagram a. Diagram of Menu Functions: Select Language Chinese/English Low/High Brightness Screen Brightness Flashlight Turn Flashlight On/Off Select Automatic Shutdown Time Shutdown Time(0-9 miins) Restore Factory Yes/No Settings Machine Level Set Machine Power Level (kW)
- Page 8 5. PREPARATION FOR MEASUREMENT 5.1. Installing batteries Install batteries into the battery compartment correctly, paying close attention to the polarity of the battery. Press the “ ” button to turn on the meter, after powering on, check the battery status. If the power is low, please replace the batteries promptly.
- Page 9 Screen rotation is supported only in acceleration measurement, velocity measurement, displacement measurement, and full display interface modes. Each rotation will clear all cached data. 6.3. Full Display Interface Measurement Press the " " button to turn on the meter; the full display interface MENU appears after powering on.
- Page 10 6.4. Menu The full display interface is displayed after powering on, press “ ” button to enter Menu interface, press up/down buttons to select, press “ ” button to enter the corresponding interface. Press the “ ” button again to return to the previous screen.
- Page 11 6.8. View Stored Files Enter the Menu interface and select the "File" option, the saved data can be viewed in the "File" interface; press the up/down buttons to scroll through stored data sets, hold down to scroll quickly. Press the “ "...
- Page 12 “ button to exit. g. If the calibration values are wrong, you can restore the factory settings of the MT965 and try again. 7. OTHER NOTICES 1. When the amount of stored data is high, it may take more time to enter the "File"...
- Page 13 Small Medium Large Large Machine Machine Hard Base Soft Base...
- Page 14 Ÿ Damage caused by leaking batteries (damaging the meter and components) Ÿ Normal wear and tear of mechanical components Ÿ Failures caused by use outside the product's specifications Ÿ Any product which, in the opinion of Major Tech, has been misused, contaminated, or damaged due to neglect...
- Page 15 Check Procedure Prior to contacting Major Tech or a distributor regarding a warranty claim, please check the following: Ÿ Batteries are installed correctly Ÿ Battery condition – either replace disposable batteries or ensure rechargeable batteries are charged where applicable Ÿ Test leads are inserted in the correct terminals and are fully inserted, no...
- Page 16 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
