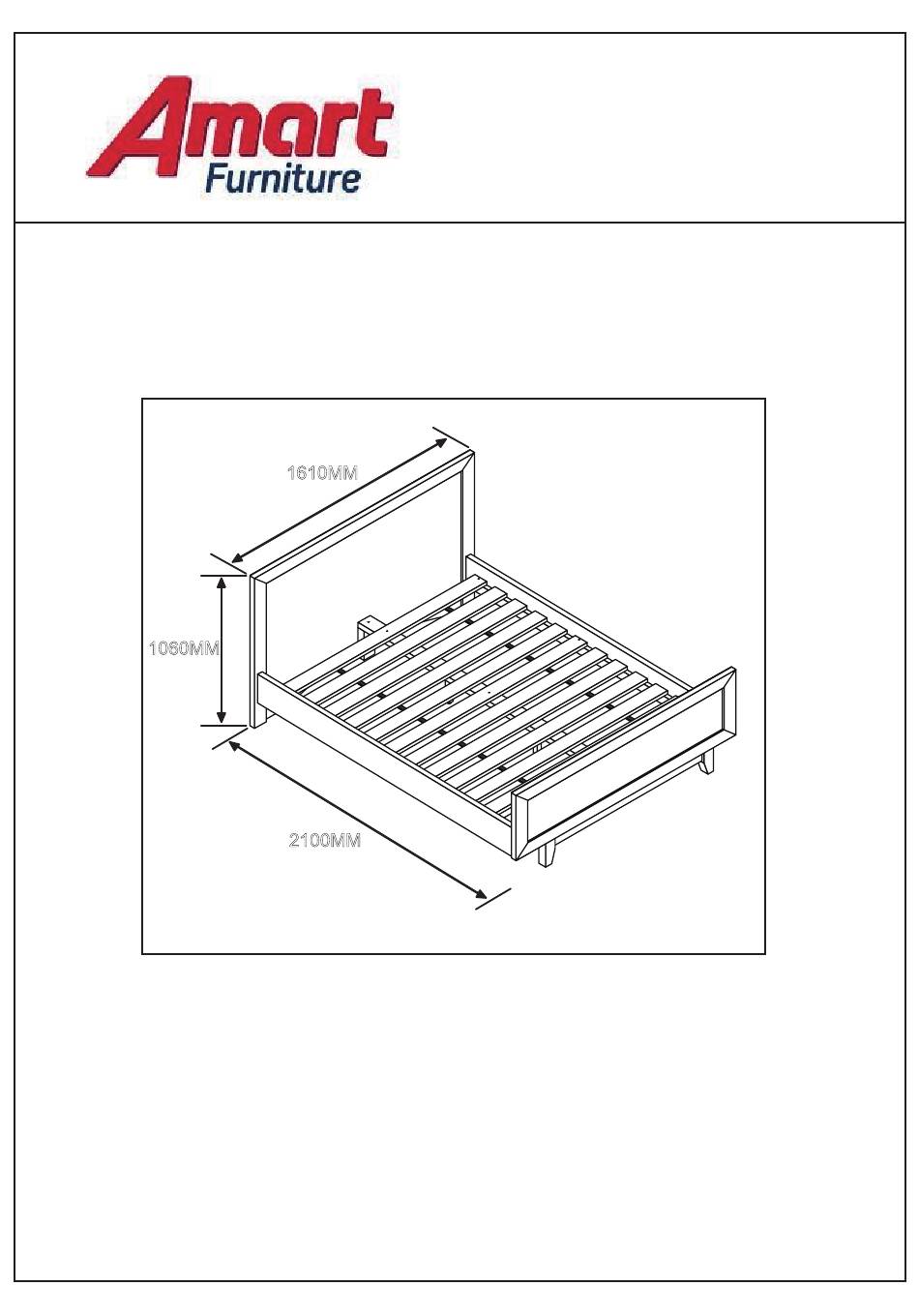

1060MM
Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture,
1610MM
2100MM
Pty Ltd, Qld, Brisbane Australia.
Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION

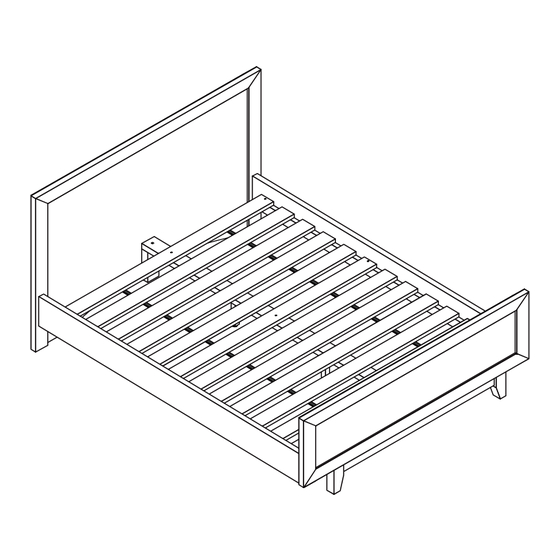

ANDI QUEEN BED
ITEM CODE 54894
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
54894
Advertisement
Related Manuals for Amart Furniture ANDI 54894
Summary of Contents for Amart Furniture ANDI 54894
- Page 1 ASSEMBLY INSTRUCTION ANDI QUEEN BED ITEM CODE 54894 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 1610MM 1060MM 2100MM...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. - Page 3 EXPLODED EXAMPLE RINGT LEG LEFT LEG CROSSING BAR FOOTBOARD SUPPORT BAR RIGHT SIDE PANEL LEFT SIDE PANEL HEADBOARD SUPPORT LEG MIDDLE SUPPORT PANEL SUPPORT LEGS SLATS 1540x75mm adjustable leg cam pin crescent nut dowel cam lock M30x20mm M7x54mm M14.8x12mm M30x14mm M8x50mm Ex10 hexagon socket...
- Page 4 PART NUMBER DIMENSIONS(MM) 1&2 65x210x42 50x1200x25 350x1610x42 45x390x25 6&7 180x2050x25 1060x1610x30 70x195x40 70x2060x24 30x30x190 75x1540x15 54894...
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.5cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 54894...
- Page 6 STEP 1: Fix cam pin to legs .Insert dowel to crossing bar . Attach left leg and right leg to crossing bar using cam locks Back veneer edge Back veneer edge Top edge Back veneer edge Left edge Top veneer edge Top edge Left veneer edge STEP 2: Attach support bar to footboard...
- Page 7 STEP 3: Attach left leg and right leg to footboard using screws ,8MM spring washers and 8MM spring washers with allen key .Fix screws to footboard Top veneer edge Left veneer edge STEP 4: Insert dowel to left side panel and right side panel . Top veneer edge Bottom veneer edge Front edge...
- Page 8 STEP 5: Attach left side panel and right side panel to headboard using hexagon socket screws , crescent nut , allen key ,6MM spring washers and nut with wrench . Top veneer edge Left veneer edge 54894...
- Page 9 STEP 6: Attach left side panel and right side panel to and footboarb using screws , crescent nut and nut with wrench . Top veneer edge Top veneer edge Left veneer edge 54894...
- Page 10 STEP 7: Attach leg to headboard using hexagon socket screws ,4MM allen key and 6MM spring washers Top veneer edge Top veneer edge Top veneer edge 54894...
- Page 11 STEP 8: Attach foot nail to legs .Attach legs to middle support panel using hexagon socket screws and allen key . Left edge Front edge STEP 9: Attach middle support panel to support leg and support bar using hexagon socket screws ,allen key and 6MM spring washers Top veneer edge Top veneer edge...
- Page 12 STEP 10: Attach slats to the existing unit using screws . Top veneer edge Top veneer edge ASSEMBLY COMPLETE DO NOT PUSH OR DRAG THIS FURNITURE – IT WILL CAUSE DAMAGE TO THE LEGS 54894...
-
Page 13: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
