ASSEMBLY INSTRUCTION
ASHA TALL CHEST
ITEM CODE 66830
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
Imported by
Amart Furniture
Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture
, Customer Service Free call 1800 351 084
Item Code: 66830
2019-8-28
1-16

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASHA 66830 and is the answer not in the manual?

Questions and answers

Related Manuals for Amart Furniture ASHA 66830

Summary of Contents for Amart Furniture ASHA 66830

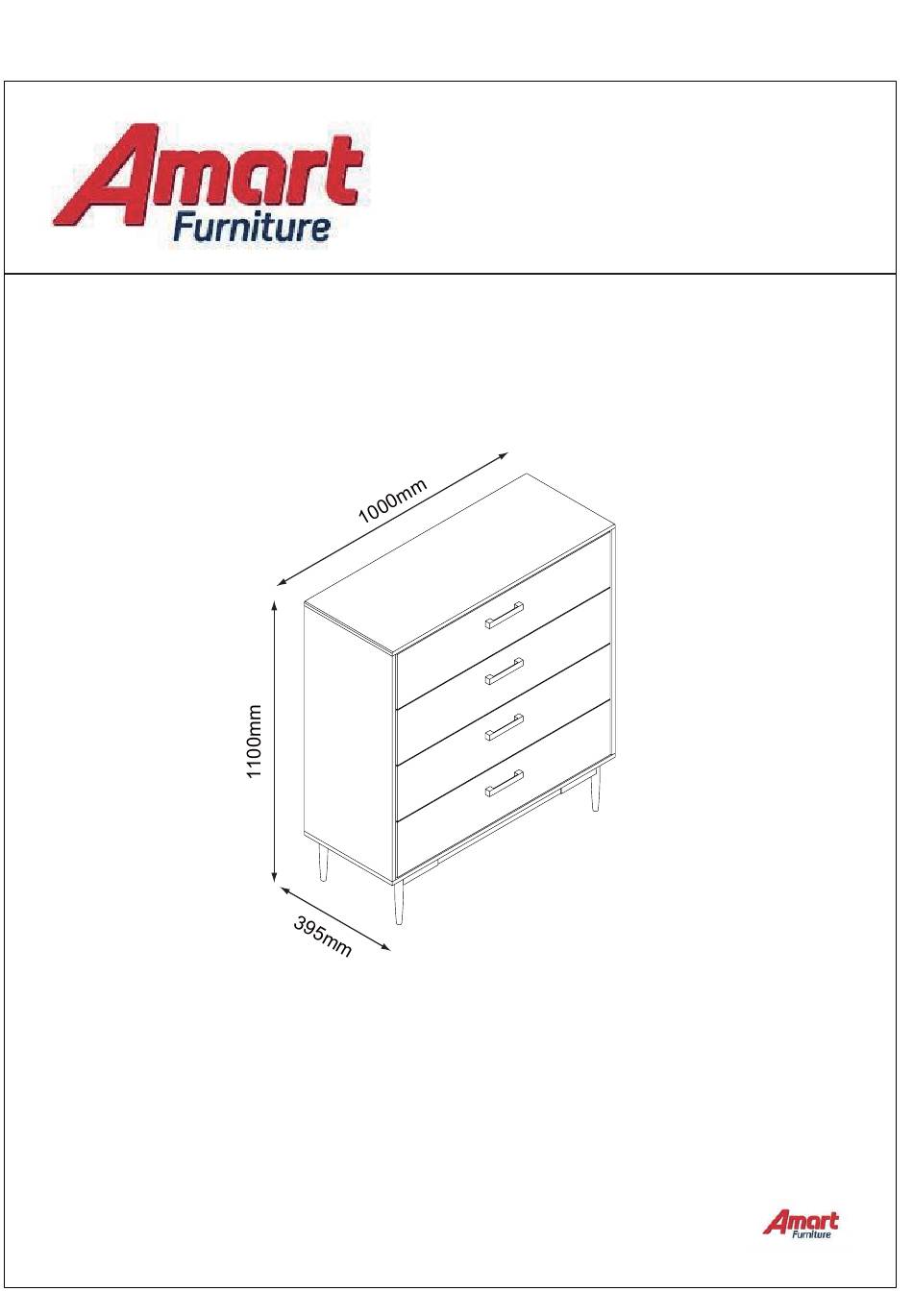

  • Page 1 ITEM CODE 66830 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
  • Page 2 2019-8-28 Item Code: 66830 2-16...
  • Page 3 2019-8-28 3-16 Item Code: 66830...
  • Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
  • Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 2019-9-18 Item Code: 66830 5-16...
  • Page 6 (MM) 871x393x18 871x393x18 961x75x15 871x140x15 1000x395x18 850x39x15 1000x395x18 993x451x2.7 330x140x15 330x140x15 904x140x15 912x322x2.7 314x50x15 955x214x15 Item Code: 66830 6-16 2019-9-18...
  • Page 7 24xD 4xCL 4xCR STEP 1: Fix runners (CL)&(CR) to panels(1)&(2) using screws(D). STEP 2 : Fix cam pin(A) to panel(1) (2). Item Code: 66830 2019-9-18 7-16...
  • Page 8 STEP 3 : Attach panel (3) to panels(1)(2) with cam lock(B) and dowel(C). STEP 4 : Attach panel (5) to panels(1)(2)(4)with dowel(C) and screws(M). 2019-9-18 Item Code: 66830 8-16...
  • Page 9 STEP 5 : Attach panel (6) to the body with dowel(C), using screws(H) by allen key(E). Please do not tighten screws to the end of skirts，just keep the screw head to the same level of skirts. 12xG STEP 7 : Assemble metal legs (I) & (J) to the body with screws (G) by allen key(E).
  • Page 10 STEP 7 : Fix cam pin (A)to panel (7). STEP 8 : Attach panel (7) to the body with cam lock(B) and dowel(C). Item Code: 66830 2019-9-18 10-16...
  • Page 11 24xN STEP 9 : Attach panel (8) to the body with screws(N),and join 2 back panels with filler (O). 20xA 20xB 24xD 20xF 4xK 4xDL 4xDR STEP 10:Install drawers as shown in diagram. 1A:Fix cam lock (A) and handle(K) to 2:Join side panels (9)(10) and back drawer (14).
  • Page 12 STEP 11: Assemble drawer to the body. ASSEMBLY COMPLETE. Item Code: 66830 2019-9-18 12-16...
  • Page 13 STEP 1: Fix bracket to back panel using screws M3.5*14MM . NOTE are used. Failure to do so may result in personal injury or cause property damage if the product topples over. Please note that the screws are only suitable for plasterboard wall materials, please contact local hardware store for corresponding screws for other wall materials.
  • Page 14 STEP 2: Fix bracket onto the wall using screws M4*30MM. Furniture top Wallboard Bracket 14-16...
  • Page 15 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.

  • Page 16: Product Care
