Amart Furniture ANDI 54815 Assembly Instructions Manual

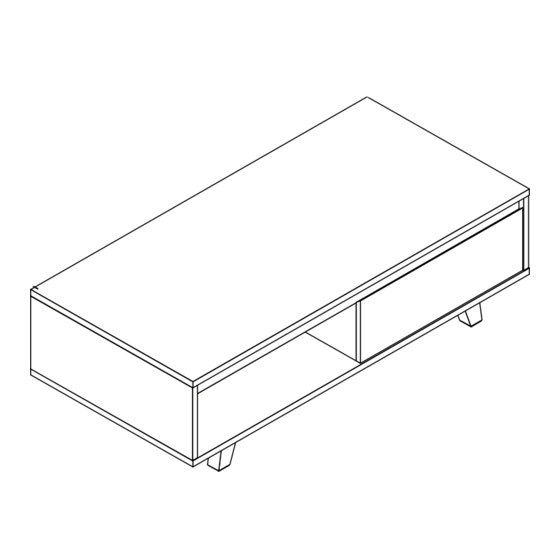

Coffee table
Hide thumbs

Advertisement

Quick Links

Download this manual
Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture,
1200MM
Pty Ltd, Qld, Brisbane Australia.
Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION
ANDI COFFEE TABLE
ITEM CODE 54815
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
595MM
400MM
54815

Advertisement

loading
Need help?

Need help?

Do you have a question about the ANDI 54815 and is the answer not in the manual?

Questions and answers

Related Manuals for Amart Furniture ANDI 54815

Summary of Contents for Amart Furniture ANDI 54815

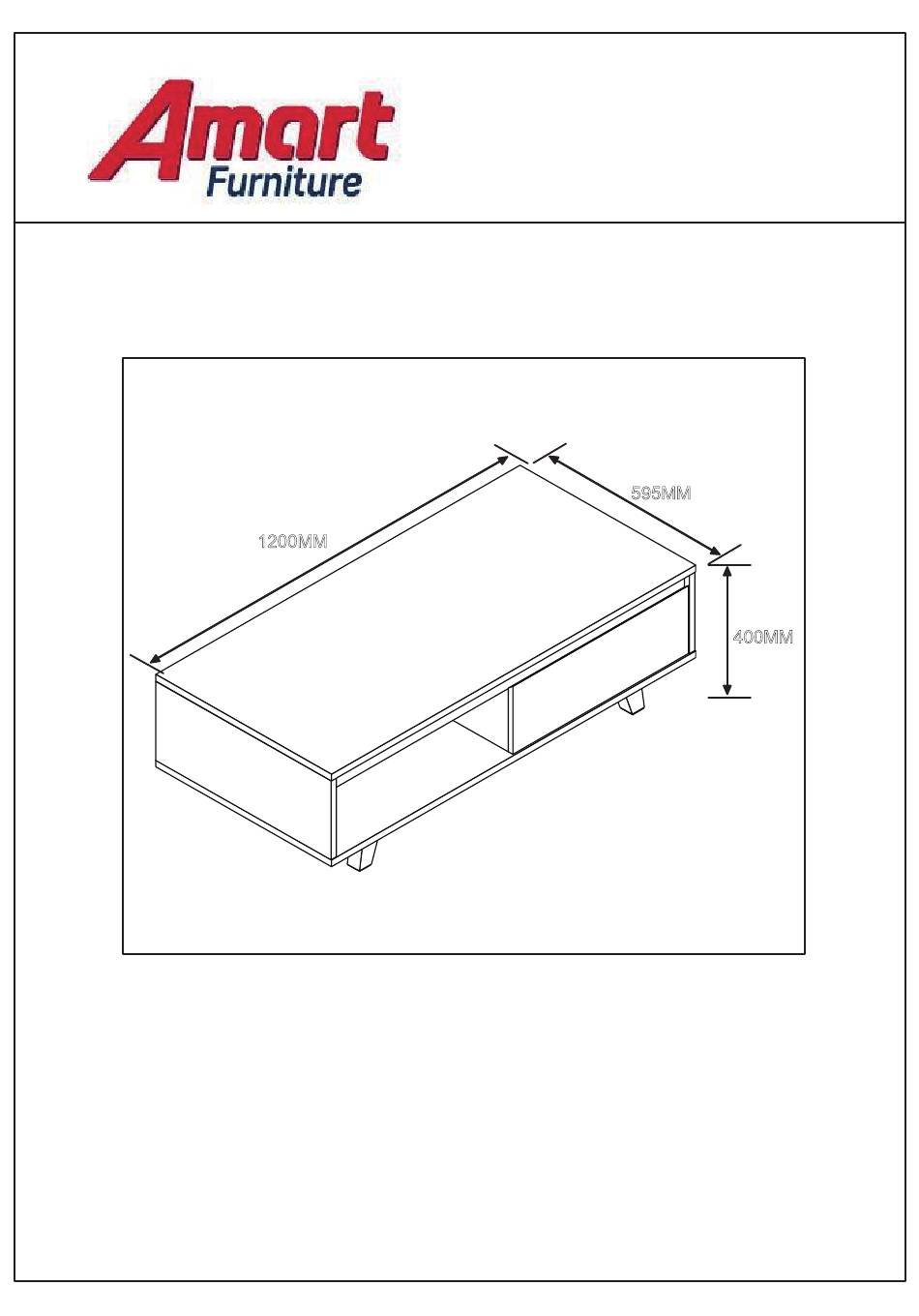

  • Page 1 ASSEMBLY INSTRUCTION ANDI COFFEE TABLE ITEM CODE 54815 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 595MM 1200MM 400MM...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
  • Page 3 EXPLODED EXAMPLE RIGHT SIDE PANEL PARTITION PANEL LEFT SIDE PANEL FRONT/BACK CROSSING BAR TOP PANEL CLAPBOARD BOTTOM PANEL FRONT/BACK SKIRTS LEFT/RIGHT SKIRTS FALSE DRAWER FRONT DRAWER LEFT PANEL DRAWER BACK PANEL DRAWER RIGHT PANEL DRAWER BOTTOM PANEL DRAWER FRONT PANEL cam pin cam pin conner connection...
  • Page 4 PART NUMBER DIMENSIONS(MM) 1&3 589x225x18 554x225x18 40x1160x15 5&7 593x1198x18 577x225x18 8&9 60x140x40 50x800x25 50x414x25 195x580x15 140x400x15 140x507x15 140x400x15 394x517x2.5 195x580x15 54815...
  • Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm 1.5cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 54815...
  • Page 6 STEP 1: Fix runners to partition panel and right side panel . CL CR Insert dowel to partition panel and right side panel . Bottom edge Bottom edge Front veneer edge Front veneer edge STEP 2: Fix conner connerction to right side panel partition panel using screws .Insert dowel to left side panel .
  • Page 7 STEP 3: Fix conner connerction to bottom panel using screws . Insert dowel to clapboard . Front veneer edge Left veneer edge Bottom edge STEP 4:Attach clapboard to left side panel and partition panel with the dowels. Front veneer edge Bottom edge 54815...
  • Page 8 STEP 5:Attach bottom panel to left side panel ,partition panel and clapboard using screws Front veneer edge Front veneer edge Bottom edge Left veneer edge 54815...
  • Page 9 STEP 6: Insert dowel to front/back crossing bars Attach front crossing bars to left side panel and right side panel onto existing unit with dowels .Attach bottom panel to right side panel with screws . Bottom veneer edge Bottom edge Front veneer edge Left veneer edge 54815...
  • Page 10 STEP 7: Insert dowel to front/back skirts .Fix cam pin legs .Attach non-slip stickers to the bottom of legs Bottom veneer edge Bottom veneer edge Left edge Right edge Right veneer edge Left veneer edge STEP 8:Attach legs to back skirt with the cam locks Bottom veneer edge Right veneer edge 54815...
  • Page 11 STEP 9:Attach legs to front skirt with the cam locks Bottom veneer edge Left veneer edge STEP 10:Insert dowel to left/right skirts .Attach left/right skirts to legs using cam lock Front edge Front veneer edge Bottom veneer edge Bottom veneer edge Bottom veneer edge Bottom veneer edge 54815...
  • Page 12 STEP 11:Attach bottom parts to existing unit with screws Front veneer edge Left veneer edge 54815...
  • Page 13 STEP 12: Fix conner connecttion to false drawer front using screws Left veneer edge Front veneer edge STEP 13:Fix cam pin to top panel . Back veneer edge Left veneer edge 54815...
  • Page 14 STEP 14:Attach top panel to the existing unit with the cam locks .Attach top panel to front/back panels with the screws Left veneer edge Front veneer edge Left veneer edge 54815...
  • Page 15 STEP 15: Attach drawer left panel and drawer right panel drawer back panel with screw Bottom edge Bottom edge Bottom edge Front edge STEP 16: Insert bottom panel to the existing unit. Bottom edge Front edge 54815...
  • Page 16 STEP 17: Fix cam pin to drawer front panel .Attach drawer front panel to the body of drawer with cam locks . Bottom edge Bottom venner edge Bottom edge Top veneer edge Left veneer edge Right veneer edge STEP 18: Fix runners to the bottom of drawer using screws .
  • Page 17 STEP 19: Slide drawers into the unit. Front veneer edge Left veneer edge ASSEMBLY COMPLETE DO NOT PUSH OR DRAG THIS FURNITURE – IT WILL CAUSE DAMAGE TO THE LEGS 54815...
  • Page 18 STEP 1: Fix bracket to back panel using screws M3.5*14MM . Put plastic string into bracket. NOTE - This product must be fixed to a wall. It is important to ensure the correct wall fixings are used.Failure to do so may result in per sonal injurey of property damage caused by the item toppling over.As wall materials vary greatly, the fastener required...
  • Page 19 STEP 2: Fix bracket onto the wall using screws M4*30MM. Join wallboard and the furniture with plastic sting. Furniture top Wallboard Bracket 54815...
  • Page 20 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.

  • Page 21: Product Care

    PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
