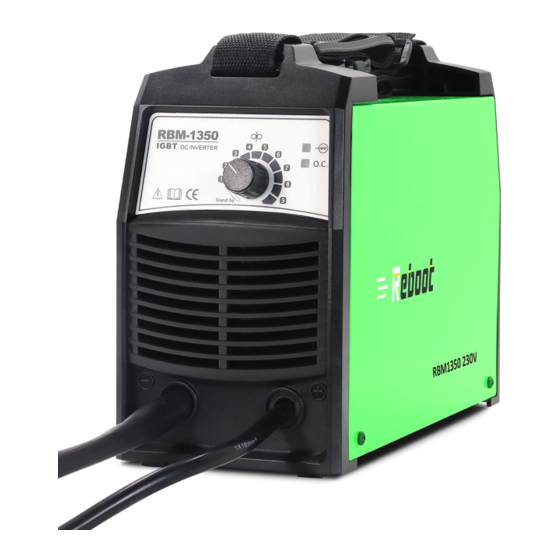

RBM1350(MIG135E)
insulated gate bipolar transistor (IGBT) power module, which can change work frequency to medium frequency so as
to replace the traditional Transistor transformer with the medium frequency transformer. its characterized with
portable, small size, light weight, low consumption and etc. It is also an intelligent and easy-to-operate welding
machine with MIG gasless. It has the characteristics of strong welding performance and diversified usage scenarios.
It can be used in gasless conditions, and the welding effect is excellent，It has very little spatter during welding. It is
highly praised by welding enthusiasts. It is also very friendly to beginners in welding and can quickly get started.
Part 1: Machine Introduction
1. Power indicator
Power on, this light will be on.
2. Fault light
When the welding load is overloaded and the output current of the machine is too large, this light will be on. This situation is
normal and the machine can be restored; when there is damage inside the machine, this light will be on. In this case, the
machine is abnormal and requires maintenance
3. Adjust the value knob
Turn on the power，Clockwise rotate to enlarge the current, and anti-clockwise rotate to reduce the current.
4. MIG Welding torch connector
5. Positive Terminal
Connect the ground wire
Part 2: Introduction to the product and configuration list
Operation Manual
welding machines adopts the latest pulse width modulation (PWM) technology and
Version Number: RBM-1350 20210712A2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBM1350 and is the answer not in the manual?

Questions and answers

Related Manuals for Reboot RBM1350

Summary of Contents for Reboot RBM1350

  • Page 1 Version Number: RBM-1350 20210712A2 Operation Manual RBM1350(MIG135E) welding machines adopts the latest pulse width modulation (PWM) technology and insulated gate bipolar transistor (IGBT) power module, which can change work frequency to medium frequency so as to replace the traditional Transistor transformer with the medium frequency transformer. its characterized with portable, small size, light weight, low consumption and etc.
  • Page 2 Version Number: RBM-1350 20210712A2 Picture Name Remark Please check outside of the whole machine no RBM1350 scratch and break , it can power on normally. 2M, MIG welding torch, Installed on the Welding machine and connected with the machine as a torch whole.

  • Page 3: Part 4: Technical Specifications

    Version Number: RBM-1350 20210712A2 RBM1350(MIG135E) Welding machines will be subjected to strict various tests when they leave the factory to ensure that each welding machine that reaches the user is of high quality, because our machine has to go through tens of thousands of kilometers of long-distance transportation from the factory to the delivery to you.

  • Page 4: Installation

    RBM1350 provides only one welding modes: self-shielded welding with fluxed wire. RBM1350 outstandingly supports 0.8mm and 0.9mm diameter welding wires, and automatically and intelligently matches the best welding parameters according to different specifications of welding wires to achieve the best results.

  • Page 5: Operation

    Version Number: RBM-1350 20210712A2 The welding equipment is equipped with power voltage compensation device. It keeps the machine work normally when power voltage fluctuating ±15% of rated voltage. When using long cable, in order to reduce voltage drop, big section cable is suggested. If the cable is too long, it will affect the performance of arcing and other system function, it is suggested to use the recommend length.

  • Page 6: Panel Layout

    Version Number: RBM-1350 20210712A2 3.1 Panel layout RBM-1350 MIG-135E Name Description Power indicator Set the adjusting knob to 1 or more, the indicator lights on, the machine can work normally. Abnormal indicator When an abnormal occurs, the indicator lights up, the abnormal is eliminated, and the indicator lights out.
  • Page 7 Version Number: RBM-1350 20210712A2 Step 2. Star wire inching. The welding machine is installed with internal wire feeder. Open the side panel, fix the wire spool to the roller in the direction that it could rotating anticlockwise. Match the driving roller with your wire type and size.

  • Page 8: Install Wire Spool

    Version Number: RBM-1350 20210712A2 The machine is self-shielded flux-cored welding. Connect the earth to the workpiece. Press the torch switch, start welding. Release it, stop welding. Attached welding parameters Circuit breaker current Input side ≥1.3mm Output side ≥10mm Cable Earth cable ≥1.3mm 3.3 Install wire spool.
  • Page 9 Version Number: RBM-1350 20210712A2 3.7 With contact tip 1/4” from metal, depress trigger completely to initiate arc. 3.8 To replace the welding wire. Use the cutting pliers to cut off the front section of the contact tip that is more than the welding wire, loosen the wire feed mechanism pinch wheel, rotate the welding wire reel clockwise, turn the welding wire back to the wire feed reel, pay attention to pinch the welding wire with your right hand to avoid the wire bounce.

  • Page 10: Welding Environment And Safety

    Version Number: RBM-1350 20210712A2 Note： 1) Please strictly follow the picture instructions to connect, otherwise it will not be possible to solder. 2) The flux-cored welding wire supports 0.8mm, 0.9mm. 3) The machine can install 1kg(2.2lb) welding wire reels. 4) The machine is equipped with a 1kg(2.2lb) flux cored wire, which can be directly installed and used. 5) Support welding material: carbon steel(Note: Aluminum and stainless steel cannot be welded.) 6) The diameter of the welding wire, the groove of the wire feed wheel and the aperture of the contact tip must match.

  • Page 11: Welding Problems And Resolution

    Version Number: RBM-1350 20210712A2 things around should not be less than 0.3m. Good ventilation is good for welding performance and operational life. Never over load! Check the maximum rated current (according to the Duty Cycle chosen). Make sure the welding current is never higher than the rated value.

  • Page 12: Part 6 Daily Maintenance And Checking

    Version Number: RBM-1350 20210712A2 Part 6 Daily maintenance and checking Daily maintenance  Remove dust regularly with dry compressed air. If the welding machine is used in surroundings with heavy smoke and polluted air, it is necessary to remove dust at least one time one month. Examine inside electric joints and ensure perfect contact (Especially plugs and sockets).
  • Page 13 Version Number: RBM-1350 20210712A2 CABLE Position Checking keys Remarks If torch cable over bended.   Cause poor wire sending. Torch If the metal connecting point of   Unstable arc if cable over bended. cable mobile plug loosen. Wearing-out of the cable insulated ...

  • Page 14: Trouble Shooting And Fault Finding

    Version Number: RBM-1350 20210712A2 Trouble shooting and fault finding Part 7: Notes. The following operations must be performed by qualified electricians with valid certifications. Before maintenance, you are suggested to contact local distributor to verify qualification. Fault symptom Remedy 1. Make sure air switch is closed. 2.
  • Page 15 Version Number: RBM-1350 20210712A2 Part 8: Welding parameter settings RBM1350(MIG135E) machine welding parameters MIG135E RBM1350 Shielding Material Thickness-110V Material Thickness-220V Wire Polarity Wire Material Settings Type 20-30 Setting Size SCFH 24 Ga. 20 Ga. 14 Ga. 24 Ga. 20 Ga.
  • Page 16 Version Number: RBM-1350 20210712A2 2.5% CO2 Inductance...
