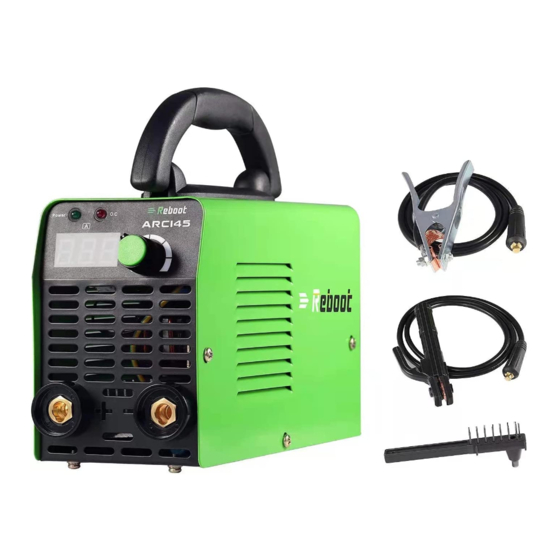

Reboot ARC145 is an intelligent and easy-to-operate welding machine with manual welding mode. It has the
characteristics of good welding performance, diversified usage scenarios, and outstanding welding effects. It is highly
praised by welding enthusiasts and is also very good for beginners in welding. Friendly and can get started quickly.
Part 1: Machine Introduction
1. Power indicator light
Turn on the power, this light will be on.
Current display meter
2.
Only displays the preset current.
Fault light
3.
When the welding load is overloaded and the output current of the machine is too large, this light will be on. This situation is
normal and the machine can be restored; when there is damage inside the machine, this light will be on. In this case, the machine
is abnormal and requires maintenance.
The current adjustment knob
4.
Just adjusts the current.
Positive connection
5.
Install welding holder and grounding clamp.
Negative connection
6.
Install welding holder and grounding clamp.
Note:
ARC145 AC 110V OR AC 220V voltage input
Part 2: Introduction to the product and configuration list.
Operation Manual
1
Version Number: ARC145-20210106A1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARC145 and is the answer not in the manual?

Questions and answers

Related Manuals for Reboot ARC145

Summary of Contents for Reboot ARC145

  • Page 1 Version Number: ARC145-20210106A1 Operation Manual Reboot ARC145 is an intelligent and easy-to-operate welding machine with manual welding mode. It has the characteristics of good welding performance, diversified usage scenarios, and outstanding welding effects. It is highly praised by welding enthusiasts and is also very good for beginners in welding. Friendly and can get started quickly.
  • Page 2 Part 3: Simple test for powering on the machine Reboot ARC145 welding machine will undergo strict various tests when it leaves the factory to ensure that every welding machine that reaches the user is of high quality, because our machine has to go through tens of...
  • Page 3 1、 Please make sure your power supply voltage is 110V+-15% or 220+-15%. REBOOT ARC145D supports 110V and 220V input voltage in North America and Japan, and REBOOT ARC145 supports 220V input voltage in the UK, EU and other regions; if you have a generator power supply, please ensure that the generator is not less than 4000w.
  • Page 4 Version Number: ARC145-20210106A1 2) In the process of high-strength continuous welding, machine protection may occur, and the OC light on the machine panel will be on. After continuous heat dissipation, the machine will return to normal, which is normal. 3) During the welding process, if you feel that the welding is not good, the spatter is too large, or the arc is broken, please exchange the connection of the welding clamp and the grounding clamp with the machine.

  • Page 5: Part 4: Technical Specifications

    Weight (Kg) 3.85 Part 5: Machine operation guidance. If you want to repair some broken fences or fix brackets, you like to use traditional welding rods for operation, you can use REBOOT ARC145. 1、 Connect welding holder and ground clamp.
  • Page 6 2、 To adjust the current, only the current can be adjusted. Note: 1） The welding rod specification supported by REBOOT ARC145 is below 4.0(5/32in), usually 2.5(3/32in) and 3.2(1/8in). European style generally uses E6013, American style generally uses E7018，and stainless steel generally uses ER308.
  • Page 7 Version Number: ARC145-20210106A1 3） Connect the ground clamp to clean bare metal. No rust, paint or other coatings, and ensure good electrical conductivity. 4） The ideal distance between the welding rod and the welding object is 1-2mm(1/64-5/64in), to ensure that the welding rod and the workpiece are in continuous and stable contact.
  • Page 8 Version Number: ARC145-20210106A1 1. The EMC board is used to isolate the external power grid and internal circuits of the machine to avoid mutual interference. 2. All-copper main transformer, big power. 3. 3 high-power large capacitors, the machine is more stable.

  • Page 9: Part 7:Trouble Shooting

    Version Number: ARC145-20210106A1 Part 7:Trouble Shooting PROBLEMS(SYMPTOMS) POSSIBLE CAUSE PROBLEMS IN STICK WELDING 1. Long arc. Excessive spatter 2. High current. 1. Fast movement of the electrode away from piece. Craters 1. Poor cleanliness or distribution of the Welding passes.

This manual is also suitable for:

Arc145d
