Reboot RBM2000P
insulated gate bipolar transistor (IGBT) power module, which can change work frequency to medium frequency so as
to replace the traditional Transistor transformer with the medium frequency transformer. its characterized with
portable, small size, light weight, low consumption and etc. It is also an intelligent and easy-to-operate multi-function
welding machine with MMA, MIG GAS, MIG GASLESS and pulse MIG. It has the characteristics of strong welding
performance and diversified usage scenarios. It can be used in both gas and gasless conditions, especially for
welding aluminum, the shape is particularly good ,and the welding effect is excellent. It is highly praised by welding
enthusiasts. It is also very friendly to beginners in welding and can quickly get started.
Part 1: Machine Introduction

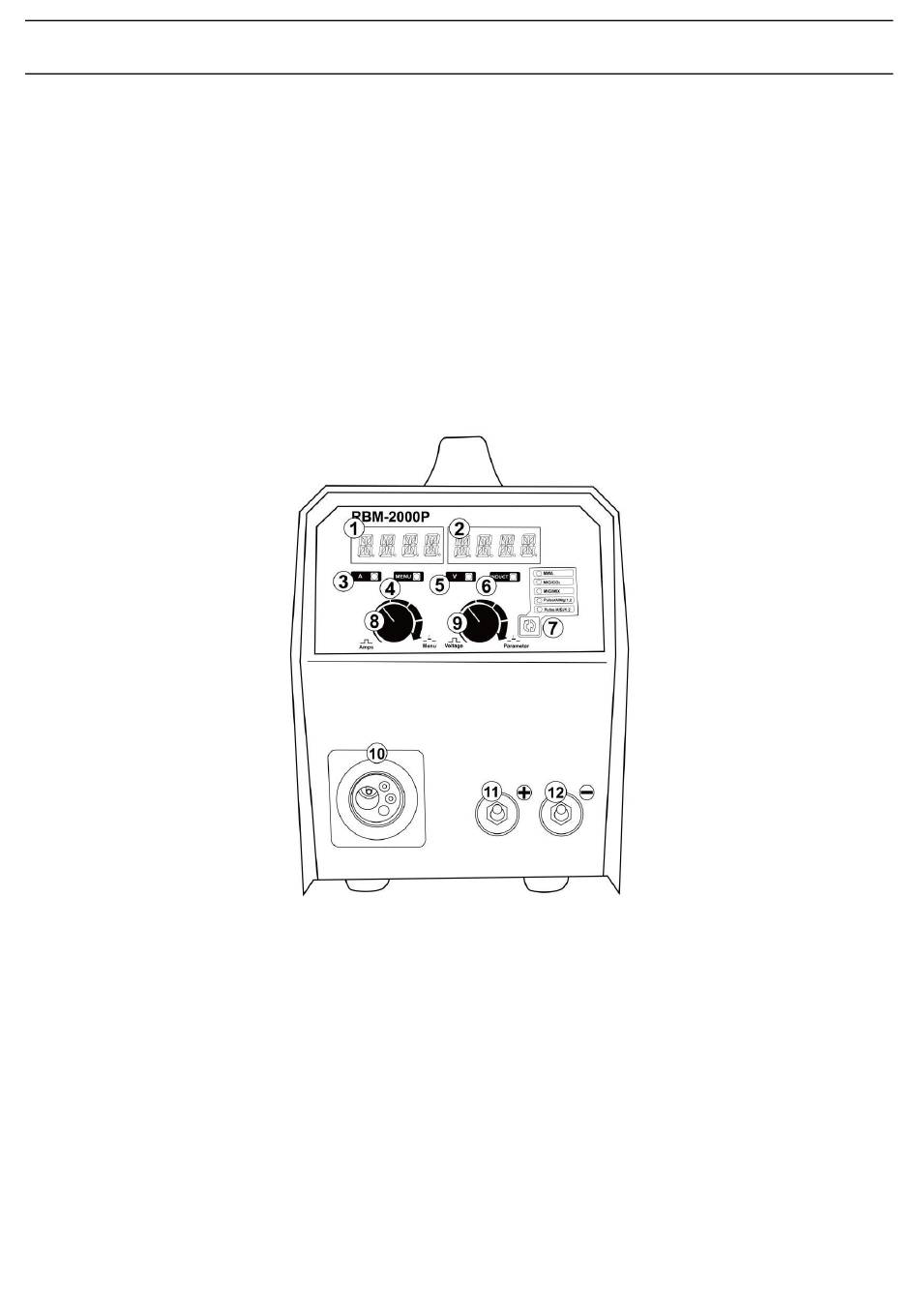

1. Current display meter
The digital Ammeter is used to display preset current.
When the "MENU" light is on, it is also used to display menu items.
Depending on the menu item selected, the status indictor adjacent to the Ammeter will illuminate to show
the units of the programming parameter.
When welding, the Ammeter will display actual welding current.
2. Voltage display meter
The digital Ammeter is used to display preset voltage.
When the "MENU" light is on, the parameters of each menu item are displayed
When the "INDUCT" light is on, the inductance adjustment value is displayed.
When welding, the Ammeter will display actual welding voltage.
3. Current indicator.
4. MENU indicator.
Operation Manual
welding machines adopts the latest pulse width modulation (PWM) technology and
Version Number: RBM2000P-20210517A1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Reboot RBM2000P
Summary of Contents for Reboot RBM2000P
- Page 1 Version Number: RBM2000P-20210517A1 Operation Manual Reboot RBM2000P welding machines adopts the latest pulse width modulation (PWM) technology and insulated gate bipolar transistor (IGBT) power module, which can change work frequency to medium frequency so as to replace the traditional Transistor transformer with the medium frequency transformer. its characterized with portable, small size, light weight, low consumption and etc.
- Page 2 Version Number: RBM2000P-20210517A1 5. Voltage indicator. 6. INDUCT indicator. 7. Select welding mode MMA/ MIG CO2/ MIG MAX/ PULSE MIG ALMg/ PULSE MIG ALSi 8. Knob 8. Long press it to feed the wire quickly. Press once to select the “A” indicator and “MENU” indicator.
- Page 3 Version Number: RBM2000P-20210517A1 2.5m 25MM2 cable, 300A Ground clamp Ground clamp +10-25mm2 European quick plug. Transparent 3m 8*12 transparent network hose. hose Hose clamp Used to fix the trachea to prevent air leakage. Conductive Spare parts, need to be replaced frequently, please tip0.8...
- Page 4 It is a qualified product. Precautions for power-on inspection: 1、 Please make sure your power supply voltage is 220+-15%. Reboot RBM2000P just supports 220V input voltage. if you have a generator power supply, please ensure that the generator is not less than 6000w.
- Page 5 Version Number: RBM2000P-20210517A1 Manual welding parameters of coating (MMA Mode) Model RBM2000P Rated current (A) 30～160A Hot start (HOTI) 10～100A Restore factory settings (DFLT) ON/OFF Unified gas shielded welding parameters (SYNC MIG) Model RBM2000P Rated current (A) 30～200A Arc length -50～50...
- Page 6 Aluminium-silicon pulse gas shielded arc welding, wire PULSE/AISi/1.2 diameter of 1.2. Remark: the unified default wire diameter of RBM2000P common gas shielded arc welding is 0.8mm. If 1.0mm wire is required, the parameters shall be matched manually (3) Regulation of arc force parameter...
- Page 7 Version Number: RBM2000P-20210517A1 (4) Wire detection Long press knob A, then the welding machine feeds wire fast; release knob A to stop wire feed. (5) Gas detection Long press knob B, then the welding machine detects gas; release knob B to stop gas detection.
- Page 8 MMA mode If you want to repair some broken fences or fix brackets, you like to use traditional welding rods for operation, you can use Reboot RBM2000P MMA mode for welding. 1、 Select “MMA” process. 2、 Connect welding holder and ground clamp.
- Page 9 “HotI” is displayed on the digital display on the left, turn the B knob, you can adjust the value of the hot start. Note: 1) The welding rod specification supported by Reboot RBM2000P is below 4.0(5/32in), usually 2.5(3/32in) and 3.2(1/8in). European style generally uses E6013, American style generally uses E7018, and stainless steel generally uses ER308.
- Page 10 Version Number: RBM2000P-20210517A1 conductivity. 4) The ideal distance between the welding rod and the welding object is 1-2mm(1/64-5/64in), to ensure that the welding rod and the workpiece are in continuous and stable contact. The welding rod should not be too high or pressed too low to avoid arc breaking and adhesion.
- Page 11 Version Number: RBM2000P-20210517A1 2、 Set polarity for MIG Solid wire（gas). With gas protection, solid wire welding , connect "P" with "+" in the figure below; Gasless protection, flux-cored wire welding , connect "P" with "-" in the figure below. 3、Connect MIG gun and ground clamp.
- Page 12 Version Number: RBM2000P-20210517A1 5、Set drive roll Face the side marked 0.030” away from the machine. Remarks: 1. There are two grooves on one wire feed wheel, one side is 0.030” (0.8mm) and the other side is 0.040” (1.0mm) to match the corresponding wire diameter.
- Page 13 Version Number: RBM2000P-20210517A1 is fast wire feeding, Let the welding wire be quickly delivered to the gun head. Please make sure that the welding torch is not bent, so that the welding wire will be blocked. 10、Remove consumables and depress trigger until wire comes out. Replace consumables.
- Page 14 Version Number: RBM2000P-20210517A1 Adjustable parameters for gas/gasless shielded arc welding . 1. Current: The welding machine uses the built-in intelligent system with the function of unification. The user can select the corresponding current according to the thickness of the welded plate, and the wire feeding speed is not required to be adjusted.
- Page 15 Version Number: RBM2000P-20210517A1 15、Welding gun installation To ensure smooth welding, check that the wire feeding pipe and contact tip match the type of the welding torch and that the wire feeding pipe matches the wire diameter and type. Wired hoses are suitable for hard wires such as solid carbon steel wires and stainless steel wires, while Teflon hoses are suitable for soft wires such as aluminum and its alloy wires, and copper and its alloy wires.
- Page 16 Version Number: RBM2000P-20210517A1 16、Structure of welding gun Note: 1. Nozzle, 2. Conductive nozzle. They are wearing parts and need to be replaced frequently, please keep inventory. 19. The guide wire tube, it is best to equip a spare part because it may damage the accessories.
- Page 17 Version Number: RBM2000P-20210517A1 wheel groove and contact tip. 4) No wire feeding, please confirm that the working mode is MIG state, please confirm that the welding gun is connected well, press the gun switch or no wire feeding, please contact us.
- Page 18 Version Number: RBM2000P-20210517A1 3、Connect MIG gun and ground clamp. Solid aluminum wire welding 4、Install wire spool 0.030”(0.8mm)/0.040”(1.0mm)diameter 8”(200mm 5kg)wire spool 4”(100mm 1kg)wire spool 5、Set drive roll Face the side marked 1.2 away from the machine. Remarks: 1. There are two grooves on one wire feed wheel, one side is 1.0mm and the other side is 1.2mm to match the corresponding wire diameter.
- Page 19 Version Number: RBM2000P-20210517A1 6、Feed wire and set pressure The pressure should not be too loose, too loose will cause the welding wire to slip and the wire feeding is unstable, and too tight will cause the welding wire to slip and deform.
- Page 20 Version Number: RBM2000P-20210517A1 10、Remove consumables and depress trigger until wire comes out. Replace consumables. 10、Adjust wire feed speed, current and voltage and so on. Adjustable parameters for gas shielded arc welding. 1. Current: The welding machine uses the built-in intelligent system with the function of unification. The user can select the corresponding current according to the thickness of the welded plate, and the wire feeding speed is not required to be adjusted.
- Page 21 Version Number: RBM2000P-20210517A1 18、To replace the welding wire. Use the cutting pliers to cut off the front section of the contact tip that is more than the welding wire, loosen the wire feed mechanism pinch wheel, rotate the welding wire reel clockwise, turn the welding wire back to the wire feed reel, pay attention to pinch the welding wire with your right hand to avoid the wire bounce.
- Page 22 Version Number: RBM2000P-20210517A1 Note: 1. Please strictly follow the picture instructions to connect, otherwise it will not be possible to solder. 2. Aluminum welding wire supports 1.2mm(AL-Mg or AL-Si). 3. The machine can install 5kg(11lb) and 1kg(2.2lb) wire reels. 4. The machine comes with a 0.5kg(1.1lb) 5356AL-Mg welding wire or 1kg （2.2lb） Flux-cored wire.
- Page 23 Version Number: RBM2000P-20210517A1 Part 7: Alarm codes Alarm code Fault Cause Troubleshooting The storage function of Shut down the machine Memory chip ERR 1000 the display panel is and replace the display exception abnormal. panel. Shut down the machine. The welding torch...
