Intermec 6710 Reference Manual

Norand management information bases
Hide thumbs Also See for 6710:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

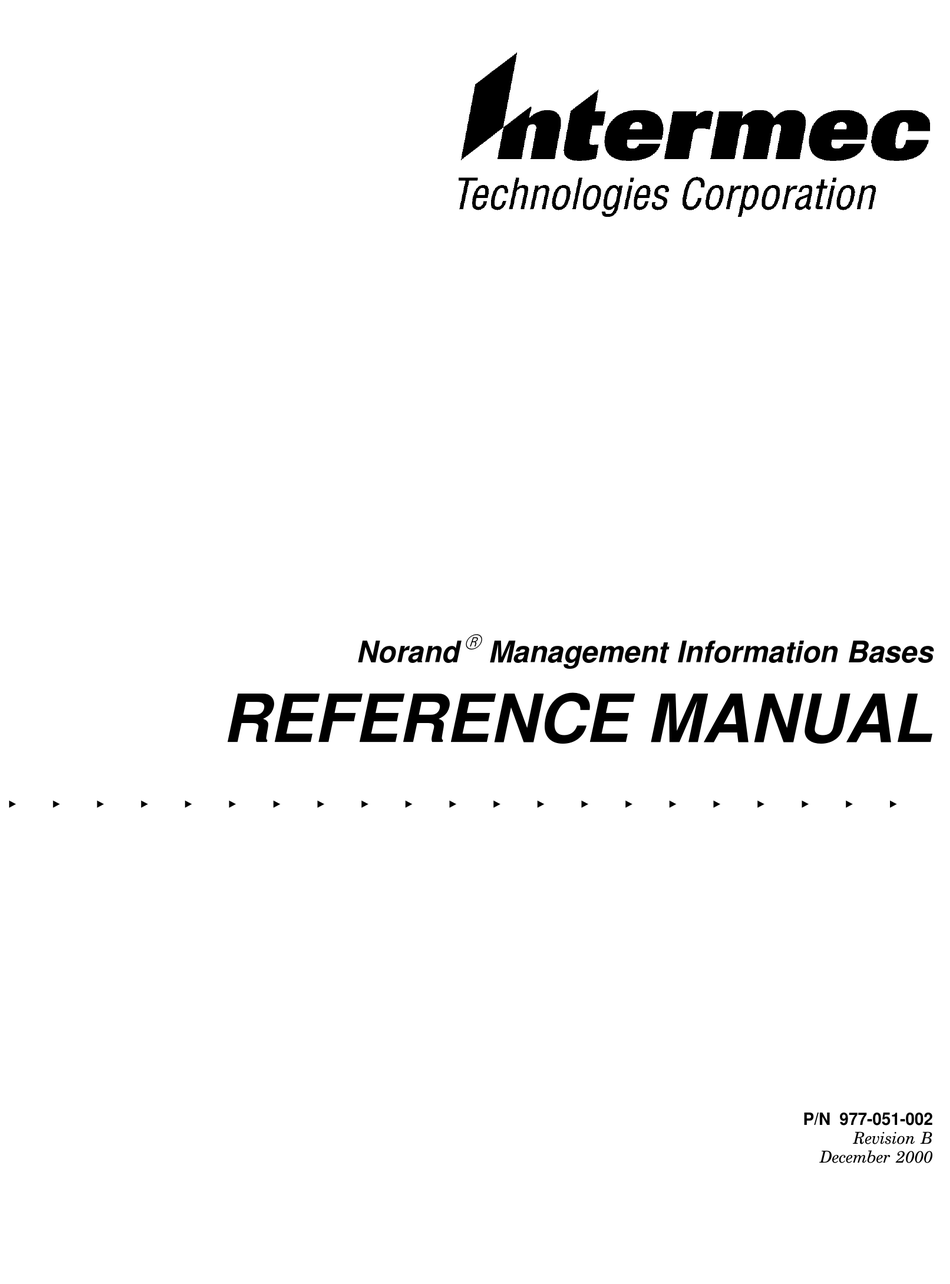

R
Norand
Management Information Bases
REFERENCE MANUAL
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
P/N 977-051-002

Advertisement

Table of Contents
loading

Related Manuals for Intermec 6710

Summary of Contents for Intermec 6710

  • Page 1 Norand Management Information Bases REFERENCE MANUAL " " " " " " " " " " " " " " " " " " " " " P/N 977-051-002...
  • Page 2 " NOTICE Acknowledgments...

  • Page 3: Table Of Contents

    " " " " " " " " " Quick Reference SECTION 1 Introduction SECTION 2 Network Management Basics SECTION 3 Supported Management Information SECTION 4 Norand Open Wireless LAN MIB 6710 Access Point Norand Management Information Bases Reference Manual...
  • Page 4 CONTENTS SECTION 5 Norand Open Wireless LAN MIB RC4030E Gateway SECTION 6 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point FIGURES TABLES ii Norand Management Information Bases Reference Manual...
  • Page 5 CONTENTS GLOSSARY INDEX Norand Management Information Bases Reference Manual...
  • Page 6 CONTENTS Norand Management Information Bases Reference Manual...

  • Page 7: Quick Reference

    " " " " " " " Access to Norand Management Information on 6710 Access Point and RC4030E Gateway " NOTE: Community Strings are case-sensitive. (norand.manage.norandNet.nSNMP.v1Config.communityTable) Quick Reference " " " " " " " CommunityTable communityName Norand Management Information Bases Reference Manual "...
  • Page 8 Quick Reference MIB II Notes for Release 1.x and 1.2x sysContact, sysName, " " " ifTable.ifAdminStatus Norand Management Information Bases Reference Manual sysLocation.

  • Page 9: Introduction

    " " " " " " " Before You Begin " " " Product Contents " " " " " " " " " " " " " Norand Management Information Bases Reference Manual Section 1 Introduction " " " "...

  • Page 10: About This Product

    Getting Started " NOTE: If you have purchased HP OpenView for Windows (Open Wireless LAN version) from Intermec Technologies Corporation, skip this section. See the Norand Open Wireless LAN with HP OpenView for Windows User’s Guide P/N: 961-051-009. " "...
  • Page 11 SECTION 1 " " " " NOTE: If you purchased HP OpenView for Windows (Open Wireless LAN version) from Intermec Technologies Corporation, these icons are incorporated into HP OpenView. " DEVICES C:\OV\OVFILES\DEVICES. " NOTE: If you purchased HP OpenView for Windows (Open Wireless LAN version) from Intermec Technologies Corporation, the DEVICES file is already augmented to incorporate the Intermec devices.

  • Page 12: Customer Support

    Introduction Customer Support Customer Support Center Web Site Bulletin Board Service " " Norand Management Information Bases Reference Manual SECTION 1...

  • Page 13: Network Management Basics

    " " " " " " " Network Management Functions " " " " " Network Management Components " " " " Network Management Basics " " " " " " " Norand Management Information Bases Reference Manual Section 2 "...

  • Page 14: Simple Network Management Protocol

    Network Management Basics Simple Network Management Protocol " " " " " MANAGEMENT STATION Manager Application SNMP Manager Network Interface GetRequest ---> GetNextRequest ---> Set Request ---> Management Information Base " NOTE: Elements to be managed are represented by objects. The MIB is a structured collection of such objects.
  • Page 15 SECTION 2 EXAMPLE: MIB Tree iso (1) org (3) dod (6) internet (1) directory (1) mgmt (2) experimental (3) private (4) mib–2 (1) system (1) interfaces (2) at (3) ip (4) icmp (5) tcp (6) udp (7) egp (8) cmot (9) transmission (10) snmp (11) enterprises (1)
  • Page 16 Network Management Basics MIB–II Information ASN.1 Definition — System.sysDescr of MIB–II EXAMPLE: Object Name Object Data Type Object Access Rights Object Status Object Description Object Identifier Norand Management Information Bases Reference Manual Major Groups of MIB-II ..sysDescr OBJECT–TYPE .

  • Page 17: Snmp Access Control

    SECTION 2 SNMP Access Control " " Traps " " – cold Start – warmStart – linkDown – linkUp – authenticationFailure – egpNeighborLoss " Network Management Basics Norand Management Information Bases Reference Manual...
  • Page 18 Network Management Basics SECTION 2 Norand Management Information Bases Reference Manual...

  • Page 19: Supported Management Information

    Section 3 Supported Management Information " " " " " " " " " " " " " " " " " " " " MIB-II Information Supported MIB-II Information Norand Management Information Bases Reference Manual...
  • Page 20 Device system information is found under nSystem, similar to MIB-II System. The OID for the nSystem group ends in “1,” just as the OID for MIB-II system ends in “1.” Norand Management Information Bases Reference Manual 6710 Access Point MIB Information RC4030E Gateway MIB Information SECTION 3...
  • Page 21 SECTION 3 Supported Management Information 6910 Integrated Gateway/Access Point MIB Information Norand Management Information Bases Reference Manual...
  • Page 22 Supported Management Information SECTION 3 Norand Management Information Bases Reference Manual...

  • Page 23: Norand Open Wireless Lan Mib 6710 Access Point

    Section 4 Norand Open Wireless LAN MIB 6710 Access Point " " " " " " " " " " " " " " " " " " " " AP MIB Directory Norand Management Information Bases Reference Manual...

  • Page 24: Product Oids

    Norand Open Wireless LAN MIB 6710 Access Point Access Point MIB Outline Product OIDs System Information " NOTE: The MIB definition for each group starts on the page given below. " " " " " Norand Management Information Bases Reference Manual...
  • Page 25 SECTION 4 Norand Open Wireless LAN MIB 6710 Access Point fsinfo GROUP segment GROUP dir GROUP Norand Management Information Bases Reference Manual...

  • Page 26: Interface Information

    Norand Open Wireless LAN MIB 6710 Access Point Interface Information " NOTE: The MIB definition for each group starts on the page given below. " " " " " Norand Management Information Bases Reference Manual criticalErrors GROUP nifx GROUP SECTION 4...
  • Page 27 SECTION 4 Norand Open Wireless LAN MIB 6710 Access Point portState GROUP portStats GROUP Norand Management Information Bases Reference Manual...
  • Page 28 Norand Open Wireless LAN MIB 6710 Access Point SECTION 4 portStats GROUP ptxq GROUP Norand Management Information Bases Reference Manual...
  • Page 29 SECTION 4 Norand Open Wireless LAN MIB 6710 Access Point pmsg GROUP Norand Management Information Bases Reference Manual...

  • Page 30: Snmp Version 1 Configuration Group

    Norand Open Wireless LAN MIB 6710 Access Point SNMP Version 1 Configuration Group " NOTE: The MIB definition for each group starts on the page given below. " " Norand Management Information Bases Reference Manual community TABLE trapTarget TABLE SECTION 4...

  • Page 31: Bridging Parameters

    SECTION 4 Bridging Parameters " NOTE: The MIB definition for each group starts on the page given below. " " " " " Norand Open Wireless LAN MIB 6710 Access Point rt GROUP Norand Management Information Bases Reference Manual...
  • Page 32 Norand Open Wireless LAN MIB 6710 Access Point SECTION 4 brg GROUP addr GROUP brgState GROUP 4-10 Norand Management Information Bases Reference Manual...
  • Page 33 SECTION 4 Norand Open Wireless LAN MIB 6710 Access Point brgState GROUP bridgeStats GROUP Norand Management Information Bases Reference Manual 4-11...

  • Page 34: Control Groups

    Norand Open Wireless LAN MIB 6710 Access Point Control Groups " NOTE: The MIB definitions for each group starts on the page given below. " " 4-12 Norand Management Information Bases Reference Manual powerUp GROUP softwareDownLoad GROUP SECTION 4...
  • Page 35 Access Point MIB Definitions –– Norand Open Wireless LAN MIB – 6710 Access Point –– Version 1.15 –– Version Date: 8/23/96 –– This MIB contains objects supported by V1.15 of the 6710 Access Point. –– Subject to Change OWLAP-MIB DEFINITIONS ::= BEGIN IMPORTS...
  • Page 36 Norand Open Wireless LAN MIB 6710 Access Point hwSerialNo SYNTAX INTEGER (0..2147483647) ACCESS read-only STATUS mandatory DESCRIPTION “The serial number of the hardware device.” ::= { hw 4 } hwID SYNTAX INTEGER (0..2147483647) ACCESS read-only STATUS mandatory DESCRIPTION “The device identifier of the hardware device.
  • Page 37 ACCESS read-only STATUS mandatory DESCRIPTION “The segment ID (1 – (NUM_SEGMENTS+1)). which uniquely identifies a segment.” ::= { segEntry 1 } Norand Open Wireless LAN MIB 6710 Access Point If the index is Files stored in OBJECT-TYPE OBJECT-TYPE INTEGER, INTEGER,...
  • Page 38 Norand Open Wireless LAN MIB 6710 Access Point segFirstSector SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “The first physical sector in the segment (1 – (MAX_SECTORS + 1)).” ::= { segEntry 2 } segLastSector SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “The last physical sector in the segment...
  • Page 39 ::= { dirEntry 4 } dirSize SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “The file size in bytes.” ::= { dirEntry 5 } Norand Open Wireless LAN MIB 6710 Access Point INTEGER, DisplayString, INTEGER, INTEGER, DisplayString, DisplayString, OBJECT-TYPE OBJECT-TYPE...
  • Page 40 Norand Open Wireless LAN MIB 6710 Access Point dirDate SYNTAX DisplayString (SIZE (0..12)) ACCESS read-only STATUS mandatory DESCRIPTION “The file date in MM-DD-YYYY display format.” ::= { dirEntry 6 } dirTime SYNTAX DisplayString (SIZE (0..10)) ACCESS read-only STATUS mandatory DESCRIPTION “The file time in HH:MM:SS display format.”...
  • Page 41 ::= { nifx 4 } nifxEntry SYNTAX NIFXEntry ACCESS not-accessible STATUS mandatory INDEX { nifxIndex } ::= { nifxTable 1 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE INTEGER, OBJECT-TYPE A 16-bit value which uniquely The error codes are OBJECT-TYPE...
  • Page 42 Norand Open Wireless LAN MIB 6710 Access Point NIFXEntry ::= SEQUENCE { nifxIndex nifxType nifxInDisabledDiscards nifxInOverruns nifxInHWOverruns nifxInUcastDPkts nifxInNUcastDPkts nifxInLenErrors nifxExcessiveDeferrals nifxInNetIDDiscards nifxInFragDiscards nifxInUFilterDiscards nifxInNUFilterDiscards nifxInQFullDiscards nifxIndex SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “Interface index” ::={ nifxEntry 1 }...
  • Page 43 SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of received frame fragments discarded because a fragmented frame could not be re-assembled.” ::={ nifxEntry 11 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 44 Norand Open Wireless LAN MIB 6710 Access Point nifxInUFilterDiscards SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of enabled received unicast frames discarded due to a unicast filter expression.” ::={ nifxEntry 12 } nifxInNUFilterDiscards SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of enabled received multicast frames discarded due to...
  • Page 45 ACCESS read-only STATUS mandatory DESCRIPTION “Norand port type: ether = 4, Proxim = 196, Falcon = 197, = 198.” ::= { psEntry Norand Open Wireless LAN MIB 6710 Access Point INTEGER, INTEGER, PhysAddress, INTEGER, INTEGER, INTEGER, INTEGER, Counter, INTEGER, Gauge,...
  • Page 46 Norand Open Wireless LAN MIB 6710 Access Point psState SYNTAX INTEGER { disabled(0), ACCESS read-only STATUS mandatory DESCRIPTION “Port state: disabled = 0, idle = 1, open = 2, receive = 3, transmit = 4.” ::= { psEntry psCost SYNTAX INTEGER...
  • Page 47 ::= { psEntry 17 } psPendEnabled SYNTAX INTEGER { true(1), false(2) } ACCESS read-only STATUS mandatory DESCRIPTION “TRUE, if the port supports pending messages.” ::= { psEntry 18 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 48 Norand Open Wireless LAN MIB 6710 Access Point portStats OBJECT IDENTIFIER ::= { nInterfaces 4 } pstcTable SYNTAX SEQUENCE OF PSTCEntry ACCESS not-accessible STATUS mandatory DESCRIPTION “MAC-R port state variables” ::= { portStats 4 } pstcEntry SYNTAX PSTCEntry ACCESS not-accessible...
  • Page 49 “OWL packet send errors” ::= { pstcEntry 9 } pstcParentLinkErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Root port send link errors” ::= { pstcEntry Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 50 Norand Open Wireless LAN MIB 6710 Access Point pstcAlertLinkErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Link errors which generated an ALERT.” ::= { pstcEntry 11 } pstcInUcastRelayPkts SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Received unicast relay packets” ::= { pstcEntry 12 }...
  • Page 51 “The Port Transmit Queue Table” ::= { ptxq 1 } ptxqEntry SYNTAX PTXQEntry ACCESS not-accessible STATUS mandatory INDEX { ptxqPort } ::= { ptxqTable 1 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 52 Norand Open Wireless LAN MIB 6710 Access Point PTXQEntry ::= SEQUENCE { ptxqPort ptxqRegQSize ptxqRegQMax ptxqExpQSize ptxqExpQMax ptxqQHpCount ptxqQRegCount ptxqQExpCount ptxqQHpDiscards ptxqQRegDiscards ptxqQExpDiscards ptxqMultiQSize ptxqMultiQMax ptxqMultiQDiscards Counter ptxqPort SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “MAC-R port ID (1-4). the port.”...
  • Page 53 “Current multicast queue size. packets which are queued for transmission on the (radio) port. Multicast packets are transmitted after HELLO packets on OWL radio ports.” ::= { ptxqEntry 12 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 54 Norand Open Wireless LAN MIB 6710 Access Point ptxqMultiQMax SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “The maximum number of multicast packets which will be queued for transmission on the (radio) port.” ::= { ptxqEntry 13 } ptxqMultiQDiscards OBJECT-TYPE SYNTAX Counter...
  • Page 55 SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of times when the maximum number of stored messages, per platform, was exceeded.” ::= { pmsgEntry 9 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE Norand...
  • Page 56 Norand Open Wireless LAN MIB 6710 Access Point pmsgPendAgedRecCount SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of terminal records discarded due to maximum age (12 minutes).” ::= { pmsgEntry 10 } pmsgPendAgedMsgCount SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of pending messages which were discarded due to...
  • Page 57 ACCESS not-accessible STATUS mandatory DESCRIPTION “The trap target table specifies the IP address of SNMPv1 managers that expect trap notifications.” ::= { v1Config 3 } Norand Open Wireless LAN MIB 6710 Access Point INTEGER, INTEGER, DisplayString, INTEGER INTEGER OBJECT-TYPE OBJECT-TYPE...
  • Page 58 Norand Open Wireless LAN MIB 6710 Access Point -- Row Definition trapTargetEntry SYNTAX TrapTargetEntry ACCESS not-accessible STATUS mandatory DESCRIPTION “Each entry relates to a specific named manager at a given IP address and belonging to given community.” INDEX { trapTargetIndex }...
  • Page 59 ::= { rtEntry 1 } rtPort SYNTAX INTEGER (1..4) ACCESS read-only STATUS mandatory DESCRIPTION “The MAC-R port ID (1–4). the port.” ::= { rtEntry 2 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT-TYPE PhysAddress, INTEGER, INTEGER, INTEGER, INTEGER, TimeTicks,...
  • Page 60 Norand Open Wireless LAN MIB 6710 Access Point rtAge SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “The time (in minutes) since the route was updated.” ::= { rtEntry 3 } rtNodeId SYNTAX INTEGER (0..65535) ACCESS read-only STATUS mandatory DESCRIPTION “16-bit node ID of the destination.
  • Page 61 SYNTAX INTEGER { true(1), false(2) } ACCESS read-only STATUS mandatory DESCRIPTION “True if the destination is a remote LAN.” ::= { rtEntry 16 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 62 Norand Open Wireless LAN MIB 6710 Access Point rtNS SYNTAX INTEGER (0..65535) ACCESS read-only STATUS mandatory DESCRIPTION “MAC-R send sequence number for terminal nodes. (0–65535) sequence number of the last OWL data request PDU sent to the destination.” ::= { rtEntry 17 } rtNR SYNTAX INTEGER (0..65535)
  • Page 63 “Each entry in this table provides address information for all OWL nodes in the network. root node.” ::= { addr 2 } –– Row Definition Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE A number which uniquely identifies the OBJECT-TYPE OBJECT-TYPE...
  • Page 64 Norand Open Wireless LAN MIB 6710 Access Point addrEntry SYNTAX AddrEntry ACCESS not-accessible STATUS mandatory INDEX { addrDestination } ::= { addrTable 1 } –– Columnar Object Definition AddrEntry ::= SEQUENCE { addrDestination PhysAddress, addrAge addrNodeId addrAlias addrDeviceId addrIpAddress –– Leaf Definition...
  • Page 65 STATUS mandatory DESCRIPTION “16-bit (0–65535) ATTACH sequence number. incremented each time the AP sends an ATTACH request.” ::= { brgState 8 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT IDENTIFIER ::= { nBridge 6 } OBJECT-TYPE OBJECT-TYPE...
  • Page 66 Norand Open Wireless LAN MIB 6710 Access Point bsMyRootPriority SYNTAX INTEGER (0..7) ACCESS read-only STATUS mandatory DESCRIPTION “Root priority of the AP (0–7). of 0 cannot become the root node. priority will become the root in an OWL LAN.” ::= { brgState 9 } bsRootPort SYNTAX INTEGER (1..4)
  • Page 67 SYNTAX TimeTicks ACCESS read-only STATUS mandatory DESCRIPTION “Distributed network time (.01 second).” ::= { brgState 21 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE The node ID uniquely identifies OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE The code indicates the reason the parent node.”...
  • Page 68 Norand Open Wireless LAN MIB 6710 Access Point bsUniFloodLevel SYNTAX INTEGER (1..2) ACCESS read-only STATUS mandatory DESCRIPTION “Flooding level for unicast frames (1–2).” ::= { brgState 22 } bsMultiFloodLevel SYNTAX INTEGER (0..3) ACCESS read-only STATUS mandatory DESCRIPTION “Flooding level for multicast frames (0–3).”...
  • Page 69 “Route entries for remote LANs” ::= { bridgeStats 10 } bstcRouteGetErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Route table overflow errors” ::= { bridgeStats 11 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 70 Norand Open Wireless LAN MIB 6710 Access Point bstcEntryGetErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Bridge table overflow errors” ::= { bridgeStats 12 } bstcRmtLanGetErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Remote LAN overflow errors” ::= { bridgeStats 13 }...
  • Page 71 DESCRIPTION “An application variable intended to contain a number relating the progress of the current software download.” ::= { softwareDownLoad 6 } Norand Open Wireless LAN MIB 6710 Access Point OBJECT IDENTIFIER ::= { nControl 2 } OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 72 Norand Open Wireless LAN MIB 6710 Access Point sdSetActivePointers OBJECT-TYPE SYNTAX INTEGER { ACCESS read-write STATUS mandatory DESCRIPTION “If the device reboots due to the expiration of the pwrNextPwrUpTime timer, this value specifies which active pointers will be toggled prior to rebooting.”...
  • Page 73 Section 5 Norand Open Wireless LAN MIB RC4030E Gateway " " " " " " " " " " " " " " " " " " " " GW MIB Directory Norand Management Information Bases Reference Manual...
  • Page 74 Norand Open Wireless LAN MIB RC4030E Gateway Gateway MIB Outline Product OIDs System Information " NOTE: The MIB definition for each group starts on the page given below. " " " Norand Management Information Bases Reference Manual products GROUP hw GROUP SECTION 5...
  • Page 75 SECTION 5 Norand Open Wireless LAN MIB RC4030E Gateway dir GROUP criticalErrors GROUP Norand Management Information Bases Reference Manual...
  • Page 76 Norand Open Wireless LAN MIB RC4030E Gateway SNMP Version 1 Configuration Group " NOTE: The MIB definition for each group starts on the page given below. " " Norand Management Information Bases Reference Manual community TABLE trapTarget TABLE SECTION 5...
  • Page 77 SECTION 5 Transport Groups " NOTE: The MIB definition for each group starts on the page given below. " " " Norand Open Wireless LAN MIB RC4030E Gateway wst GROUP Norand Management Information Bases Reference Manual...
  • Page 78 Norand Open Wireless LAN MIB RC4030E Gateway SECTION 5 wst GROUP hlit GROUP wcbst GROUP Norand Management Information Bases Reference Manual...
  • Page 79 SECTION 5 Norand Open Wireless LAN MIB RC4030E Gateway wcbst GROUP Norand Management Information Bases Reference Manual...
  • Page 80 Norand Open Wireless LAN MIB RC4030E Gateway Application Layer Group " NOTE: The MIB definition for each group starts on the page given below. " " " " " Norand Management Information Bases Reference Manual gs GROUP SECTION 5...
  • Page 81 SECTION 5 Norand Open Wireless LAN MIB RC4030E Gateway gs GROUP rcbs GROUP Norand Management Information Bases Reference Manual...
  • Page 82 Norand Open Wireless LAN MIB RC4030E Gateway SECTION 5 rcbs GROUP hd GROUP td GROUP 5-10 Norand Management Information Bases Reference Manual...
  • Page 83 SECTION 5 Norand Open Wireless LAN MIB RC4030E Gateway ahost GROUP Control Group " NOTE: The MIB definition for this group starts on the page given. " powerUp GROUP Norand Management Information Bases Reference Manual 5-11...
  • Page 84 Norand Open Wireless LAN MIB RC4030E Gateway Gateway MIB Definitions –– Norand Open Wireless LAN MIB – RC4030 Gateway –– Version 1.15 –– Version Date: 8/23/96 –– This MIB contains objects supported by V1.15 of the RC4030 Gateway. –– Subject to Change OWL DEFINITIONS ::= BEGIN IMPORTS enterprises, IpAddress, Counter, Gauge, TimeTicks...
  • Page 85 “The device identifier of the hardware device. 3250, 4000, 4020, 4030, 4033, 3240, 1000, 1100, 1700, 5940, 4650, 100 (ACE process), 200 (DOSNMS), 300 (Norand Proxy Agent), 6710 (Access Point).” ::= { hw 5 } file OBJECT IDENTIFIER ::= { nSystem 3 } OBJECT IDENTIFIER ::= { file 3 } ––...
  • Page 86 Norand Open Wireless LAN MIB RC4030E Gateway dirName SYNTAX DisplayString (SIZE (0..14)) ACCESS read-only STATUS mandatory DESCRIPTION “File name” ::= { dirEntry 2 } dirSegment SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “File segment (1 – (NUM_SEGMENTS + 1)). which identifies the segment containing the file.” ::= { dirEntry 3 } dirType SYNTAX INTEGER { executable(1),...
  • Page 87 SECTION 5 ceEnabled SYNTAX INTEGER { true(1), false(2) } ACCESS read-only STATUS mandatory DESCRIPTION “A value of true(1) signifies that the critical error log was successfully initialized as part of the power-up sequence. result in a value of false(2).” ::= { criticalErrors 1 } ceOverflow SYNTAX INTEGER ACCESS read-only...
  • Page 88 Norand Open Wireless LAN MIB RC4030E Gateway ceLogErrorCount OBJECT-TYPE SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Error count for the associated ceLogErrorCode” ::= { ceLogEntry 2 } nSNMP OBJECT IDENTIFIER ::= { norandNet 11 } v1Config OBJECT IDENTIFIER ::= {nSNMP 1} ––Norand Community table defines the accepted community strings ––and their access privileges.
  • Page 89 SECTION 5 –– Leaf Definition communityIndex SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “Identifies the community row.” ::= { communityEntry 1 } communityStatus SYNTAX INTEGER { ACCESS read-write STATUS mandatory DESCRIPTION “Status of a community record. only be performed by a manager using the SUPER-USER community name.
  • Page 90 Norand Open Wireless LAN MIB RC4030E Gateway -- Columnar Object Definition TrapTargetEntry ::= SEQUENCE { trapTargetIndex trapTargetStatus trapTargetName trapTargetIpAddress IpAddress -- Leaf Definition trapTargetIndex SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “Identifies the trapTarget row” ::= { trapTargetEntry 1 } trapTargetStatus SYNTAX INTEGER {...
  • Page 91 SECTION 5 wstClockTicks SYNTAX TimeTicks ACCESS read-only STATUS mandatory DESCRIPTION “WTP clock ticks in hundredths of seconds.” ::= { wst 3 } wstInternalErrorCount SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of internal WTP errors.” ::= { wst 4 } wstSessionsLost SYNTAX Counter ACCESS read-only...
  • Page 92 Norand Open Wireless LAN MIB RC4030E Gateway wstIframesRetransmitted OBJECT-TYPE SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Total number of WTP data frames which were lost and retransmitted.” ::= { wst 11 } wstCheckSumErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of WTP information frames which were discarded to WTP check sum errors.”...
  • Page 93 SECTION 5 wstT1Bucket2 SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The total number of times that 3 consecutive T1 errors have occurred.” ::= { wst 18 } wstT1Bucket3 SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The total number of times that 5 consecutive T1 errors have occurred.”...
  • Page 94 Norand Open Wireless LAN MIB RC4030E Gateway wstRejectCount SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of REJECT frames received by the local WTP entity.” ::= { wst 25 } wstSessionsReset SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of active WTP sessions which have been reset in the local WTP entity.”...
  • Page 95 SECTION 5 wstBrgTxErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of transmission errors reported to the WTP layer by the network layer.” ::= { wst 32 } wstFatalBrgErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of data errors reported to the WTP layer by the network layer.
  • Page 96 Norand Open Wireless LAN MIB RC4030E Gateway hlitThreshCount OBJECT-TYPE SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “When the WTP exceeds the time in hlitThreshold, this count is incremented. ::= { hlit 6 } hlitLongest SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “This is the maximum time that the WTP took to service transmit requests.
  • Page 97 3=listen, 4=unitdata, 5=unitdata listen, 6=open, 7=send, 8=closing, 9=disconnect.” ::= { wcbsEntry 3 } wcbstDsap SYNTAX INTEGER (0..255) ACCESS read-only STATUS mandatory DESCRIPTION “Destination service access point.” ::= { wcbsEntry 4 } Norand Open Wireless LAN MIB RC4030E Gateway INTEGER, INTEGER, INTEGER, INTEGER, INTEGER,...
  • Page 98 Norand Open Wireless LAN MIB RC4030E Gateway wcbstSsap SYNTAX INTEGER (0..255) ACCESS read-only STATUS mandatory DESCRIPTION “Source service access point.” ::= { wcbsEntry 5 } wcbstNet16Addr SYNTAX INTEGER (2048..9192) ACCESS read-only STATUS mandatory DESCRIPTION “The 16-bit network address of the remote node which is active on the connection, if the control block is in an active state.”...
  • Page 99 SECTION 5 wcbstTiTimeouts SYNTAX Counter ACCESS read-write STATUS mandatory DESCRIPTION “Number of Ti timeouts. connection is idle for an INACITVE TIMEOUT period.” ::= { wcbsEntry 12 } wcbstFramesRecv SYNTAX Counter ACCESS read-write STATUS mandatory DESCRIPTION “Total number of WTP frames received.” ::= { wcbsEntry 13 } wcbstIframesRecv SYNTAX Counter...
  • Page 100 Norand Open Wireless LAN MIB RC4030E Gateway wcbstIframesRetransmitted OBJECT-TYPE SYNTAX Counter ACCESS read-write STATUS mandatory DESCRIPTION “Total number of data frames which were lost and had to be retransmitted.” ::= { wcbsEntry 20 } wcbstState SYNTAX INTEGER (0..2147483647) ACCESS read-only STATUS mandatory DESCRIPTION “The internal software state of the LLC control block.”...
  • Page 101 SECTION 5 gsHostHaltCount SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “Number of HALT commands received from the host task.” ::= { gs 6 } gsHostInvalidCount SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “Number of invalid messages received from the host task.”...
  • Page 102 Norand Open Wireless LAN MIB RC4030E Gateway gsDataRecv SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “Number of data blocks received from the network.” ::= { gs 14 } gsTermResetCount SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “Number of times a session was reset by a terminal.” ::= { gs 15 } gsTermContinueCount SYNTAX Counter...
  • Page 103 SECTION 5 gsXmitErrors SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “Number of transport transmission errors.” ::= { gs 22 } gsTermDiscardCount SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “Number of discarded blocks received from terminals.” ::= { gs 23 } gsHostDelayMax SYNTAX INTEGER (0..9999) ACCESS read-write...
  • Page 104 Norand Open Wireless LAN MIB RC4030E Gateway gsTermDelayMax SYNTAX INTEGER (0..65535) ACCESS read-write STATUS mandatory DESCRIPTION “The maximum terminal transaction time in hundredths of seconds. maximum delay are not included as terminal transactions.” ::= { gs 28 } gsTermDelayThreshold OBJECT-TYPE SYNTAX INTEGER (0..65535) ACCESS read-write STATUS mandatory...
  • Page 105 SECTION 5 gsHostMaxCount SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “The number of transactions which exceed the maximum host delay time set in gsHostDelayMax.” ::= { gs 34 } gsTermDelayTraceOn SYNTAX INTEGER { true(1), false(2) } ACCESS read-write STATUS mandatory DESCRIPTION “Terminal transaction delay diagnostics are enabled by setting gsTermDelayTraceOn to a non-zero value.
  • Page 106 Norand Open Wireless LAN MIB RC4030E Gateway –– Row Definition rcbsEntry SYNTAX RcbsEntry ACCESS not-accessible STATUS mandatory INDEX { rcbsIndex } ::= { rcbsTable 1 } –– Columnar Object Definition RcbsEntry ::= SEQUENCE { –– Leaf Definition rcbsIndex SYNTAX INTEGER (1..65535) ACCESS read-only STATUS mandatory DESCRIPTION...
  • Page 107 SECTION 5 rcbsType SYNTAX INTEGER (0..255) ACCESS read-only STATUS mandatory DESCRIPTION “The terminal power up type as passed by the terminal at the beginning of an RTC session. V4.16 of terminal software). 61 indicate 3270 emulation; 62 = 5250 emulation; 63 = VT220;...
  • Page 108 Norand Open Wireless LAN MIB RC4030E Gateway rcbsDataRecv SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “Number of data blocks received from the terminal.” ::= { rcbsEntry 10 } rcbsTermResetCount SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “Number of times the terminal has reset the session.” ::= { rcbsEntry 11 } rcbsTermContinueCount SYNTAX Counter...
  • Page 109 SECTION 5 rcbsTermResetTime SYNTAX INTEGER (0..2147483647) ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “The time, in seconds, since the terminal reset its session.” ::= { rcbsEntry 17 } rcbsTermInactTime SYNTAX INTEGER (0..2147483647) ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “The time, in seconds, since a message was received from the terminal.”...
  • Page 110 Norand Open Wireless LAN MIB RC4030E Gateway rcbsTermDelayTotal SYNTAX Counter ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “The total time for all transactions for the terminal defined by rcbsTerminal.” ::= { rcbsEntry 24 } rcbsTermDelayLast SYNTAX INTEGER (0..65535) ACCESS read-only ––read-reset STATUS mandatory DESCRIPTION “The time for the last transaction for the terminal...
  • Page 111 SECTION 5 rcbsHostAlias SYNTAX DisplayString (SIZE (0..16)) ACCESS read-only STATUS mandatory DESCRIPTION “The alias of the host computer associated with the RCB.” ::= { rcbsEntry 30 } OBJECT IDENTIFIER ::= { gwSession 3 } –– The HD Table hdTableReset SYNTAX INTEGER { true(1), false(2) } ACCESS read-write STATUS mandatory DESCRIPTION...
  • Page 112 Norand Open Wireless LAN MIB RC4030E Gateway hdHostDelay SYNTAX INTEGER (0..65535) ACCESS read-write STATUS mandatory DESCRIPTION “The host delay time. a host delay bucket bounded by the value in the preceding row (or 0) and the value in the row. times are defined in 1/100th seconds.”...
  • Page 113 SECTION 5 –– Row Definition tdEntry SYNTAX TdEntry ACCESS not-accessible STATUS mandatory INDEX { tdBucket } ::= { tdTable 1 } –– Columnar Object Definition TdEntry ::= SEQUENCE { –– Leaf Definition tdTrxnTime SYNTAX INTEGER (0..65535) ACCESS read-write STATUS mandatory DESCRIPTION “The round trip transaction time.
  • Page 114 Norand Open Wireless LAN MIB RC4030E Gateway ahstFramesOut SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of frames from the gateway sent to the host.” ::= { ahost 3 } ahstFramesIn SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of frames received from the host.” ::= { ahost 4 } ahstIdleDetected SYNTAX Counter...
  • Page 115 SECTION 5 ahstGapErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of times the Gap time out is exceeded. out value is set with the CMT5 command and is measured by the start of a command and the receipt of a carriage return <CR>.
  • Page 116 Norand Open Wireless LAN MIB RC4030E Gateway ahstNoiseErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of UART signal samples with ambiguous results.” ::= { ahost 17 } ahstBreakErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of async break characters received.” ::= { ahost 18 } nControl OBJECT IDENTIFIER ::= { norandNet 105 }...
  • Page 117 Section 6 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point " " " " " " " " " " " " " " " " " " " " IGAP MIB Directory Norand Management Information Bases Reference Manual...
  • Page 118 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point SECTION 6 IGAP MIB Directory Integrated Gateway/Access Point MIB Outline Product OIDs products GROUP Norand Management Information Bases Reference Manual...
  • Page 119 System Information " NOTE: The MIB definition for each group starts on the page given below. " " " " " Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point hw GROUP fsinfo GROUP Norand Management Information Bases Reference Manual...
  • Page 120 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point SECTION 6 segment GROUP dir GROUP criticalErrors GROUP Norand Management Information Bases Reference Manual...
  • Page 121 SECTION 6 Interface Information " NOTE: The MIB definition for each group starts on the page given below. " " " " " Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point nifx GROUP Norand Management Information Bases Reference Manual...
  • Page 122 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point SECTION 6 portState GROUP portStats GROUP Norand Management Information Bases Reference Manual...
  • Page 123 SECTION 6 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point portStats GROUP ptxq GROUP Norand Management Information Bases Reference Manual...
  • Page 124 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point SECTION 6 pmsg GROUP Norand Management Information Bases Reference Manual...
  • Page 125 SNMP Version 1 Configuration Group " NOTE: The MIB definition for each group starts on the page given below. " " Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point community TABLE trapTarget TABLE Norand Management Information Bases Reference Manual...
  • Page 126 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point Bridging Parameters " NOTE: The MIB definition for each group starts on the page given below. " " " " " 6-10 Norand Management Information Bases Reference Manual rt GROUP SECTION 6...
  • Page 127 SECTION 6 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point brg GROUP addr GROUP brgState GROUP Norand Management Information Bases Reference Manual 6-11...
  • Page 128 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point SECTION 6 brgState GROUP bridgeStats GROUP 6-12 Norand Management Information Bases Reference Manual...
  • Page 129 SECTION 6 Transport Groups " NOTE: The MIB definition for each group starts on the page given below. " " " Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point wst GROUP Norand Management Information Bases Reference Manual 6-13...
  • Page 130 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point SECTION 6 wst GROUP hlit GROUP wcbst GROUP 6-14 Norand Management Information Bases Reference Manual...
  • Page 131 SECTION 6 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point wcbst GROUP Norand Management Information Bases Reference Manual 6-15...
  • Page 132 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point Application Layer Groups " NOTE: The MIB definition for each group starts on the page given below. " " " " " " " 6-16 Norand Management Information Bases Reference Manual...
  • Page 133 SECTION 6 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point gs GROUP rcbs GROUP Norand Management Information Bases Reference Manual 6-17...
  • Page 134 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point SECTION 6 rcbs GROUP hd GROUP td GROUP 6-18 Norand Management Information Bases Reference Manual...
  • Page 135 SECTION 6 Control Groups " NOTE: The MIB definition for each group starts on the page given below. " " Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point ahost GROUP powerUp GROUP Norand Management Information Bases Reference Manual 6-19...
  • Page 136 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point SECTION 6 softwareDownLoad GROUP 6-20 Norand Management Information Bases Reference Manual...
  • Page 137 Integrated Gateway/Access Point MIB Definitions –– Norand Open Wireless LAN MIB – Access Point and Gateway –– Version 1.15 –– Version Date: 8/23/96 –– This MIB contains objects supported by V1.15 of the 6710 Access Point and V1.14 –– of the RC4030 Gateway. ––...
  • Page 138 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point hwSerialNo SYNTAX INTEGER (0..2147483647) ACCESS read-only STATUS mandatory DESCRIPTION “The serial number of the hardware device.” ::= { hw 4 } hwID SYNTAX INTEGER (0..2147483647) ACCESS read-only STATUS mandatory DESCRIPTION “The device identifier of the hardware device. Values = 3250,...
  • Page 139 STATUS mandatory DESCRIPTION “The segment ID (1 - (NUM_SEGMENTS+1)). number which uniquely identifies a segment.” ::= { segEntry 1 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point Files stored in OBJECT IDENTIFIER ::= { file 2 } OBJECT-TYPE OBJECT-TYPE...
  • Page 140 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point segFirstSector OBJECT-TYPE SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “The first physical sector in the segment (1 - (MAX_SECTORS + 1)).” ::= { segEntry 2 } segLastSector SYNTAX INTEGER ACCESS read-only...
  • Page 141 ::= { dirEntry 4 } dirSize SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “The file size in bytes.” ::= { dirEntry 5 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point INTEGER, DisplayString, INTEGER, INTEGER, DisplayString, DisplayString, OBJECT-TYPE OBJECT-TYPE...
  • Page 142 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point dirDate SYNTAX DisplayString (SIZE (0..12)) ACCESS read-only STATUS mandatory DESCRIPTION “The file date in MM-DD-YYYY display format.” ::= { dirEntry 6 } dirTime SYNTAX DisplayString (SIZE (0..10)) ACCESS read-only STATUS mandatory DESCRIPTION “The file time in HH:MM:SS display format.”...
  • Page 143 SYNTAX NIFXEntry ACCESS not-accessible STATUS mandatory INDEX { nifxIndex } ::= { nifxTable 1 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE INTEGER, OBJECT-TYPE A 16-bit value which uniquely The error codes are OBJECT IDENTIFIER ::= { norandNET 2 }...
  • Page 144 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point NIFXEntry ::= SEQUENCE { nifxIndex nifxType nifxInDisabledDiscards nifxInOverruns nifxInHWOverruns nifxInUcastDPkts nifxInNUcastDPkts nifxInLenErrors nifxExcessiveDeferrals nifxInNetIDDiscards nifxInFragDiscards nifxInUFilterDiscards nifxInNUFilterDiscards nifxInQFullDiscards nifxIndex SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “Interface index” ::={ nifxEntry 1 }...
  • Page 145 SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of received frame fragments discarded because a fragmented frame could not be re-assembled.” ::={ nifxEntry 11 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 146 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point nifxInUFilterDiscards SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of enabled received unicast frames discarded due to a unicast filter expression.” ::={ nifxEntry 12 } nifxInNUFilterDiscards OBJECT-TYPE SYNTAX Counter ACCESS read-only...
  • Page 147 ACCESS read-only STATUS mandatory DESCRIPTION “Norand port type: ether = 4, Proxim = 196, Falcon = 197, = 198” ::= { psEntry Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point INTEGER, INTEGER, PhysAddress, INTEGER, INTEGER, INTEGER, INTEGER, Counter, INTEGER,...
  • Page 148 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point psState SYNTAX INTEGER { disabled(0), ACCESS read-only STATUS mandatory DESCRIPTION “Port state: disabled = 0, idle open receive transmit = 4 ” ::= { psEntry psCost SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “Incremental path cost of the port.
  • Page 149 SYNTAX INTEGER { true(1), false(2) } ACCESS read-only STATUS mandatory DESCRIPTION “TRUE, if the port supports pending messages.” ::= { psEntry 18 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 150 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point portStats pstcTable SYNTAX SEQUENCE OF PSTCEntry ACCESS not-accessible STATUS mandatory DESCRIPTION “MAC-R port state variables.” ::= { portStats 4 } pstcEntry SYNTAX PSTCEntry ACCESS not-accessible STATUS mandatory INDEX { pstcPort }...
  • Page 151 “OWL packet send errors.” ::= { pstcEntry 9 } pstcParentLinkErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Root port send link errors” ::= { pstcEntry Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE 10 }...
  • Page 152 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point pstcAlertLinkErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Link errors which generated an ALERT.” ::= { pstcEntry 11 } pstcInUcastRelayPkts SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Received unicast relay packets”...
  • Page 153 “The Port Transmit Queue Table” ::= { ptxq 1 } ptxqEntry SYNTAX PTXQEntry ACCESS not-accessible STATUS mandatory INDEX { ptxqPort } ::= { ptxqTable 1 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 154 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point PTXQEntry ::= SEQUENCE { ptxqPort ptxqRegQSize ptxqRegQMax ptxqExpQSize ptxqExpQMax ptxqQHpCount ptxqQRegCount ptxqQExpCount ptxqQHpDiscards ptxqQRegDiscards ptxqQExpDiscards ptxqMultiQSize ptxqMultiQMax ptxqMultiQDiscards Counter ptxqPort SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “MAC-R port ID (1-4).
  • Page 155 (radio) port. Multicast packets are transmitted after HELLO packets on OWL radio ports.” ::= { ptxqEntry 12 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 156 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point ptxqMultiQMax SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “The maximum number of multicast packets which will be queued for transmission on the (radio) port.” ::= { ptxqEntry 13 } ptxqMultiQDiscards OBJECT-TYPE...
  • Page 157 ACCESS read-only STATUS mandatory DESCRIPTION “The number of times when the maximum number of stored messages, per platform, was exceeded.” ::= { pmsgEntry 9 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE Norand...
  • Page 158 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point pmsgPendAgedRecCount SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of terminal records discarded due to maximum age (12 minutes).” ::= { pmsgEntry 10 } pmsgPendAgedMsgCount SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of pending messages which were discarded due to...
  • Page 159 DESCRIPTION “SET and GET privileges of community.” ::= { communityEntry 4 } -- Norand trap table defines all trap target IP addresses -- Table Definition Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point INTEGER, INTEGER, DisplayString, INTEGER, INTEGER...
  • Page 160 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point trapTargetTable SYNTAX SEQUENCE OF TrapTargetEntry ACCESS not-accessible STATUS mandatory DESCRIPTION “The trap target table specifies the IP address of SNMPv1 managers that expect trap notifications.” ::= { v1Config 3 } -- Row Definition...
  • Page 161 STATUS mandatory DESCRIPTION “The MAC-R port ID (1-4). the port.” ::= { rtEntry 2 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT IDENTIFIER ::= { norandNET 17 } OBJECT IDENTIFIER ::= { nBridge 2 } OBJECT-TYPE OBJECT-TYPE...
  • Page 162 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point rtAge SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION “The time (in minutes) since the route was updated.” ::= { rtEntry 3 } rtNodeId SYNTAX INTEGER (0..65535) ACCESS read-only STATUS mandatory DESCRIPTION “16-bit node ID of the destination.
  • Page 163 SYNTAX INTEGER { true(1), false(2) } ACCESS read-only STATUS mandatory DESCRIPTION “True if the destination is a remote LAN.” ::= { rtEntry 16 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 164 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point rtNS SYNTAX INTEGER (0..65535) ACCESS read-only STATUS mandatory DESCRIPTION “MAC-R send sequence number for terminal nodes. (0-65535) sequence number of the last OWL data request PDU sent to the destination.” ::= { rtEntry 17 } rtNR SYNTAX INTEGER (0..65535)
  • Page 165 “Each entry in this table provides address information for all OWL nodes in the network. root node.” ::= { addr 2 } -- Row Definition Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE A number which uniquely identifies the OBJECT-TYPE OBJECT-TYPE...
  • Page 166 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point addrEntry SYNTAX AddrEntry ACCESS not-accessible STATUS mandatory INDEX { addrDestination } ::= { addrTable 1 } -- Columnar Object Definition AddrEntry ::= SEQUENCE { addrDestination PhysAddress, addrAge addrNodeId addrAlias addrDeviceId addrIpAddress...
  • Page 167 STATUS mandatory DESCRIPTION “16-bit (0-65535) ATTACH sequence number. incremented each time the AP sends an ATTACH request.” ::= { brgState 8 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT IDENTIFIER ::= { nBridge 6 } OBJECT-TYPE OBJECT-TYPE...
  • Page 168 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point bsMyRootPriority SYNTAX INTEGER (0..7) ACCESS read-only STATUS mandatory DESCRIPTION “Root priority of the AP (0-7). of 0 cannot become the root node. priority will become the root in an OWL LAN.”...
  • Page 169 SYNTAX TimeTicks ACCESS read-only STATUS mandatory DESCRIPTION “Distributed network time (.01 sec).” ::= { brgState 21 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE The node ID uniquely identifies OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE The code indicates the reason the parent node.”...
  • Page 170 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point bsUniFloodLevel SYNTAX INTEGER (1..2) ACCESS read-only STATUS mandatory DESCRIPTION “Flooding level for unicast frames (1-2).” ::= { brgState 22 } bsMultiFloodLevel SYNTAX INTEGER (0..3) ACCESS read-only STATUS mandatory DESCRIPTION “Flooding level for multicast frames (0-3).”...
  • Page 171 “Route entries for remote LANs” ::= { bridgeStats 10 } bstcRouteGetErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Route table overflow errors” ::= { bridgeStats 11 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 172 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point bstcEntryGetErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Bridge table overflow errors” ::= { bridgeStats 12 } bstcRmtLanGetErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Remote LAN overflow errors” ::= { bridgeStats 13 }...
  • Page 173 ::= { wst 9 } wstIframesRecv SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Total number of WTP data frames received.” ::= { wst 10 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 174 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point wstIframesRetransmitted OBJECT-TYPE SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Total number of WTP data frames which were lost and retransmitted.” ::= { wst 11 } wstCheckSumErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of WTP information frames which were discarded...
  • Page 175 SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of RNR frames received by the local WTP entity.” ::= { wst 24 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 176 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point wstRejectCount SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of REJECT frames received by the local WTP entity.” ::= { wst 25 } wstSessionsReset SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “The number of active WTP sessions which have been reset in...
  • Page 177 “When the WTP exceeds this time while servicing a transmit request, the hlitThreshCount will be incremented. in hundredths of seconds.” ::= { hlit 5 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE A fatal error indicates that the network...
  • Page 178 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point hlitThreshCount OBJECT-TYPE SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “When the WTP exceeds the time in hlitThreshold, this count is incremented. ::= { hlit 6 } hlitLongest SYNTAX Counter ACCESS read-only...
  • Page 179 ::= { wcbsEntry 3 } wcbstDsap SYNTAX INTEGER (0..255) ACCESS read-only STATUS mandatory DESCRIPTION “Destination service access point.” ::= { wcbsEntry 4 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point INTEGER, INTEGER, INTEGER, INTEGER, INTEGER, INTEGER, INTEGER, INTEGER,...
  • Page 180 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point wcbstSsap SYNTAX INTEGER (0..255) ACCESS read-only STATUS mandatory DESCRIPTION “Source service access point.” ::= { wcbsEntry 5 } wcbstNet16Addr SYNTAX INTEGER (2048..9192) ACCESS read-only STATUS mandatory DESCRIPTION “The 16-bit network address of the remote node which is active on the connection, if the control block is in an active state.”...
  • Page 181 SYNTAX Counter ACCESS read-write STATUS mandatory DESCRIPTION “Total number of WTP data frames transmitted.” ::= { wcbsEntry 19 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE A Ti timeout occurs when a OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 182 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point wcbstIframesRetransmitted OBJECT-TYPE SYNTAX Counter ACCESS read-write STATUS mandatory DESCRIPTION “Total number of data frames which were lost and had to be retransmitted.” ::= { wcbsEntry 20 } wcbstState SYNTAX INTEGER (0..2147483647)
  • Page 183 ::= { gs 12 } gsBlocksRecv SYNTAX Counter ACCESS read-only --read-reset STATUS mandatory DESCRIPTION “Number of blocks received from the network.” ::= { gs 13 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 184 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point gsDataRecv SYNTAX Counter ACCESS read-only --read-reset STATUS mandatory DESCRIPTION “Number of data blocks received from the network.” ::= { gs 14 } gsTermResetCount SYNTAX Counter ACCESS read-only --read-reset STATUS mandatory DESCRIPTION “Number of times a session was reset by a terminal.”...
  • Page 185 ACCESS read-only --read-reset STATUS mandatory DESCRIPTION “The number of transport layer receive errors.” ::= { gs 27 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE Host delay is the time Times less than the maximum host delay...
  • Page 186 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point gsTermDelayMax SYNTAX INTEGER (0..65535) ACCESS read-write STATUS mandatory DESCRIPTION “The maximum terminal transaction time in hundredths of seconds. maximum delay are not included as terminal transactions.” ::= { gs 28 } gsTermDelayThreshold OBJECT-TYPE SYNTAX INTEGER (0..65535)
  • Page 187 ACCESS not-accessible STATUS mandatory DESCRIPTION “SESSION control block status table. corresponds to a terminal session.” ::= { rcbs 4 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE A value of 1 = The default is 0.
  • Page 188 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point -- Row Definition rcbsEntry SYNTAX RcbsEntry ACCESS not-accessible STATUS mandatory INDEX { rcbsIndex } ::= { rcbsTable 1 } -- Columnar Object Definition RcbsEntry ::= SEQUENCE { -- Leaf Definition rcbsIndex SYNTAX INTEGER (1..65535)
  • Page 189 SYNTAX Counter ACCESS read-only --read-reset STATUS mandatory DESCRIPTION “Total number of blocks received from the terminal.” ::= { rcbsEntry 9 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE (Unused until Values: 11, 21, 46, 47, OBJECT-TYPE OBJECT-TYPE...
  • Page 190 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point rcbsDataRecv SYNTAX Counter ACCESS read-only --read-reset STATUS mandatory DESCRIPTION “Number of data blocks received from the terminal.” ::= { rcbsEntry 10 } rcbsTermResetCount SYNTAX Counter ACCESS read-only --read-reset STATUS mandatory DESCRIPTION “Number of times the terminal has reset the session.”...
  • Page 191 SYNTAX Counter ACCESS read-only --read-reset STATUS mandatory DESCRIPTION “The total number of terminal transactions for the terminal defined by rcbsTerminal.” ::= { rcbsEntry 23 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE OBJECT-TYPE...
  • Page 192 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point rcbsTermDelayTotal SYNTAX Counter ACCESS read-only --read-reset STATUS mandatory DESCRIPTION “The total time for all transactions for the terminal defined by rcbsTerminal.” ::= { rcbsEntry 24 } rcbsTermDelayLast SYNTAX INTEGER (0..65535) ACCESS read-only --read-reset...
  • Page 193 HdEntry ::= SEQUENCE { hdHostDelay INTEGER, hdCount hdBucket -- Leaf Definition Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE OBJECT IDENTIFIER ::= { gwSession 3 } OBJECT-TYPE OBJECT-TYPE Host delay is defined as the time Each entry represents a bucket in the...
  • Page 194 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point hdHostDelay SYNTAX INTEGER (0..65535) ACCESS read-write STATUS mandatory DESCRIPTION “The host delay time. a host delay bucket bounded by the value in the preceeding row (or 0) and the value in the row.
  • Page 195 ::= { ahost 1 } ahstLastReset SYNTAX TimeTicks ACCESS read-only STATUS mandatory DESCRIPTION “The time elapsed since the last reset of ahost group.” ::= { ahost 2 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE tdTrxnTime INTEGER, tdCount Counter, tdBucket INTEGER OBJECT-TYPE Delay times are defined in 1/100th seconds”...
  • Page 196 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point ahstFramesOut SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of frames from the gateway sent to the host.” ::= { ahost 3 } ahstFramesIn SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of frames received from the host.”...
  • Page 197 ACCESS read-only STATUS mandatory DESCRIPTION “Number of async character framing errors.” ::= { ahost 16 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE Increments whenever the gateway issues a OBJECT-TYPE LRC/CRC error checking is enabled by the...
  • Page 198 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point ahstNoiseErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of UART signal samples with ambiguous results.” ::= { ahost 17 } ahstBreakErrors SYNTAX Counter ACCESS read-only STATUS mandatory DESCRIPTION “Number of async break characters received.”...
  • Page 199 ::= { softwareDownLoad 7 } sdTerminate SYNTAX INTEGER { ACCESS read-write STATUS mandatory DESCRIPTION “Terminate the current software download.” ::= { softwareDownLoad 8 } Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point OBJECT-TYPE sdPending(1), sdSTStopped(2), sdInProcess(3), sdTerminated(4), sdSuccess(5), sdError(6),...
  • Page 200 Norand Open Wireless LAN MIB 6910 Integrated Gateway/Access Point SECTION 6 6-84 Norand Management Information Bases Reference Manual...
  • Page 201 " " " " " " " " " " " " " " " " " " " " " " 802.2 802.3 802.x Access Control Access Point (AP) Address Mask Agent Norand Management Information Bases Reference Manual Glossary-1...
  • Page 202 GLOSSARY ANSI (American National Standards Institute) ASN.1 (Abstract Syntax Notation One) Assigned Numbers Backbone BER (Basic Encoding Rules) BGP (Border Gateway Protocol) Collision Community Connection-Oriented Connectionless DIX Ethernet (DEC Intel Xerox Ethernet) Dot Address Glossary-2 Norand Management Information Bases Reference Manual...
  • Page 203 GLOSSARY EGP (Exterior Gateway Protocol) Ethernet Frame Gateway (GW) HHC (Hand-Held Computer) Host Host Address IANA (Internet Assigned Numbers Authority) ICMP (Internet Control Message Protocol) IEEE Norand Management Information Bases Reference Manual Glossary-3...
  • Page 204 GLOSSARY IGP (Interior Gateway Protocol) Integrated Gateway/Access Point (IGAP) internet Internet IP (Internet Protocol) IP Address IPX (Internetwork Packet eXchange) ISO (International Organization for Standardization) LAN (Local Area Network) Layer Glossary-4 Norand Management Information Bases Reference Manual...
  • Page 205 GLOSSARY LLC (Logical Link Control) MAC (Media Access Control) Address Management Agent Management Station MIB (Management Information Base) Network Network Address Network Management Protocol Node OID (Object IDentifier) OSI (Open Systems Interconnection) OSI Reference Model Norand Management Information Bases Reference Manual Glossary-5...
  • Page 206 GLOSSARY Packet PDU (Protocol Data Unit) Port Protocol Protocol Stack Repeater RFC (Request For Comments) RIP (Routing Information Protocol) Router SNMP (Simple Network Management Protocol) Subnet Address Glossary-6 Norand Management Information Bases Reference Manual...
  • Page 207 GLOSSARY Subnetwork TCP (Transmission Control Protocol) TCP/IP (Transmission Control Protocol, Internet Protocol) Telnet Token Ring Transmission Trap UDP (User Datagram Protocol) WAN (Wide Area Network) Norand Management Information Bases Reference Manual Glossary-7...
  • Page 208 GLOSSARY Glossary-8 Norand Management Information Bases Reference Manual...
  • Page 209 " " " " " " NOTE: " " " " " " Norand Management Information Bases Reference Manual General Index " " " " " " " " Index-1...
  • Page 210 GENERAL INDEX Index-2 Norand Management Information Bases Reference Manual...
