Craftmade Knightsbridge KM52 Installation Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

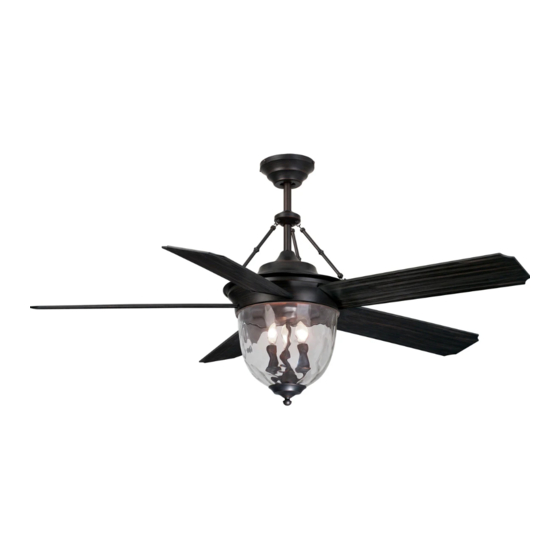

Knightsbridge

Installation Guide

For Model:

KM52

For

Damp Location

4009218

net weight of fan: 29.7 lb (13.47 kg)

READ THESE INSTRUCTIONS

AND SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Knightsbridge KM52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Knightsbridge KM52

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Knightsbridge Installation Guide For Model: Table of Contents: KM52 Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a 7 feet (76cm) (2.13m) clearance of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. 12ft.
Page 5: Fan Assembly. Pgs
5. Fan Assembly. If you wish to extend the hanging length of set screw hole set screw your fan, you must remove the hanging ball from the downrod provided to use with an extended downrod (sold separately). [If you wish to use the downrod provided, please proceed to instructions following the dotted line below.] hanging ball...
Page 6: Wiring
5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.
Page 7: Canopy Assembly
7. Canopy Assembly. hanging bracket antenna Raise canopy to hanging bracket and align slotted holes in canopy with loosened screws in hanging bracket. Twist canopy to lock. Re-insert screws (along with star washers) that were previously removed (page 3, Section 4) and secure all screws with Phillips screwdriver.
Page 8: Blade Assembly
9. Blade Assembly. motor housing WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If overtightened, blades may crack and break. Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades.
Page 9: Automated Learning Process./Activating Code
11. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is TRANSMITTER not desired, turn wall switch off to any other switches (back) programmable receiver or fan. This remote control transmitter is equipped with 16 code combinations to prevent possible interference from or to other remote units such as garage door openers, car alarms or security...
Page 10: Remote Control Operation
12. Remote Control Operation. HI button - turns fan to HIGH speed MED button - turns fan to MEDIUM speed LOW button - turns fan to LOW speed OFF button - turns fan OFF button - controls LIGHT function; turns light ON/OFF when tapped quickly.
Page 11: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 2. Verify that reverse switch is set completely in either direction. Return fan, shipping prepaid, to Craftmade. We will repair 3. Verify that receiver is wired properly. or ship you a replacement fan, and we will pay the return 4.
