Summary of Contents for Kurt DOVELOCK DTR20

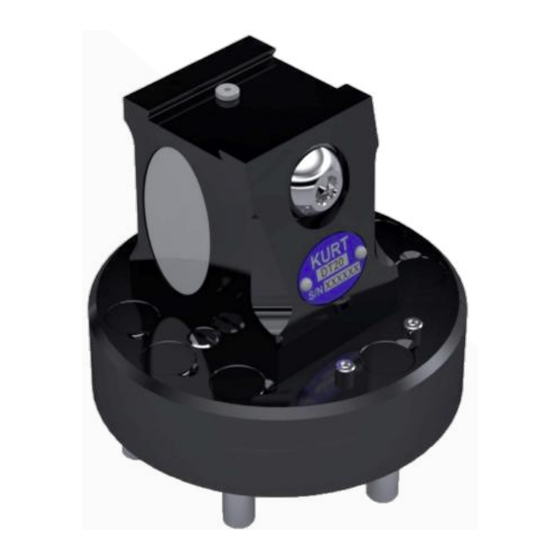

- Page 1 DTR20 ™ DOVELOCK DOVETAIL 5 AXIS VISE Operating Instruction Manual DTR20 ENGLISH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ......................... 3 Setup Instructions ....................... 4 Operating Instructions ....................5-9 DTR20 Parts List......................10 DTR20 Mechanical Drawing ..................11 Maintenance Schedule ....................12 Troubleshooting Tips ....................13 Maintenance Log/Notes .................... 14 Warranty ........................15 VISE DATA Use this to fill out information about your vise for quick reference. -
Page 3: Introduction
Introduction INTRODUCTION Thank you for purchasing a Kurt DX6 vise. You have just purchased one Thank you for purchasing a Kurt DTR20 vise. You have just purchased one of the best machine vises in the industry. The outstanding accuracy of this product is second to none. Backed by a lifetime warranty, this of the best machine vises in the industry. -
Page 4: Setup Instructions
SET-UP INSTRUCTIONS Now that you have your new Kurt Vise, it’s time to set-up and begin using it. You will see that your new vise comes with a Kurt swivel handle in the shipping carton (instruction manual available online at www.kurtworkholding.com). -
Page 5: Operating Instructions
If you need more clamping force you may require a larger vise. To properly clamp a part in your Kurt vise, you should place the part in the center of the jaws resting on the ways of the vise. Clamping only on one side or above the movable and stationary jaws can result in jaw lift or loss of accuracy. - Page 6 Fig.2 Sketch #2A Incorrect part clamping. Vise width centerline Sketch #2B Correct part clamping. Sketch #2C Correct part clamping. Sketch #2D Correct part clamping. Dummy spacer OPERATING INSTRUCTIONS...
- Page 7 DIMENSIONAL VIEWS Fig.4 Note: Dimensions below are in inches unless specified. OPERATING INSTRUCTIONS...
- Page 8 SURFACE MOUNTING THE DTR20 The DTR20 can be located and mounted using a slip fit 1/2 inch center dowel pin and 3/8-16 socket head cap screws. English Mounting: The DTR20 can be properly located using the 1/2" slip fit dowel indicated by M in figure 4 above.
- Page 9 REVERSIBLE JAW INSTRUCTIONS The DTR20 has a reversible movable jaw. Follow the directions below to reverse the jaw. 1. Loosen the set screw (#4 in figure in 7) the part of the movable jaw that protrudes through the stationary jaw. This set screw retains the movable jaw to the stationary jaw.
-
Page 10: Dtr20 Parts List
DTR20 Parts List ITEM# PART # DESCRIPTION QTY. DTR20-1 Dovetail Body Base DTR20-2-CP Dovetail Movable Jaw DTR20-6-CP Dovetail Stationary Jaw DTR20-18 SBHCS 1/2-13 X 2.0 LG Modified. SDW25-41 Thrust Bearing SWD25-42 Thrust Washer 605-02 O-Ring #014 SDW25-211 Brush Seal DTR20-102 Model/Serial Number DTR20-147 Retaining Ring... -
Page 11: Dtr20 Mechanical Drawing
DX6 Mechanical Drawing DTR20 Mechanical Drawing Fig.7 DX6 Mechanical Drawing | ENLGISH DTR20 MECHANICAL DRAWING... -
Page 12: Maintenance Schedule
Maintenance Schedule It is very important to perform regular maintenance on your Kurt vise to ensure proper operation. Improper maintenance will result in poor vise performance and may void your warranty. Daily/ Weekly Remove chips from surface of vise. Visually inspect seals for damage and cleanliness. -
Page 13: Troubleshooting Tips
Troubleshooting Tips If properly maintained, The Kurt DTR20 vise will operate trouble free for many years. In some cases, it will be necessary to troubleshoot. Use the information below to help in the process. Problem: My vise turns hard. Tip: As a new vise the brush seal could be stiff. Allow for break in of vise. -
Page 14: Maintenance Log/Notes
MAINTENANCE LOG/NOTES: MAINTENANCE LOG/NOTES... -
Page 15: Warranty
The sole obligation of Kurt Manufacturing Company, Inc. (Kurt) and the purchaser’s SOLE AND EXCLUSIVE REMEDY hereunder, shall be limited to the replacement or repair of any Kurt product or part (by an authorized Kurt technician) which are returned to Kurt Manufacturing Company’s place of business, transportation, shipping and postal charges prepaid,... - Page 16 Kurt Industrial Products // A Division Of Kurt Manufacturing 9445 East River Road NW | Mpls, MN 55433 | workholding@kurt.com Phone 763-574-8309 | Toll Free 877-226-7823 Fax 763-574-8318 | Toll Free Fax 877-226-7823 Manual Revision:...
