Huazheng HZJY-1016 Manual

Insulation tester
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Catalog
1. Warning.......................................... ................... ............... 1
2. Feature....................................... .............. ........................ 2
3.
4.
using................... .............. ............................. 6
5.
6. Accessories........................ ............. ................................. 6

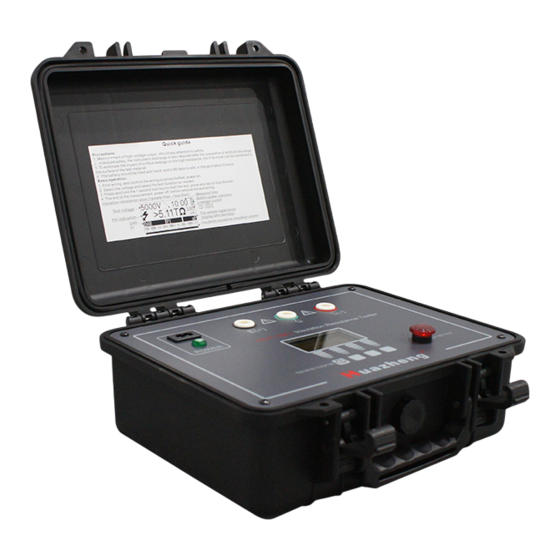

HZJY-1016 Insulation Tester
Parameter............. .................................... 2
instrument.......... ..................................... 3
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HZJY-1016 and is the answer not in the manual?

Questions and answers

Related Manuals for Huazheng HZJY-1016

Summary of Contents for Huazheng HZJY-1016

  • Page 1 HZJY-1016 Insulation Tester Catalog 1. Warning................1 2. Feature................2 Specification Parameter..........2 Introduction of instrument..........3 Instrument using.............. 6 6. Accessories..............6 - 1 -...
  • Page 2 HZJY-1016 Insulation Tester Safe use items Design and manufacture of the instrument and testing achieves IEC61010 safety standards (electronic measuring product safety requirements), this manual including the safety of the instrument use and ensure the safety of equipment state, users must follow the warnings and safety regulations Please read the following instructions before use.
  • Page 3 HZJY-1016 Insulation Tester Feature High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, test up to 10TΩ. ● Strict accordance with the safety standards for design ● Insulation resistance range 10TΩ @ 10 kv ● Short circuit current can be adjusted, maximum 5 mA (Can be ordered as high as 10 ma, short circuit current products).
  • Page 4 HZJY-1016 Insulation Tester range 500V 1000V 2500V 5000V 10000V accuracy <100k <100k <100k <100k <100k Unspecified 100k-10G 100k-20G 100k-100G 100k-100G 100k-200G 10G -100G 20G-200G 100G-1T 100G-1T 200G-2T > 100G > 200G > 1T > 1T > 2T Unspecified Introduction of instrument The Front Panel Description ●...
  • Page 5 HZJY-1016 Insulation Tester ● Test setup interface Set test voltage SetThe test time Battery Indicator Set Short Current Set the filter Button function tip Soft key Description Power Off (No operation, 3 minutes automatic shutdown) Set test voltage: 500V、1000V、2500V、5000V、10000V SetThe test time: 00:30 01:00...
  • Page 6 HZJY-1016 Insulation Tester Soft key Description Move the cursor, also used to increase or decrease in contrast  Move the cursor, also used to increase or decrease in contrast  Return to the main menu Back Confirm to enter the current menu function or to determine the current Settings and exit ...
  • Page 7 HZJY-1016 Insulation Tester Instrument using measured DAR  1. Select more than 1 minute length measurement. 2. Select the appropriate voltage and start. 3. The instrument automatically record 15 s and 60 s resistance, and calculate the absorption than after 60 seconds.
