- Page 1 HZJY-10K-IA Insulation Resistance Tester User Manual Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 (0312) 6775656 to tell you to serve you at all times- Baoding Huazheng Elect ric Manufact ur ing Co. , Lt d. , our company will def initely make you satisf ied !
-
Page 3: Table Of Contents
Contents I. Safe Use Items..........................1 II.Features............................2 III.Technical specifications......................3 IV.Instrument introduction....................... 4 V.Instrument use..........................5 VI.Appendix............................7... -
Page 4: Safe Use Items
Safe Use Items Design and manufacture of the instrument and testing achieves IEC61010 safety standards (electronic measuring product safety requirements), this manual including the safety of the instrument use and ensure the safety of equipment state, users must follow the warnings and safety regulations Please read the following instructions before use. Warning Instrument output voltage, before use, read and understand the instructions of operational guidelines. -
Page 5: Ii.features
Squared before measurement, confirm the voltage selection in the appropriate value. If long time not to use, the battery should be fully charge, and recharge in 3 months. Squared do not in high temperature, damp, places and condensation may be placed under direct sunlight for a long time. -
Page 6: Iii.technical Specifications
● Digital filter function, use the filter function to reduce the influence when the display value is deviated due to external influence. ● Complete protection function, and equipped with fuse blowing prompt function. ● Data saving function, and data can be exported. III.Technical specifications ●... -
Page 7: Iv.instrument Introduction

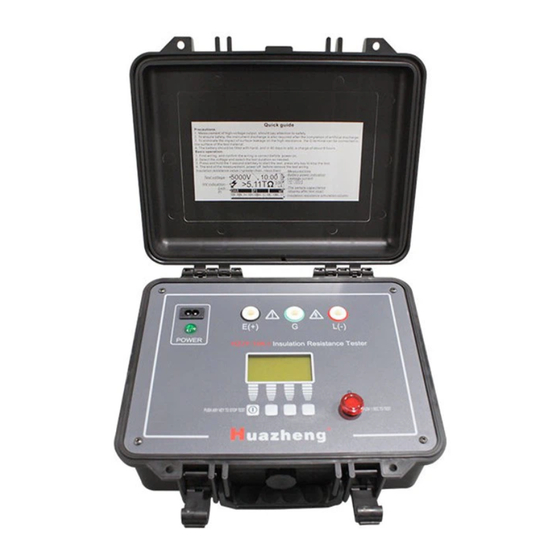

error increases by 10% IV.Instrument introduction ● Panel introduction Instruction Instruction AC plug AC indicator Test terminal（E、G、L） Button High voltage indicator ●Keys and function description There are 5 buttons in total from left to right. The first one is the power-on button in the shutdown state. -
Page 8: V.instrument Use
● Test setting interface ● Battery power indicator: When the battery voltage display shows only one bar left, it should be charged in time. When the battery display flashes, the power supply will be automatically cut off at any time and the battery should be charged immediately. - Page 9 2. Turn on the instrument to check the actual measured voltage, and the instrument can automatically distinguish between DC and AC. 3. Regardless of whether it is DC or AC, if it exceeds 10V, check again whether the circuit breaker under test is disconnected. ●...
-
Page 10: Vi.appendix
3. Use of G end (protection ring) (this machine is shielded on the low voltage side) When measuring high insulation resistance, a conductor protection ring should be put on the surface between the two measurement terminals of the test product, and the conductor protection ring should be connected to the G terminal of the meter with a test wire to eliminate the leakage current caused by the surface of the test product.
