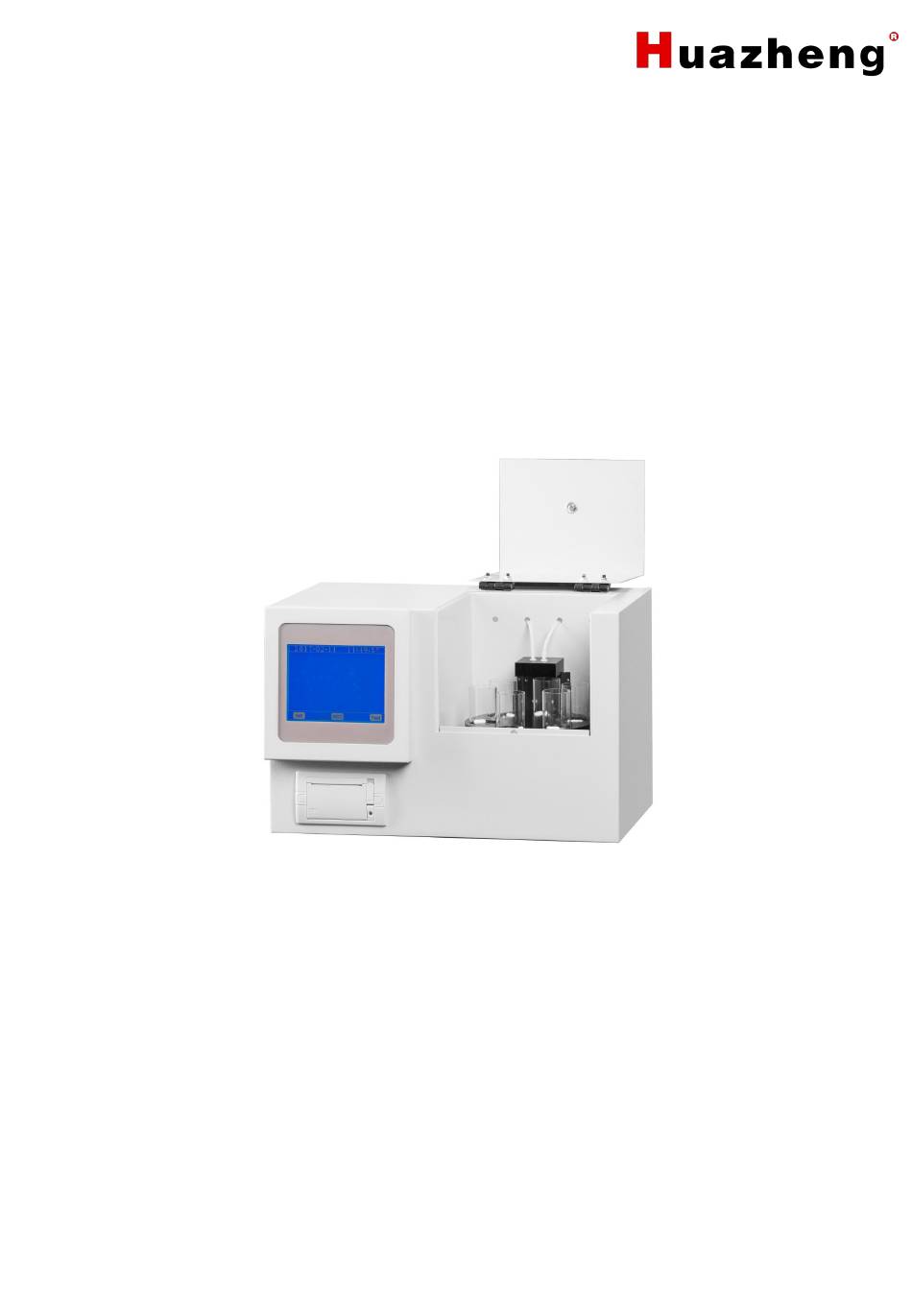

- Page 1 HZCS-X6 Automatic Oil Acidity Tester Huazheng Electric Manufacturing (Baoding) Co., Ltd...
-
Page 2: Table Of Contents
Contents I.Overview............................1 II.Functional Features........................1 III.Technical Parameters.........................2 IV. Instrument Structure........................3 V.Menus and Buttons Operation Instructions................4 VI.Out of The Installation......................12 VII.Test Steps..........................12 VIII.Use the Matters Needing Attention..................13 IX.Failure Phenomenon and Elimination Method..............13 X.Install Printer Paper........................14... -
Page 3: I.overview
I.Overview In power system and industrial and mining enterprises have a lot of oil filled electrical equipment, transformer oil, and the acid value of turbine oil is a regular inspection items shall be measured. Insulation oleic acid value automatic tester used in transformer oil, turbine oleic acid determination instrument, adopt computer control, automatic electrical, optical, mechanical and chemical integration design, completely replaces manual operation, raised the working efficiency, reduces the labor intensity of workers, minimize... -
Page 4: Iii.technical Parameters
3, color sensor coordinate titration end point detection, judgment and reliable end conditions. 4, don't need to waste liquor cup. 5, extract and neutralization liquid by a peristaltic pump control, high measuring accuracy. 6, history inquiry, instruments and automatic memory function, with the result of the experiment time automatic storage of record, and is not lost the data after power off, can be stored for more than 10 years, for later queries to print. -
Page 5: Iv. Instrument Structure
Acid value between 0.1000 0.5000 mgKOH/g, Allowed error range: 0.05 mgKOH/g 3, shape size: 420 x270x260 (mm) 4, ambient temperature: 5 DHS C - DHS 40 C 5, relative humidity: < 85% RH 6, weight: about 9 Kg IV. Instrument Structure Instrument structure as shown in the figure below: Note: can be placed in rotary table 6 oil cup, a experiment is can do no more than 6 sample. -
Page 6: V.menus And Buttons Operation Instructions
V.Menus and Buttons Operation Instructions Instrument used the big LCD, a screen picture can show the amount of information is more abundant, a reduction in the number of the switch display screen, with a full-screen touch buttons, button function is clearly defined, users learn to use the instrument becomes simple. - Page 7 At this point, you according to the prompts on the screen in turn five basis points (that is, the four corners and center) for calibration, the calibration after a point, cross cursor automatically moved to the next calibration point. Note: equipment factory has been calibrated, no special circumstances, do not easily into the calibration! Remember that! If the boot without touching the cross cursor after 2 seconds, automatically enter the boot welcome screen, as shown in the figure below:...
- Page 8 2, the parameter Settings Under the boot screen, press the "set." key, the LCD screen display as shown in the figure below: Under current display screen with your finger touch to modify parameters are selected, checked, according to "increase", "decrease" button to adjust the current parameter values, press "save"...
- Page 9 pgup: the former shows a historical record, the record number plus 1, long press the key, the page forward quickly. pgdn: show a history record, record number minus 1, long press the key, fast flip backward, minimum record number is 1. Print: print the current history records, the printing content including: 1 # sample to 6 # of the sample determination results, the inspection date and time.
- Page 10 One, about one and a half minutes into the testing interface automatically, as shown in the figure below: 1, neutralization, concentration: the configured and night concentration (national standard and concentration in 0.02 to 0.05 moL/L), if and the concentration of the night and showed inconsistent by neutralizing night concentration increase and decrease the Numbers below to change data are stored in the instrument.
- Page 11 sample test before must first be blank experiment. Method is as follows: take out a cup into the test cup, and in a grain of stirring, and then select the test cup, such as "no. 1 cup", touch the selected test cup corresponds to the "quality sample" and with "increase"...
- Page 12 Press the "RUN" key instrument cleaning, press the "SKIP" key instruments automatically return to the main interface, press "RUN" again during the cleaning process can stop, cleaning about 1 1/2 minutes automatically enter the main interface, Note: if you quit is not to continue the line experiments, please cleaning operations, or you can press "SKIP"...
- Page 13 After selected test cup, then input the corresponding sample quality, the method is as follows: in "Mass" column, with your fingers touch the data, to select, then press the "add", "decrease" button to adjust parameters, as shown in the figure below: After all the input, press the "RUN"...
-
Page 14: Vi.out Of The Installation
VI.Out of The Installation 1, when unpacking the case firmly laid instrument laboratory work platform. 2, take a beaker in random with 80 ml water, potassium hydroxide dissolves adequately, then inject gas bottle. 3, to extract randomly with the bottle injection extract (liquid level shall not be higher than 500 ml scribed line). -
Page 15: Viii.use The Matters Needing Attention
complete, the instrument will automatically print the measuring results (if you choose the automatic printing function). VIII.Use the Matters Needing Attention 1, test the cup must be cleaned with anhydrous ethanol, stay dry rear can use. 2, pay attention to the determination of acid value before, must first blank experiment, if a measuring cup sample can make a blank experiment. -
Page 16: X.install Printer Paper
X.Install Printer Paper 1, installation on paper and paper and turn the printer front cover, and hold a fixed head on either side of the machine head plate elastic card, pull pull the nose plate is about 2 mm, turn on the printer power and printer paper after three lines, enter the standby state, the indicator lights.
