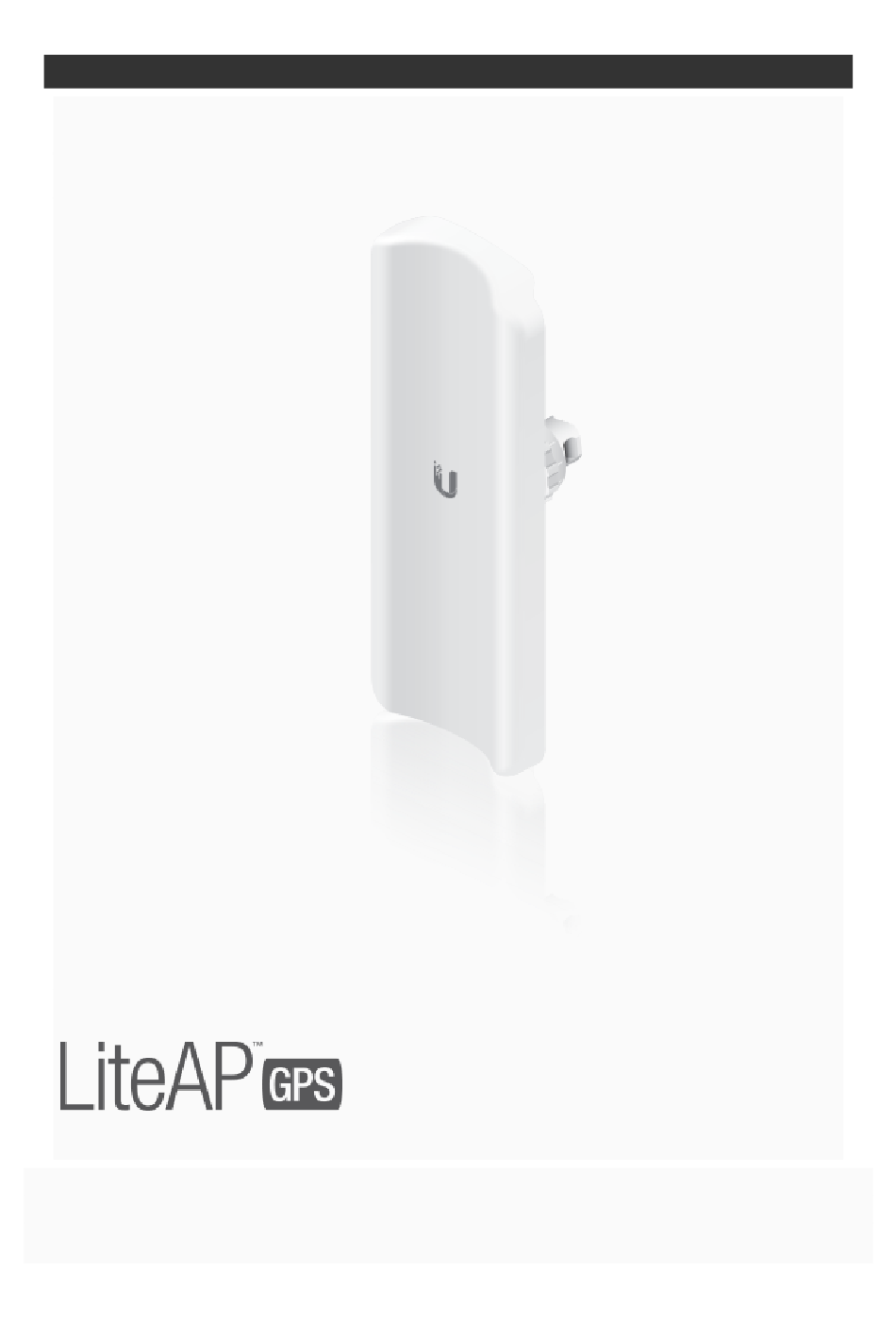

- Page 1 LAP-GPS Quick Start Guide × 5 GHz, 17 dBi, 90° airMAX® AC AP Model: LAP-GPS Table of Contents ● Package Contents...
-
Page 2: Package Contents
● Installation Requirements ● Hardware Overview ● Hardware Installation ● Connecting Power ● Accessing airOS via Wi-Fi ● Installer Compliance Responsibility ● Specifications ● Safety Notices ● Electrical Safety Information ● Limited Warranty ● Compliance ● Declaration of Conformity ● Online Resources Package Contents LiteAP GPS... - Page 3 LiteAP GPS Ball Joint Mount Metal Strap Gigabit PoE (24V, 0.3A) with Mounting Bracket...
-
Page 4: Installation Requirements
PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable ● Surge protection should be used for all outdoor installations. We... -
Page 5: Hardware Overview
Hardware Overview... - Page 6 Power LED The Power LED will light blue when the device is connected to a power source. Ethernet LED...
- Page 7 The Ethernet LED will light steady blue when an active Ethernet connection is made and flash when there is activity. GPS LED The GPS LED will light steady blue when there is a strong GPS signal. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on.
-
Page 8: Hardware Installation
Ethernet Port The Gigabit Ethernet port is used to connect the power and should be connected to the LAN. Hardware Installation... -
Page 11: Connecting Power
Connecting Power... - Page 13 3. Connect the power using: ● included Gigabit PoE Adapter ● PoE switch WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide. Connecting to the PoE Adapter 1. Connect the Ethernet cable from the device to the POE port of the PoE adapter.
- Page 14 2. Pre-drill the holes if necessary, and secure the bracket using two fasteners (not included). 3. Align the adapter’s slots with the tabs of the PoE Mounting Bracket, and then slide the adapter down. Accessing airOS via Wi-Fi Verify connectivity in the airOS® Configuration Interface using the UNMS™ app or Web Portal.
-
Page 15: Web Portal
Note: Ensure that DHCP is enabled on your Wi-Fi adapter. 3. Launch the app and follow the on-screen instructions. Web Portal Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address> Note: Ensure that your Wi-Fi connection has DHCP enabled. 2. - Page 16 Create a username and password. Confirm your new password and then click Save.
-
Page 17: Installer Compliance Responsibility
The airOS Configuration Interface will appear, allowing you to customize your settings as needed. For additional details, refer to the User Guide available at ui.com/download/airmax-ac Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. -
Page 18: Specifications
Specifications LAP-GPS 360.98 x 124.57 x 71.28 mm Dimensions (Mount Not Included) (14.21 x 4.90 x 2.81") Weight (Mount Not Included) 752 g (1.66 lb) Networking Interface (1) 10/100/1000 Ethernet Port Antenna Gain 17 dBi Max. Power Consumption 7.1W Max. TX Power... - Page 19 Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage Range 20 - 26VDC ESD/EMP Protection ± 24kV Contact / Air Shock and Vibrations ETSI300-019-1.4 Wind Survivability 200 km/h (125 mph) Wind Loading 77 N @ 200 km/h (17.3 lbf @ 125 mph) Operating Temperature -40 to 70°...
- Page 20 Certifications CE, FCC, IC Operating Frequency (MHz) US/CA U-NII-1 5150 - 5250 U-NII-2A 5250 - 5350 U-NII-2C 5470 - 5725 U-NII-3 5725 - 5850 Worldwide 5150 - 5875 Management Radio (MHz) US/CA 2412 - 2462...
