Summary of Contents for Huazheng HZJQ-N1

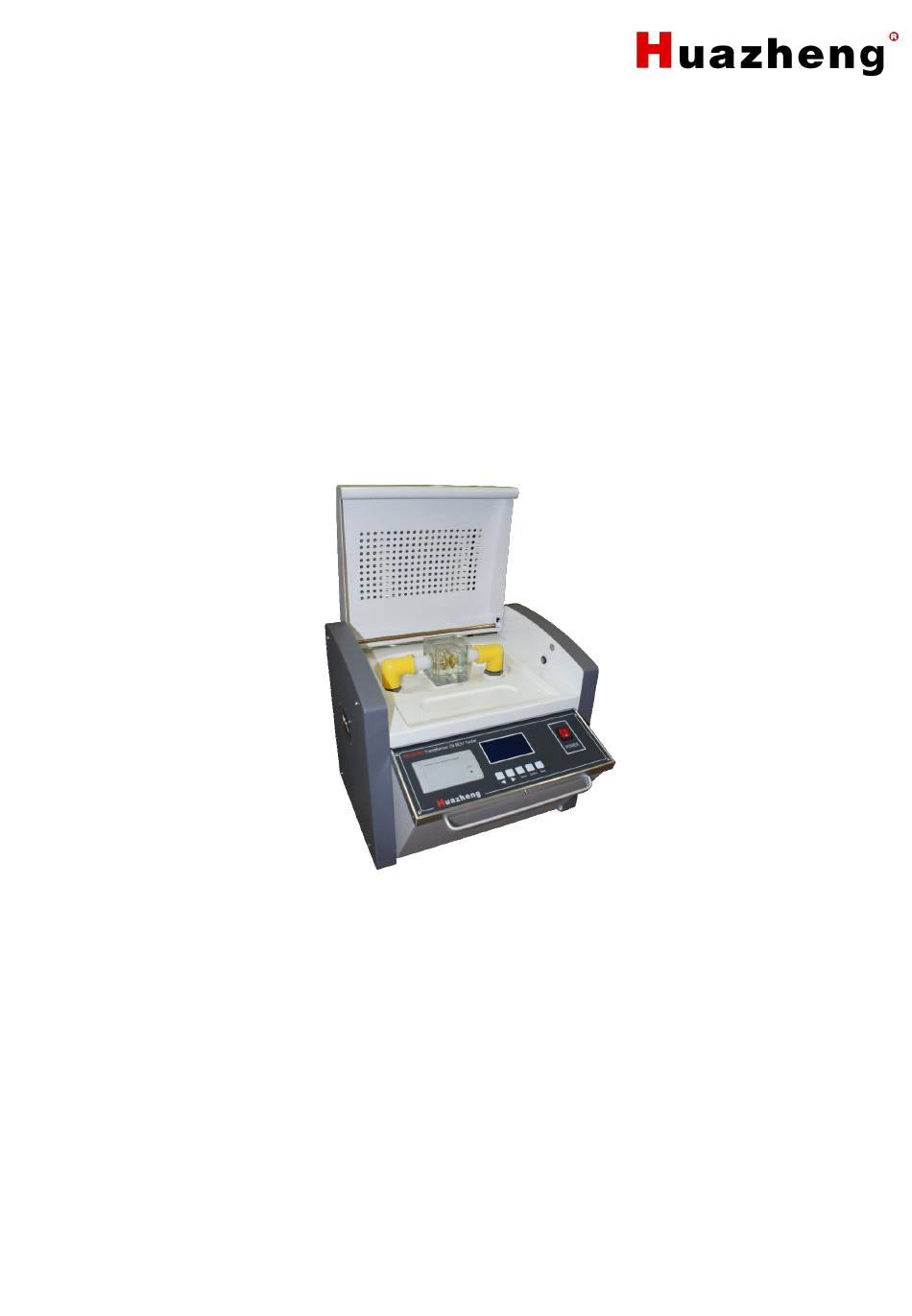

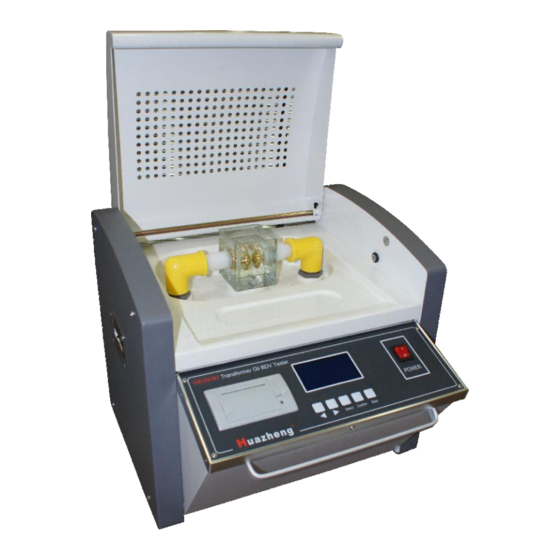

- Page 1 HZJQ-N1 Transformer Oil BDV Tester Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 (0312) 6775656 to tell you to serve you at all times- Baoding Huazheng Elect ric Manufact ur ing Co. , Lt d. , our company will def initely make you satisf ied !
-
Page 3: Table Of Contents
Contents I. Overview............................1 II. Key Function And Feature......................1 III. Major Technical Indicators......................2 IV.Panel Description......................... 2 V. Operational Approach........................3 VI. Precautions..........................8 VII. Maintenance..........................8 VIII. Oil Cup Cleaning Method And Common Fault Clearances..........8 IX.Packing List..........................10... -
Page 4: Overview
I. Overview Many power systems, railway systems, large-scale petrochemical plants and enterprises have a lot of electrical equipment whose internal insulation are mostly oil-filled insulation type, and therefore, test on insulating oil dielectric strength is common and necessary. To meet the needs of the market, we have developed and produced a series of insulating oil dielectric strength testers according to national standard GB/T507-2002, industry standard DL429.9-91 and the latest Electric Power Industry Standard DL/T846.7-2004 by ourselves. -
Page 5: Major Technical Indicators
III. Major Technical Indicators 1、 Output voltage: 0～80KV (optional) 2、Voltage distortion rate: ＜3% 3、Voltage raising speed: 0.5～5KV/S (adjustable) 4、Standing time: 15min (adjustable) 5、Boosting interval: 5 min (adjustable) 6、Boosting frequency: 1～6 time(s) (optional) 7、Booster capacity: 1.5KVA 8、Measuring accuracy: ±3％ 9、Supply voltage: AC220V±10% 50Hz±1 Hz 10、Power: 200W 11、Applicable temperature: 0℃～45℃... -
Page 6: Operational Approach
-- For decreasing the setting value after pressing “SELECT” SELECT—for choosing functions (the item selected is on reverse display) CONFIRM—for executing the function BACK –for exiting the operating interface ④Power switch and indicator V. Operational Approach 1、Preparation before Test ① Connect the earth terminal (on the right side of the equipment) to the earth wire firmly before start the equipment. - Page 7 System parameter setting Start Experiment Data viewing and printing Language English 27℃ 55%RH 08/08/14 16:30:44 ②the setting of system parameters: Press “Enter” key and enter the following interface: Max output volt ：80KV Standing time ：0～15 min Automatic printing: no Pausing interval ：0～5 min Stirring time ：10 S Boosting times ：1～6 Boosting speed ：...
- Page 8 Max out put volt : 10 ～ 80K V Aut omatic pr inting: YE S ,N O St anding time ： 0～ 15m in Pausing int erval ： 0～ 5min The sys tem time ： St ir ring time ： 00s, 10s, 20s, 30s, continuous Boost ing times ：...
- Page 9 Start Boosting…… Stop Average value：00.0KV Step-up (1) 78.9KV Step-down Back 27℃ 55%RH 08/08/14 16:30:50 Stir, Step-down, Delay…… Start Back 27℃ 55%RH 08/08/14 16:30:44 Ending the first test, continue to the next, until completed the boost times of the user setting, the results as follows and print it.
- Page 10 Experimental Data Print Average Value：72.8KV (1) 78.9kV (2) 75.8kV (3) 73.1kV (4) 77.9kV (5) 72.5kV (6) 58.9kV Standard Deviation 6.6kV Back Coefficient of variation 0.091 27℃ 55%RH 08/08/14 16:32:41 ④ Data viewing and printing: Press the “select” key to select the “Data Viewing and Printing” menu and press the “Confirm”...
-
Page 11: Precautions
VI. Precautions 1. The selection, placing and electrode distance of the oil sample before testing, shall be accord with national standards and industry standards. 2. The operators or other personnel are strictly forbidden to touch the casing after the power is switched on, to avoid accidents. 3. - Page 12 ⑶ Use petroleum ether (other organic solvents are forbidden) to clean three times. Each time shall follow the bellow procedures: ① Pour the petroleum ether into the oil cup till the cup is 1/4～1/3 full. ② Cover the cup mouth with a piece of glass cleaned by petroleum ether. Shake the cup evenly for one minute with certain force.
-
Page 13: Ix.packing List
⑵ No punch through oil cup ① Check inserting of connectors on circuit board. ② Check contacting of cap high-voltage switch. ③ Check attracting of high-voltage contacts. ④ Check break of high-voltage line. ⑶ Light display contrast ① Adjust the potentiometer on the circuit board. ⑷...
