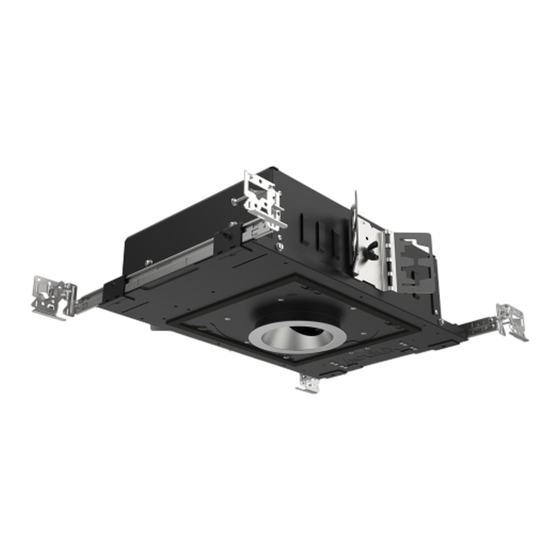

DMX512 / RDM FIELD INSTALLATION MANUAL
Required Materials for Network Installation
Aculux recommends installer seek quotation for start-up/commissioning services from Acuity sales agency or theatrical dealer prior to installation.
– Aculux LED Fixture with DMX512 (abbreviated here as DMX)
– DMX Controller (e.g. Fresco FCS7TSNX or similar)
– RDM Configuration Device (e.g. Fresco FCS7TSNX or DXT1M122M09NE1L)
– DMX/RDM Splitter (Optional, e.g. Fresco DXT1M122M09NE1L)
– Twisted pair, 120ohm, shielded cable (e.g. Belen 9842 or equal)
– Termination Resistor (Pre-installed in every Aculux DMX fixture)
– Small slotted screwdriver

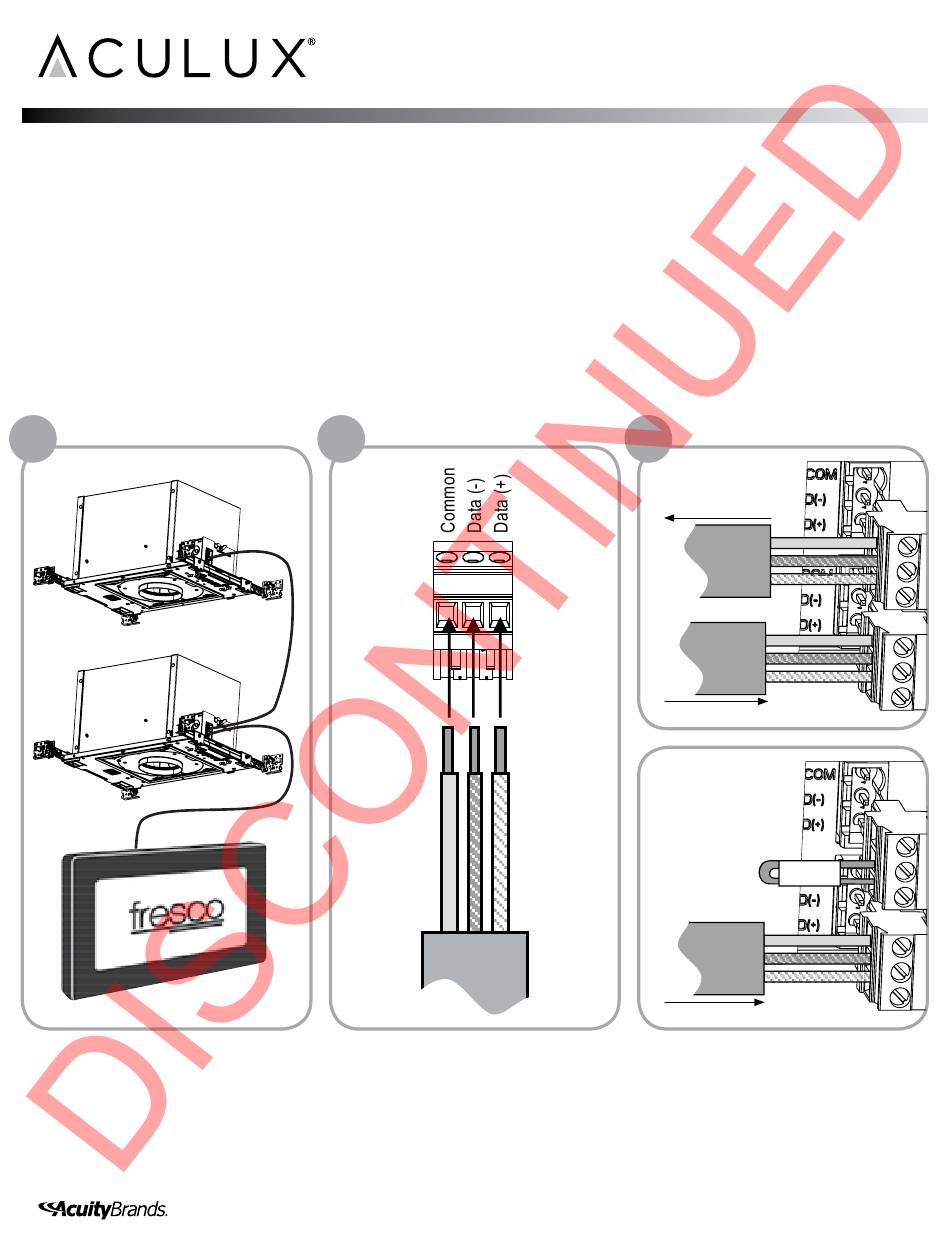

DMX Quick Installation Guide (Downlights Only)
1.
Install Fixtures
and Controller
Product Services Phone (888) 387-2212
1300 S. Wolf Road • Des Plaines, IL 60018 • Phone 800-323-5068 • Visit us at www.acuitybrands.com/aculux
©2017 Acuity Brands Lighting, Inc.
INSTALLATION INSTRUCTIONS
2.
Terminate Network
Cables
Rev 3/17
P6160
3.
Fixtures in middle
of run
Data out to next fixture
Data in from controller or previous fixture
Fixtures at end
of run
Termination Resistor
Data in from controller or previous fixture
Plug Cables into
Fixtures
1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acuity Brands Aculux AX3 A WDTW
Summary of Contents for Acuity Brands Aculux AX3 A WDTW
- Page 1 Plug Cables into and Controller Cables Fixtures Product Services Phone (888) 387-2212 1300 S. Wolf Road • Des Plaines, IL 60018 • Phone 800-323-5068 • Visit us at www.acuitybrands.com/aculux ©2017 Acuity Brands Lighting, Inc. Rev 3/17 P6160 1 of 5...
-
Page 2: Important Safety Instructions
This product may cause interference to radio equipment and should not be installed Synergy near maritime safety communications equipment or other critical navigation or Acuity Brands Lighting, Inc. assumes no responsibility for claims arising out communications equipment operating between 0.45-30MHz. of improper or careless installation or handling of its products. -
Page 3: Installation Instructions
The resistor should remain installed only in the last fixture of each run. Product Services Phone (888) 387-2212 1300 S. Wolf Road • Des Plaines, IL 60018 • Phone 800-323-5068 • Visit us at www.acuitybrands.com/aculux ©2017 Acuity Brands Lighting, Inc. Rev 3/17 P6160 3 of 5... - Page 4 CCT tuning 2000-4350K, 4300K SQ square law response Product Services Phone (888) 387-2212 1300 S. Wolf Road • Des Plaines, IL 60018 • Phone 800-323-5068 • Visit us at www.acuitybrands.com/aculux ©2017 Acuity Brands Lighting, Inc. Rev 3/17 P6160 4 of 5...
- Page 5 Black Body Dimming (BBD): Luminaire duplicates halogen dimming by shifting the CCT lower as the fixture is dimmed. Product Services Phone (888) 387-2212 1300 S. Wolf Road • Des Plaines, IL 60018 • Phone 800-323-5068 • Visit us at www.acuitybrands.com/aculux ©2017 Acuity Brands Lighting, Inc. Rev 3/17 P6160...
