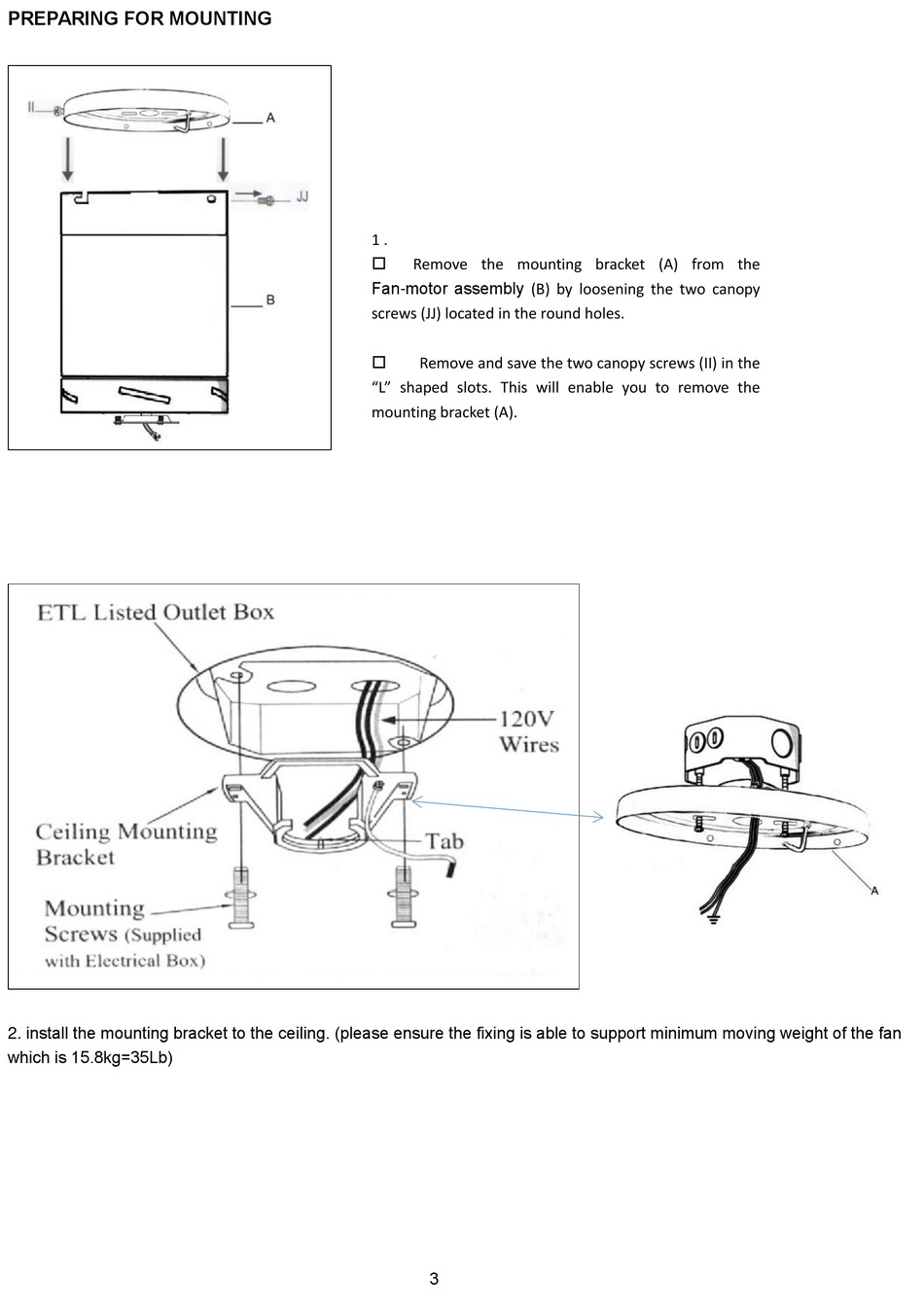

PREPARING FOR MOUNTING

2. install the mounting bracket to the ceiling. (please ensure the fixing is able to support minimum moving weight of the fan
which is 15.8kg=35Lb)
1 .

Remove the mounting bracket (A) from the
Fan-motor assembly (B) by loosening the two canopy
screws (JJ) located in the round holes.

Remove and save the two canopy screws (II) in the
"L" shaped slots. This will enable you to remove the
mounting bracket (A).
3
