Read all instructions before installation or operation of equipment.
Failure to comply with these instructions could result in bodily injury or property damage.
Remove preservative with solvent dampened cloths. Exercise care when using solvent. Check to be sure the rated pressure and
temperature on the strainer name plate is not less than the maxi- mum pressure and temperature of the installation. The rated
pressure shown on the name plate is the maximum pressure, including shock pressure, at which the strainer may be operated.

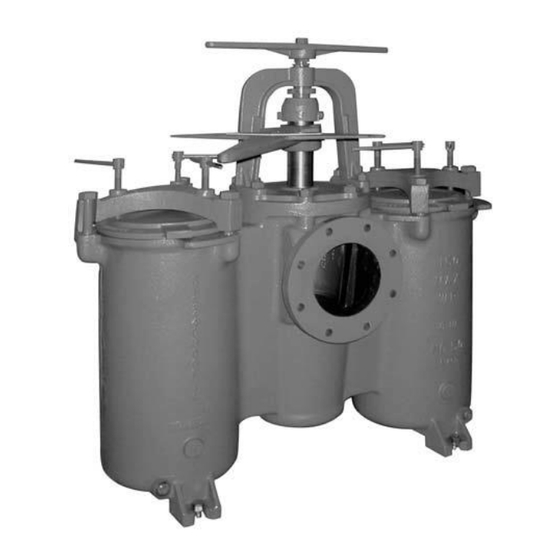

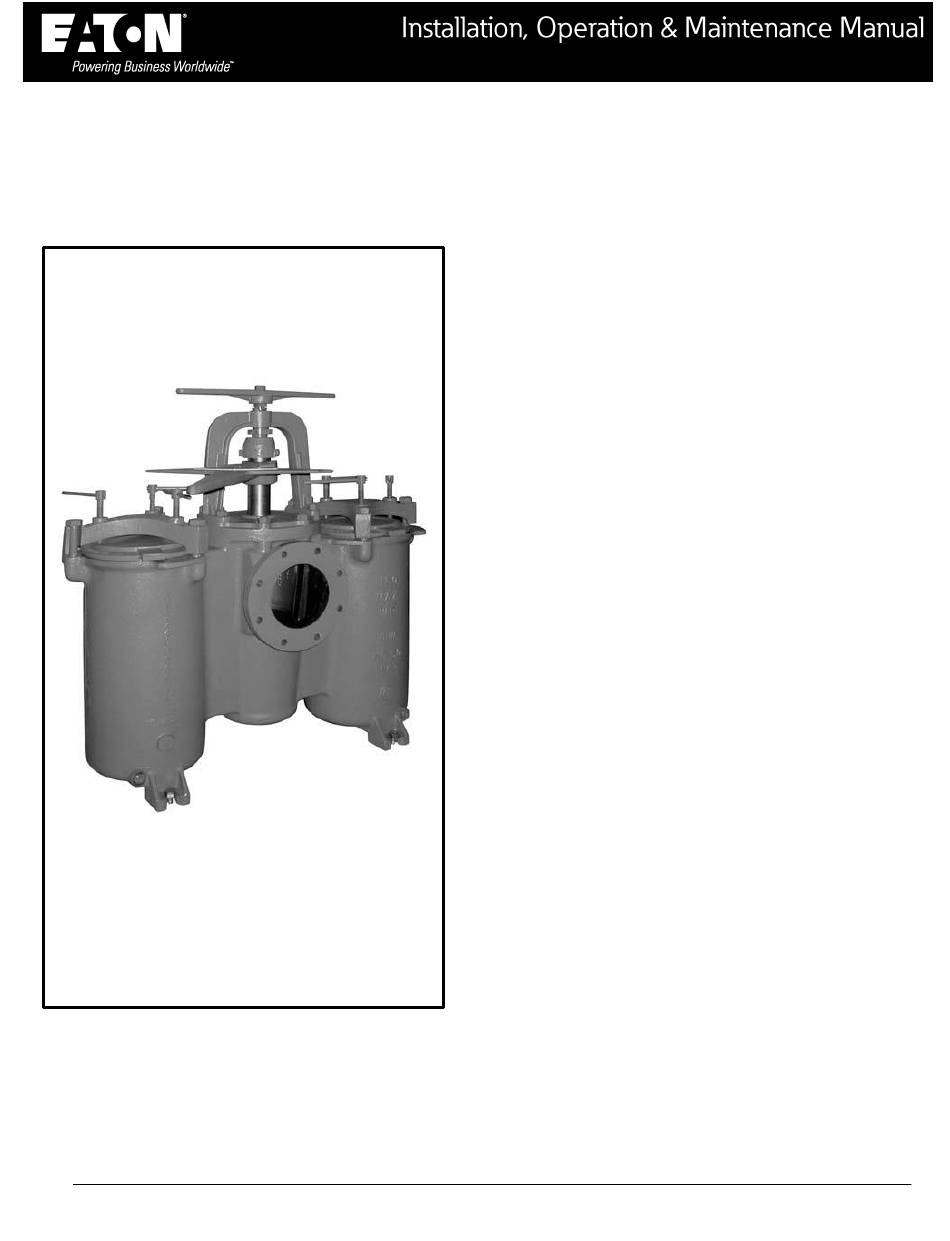

Model 50 Duplex Basket Strainer, Sizes 5" - 8"
Table of Contents
Introduction .............................................................. 1
Receiving, Handling & Inspection .......................... 1
Installation ................................................................. 2
Operation ...................................................................3
Start Up ...................................................................... 3
Basket Removal/Replacement ................................4
Basket Cleaning .........................................................4
Recommended Spare Parts ...................................4
Exploded Parts Drawing ...........................................5
Introduction
A duplex strainer is a device installed in a pipe- line to remove dirt
and other unwanted debris from fluids. Straining is accomplished
by directing the fluid through sized openings in a basket.
Duplex strainers are installed where fluid flow cannot be
interrupted while the basket is re- moved for cleaning. Duplex
strainers are designed for pressure and suction installations.
For additional information regarding Duplex Basket Strainers visit
our website at: www.eaton.com/filtration
Receiving, Handling and Inspection
Inspect strainer after unpacking for damage incurred during transit.
Report any damage to the carrier immediately. If the strainer is not
to be installed immediately, store indoors in a clean, dry
environment.
1
IOM 50 5-8 08/13
Advertisement
Related Manuals for Eaton 50
Summary of Contents for Eaton 50
-
Page 1: Table Of Contents
Model 50 Duplex Basket Strainer, Sizes 5” - 8” Read all instructions before installation or operation of equipment. Failure to comply with these instructions could result in bodily injury or property damage. Table of Contents Introduction …………………………………………………….. 1 Receiving, Handling & Inspection …………………….. 1 Installation ……………………………………………….………. -
Page 2: Installation
Model 50 Duplex Basket Strainer, Sizes 5” - 8” Installation, Continued Installation Be sure flange gaskets are in place and fasteners are tight. Position the strainer in the line so that the fluid enters the connection marked inlet. Be sure sufficient headroom It is recommended that the drain plugs be re- moved and is provided for easy removal of cover and baskets. -
Page 3: Operation
Model 50 Duplex Basket Strainer, Sizes 5” - 8” Operation Start up, Continued NOTE: The strainer valve plug is intended to The chamber in operation can be determined by observing divert flow. It is not designed to provide the position of the valve handle. The absolute tight shut off. -
Page 4: Basket Removal/Replacement
Model 50 Duplex Basket Strainer, Sizes 5” - 8” Basket Replacement (Yoke Cover) When to Clean, Continued Place new or clean basket squarely on basket seat and be During shut down for a temporary period, drain fluid sure the basket handle is sufficiently and clean baskets. -
Page 5: Exploded Parts Drawing
Model 50 Duplex Basket Strainer, Sizes 5” - 8” EXPLODED VIEW... - Page 6 Model 50 Duplex Basket Strainer, Sizes 5” - 8” Eaton Eaton For more information, please Eaton North America — HQ Singapore e-mail us at Brazil 44 Apple Street 4 Loyang Lane #04-01/02 filtrationinfo@eaton.com Av. Julia Gaioli, 474 – Tinton Falls, NJ 07724 Singapore 508914 or call 732-212-4700.
