Related Manuals for Eaton 150 VCP-WL
Summary of Contents for Eaton 150 VCP-WL

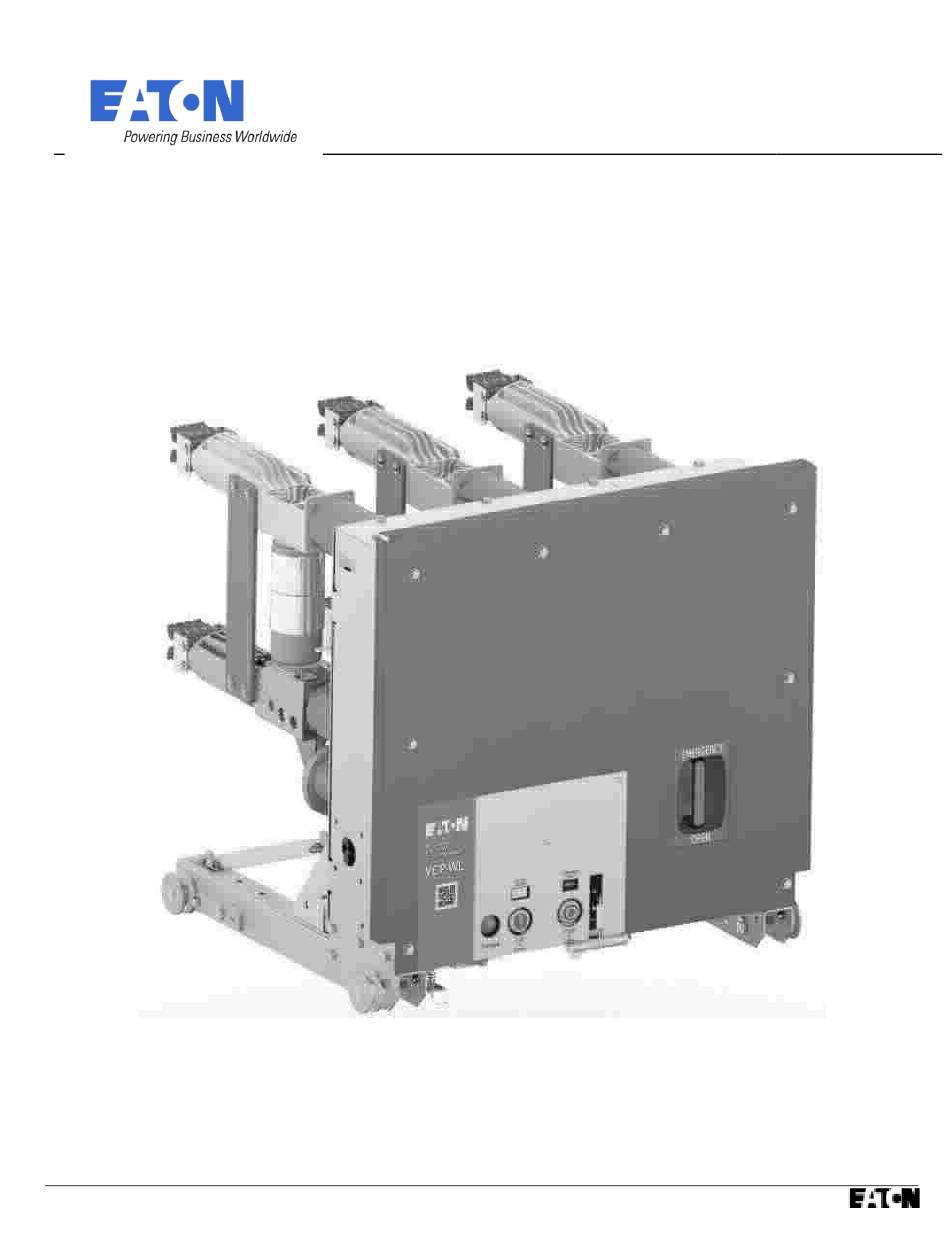

- Page 1 IB131021EN Instructions for Installation, Operation and Maintenance of Type VCP-WL Vacuum Circuit Breakers Effective Mar 2018...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 3 IB131021EN Effective Mar 2018...
- Page 4 A l l possible contingencies which may arise during installation, operation or maintenance, and all details and variations of this equipment do not purport to be covered by these instructions. If further information is desired by purchaser regarding his particular installation, operation or maintenance of particular equipment, contact an Eaton representative. Effective Mar 2018...
-
Page 5: Table Of Contents
TABLE OF CONTENTS SECTION 1: INTRODUCTION....................................1 PRELIMINARY COMMENTS AND SAFETY PRE- CAUTIONS..........................1 GENERAL INFORMATION....................................1 TYPE VCP-WL VACUUM CIRCUIT BREAKER ELEMENT RATINGS.........................2 OUTLINES AND DIMENSIONS..................................... 3 SECTION 2: SAFE PRACTICES....................................5 RECOMMENDATIONS......................................5 SECTION 3: RECEIVING, HANDLING AND STORAGE..............................6 GENERAL..........................................6 RECEIVING.......................................... - Page 6 IB131021EN Page iv FIGURES FIGURE 1-1 TYPE VCP-WL CIRCUIT BREAKER OUTLINES AND DIMENSIONS..................3 FIGURE 3-1 TYPICAL VCP-WL TOOLS AND ACCESSORIES........................8 FIGURE 3-2 TYPICAL FRONT VIEW VCP-WL VACUUM CIRCUIT BREAKER .....9 FIGURE 3-3 TYPICAL VCP-WL VACUUM CIRCUIT BREAKER ELEMENT WITH FRONT COVER REMOVED..........10 FIGURE 3-4 VCP-WL MECHANISM DETAILS............................11 FIGURE 3-5 TYPICAL REAR VIEW VCP-WL VACUUM CIRCUIT BREAKER ELEMENT................12 FIGURE 3-6 TYPICAL VCP-WL VACUUM CIRCUIT BREAKER FRONT COVER ARRANGEMENT..............13...
-
Page 7: Section 1: Introduction
APPLICATION OF THE EQUIPMENT. IN ADDITION, DESCRIPTIONS CONTAINED HEREIN. In no event will ONLY QUALIFIED PERSONS SHOULD BE PERMIT-TED Eaton be responsible to the purchaser or user in contract, TO PERFORM ANY WORK ASSOCIATED WITH THE in tort (including negligence), strict liability or otherwise for EQUIPMENT. - Page 8 IB131021EN Page ii circuits. All VCP-WL circuit breaker elements are designed to ANSI Standards for reliable performance, ease of handling and simplified maintenance. WARNING SATISFACTORY PERFORMANCE THESE BREAKERS AND OR MINIMOD IS CONTINGENT UPON PROPER APPLICATION, CORRECT INSTALLATION AND ADEQUATE MAINTENANCE. THIS INSTRUCTION BOOK MUST BE CAREFULLY READ AND FOLLOWED IN ORDER TO OBTAIN OPTIMUM PERFORMANCE FOR LONG USEFUL LIFE OF THE MINIMOD.
-
Page 9: Type Vcp-Wl Vacuum Circuit Breaker Element Ratings
(1 Min.) Rated Rated Short Short Circuit Circuit Current Current kV rms Amperes kA rms Cycles Seconds kA Peak kA rms 150 VCP-WL 1200 3 or 5 75 VCP-WL 8.25 1200 3 or 5 50 VCP-WL 4.76 1200 3 or 5... -
Page 10: Outlines And Dimensions
IB131021EN Page iv OUTLINES AND DIMENSIONS Figure 1-1 Type VCP-WL Circuit Breaker Outlines and Dimensions Front View Effective Mar 2018... -
Page 11: Section 2: Safe Practices
IB131021EN Page v Side View RECOMMENDATIONS SECTION 2: SAFE PRACTICES Type VCP-WL Vacuum Circuit Breaker Elements are equipped with high speed, high energy operating mechanisms, and are designed with several built-in inter- Effective Mar 2018... -
Page 12: Section 3: Receiving, Handling And Storage
IB131021EN Page vi locks and safety features to provide safe and proper tripping. Carelessness could cause the circuit breaker to operating sequences. fall from the rails resulting in personal injury to those in the area. Do not work on a closed breaker or a breaker with capacitor bank charged. -
Page 13: General
File claims immediately with the carrier if and air circulation to prevent condensation. If the building is damage or loss is detected and notify the nearest Eaton not heated, the same general rule for heat as for outdoor Office. -
Page 14: Type Vcp-Wl Vacuum Circuit Breaker Element Weights
IB131021EN Page viii Table 3-1 VCP-WL ANSI Rated Breaker Weights Rating Amperes Lbs. (kg) Spin-Free Levering-In Crank: Used to crank breaker 50VCP-WL25 1200 between TEST CONNECTED positions (Style 701B601G11). 75VCP-WL25 1200 150VCP-WL25 1200 Extension Rails: Permits breaker to be withdrawn from its compartment (Style 7813C41G03 for VCP-WL). -
Page 15: Figure 3-1 Typical Vcp-Wl Tools And Accessories
Figure 3-1 Typical VCP-WL Tools and Accessories (Note: Products shown for representation only. New products may include design improvements and alternate nameplate configurations. -
Page 16: Figure 3-2 Typical Front View Vcp-Wl Vacuum Circuit Breaker
IB131021EN Page x Figure 3-2 Typical Front View VCP-WL Vacuum Circuit Breaker ( Newer model Breakers may not have the escutcheon as shown) 1. Front Panel 5. Mechanism Enclosure 2. Levering Latch 6. Lifting Yoke Opening 3. Wheel 7. Primary Disconnect 4. - Page 17 IB131021EN Page xi 1. Electro-Magnetic Actuator 5. Closing Coil Capacitor Bank 2. Auxiliary Switch 6. Optional Under Voltage Relay 3. Power Supplies 4. Controller Effective Mar 2018...
-
Page 18: Figure 3-4 Vcp-Wl Mechanism Details
IB131021EN Page xii Figure 3-4 VCP-WL Mechanism Details 1. Yoke 2. Output Plates 3. Cam Blocks 4. Cross Members Effective Mar 2018... -
Page 19: Figure 3-5 Typical Rear View Vcp-Wl Vacuum Circuit Breaker Element
IB131021EN Page xiii Figure 3-5 Typical Rear View VCP-WL Vacuum Circuit Breaker Element Vacuum Interrupter Drive Rod Housing Drive Rod Assembly Bell Cranks Figure 3-6 Typical VCP-WL Vacuum Circuit Breaker Front Cover Arrangement Effective Mar 2018... - Page 20 IB131021EN Page xiv Nameplate 5. Breaker Charged / Discharged Indicator Operation Counter 6. Manual Close Button Open / Closed Indicator 7. Manual Open Button Emergency Open Handle Effective Mar 2018...
-
Page 21: Section 4: Initial Inspection And Installation
SECTION 4: INITIAL INSPECTION AND ELECTRICAL OPERATION AND MECHANICAL INSTALLATION OPEN CHECK INTRODUCTION After having completed all previous checks and tests, the circuit breaker is ready to be operated electrically. It is preferred that this check be made with the circuit breaker in a TEST position or by using a test cable, if the circuit breaker is outside the cell structure. -
Page 22: Figure 4-1A Insertion Of The Drawout Extension Rails
IB131021EN Page xvi 4-6.1 CIRCUIT BREAKER INSERTION AND REMOVAL Checking pan operation: NOTICE Inserting breaker: A. Lower compartment direct roll-in-breaker Push the breaker into the breaker compartment until the breaker T-handle latches over the moving block on the levering screw assembly. In this position, the breaker is considered in the Disconnect position. - Page 23 IB131021EN Page xvii Rotate the levering crank in a clockwise direction until The circuit breaker and integral levering mechanism the torque limiter on the levering crank “breaks free.” includes all necessary interlocks that when inter-faced As a check, the red indicator on the levering system with a compatible structure will render the circuit can be seen through the window on the front of the breaker mechanism mechanically and electrically trip-...
-
Page 24: Figure 4-1C Bpi Pan Assembly
Figure 4-1C BPI Pan Assembly 1. GROUND CONTACTS 11. CODE PLATES 2. LEVERING SYSTEM 12. PROVISION FOR PADLOCKING 3. AUTOMATIC SECONDARY 13. METAL FRAMEWORK 4. RACKING SCREW 14. BREAKER RAIL 5. MOVING BLOCK 15. MR2 INTEGRAL RACKING PROVISIONS 6. SLIDER 7. - Page 25 Breaker pan assembly Slider interlocks prevent removing a closed Callout descriptions for Figure 4-2C breaker. Grounding contact grounds the breaker in positions. The breaker MOC (mechanism-operated The levering system prevents removal of the breaker compartment) switch is an assembly of in any position other than the Disconnect (or Test) switches that is operated by a lever on the position.
-
Page 26: Figure 4-2 Engaging Extension Rails In A Lower Circuit Breaker Compartment
IB131021EN Page xx To remove the circuit breaker from the structure, reverse the procedure just described by turning the levering-in crank in a counterclockwise direction. Keep in mind that safety interlocks may cause the circuit breaker to open and/or springs to discharge during the removal process. It depends on what condition the circuit breaker was in as removal began. -
Page 27: Figure 4-3 Typical Vcp-Wl Circuit Breaker Bottom View
Figure 4-3 Typical VCP-WL Circuit Breaker Bottom View Ground Contact 5. Trip Floor Tripper Secondary Disconnect 6. Code Plates Close Floor Tripper 7. MOC Operator Extension Rail Interlock... -
Page 28: Circuit Breaker/Structure Interfacing
CIRCUIT BREAKER/STRUCTURE INTERFACING Maintenance Interlock This interlock trips, closes and trips the circuit breaker if it is closed and charged as the circuit breaker is withdrawn from WARNING the TEST position to the extension rails. The circuit breaker open and closing springs are, therefore, discharged. A closed breaker cannot be moved into the TEST position from the extension rails. - Page 29 MOC switches designed to operate in the intended to verify safe and proper operation. If TEST position. observed conditions are not as described, contact Eaton for assistance. Lever the circuit breaker towards the CONNECTED position. circuit breaker...
-
Page 30: Section 5: Description And Operation
SECTION 5: DESCRIPTION AND OPERATION INTRODUCTION Type VCP-WL vacuum circuit breakers are horizontal drawout designs for use in metal-clad switchgear compartments. These breakers can be stacked two high in a vertical section resulting in a considerable savings of floor space. Vacuum interrupters are used with all circuit breakers to close and open the primary circuit. -
Page 31: Figure 5-2 Graphic Representation Of Arc Interruption
IB131021EN Page xxv Contact wipe can be calculated by measuring the distance between the Drive Rod End and the Drive Rod Housing (Figure 5-3) in both the “open” and “closed” state and subtracting the “closed” measurement from the “open” measurement. Contact wipe is factory set to 0.217” +/- 0.010”... -
Page 32: Electromagnetic Mechanism
IB131021EN Page xxvi After the contact wipe is properly checked/set, the open gap should be recorded on each phase. To record the open gap, follow the steps below (Refer to Figure 5-5): With the circuit breaker closed, measure the distance between the drive block and the bottom of the conductor casting. - Page 33 IB131021EN Page xxvii cycle. Once the capacitors discharge to accomplish the The controller contains internal circuitry to accept voltage close action, they immediately begin to recharge which from the power supplies and charges a set of capacitors takes approximately 15 seconds. which store energy to open and close the circuit breaker.
- Page 34 Page xxviii IB131021EN 5-3.7 TRIPPING OPERATION 5-4.2 SECONDARY DISCONNECTS Figures 3-3, 3-4, 3-5 show all components involved in a The circuit breaker control wiring is arranged to connect a tripping operation. An electrical trip signal can be sent to standard 25 point male plug with a corresponding the controller by applying an input voltage to pins 6 &...
-
Page 35: Control Schemes
IB131021EN Page xxix CONTROL SCHEMES The basic control scheme for the VCP-WL circuit breaker is shown in Figure 5-5 below. Effective Mar 2018... -
Page 36: Interlocks And Interfacing
IB131021EN Page xxx Figure 5-5 Typical VCP-WL Control Scheme Diagram shows breaker in open & discharged position with secondary power removed The levering device consists of a drive screw, a drive nut, two side rails and a sliding cage. In the TEST position, the nut is all the way to the front. -
Page 37: Operations Counter
IB131021EN Page xxxi The circuit breaker levering latch can be disengaged only when the circuit breaker is in the TEST position by lifting the latch release. As the circuit breaker is withdrawn, it comes out with the contacts open and the springs discharged because of the floor tripping and spring release interlocks. -
Page 38: Frequency Of Inspection And Maintenance
Standards without inspection. Please contact your local schedule their inspection and maintenance intervals Eaton representative if you would like a copy of the life using well established best practices in their industry. curve of the Vacuum Interrupters in your specific circuit breakers. -
Page 39: Inspection And Maintenance Procedures
IB131021EN Page xxxiii material presented in this instruction manual and other related manuals. 6-2.2 GENERAL TORQUE GUIDELINES Bolts and screws must be properly torqued. This is especially true if part and/or accessories are added or replaced. Table 6.1 provides guidelines on torque levels. The table is intended as a general guideline and should be applied in conjunction with the experience and good judgment of the individual performing the work. -
Page 40: Vacuum Interrupter Integrity Test
Page xxxiv IB131021EN 2. Power Vacuum Interrupters Adequate vacuum Proceed with integrity check as If integrity check is not satisfactory, Elements described in Paragraph 6-4 replace interrupter assembly Dirt on ceramic body Visual Check Clean with lint-free cloth Contact wipe and Contact After short circuit Refer to Paragraphs 5.2.2 &... -
Page 41: Contact Erosion And Wipe
IB131021EN Page xxxv AND NORMAL CON-TACT SPACING IS EXTREMELY Breaker Rated Vacuum Interrupter Integrity Test Voltage Maximum Voltage LOW AND WELL BELOW MAXIMUM PERMITTED BY STANDARDS. HOWEVER, AS A PRECAUTIONARY AC 60Hz MEASURE AGAINST POSSIBILITY OF APPLICATION Up to and including HIGH-ER THAN RECOMMENDED... -
Page 42: Insulation
Be sure that the surfaces are dry before placing the circuit breaker in service. If a solvent is required to cut dirt, use Stoddard’s Solvent Eaton 55812CA or commercial equivalent. Secondary control wiring also requires inspection for insulation damage. -
Page 43: Mechanism Check
All parts that require lubrication have been lubricated Figure 3-6 Status Indicators (“3” shows the contact during the assembly with synthetic grease (Eaton Material No. 53702AM). Over a period of time, this lubricant may be Status indication and “5” shows the capacitor pushed out of the way or degrade. - Page 44 Follow steps in Section 5.2.2 to correctly breaker opens immediately adjusted adjust contact wipe Contact EATON Service Center if unable to follow steps in Section 5.2.2 Interlock switch is closed Check that interlocks are in correct positions and free from obstructions...
-
Page 45: Troubleshooting Chart (Continued)
48VDC, contact EATON Service Center Defective or Damaged Controller Check the voltage across terminals X1:1- X1:2 on controller If the voltage is not 95VDC, contact EATON Service Center Defective or Damaged Capacitor(s) Check the voltage across terminals on each capacitor... -
Page 46: End Of Life Procedures
It is important to learn the field failures. To aid in this process, it is recommended that IEEE Std C37.10 (section A.1) and the reporting form IEEE Std 1325 be considered for reporting the breaker failure event to EATON. 6-14...
