Chapter 2 Field Installation
Fitting the Interface
Board, cont.
6
RFID 13.56 MHz Interface Board for EasyCoder F2 and F4 Printers – Installation Instructions

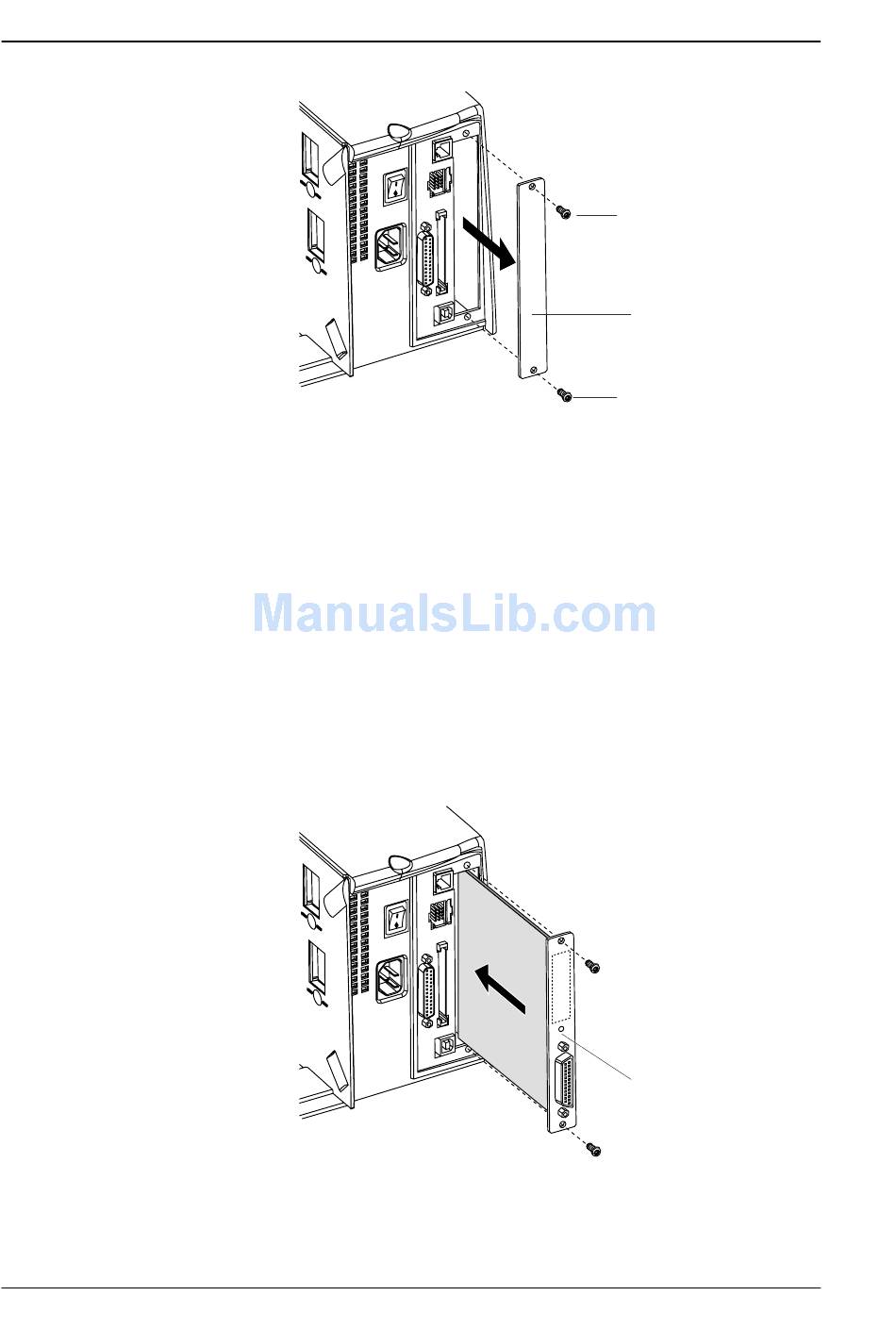

• Remove the two #T10 Torx screws that hold the interface
cover plate on the printer's rear plate. Remove the cover
plate.
• Save the cover plate for possible later use. Keep the
screws.
• If necessary, fi t or remove circuits and straps to adapt the
RFID 13.56 MHz Interface Board for the desired type of
serial interface on "uart2:" as described in Chapter 3.
• Insert the interface board with the components side facing
right, as seen from behind.
• Attach the interface board to the printer's rear plate by
means of the two screws left over when you removed the
original cover plate.
• Connect the fl at cable included in the kit between connector
P81 on the CPU board and connector P1 on the interface
board (see the next page).
#T10 Torx screw
Cover Plate
#T10 Torx screw
Interface
Board
