Completing the Instal-
lation
RFID 13.56 MHz Interface Board for EasyCoder F2 and F4 Printers – Installation Instructions
• Put back the cover over the electronics compartment.
• Connect the power cord.
• Now you have one new interface connector on the printer's
rear plate in addition to the standard interfaces "uart1:" and
"usb1:". Connect the interface cables and switch on the
power.
• If you want to use the serial communication port "uart2:",
enter the Setup Mode to set the proper baud rate, character
length, parity, number of stop bits, fl owcontrol, new line,
and buffer size parameters. See Chapter 3 for specifi ca-
tions.
• Using RFID 13.56 requires special application software, that
can be found on Internet
Chapter 2 Field Installation
(http://printer-rfi d.intermec.com).

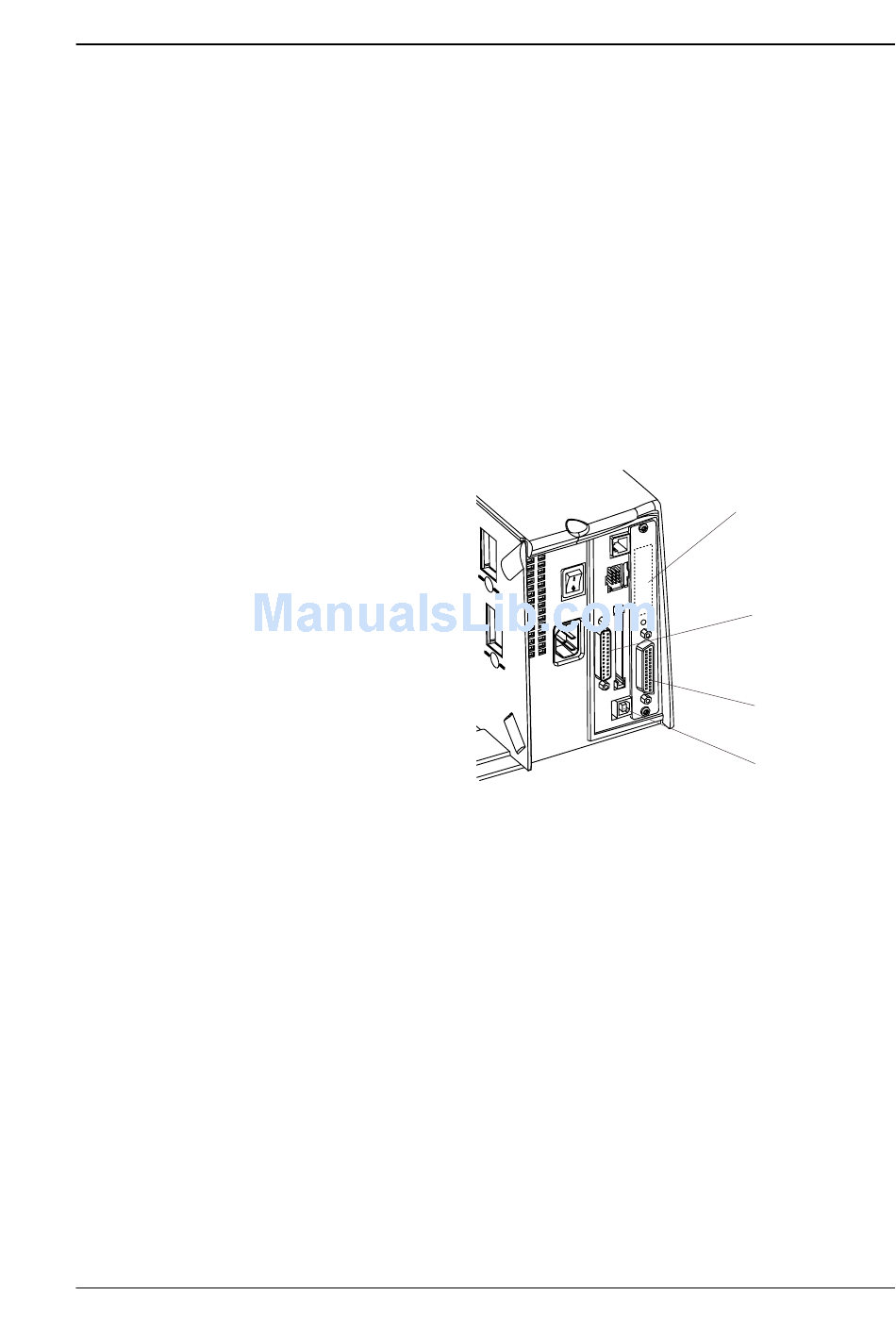

Serial No. Label
Serial Interface
Serial Interface
Serial Interface
"uart1:"
"uart2:"
"usb1:"
11
