Use PCView to configure MinPad settings. Refer to the PCView Software Man-
ual for all possible MinPad configurations.
1.
2.
3.
4.
5.
• Recording interval on page 36
• Elevation mask for log file on page 36
• File name prefix on page 36
• Always append to the file on page 37
• Files Creation mode on page 37
www.javad.com
Connect selected board of your JNSGyro-2T and computer. See
"Connecting the JNSGyro-2T and a Computer" on page 27 for this
procedure.
Start PCView.

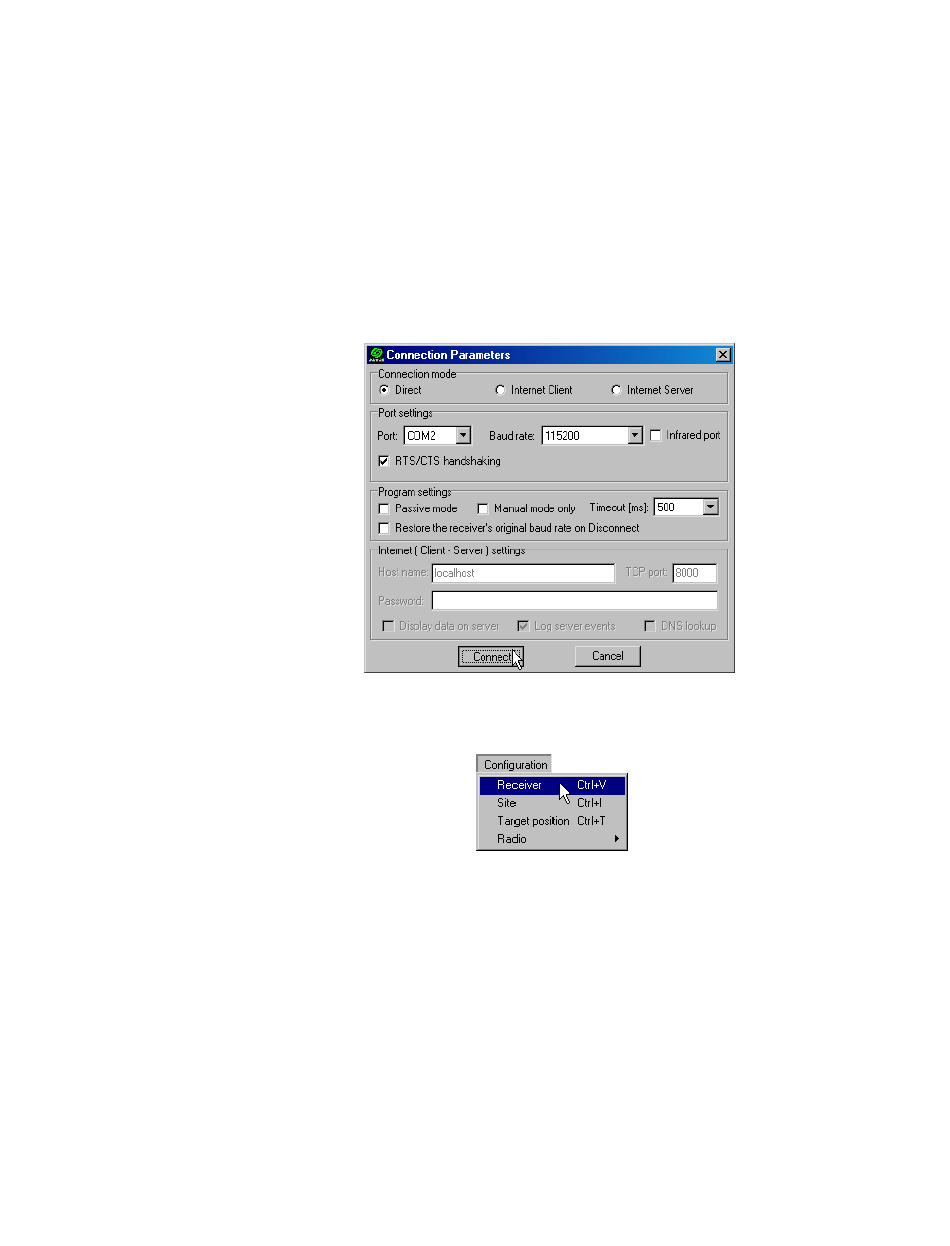

On the Connection Parameters dialog box, enable RTS/CTS handshaking
(Figure 2-11) and then click Connect.
Figure 2-11. Connection Parameters – RTS/CTS Handshaking
Click Configuration->Receiver (Figure 2-12).
Click the MinPad tab, set the following parameters and click Apply
(Figure 2-13 on page 36). See the following pages for descriptions of these
parameters.
Figure 2-12. Configuration->Receiver
C O N F I G U R A T I O N
MinPad Configuration
JNSGyro-2T Operator's Manual 35
