Summary of Contents for Keysight 16440A
- Page 1 sales@artisantg.com artisantg.com (217) 352-9330 | Visit our website - Click HERE...

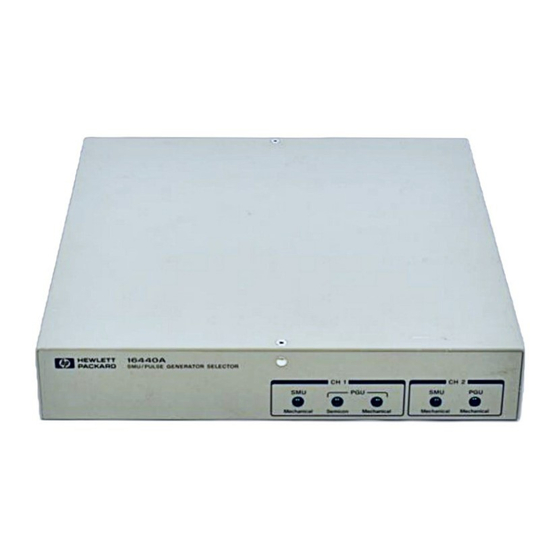

- Page 2 Keysight 16440A SMU/Pulse Generator Selector User’s Guide...
- Page 3 16440-90000 to the implied warranties of merchant- ability and fitness for a particular pur- Edition pose. Keysight shall not be liable for errors or for incidental or consequential Edition 1, February 1994 damages in connection with the fur- Edition 2, April 1995...
-
Page 5: Safety Summary
Because of the danger of introducing additional hazards, do not install substitute parts or perform any unauthorized modification to the instrument. Return the instrument to a Keysight Technologies Sales and Service Office for services and repair to ensure that safety features are maintained. -
Page 6: Safety Symbols
Safety Symbols The general definitions of safety symbols used on equipment or in manuals are listed below. Instruction manual symbol. The equipment will be marked with this symbol when it is necessary for the user to refer to the instruction manual. Hazardous voltage and potential for electrical shock. -
Page 7: Product Stewardship
The crossed out wheeled bin symbol indicates that separate collection for waste electric and electronic equipment (WEEE) is required, as obligated by the EU DIRECTIVE and other National legislation. Please refer to http://keysight.com/go/takeback to understand your Trade in options with Keysight in addition to product takeback instructions. - Page 8 User's Guide...
- Page 9 The B1500A needs Keysight 16445A selector adapter. Inspecting the 16440A upon Receiving NOTE When the 16440A selector (B1500A-A04) arrives at your site, make sure that nothing is missing or damaged. Unpack the carton, then check the contents against figure and table shown in “Introduction”.
- Page 10 16440-60001 5 angle 16440-60002 6 User's Guide 16440-90005 a. Three screws are furnished for each plate. b. Furnished with 16440A-001/002. Two screws are also furnished for each angle. c. This document. Furnished with 16440A-001/002. Keysight 16440A User’s Guide, Edition 6...
-
Page 11: Operation
If you want to add two more channels for a total of four, you can order another 16440A, which is called the “selector expander”. The selector and selector expander have identical circuits. The only difference is the channel naming. The selector has CH 1 and CH 2, and the selector expander has CH 3 and CH 4. - Page 12 CH 1 and CH 3 can have four switching states: all open, SMU on, PGU on, and PGU open. CH 2 and CH 4 can have three switching states: all open, SMU on, and PGU on. Keysight 16440A User’s Guide, Edition 6...
- Page 13 When the switching state changes from “PGU on” to “PGU open”, only the semiconductor relay switches. This reduces the amount of times the mechanical relay is switched. The semiconductor relay has a much longer switching life than the mechanical relay. Keysight 16440A User’s Guide, Edition 6...
- Page 14 If you use two selectors to have four channels, connect the CONTROL Output terminal of the selector to the CONTROL Input terminal of the second selector using a 40 cm control cable as shown below. Keysight 16440A User’s Guide, Edition 6...
- Page 15 You can use two inputs for one selector, and four inputs for two selectors. b. You can use two outputs for one selector and four outputs for two selectors. Selector out- put is either one of the PGU outputs or the SMU output. Keysight 16440A User’s Guide, Edition 6...
- Page 16 User's Guide Operation • Connecting the selector to the B1500A Turn off the B1500A before connecting the instruments. Then connect as shown below. 16440A Selector #2 for DUT terminals 3 a CONTROL Input Output CH 1 CH 2 Output DUT terminal 1...
-
Page 17: Installation
User's Guide Installation Installation This section describes how to attach the selector to Keysight 16442A test fixture or to a shielding box. To Attach the Selector to Test Fixture You can attach your selector to the 16442A test fixture. You need a standard screwdriver. - Page 18 6. Position a plate on both sides. 7. Attach each plate using the three flathead screws supplied with the instrument. NOTE If you use the 16445A selector adapter, fix it under the selector by similar method. Keysight 16440A User’s Guide, Edition 6...
- Page 19 If you use the 16441A R-box, attach the R-Box to the selector as shown below. 16442A/B Test Fixture 16440A Selector 16441A R-BOX NOTE If you use the 16445A selector adapter, fix it under the R-box by similar method. Keysight 16440A User’s Guide, Edition 6...
- Page 20 To Attach the Selector to Shielding Box You can attach your selector to a shielding box. You need a standard screwdriver. The following figure shows the spacing of the 16440A (B1500A-A04) screw holes. You need to prepare four screws and nuts to match the screw holes.
- Page 21 3. Position a plate on both sides. 4. Attach each plate using the three flathead screws supplied with the instrument. NOTE If you use the 16445A selector adapter, fix it on top of the selector by similar method. Keysight 16440A User’s Guide, Edition 6...
- Page 22 2. Place the selector(s) on the side panel of the shielding box. 3. Position four nuts on the inside panel of the shielding box. 4. Attach the angle bracket to the shielding box using four flathead screws. Keysight 16440A User’s Guide, Edition 6...
- Page 23 User's Guide Installation If you use the 16441A R-box, attach the R-Box to the selector on the shielding box as shown below. Keysight 16440A User’s Guide, Edition 6...
-
Page 24: Maintenance
Servicing the Selector This section provides information for trained service personnel to repair the selector. When a replaceable part, which is shown with the Keysight part number in this section, needs to be replaced, order the parts from the nearest Keysight Technologies Sales and Service Office. -
Page 25: Circuit Block Diagram
User's Guide Maintenance Circuit Block Diagram Keysight 16440A User’s Guide, Edition 6... -
Page 26: Replaceable Parts
Maintenance Replaceable Parts When soldering, use low hydrochloric acid solder (Keysight part number: 8090-0433) to prevent the flux in the solder from spreading unnecessarily, and make sure that adjacent terminals are not bridged. After soldering, make sure that there are no lint bridges, which would increase the leakage current. - Page 27 DS10 1990-0967 LED Green DS11 1990-0967 LED Green DS12 1990-0967 LED Green 1252-1481 Connector 1250-1842 Connector BNC 1250-1842 Connector BNC 1252-1481 Connector 3101-2885 Switch - DIP 0360-1641 Terminal 0340-0060 Terminal 0360-1641 Terminal 0340-0060 Terminal Keysight 16440A User’s Guide, Edition 6...
-
Page 28: Specifications
Function Keysight 16440A switches either a SMU or PGU to the associated output port. You can expand to 4 channels by adding an additional 16440A. The channel 1 PGU port provides “PGU OPEN” function, which can disconnect the PGU by opening a semiconductor relay. - Page 29 40 cm triaxial cable (Keysight part number 04155-61605) • Option 003 • 40 cm control cable (Keysight part number 04155-61608) for connecting selector to selector expander • 40 cm triaxial cable (Keysight part number 04155-61605) Keysight 16440A User’s Guide, Edition 6...
-
Page 30: Supplemental Information
700 pF typical (at 1 MHz, VinVout = 0 V) Signal transfer characteristics Overshoot < 5 % of pulse amplitude (at 20 ns leading and trailing time, 50 pulse generator source impedance, 50 pF 1 M in parallel load) Keysight 16440A User’s Guide, Edition 6... - Page 31 User's Guide Specifications Keysight 16445A Selector Adapter Specifications Keysight 16445A Selector Adapter is the connection box required to transfer the control signal from the B1500A and apply DC power to the Keysight 16440A SMU/Pulse Generator Selector. • Temperature Range +5 C to +40 C Operating -20 C to +60 C...
- Page 33 This information is subject to change without notice. © Keysight Technologies 2014 Edition 6, August 2014 *16440-90000* 16440-90000 www.keysight.com...
