Chapter 3 — Maintaining the Printer

Cleaning the Label Sensors

38
C d
P o
w e
r /D
a ta
A le
r t
E m
p ty
/P
a u
s e
F e
e d
/P
a u
s e
I n t e I n t e
r m e r m e
c c
3 4
0 0
Media
path

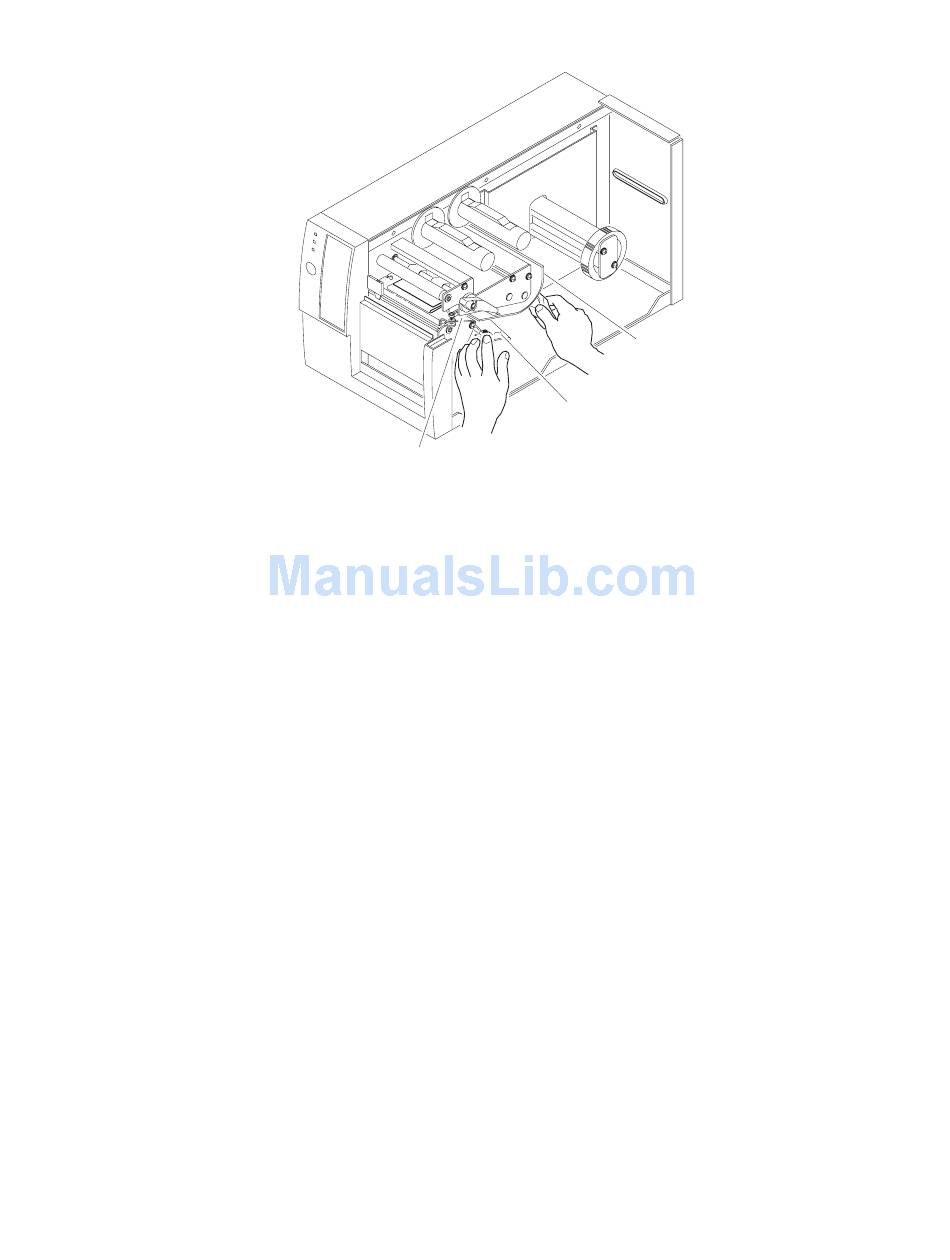

5 Use the cloth moistened with isopropyl alcohol to clean the upper and
lower media guides. Be sure to remove all traces of debris. Release the
lower media guide.
6 Remove all traces of dust, paper, and adhesive from the media path with
a soft bristle brush or vacuum.
7 Replace the media and ribbon.
8 If you are finished cleaning, replace the media cover.
Three label sensors on the printer require regular cleaning:
• Label taken sensor
• Label mark sensor
• Label gap sensor
To clean the label sensors
1 Turn the On/Off switch to the off position and remove the power cord.
2 Remove the media cover.
3 Rotate the head lift lever clockwise to release the printhead. Rotating the
head lift lever raises the printhead to allow access to the label mark
sensor.
4 Remove the media and ribbon (if necessary).
5 Clean the label taken sensor with a cotton swab moistened with
isopropyl alcohol.
39
