Heat & Glo Tonic SLR-C Installation Instructions

Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed under a decorative front.

CONTENTS:

• Decorative Front Assembly
(Mesh brackets affixed to back side for shipment)
• Shoulder Bolts (4)
• Mesh screen assembly
Verify and remove contents from packaging before
beginning installation.
Installation Instructions
1. Install the four shoulder bolts, two per side, as shown
in Figure 1.
Note: The bolts should be threaded in 2 full turns only.
2. Remove mesh brackets from back side of decorative
front assembly. Discard screws.
3. Align mesh brackets onto the threaded section of the
shoulder bolts on each side of the fireplace and slide the
bracket down as shown in Figure 2.
4. Tighten bolts securely on each side of fireplace.
Tonic Decorative Front
Model: SLR-C, SLR-D
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
Heat & Glo • Tonic Decorative Front Instructions • 2143-904 Rev. C • 5/16
5. Place lower section of framed mesh assembly into ap-
pliance opening. Center the assembly between the
shoulder bolts and hang it on to the brackets as shown
in Figure 3.

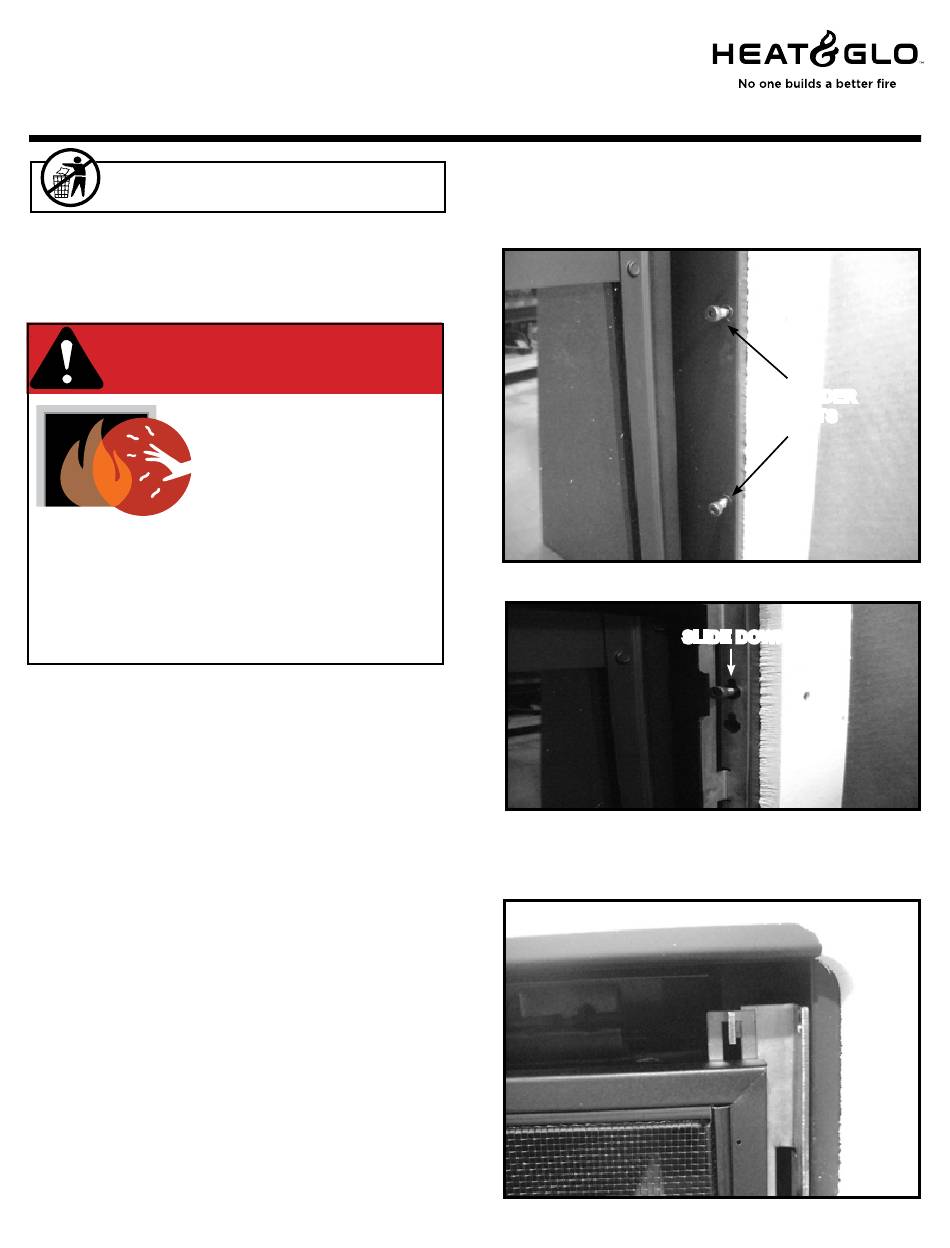

Figure 1. Location of Shoulder Bolts
SLIDE DOWN
Figure 2. Bracket Engagement
Figure 3. Mesh Installed.
SHOULDER
BOLTS
