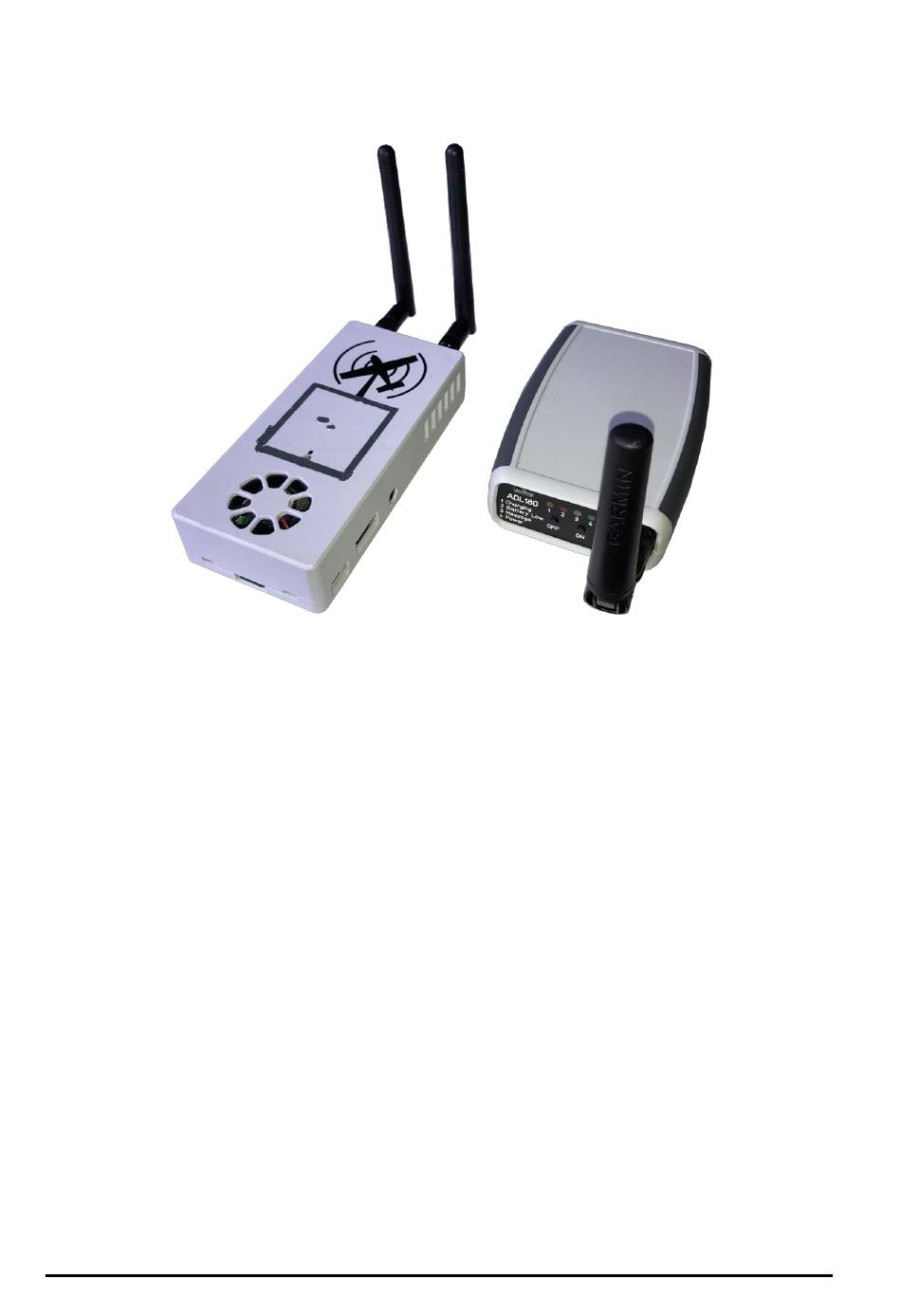

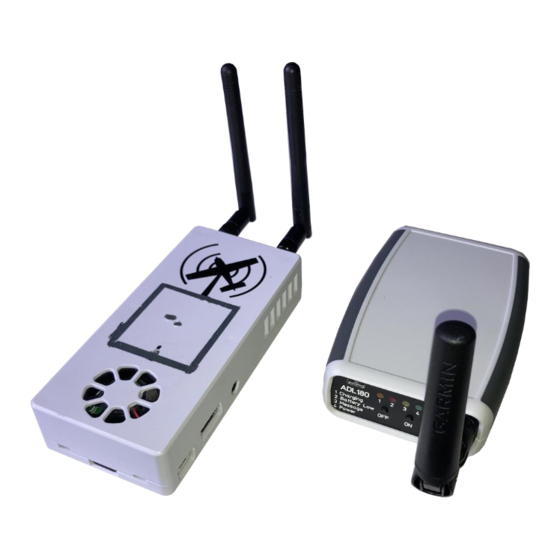

- Page 1 ADL and GDL90 Traffic Receiver Interconnect ADL140/150(B)/160/170/180(B)/190/200 Version 1.00 11.05.2022 ADL GDL90 Traffic Receiver Interconnect 1 / 12 Revision 1.00 - 11.05.2022...
- Page 2 Compatible Devices All ADL140 and later can be run together with another traffic devices. Older ADL110B/120/130 are unfortunately not compatible. Please make sure you have the latest firmware installed on the ADL device for best results.
- Page 3 Compatible traffic devices must be able to send the so called GDL90 format. Popular options are the Stratux, SkyEcho2, AT1 and many more. Joining the WiFi Networks We recommend to run the ADL device as a client in the WiFi created by the third party traffic device.
- Page 4 Figure 2 WiFi details, access this page with the (i) next to the WiFi name Now start up your ADL device and connect the iPad to the “ADL Connect” WiFi. Remember whatever changes you make to the WiFi configuration, as a fallback the ADL device will always boot up with the ADL Connect WiFi active.
- Page 5 Figure 3 Connecting to the ADL Connect WiFi Open the ADLConnect app and when properly connected got to the Config page. Enter the values we recorded above in those fields: WiFi Mode: “Client“ WiFi SSID: as recorded above (upper and lower case matters) WiFi Password:as recorded above (upper and lower case matters) If no password is used simply leave this field empty (make sure it is really empty) WiFi Subnetmask: as recorded above...
- Page 6 Figure 4 Configure the ADL device as a WiFi client Figure 5 ADL boot up sequence with 90 second delay until stratux WiFi is joined ADL GDL90 Traffic Receiver Interconnect 6 / 12 Revision 1.00 - 11.05.2022...
- Page 7 Figure 6 ADL200 device running as a client in the stratux WiFi ADL GDL90 Traffic Receiver Interconnect 7 / 12 Revision 1.00 - 11.05.2022...
- Page 8 Configuring the GDL90 Data Stream Frist make sure your traffic device is really broadcasting GDL90 traffic data. For some devices like the Stratux this is always the case while others like the AT1 might have to be reconfigured. Then connect to the traffic device WiFi, open the ADLConnect app and wait until it connects to the ADL device.
- Page 9 Testing Wait until everything is up and running. Now you should now be able to display weather data (and in some cases ADL based traffic) in parallel to the traffic data provided by your traffic device. If in doubt on how to display the GDL90 data in your favorite app, please look up the separate manuals we have for each major navigation app.
- Page 10 Figure 9 ADL200 weather data and stratux traffic displayed in ForeFlight Figure 10 ADL200 weather data and stratux traffic displayed in SkyDemon ADL GDL90 Traffic Receiver Interconnect 10 / 12 Revision 1.00 - 11.05.2022...
- Page 11 Figure 11 ADL200 weather data and stratux traffic displayed in Garmin Pilot ADL GDL90 Traffic Receiver Interconnect 11 / 12 Revision 1.00 - 11.05.2022...
- Page 12 10 Contact Golze Engineering Bredowstr. 29 10551 Berlin www.golze.tech mail@ing-golze.de +49 30 39805204 ADL GDL90 Traffic Receiver Interconnect 12 / 12 Revision 1.00 - 11.05.2022...
