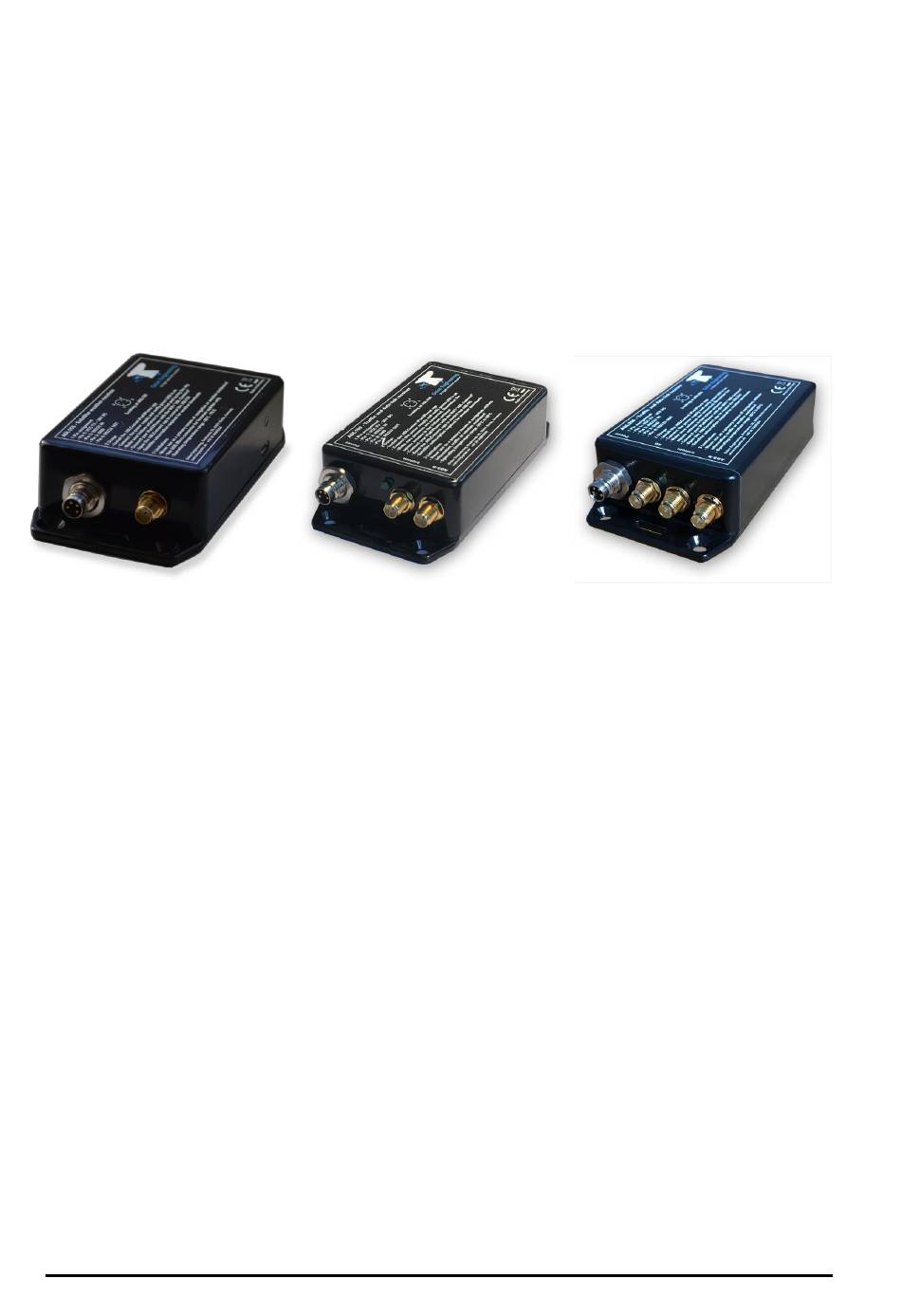

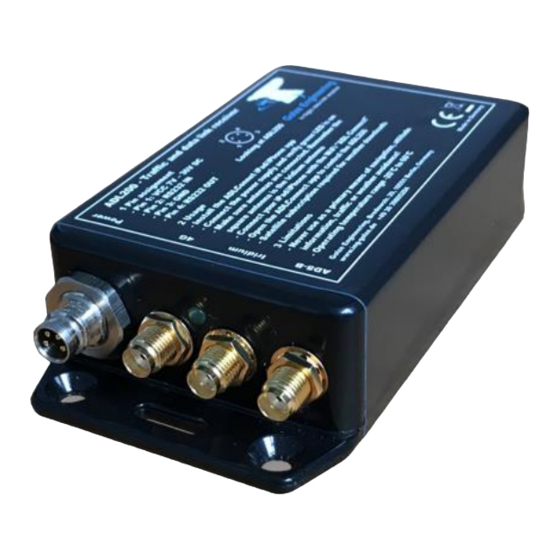

- Page 1 ADL150(B) ADL190 ADL200 User and Installation Manual Version 4.00 06.03.2023 ADL150(B) 190 200 User and Installation Manual 1 / 36 Revision 4.00 - 06.03.2023...
- Page 2 This manual contains numbered pages 1 to 36. Emergency procedures If you suspect any malfunction of the ADL150(B)/190/200 or interference with other aircraft systems, deactivate the device by pulling / deactivating the aircraft circuit breaker for the device or pulling the cigarette lighter plug, whichever is applicable. Do not reactivate the device until the problem has been investigated and resolved on the ground.
- Page 3 ADLS1G extension box for this purpose. The ADL150(B) is a low cost version of the ADL200 without the 4G/LTE, without AHRS and without ADS-B. All other features are identical. The ADL150 is the classic device and the ADL150B is a device produced later on with nearly identical characteristics.
- Page 4 11 Dimensions and Direct Mounting Figure 1 ADL150(B), ADL190 and ADL200 footprint (all measurements in millimeters) 26mm Antenna Power Figure 2 ADL150 side view ADL150(B) 190 200 User and Installation Manual 4 / 36 Revision 4.00 - 06.03.2023...
- Page 5 ADL150B side view 26mm Power Iridium Antenna ADS-B Antenna Figure 4 ADL190 side view 26mm Power LTE Antenna Iridium Antenna ADS-B Antenna Figure 5 ADL200 side view ADL150(B) 190 200 User and Installation Manual 5 / 36 Revision 4.00 - 06.03.2023...
- Page 6 The ADL200 requires four connections, the power supply and three antennas. The ADL190 requires three connections the power supply and two antennas. The ADL150(B) requires only two connection, the power supply and the Iridium antenna. The device has to be connected to a continuous power source. It will accept 7-36 Volt and consumes about 5 Watt.
- Page 7 Figure 7 Cigarette lighter cable for ADL140/150(B)/190/200 The green LED on the ADL150(B)/190/200 enclosure will illuminate if power is supplied. Figure 8 ADL150(B)/190/200 power connector pins The connector on the ADL150(B)/190/200 is called "RSMHL 4" and a matching connector for installation purposes would be "RKMCK 4" from Belden or an equivalent from another manufacturer.
- Page 8 8.40 or later the baud rate can be configured using the ADLConnect app on the Config page. The ADL150(B)/190/200 by itself can only run one baud rate at a time on its RS232 input and output. So if either two inputs are required simultaneously or input and output should run at different baud rates an extension box is required.
- Page 9 ADLS1G. 16 Wired Interconnect – Input Protocols The ADL150(B)/190/200 can read the following data protocols on its serial port, either directly or through the ADLRS232 or ADLS1G: Aviation Flight Plan Inout ...
- Page 10 Last that we checked the Avidyne devices did not share weather data among them, so all devices had to be connected individually. ADL150(B) 190 200 User and Installation Manual 10 / 36 Revision 4.00 - 06.03.2023...
- Page 11 GPS: Sends the basic GDL90 heartbeat and GPS data. Omitting this data will not do any harm when operating the ADLS1G but in a direct RS232 connection to an Avidyne IFD440/540/EX5000 etc. disabling this data will produce error messages. ADL150(B) 190 200 User and Installation Manual 11 / 36 Revision 4.00 - 06.03.2023...
- Page 12 Regarding the details on how to display the weather data in those popular app please look at our separate documentation available for each app interconnect. ADL150(B) 190 200 User and Installation Manual 12 / 36 Revision 4.00 - 06.03.2023...
- Page 13 “GPS” part of the GDL90 data stream by selecting the “Custom” option for the WiFi GDL90 in the ADLConnect app. In most cases enabling just the WX (Weather) data block works best. ADL150(B) 190 200 User and Installation Manual 13 / 36 Revision 4.00 - 06.03.2023...
- Page 14 Lynx NGT-9000 Garmin Pilot (optional, multiple possible) Wired or Bluetooth Display GTN650/750 G500/600/1000/3000 G3X etc. (optional, multiple possible) Figure 11 Interconnect Drawing without ADLRS232 or ADLS1G ADL150(B) 190 200 User and Installation Manual 14 / 36 Revision 4.00 - 06.03.2023...
- Page 15 Lynx NGT-9000 Garmin Pilot (optional, multiple possible) Wired or Bluetooth Display GTN650/750 G500/600/1000/3000 G3X etc. (optional, multiple possible) Figure 12 Interconnect Drawing with ADLRS232 or ADLS1G ADL150(B) 190 200 User and Installation Manual 15 / 36 Revision 4.00 - 06.03.2023...
- Page 16 Therefore a basic antenna installation is sufficient. Any advanced external LTE antennas could provide an advantage but would probably never pay off financially by saving enough satellite downloads. ADL150(B) 190 200 User and Installation Manual 16 / 36 Revision 4.00 - 06.03.2023...
- Page 17 30 Iridium Antenna The antenna supplied with the ADL150(B)/190/200 looks similar to the one shown below: Figure 14 Iridium Antenna This is an Iridium patch antenna. Please note that it will radiate only upwards. Therefore the antenna should be placed with the flat side down as horizontally as possible.
- Page 18 If the aircraft is equipped with an external Iridium antenna that antenna can also be used for the ADL150(B)/190/200 Iridium link. It will probably provide a signal which is a bit better than the antenna on the glare shield. But usually the small advantage in signal quality will not justify the expensive installation of such an antenna if it is not already installed.
- Page 19 ADS-B antenna connector disconnected. Then measure the voltage between the inner pin and the outer ground. This should be close to 5V if the device is prepared to run the optional amplifier. ADL150(B) 190 200 User and Installation Manual 19 / 36 Revision 4.00 - 06.03.2023...
- Page 20 For short cable runs RG174 cable is acceptable. For longer cable runs lower loss cable like RG400 will be required. Place the amplifier as close as practicable to the antenna. Figure 19 Amplifier Type "ADS-B 1090 MHz LNA" ADL150(B) 190 200 User and Installation Manual 20 / 36 Revision 4.00 - 06.03.2023...
- Page 21 33 ADL150/B) Antenna Drawing The drawing shows the ADL150(B) with its antenna connected. All connectors are SMA and all connecting cables are coaxial cables. ADL150(B) Iridium Antenna Figure 20 ADL200 with antennas ADL150(B) 190 200 User and Installation Manual 21 / 36...
- Page 22 The drawing shows the ADL190 with its antennas connected. All connectors are SMA and all connecting cables are coaxial cables. ADL190 ante ADS-B Amplifier Iridium Antenna Figure 21 ADL200 with antennas ADL150(B) 190 200 User and Installation Manual 22 / 36 Revision 4.00 - 06.03.2023...
- Page 23 The drawing shows the ADL200 with its antennas connected. All connectors are SMA and all connecting cables are coaxial cables. ADL200 ante ante ADS-B Amplifier Iridium Antenna Figure 22 ADL200 with antennas ADL150(B) 190 200 User and Installation Manual 23 / 36 Revision 4.00 - 06.03.2023...
- Page 24 ADL device only without a network type link to the Internet or similar. We suggest you disable any WiFi privacy options. This assigns a random MAC address to your device which we have seen to cause issues. ADL150(B) 190 200 User and Installation Manual 24 / 36 Revision 4.00 - 06.03.2023...
- Page 25 If the app displays “Internet mode”, "WWW" or "Offline" in the top status bar, it is not properly connected to the ADL200. In this case please check your WiFi settings. Figure 24 iPad ADLConnect user interface ADL150(B) 190 200 User and Installation Manual 25 / 36 Revision 4.00 - 06.03.2023...
- Page 26 ADLConnect will only use this privilege when connected to an ADL device, else it will not use your location. But disabling the location can cause severe issues regarding the WiFi communication between the ADLConnect app and the ADL device. ADL150(B) 190 200 User and Installation Manual 26 / 36 Revision 4.00 - 06.03.2023...
- Page 27 Please note: In the distant past a "Deutsche Wetterdienst login" was required. This is no longer the case. Figure 25 Entering the login details on the Config page of the iPad app ADL150(B) 190 200 User and Installation Manual 27 / 36 Revision 4.00 - 06.03.2023...
- Page 28 ADL150B/190/200 does not have any external USB port. Firmware updates are loaded only by WiFi. The legacy ADL150 does have an external USB port which was used in the past for USB firmware updates. If the firmware 7.10 or later is installed all future firmware updates are then loaded also from the ADLConnect app and the USB port is no longer required.
- Page 29 Therefore enter at least the destination of your flight in the flight plan table right to the moving map to get the weather for your whole flight path. ADL150(B) 190 200 User and Installation Manual 29 / 36 Revision 4.00 - 06.03.2023...
- Page 30 Latest weather information shown on the moving map page For a more detailed description please consult our tutorial video showing how to use the ADLConnect which is available from the website http://www.ing-golze.de ADL150(B) 190 200 User and Installation Manual 30 / 36 Revision 4.00 - 06.03.2023...
- Page 31 AI button at the top left corner of the screen. Then at the left bottom of the attitude indicator press the button “Setup”. Now you display changes and you see a the button required for the calibration of the AHRS. ADL150(B) 190 200 User and Installation Manual 31 / 36 Revision 4.00 - 06.03.2023...
- Page 32 45 ADL150(B) Technical data WiFi Interface for iPad/iPhone interconnect External Iridium antenna required No battery, external power supply (7-36V, 5W) required ADL150(B) 190 200 User and Installation Manual 32 / 36 Revision 4.00 - 06.03.2023...
- Page 33 No battery, external power supply (7-36V, 5W) required Dimensions: 110 x 53 x 26mm (with latches) Dimensions: 84 x 55 x 26mm (without latches) Mass: 135g ADL150(B) 190 200 User and Installation Manual 33 / 36 Revision 4.00 - 06.03.2023...
- Page 34 48 ADL150 Label Figure 30 ADL150 Label 49 ADL150B Label Figure 31 ADL150B Label ADL150(B) 190 200 User and Installation Manual 34 / 36 Revision 4.00 - 06.03.2023...
- Page 35 50 ADL190 Label Figure 32 ADL190 Label 51 ADL200 Label Figure 33 ADL200 Label ADL150(B) 190 200 User and Installation Manual 35 / 36 Revision 4.00 - 06.03.2023...
- Page 36 52 Contact Golze Engineering Bredowstr. 29 10551 Berlin http://www.ing-golze.de mail@ing-golze.de +49 30 39805204 ADL150(B) 190 200 User and Installation Manual 36 / 36 Revision 4.00 - 06.03.2023...
