Golze Engineering ADL150 Installation Manual
Satellite weather receiver
Hide thumbs
Also See for ADL150:
- Connecting manual (12 pages) ,
- User and installation manual (36 pages)
Related Manuals for Golze Engineering ADL150
Summary of Contents for Golze Engineering ADL150

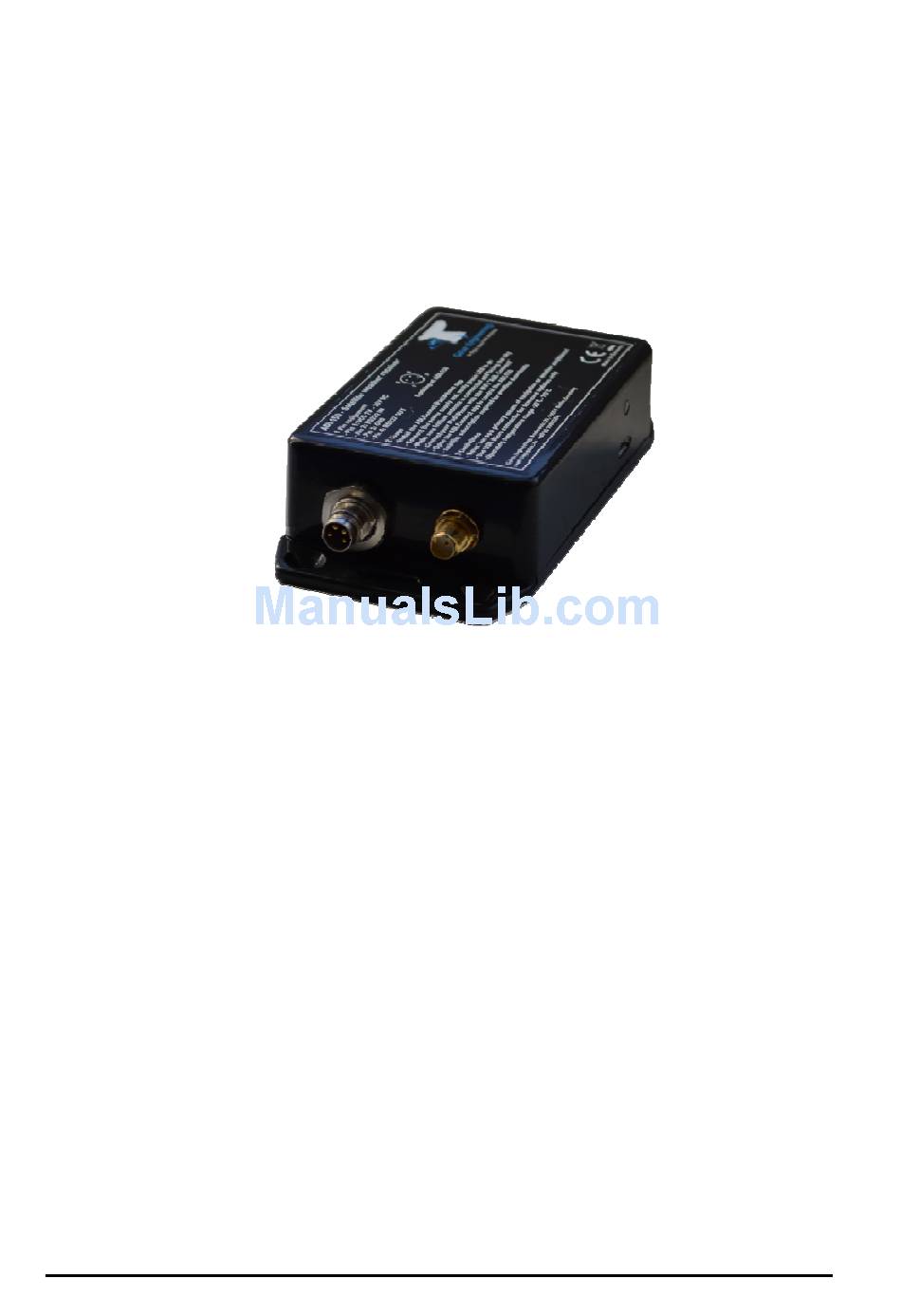

- Page 1 ADL150 User and Installation Manual Version 1.01 28.03.2018 ADL150 User and Installation Manual 1 / 12 Revision 1.01 - 28.03.2018...
- Page 2 Disclaimer The ADL150 is provided as a non certified component. The only basis on witch it can be installed is an appropriate minor change. It is the sole responsibility of the user and installer that is installed and used in a legal way. The device may stop working at any time.
- Page 3 The Iridium satellite service Before you can use the ADL150 you have to subscribe to one of our Iridium satellite service plans. Please login to the ADL customer portal to order the different service plans: https://www.ing-golze.de/login.jsp If you have no login yet please contact us by email at adl@ing-golze.de.
- Page 4 Make sure the device is sufficiently attached so it can not become lose in flight. 10 Power connector The USB micro socket on the side of the ADL150 will not power up the device. It is used for firmware updates only. Connecting a device through the USB port will deactivate the ADL150 WiFi and it will enter the update mode.
- Page 5 The ADL150 requires a separate Iridium antenna. The antenna is connected through a SMA female socket on the ADL150. The ADL150 will work with a wide choice of antennas. Usually you will be supplied with an indoor Iridium antenna which is typically placed directly below the aircraft front window with good view to the sky.
- Page 6 Figure 4 iPad Wi-Fi settings ADL150 User and Installation Manual 6 / 12 Revision 1.01 - 28.03.2018...
- Page 7 ADL device. When connected the Iridium and GPS signal quality will be displayed in the top left corner. If the app displays “Internet mode”, "WWW" or "Offline" in the top status bar it is not properly connected to the ADL150. Please check your WiFi settings. Figure 5 iPad ADLConnect user interface...
- Page 8 Please note: In the past a "Deutsche Wetterdienst login" was required. This is no longer the case. Figure 6 Entering the login on the Config page of the iPad app ADL150 User and Installation Manual 8 / 12 Revision 1.01 - 28.03.2018...
- Page 9 DWD login is correct you will soon have downloaded the weather data. Finally go to the MOVING MAP and METAR/TAF page, where you will find your downloaded weather information. ADL150 User and Installation Manual 9 / 12 Revision 1.01 - 28.03.2018...
- Page 10 Latest radar information shown on the moving map. For a more detailed description please consult our tutorial video showing how to use the ADLConnect which is available from the website http://www.ing-golze.de ADL150 User and Installation Manual 10 / 12 Revision 1.01 - 28.03.2018...
- Page 11 • No battery, external power supply (7-36V, 5W) required • Dimensions: 110 x 53 x 26mm • Mass: 140g 18 ADL150 Label Below is a copy of the label printed on the top of every ADL150 device for reference Figure 9 ADL150 Label ADL150 User and Installation Manual 11 / 12 Revision 1.01 - 28.03.2018...
- Page 12 19 Contact Golze Engineering Bredowstr. 29 10551 Berlin http://www.ing-golze.de mail@ing-golze.de +49 30 39805204 ADL150 User and Installation Manual 12 / 12 Revision 1.01 - 28.03.2018...
