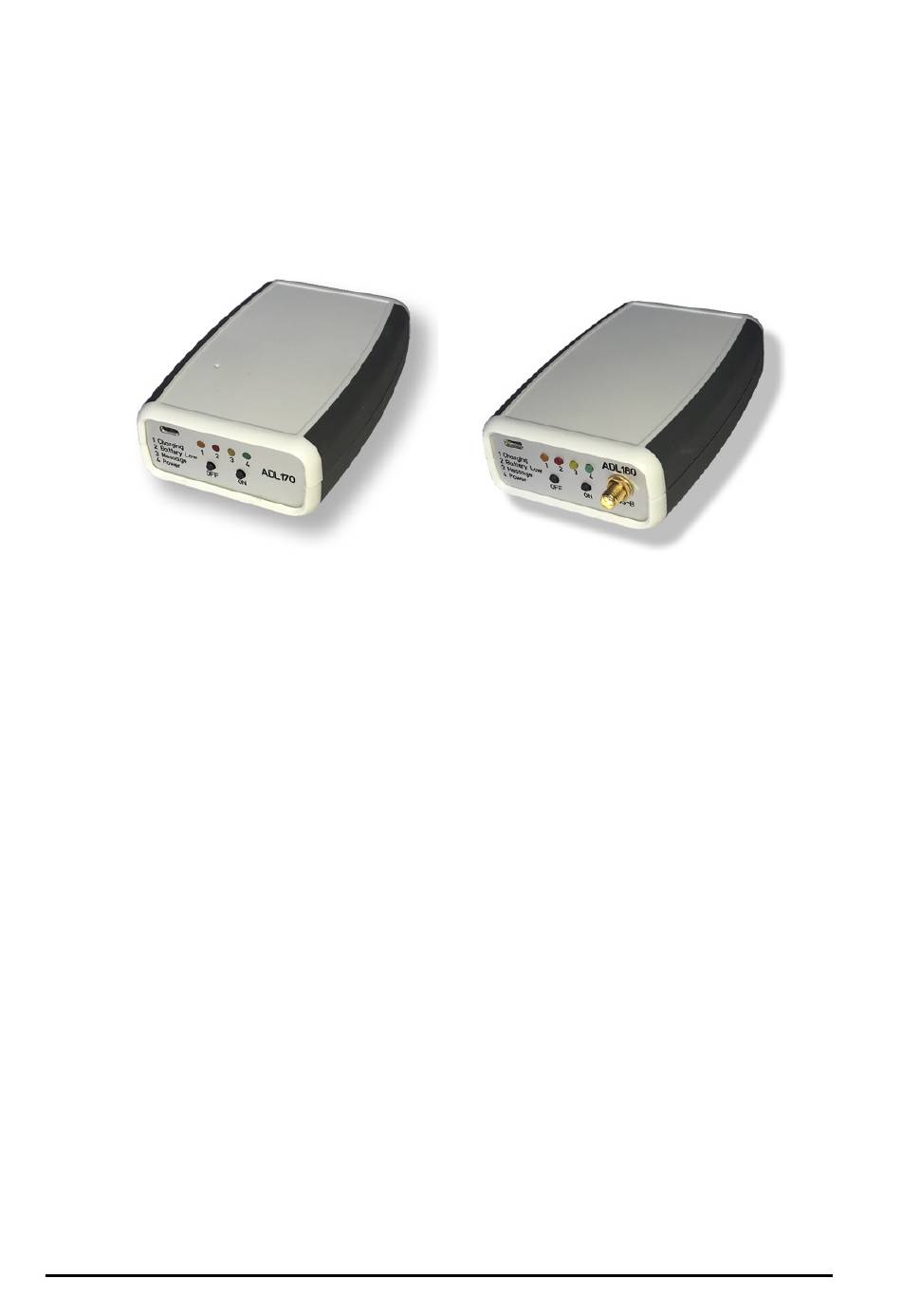

- Page 1 ADL170 ADL180 User Manual Version 1.00 27.08.2020 ADL170/180 User Manual 1 / 19 Revision 1.00 - 27.08.2020...
- Page 2 This manual contains numbered pages 1 to 19. Fire hazard The ADL170 and ADL180 devices are equipped with an internal LiPo battery. It has a total capacity of 4400 mAh at 3.7 Volts. As with any such battery there is a fire hazard.
- Page 3 General Description ADL170 and ADL180 The ADL180 is a portable satellite weather receiver with additional ADS-B 1090 MHz traffic and AHRS. The ADL170 is a lower cost version of the ADL180 without the ADS-B and AHRS modules. All other features are identical. Certification ADL170/180 Both devices are portable devices.
- Page 4 "LiPo save bag" while charging. The device is charged using a standard USB micro cable from a standard USB 5V power supply suitable for the power system in your country. The ADL170/180 will consume around 1A from this power supply.
- Page 5 (all measurements in millimeters) 14 Heat Considerations The ADL170 and AD180 are supplied in their mostly white colors to reduce the heat in direct sunlight. We know that a completely black enclosure would be desirable in some situations to have fewer reflections in the window etc. BUT we do not recommend painting the enclosure or similar as overheat situations might result from this step.
- Page 6 16 Antenna Considerations The ADL170 and ADL180 contain an internal Iridium and GPS antenna. This is a directional antenna. The device has to lie approximately flat as shown below to get good view of the sky. We recommend placing the device on the glare shield as shown.
- Page 7 As a guideline the relatively thin RG174 cable on the supplied antenna works best if shorter than 1m. For more than 2m we recommend using much thicker cable like RG400 which has shown to work well over 6m and more. ADL170/180 User Manual 7 / 19 Revision 1.00 - 27.08.2020...
- Page 8 If possible try to protect it from direct sunlight and be careful when touching it after long operation in direct sunlight. Figure 5 Amplifier Type "ADS-B 1090 MHz LNA" Figure 6 ADL180 with optional ADS-B amplifier and antenna ADL170/180 User Manual 8 / 19 Revision 1.00 - 27.08.2020...
- Page 9 18 Connecting your iPad/iPhone/Android device to the ADL170/180 After powering up the ADL device you have to connect your portable device to the WI- FI access point provided by the ADL device. Go to the settings screen of your device.
- Page 10 If the app displays “Internet mode”, "WWW" or "Offline" in the top status bar, it is not properly connected to the ADL device. In this case please check your WiFi settings. Figure 8 iPad ADLConnect user interface ADL170/180 User Manual 10 / 19 Revision 1.00 - 27.08.2020...
- Page 11 ADLConnect will only use this privilege when connected to an ADL device, else it will not use your location. But disabling the location can cause severe issues regarding the WiFi communication between the ADLConnect app and the ADL device. ADL170/180 User Manual 11 / 19 Revision 1.00 - 27.08.2020...
- Page 12 Please note: In the past a "Deutsche Wetterdienst login" was required. This is no longer the case. Figure 9 Entering the login details on the Config page of the iPad app ADL170/180 User Manual 12 / 19 Revision 1.00 - 27.08.2020...
- Page 13 It improves the general satellite reception because the device communicates with the satellite more often. The firmware control allows updating the ADL170/180 firmware. Firmware updates are loaded by WiFi. Finally the AHRS buttons allow calibrating the AHRS. Please refer to the AHRS section for more details.
- Page 14 Therefore enter at least the destination of your flight in the flight plan table right to the moving map to get the weather for your whole flight path. ADL170/180 User Manual 14 / 19 Revision 1.00 - 27.08.2020...
- Page 15 Latest weather information shown on the moving map page For a more detailed description please consult our tutorial video showing how to use the ADLConnect app which is available from the website http://www.ing-golze.de ADL170/180 User Manual 15 / 19 Revision 1.00 - 27.08.2020...
- Page 16 But if you go back to step 1 all data for the orientation is lost and you will have to repeat also step 2. The more pitch up or down you have the better the ADL180 can sense its orientation. REMEMBER ALWAYS TO KEEP THE AIRCRAFT UNDER CONTROL ADL170/180 User Manual 16 / 19 Revision 1.00 - 27.08.2020...
- Page 17 Finally if both steps are done correctly the AHRS on the moving map should show the correct pitch and bank while doing mild maneuvers. 27 ADL170 Technical data • WiFi Interface for iPad/iPhone interconnect • Over 6 hours endurance on battery •...
- Page 18 30 ADL180 Label Figure 14 ADL180 Label ADL170/180 User Manual 18 / 19 Revision 1.00 - 27.08.2020...
- Page 19 31 Contact Golze Engineering Bredowstr. 29 10551 Berlin http://www.ing-golze.de mail@ing-golze.de +49 30 39805204 ADL170/180 User Manual 19 / 19 Revision 1.00 - 27.08.2020...
