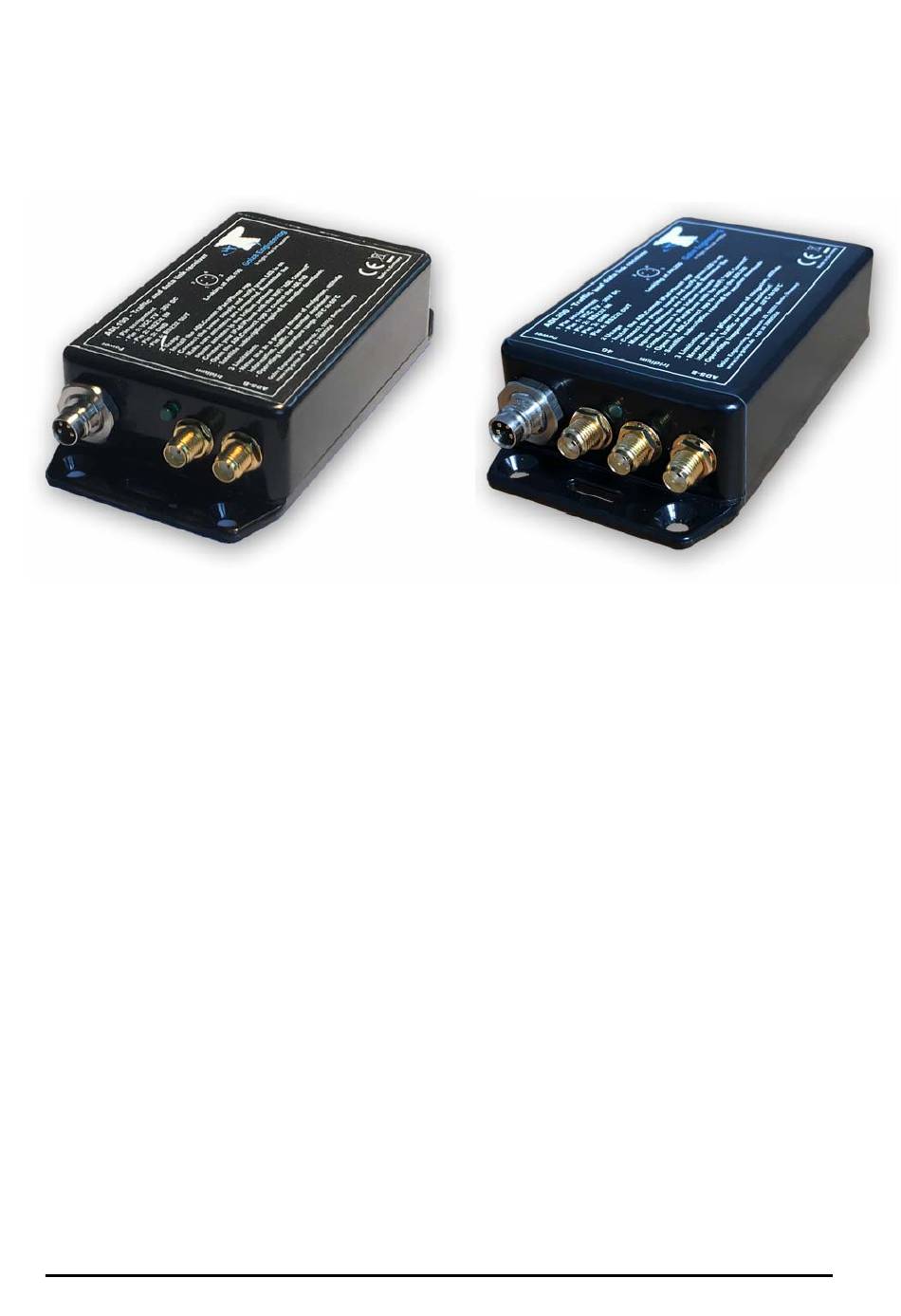

- Page 1 ADL190 ADL200 User and Installation Manual Version 2.00 25.10.2019 ADL190 ADL200 User and Installation Manual 1 / 25 Revision 2.00 - 25.10.2019...
- Page 2 CERTIFIED INSTRUMENTS FOR THIS TASK. ADS-B Traffic Warning The ADL190/200 comes with a non certified 1090 MHz ADS-B receiver. Not all aircraft are broadcasting 1090 MHz ABS-B and the non certified nature of the ADL190/200 means that due to antenna installation etc. it could even miss signals from aircraft broadcasting ADS-B.
- Page 3 AHRS. The 4G/LTE link is used in order to reduce satellite transmission costs when flying slow and low enough to get a connection. The ADL190 is a lower cost version of the ADL200 without the 4G/LTE module. All other features are identical.
- Page 4 11 Dimensions and Mounting Details Figure 1 ADL190 and ADL200 footprint (all measurements in millimeters) 26mm Power Iridium Antenna ADS-B Antenna Figure 2 ADL190 side view ADL190 ADL200 User and Installation Manual 4 / 25 Revision 2.00 - 25.10.2019...
- Page 5 Attaching it to any moving parts like seatbacks and similar will interfere with the AHRS. The ADL190/200 AHRS can later be calibrated, thus it can be installed in any possible orientation as long as it does not move in relation to the airframe.
- Page 6 The green LED on the ADL190/200 enclosure will illuminate if power is supplied. Figure 6 ADL190/200 power connector pins The connector on the ADL190/200 is called "RSMHL 4" and a matching connector for installation purposes would be "RKMCK 4" from Belden or an equivalent from another manufacturer.
- Page 7 ADLConnect app make sure the "FPL IN" option is shown in green above the flight plan / waypoint list on the Moving Map page. The ADL190/200 can read this data at all baud rates 8N1 but panel mounted GPS will usually supply 9600 baud 8N1 only.
- Page 8 / NMEA source (9600 baud) in parallel to an AT-1 traffic device (115200 baud). Figure 8 ADLRS232 Combiner The label on the ADRS232 device looks as follows. Figure 9 ADLRS232 Label ADL190 ADL200 User and Installation Manual 8 / 25 Revision 2.00 - 25.10.2019...
- Page 9 GTN/GNS devices work in a similar way as the IFD but the RS232 IN will not work. Figure 10 Typical AT-1 / IFD / ADLRS232 / ADL190/200 wiring ADL190 ADL200 User and Installation Manual 9 / 25 Revision 2.00 - 25.10.2019...
- Page 10 IRDIDIUM SOCKET. AS A CONSEQUENCE OF THE WRONG CONNECTION IN SOME RARE CASES WE HAVE SEEN DAMAGE TO THE DEVICE. The ADL190 uses two antennas only. .One antenna for ADS-B and another one for Iridium. ALSO FOR THE ADL: DO NOT SWITCH THE ANTENNAS.
- Page 11 18 Iridium Antenna Considerations The antenna supplied with the ADL190/200 looks similar to the one shown below: Figure 12 Iridium Antenna This is an Iridium patch antenna. Please note that it will radiate only upwards. Therefore the antenna should be placed with the flat side down as horizontally as possible.
- Page 12 If the aircraft is equipped with an external Iridium antenna that antenna can also be used for the ADL190/200 Iridium link. It will probably provide a signal which is a bit better than the antenna on the glare shield. But usually the small advantage in signal quality will not justify the expensive installation of such an antenna if it is not already installed.
- Page 13 If more ADS-B reception range is desired an optional ADS-B amplifier can be installed. First it must be determined if the ADL190/200 is prepared to supply the required 5V to the amplifier. Not all ADL190/200 manufactured supply the required 5V. Devices with serial numbers above #0800 do all supply the voltage.
- Page 14 The connection marked "OUT +5V" has to be connected to the ADS-B input of the ADL190/200 device. The "IN" connector is connected to the ADS-B antenna. Besides the amplifier a cable regular SMA to regular SMA connector will be required.
- Page 15 Choose “Wi-Fi” on the left side. Then on the right side you will see the network “ADL Connect”. Choose this network and make sure the iPad really connects to the ADL Connect wireless network. Figure 18 iPad Wi-Fi Settings ADL190 ADL200 User and Installation Manual 15 / 25 Revision 2.00 - 25.10.2019...
- Page 16 If the app displays “Internet mode”, "WWW" or "Offline" in the top status bar, it is not properly connected to the ADL200. In this case please check your WiFi settings. Figure 19 iPad ADLConnect user interface ADL190 ADL200 User and Installation Manual 16 / 25 Revision 2.00 - 25.10.2019...
- Page 17 ADLConnect will only use this privilege when connected to an ADL device, else it will not use your location. But disabling the location can cause severe issues regarding the WiFi communication between the ADLConnect app and the ADL device. ADL190 ADL200 User and Installation Manual 17 / 25 Revision 2.00 - 25.10.2019...
- Page 18 Please note: In the past a "Deutsche Wetterdienst login" was required. This is no longer the case. Figure 20 Entering the login details on the Config page of the iPad app ADL190 ADL200 User and Installation Manual 18 / 25 Revision 2.00 - 25.10.2019...
- Page 19 It improves the general satellite reception because the device communicates with the satellite more often. The firmware control allows updating the ADL190/200 firmware. The ADL190/200 does not have any external USB port. Firmware updates are loaded only by WiFi.
- Page 20 Therefore enter at least the destination of your flight in the flight plan table right to the moving map to get the weather for your whole flight path. ADL190 ADL200 User and Installation Manual 20 / 25 Revision 2.00 - 25.10.2019...
- Page 21 Latest weather information shown on the moving map page For a more detailed description please consult our tutorial video showing how to use the ADLConnect which is available from the website http://www.ing-golze.de ADL190 ADL200 User and Installation Manual 21 / 25 Revision 2.00 - 25.10.2019...
- Page 22 1 all data for the orientation is lost and you will have to repeat also step 2. The more pitch up or down you have the better the ADL190/200 can sense its orientation. REMEMBER ALWAYS TO KEEP THE AIRCRAFT UNDER CONTROL ADL190 ADL200 User and Installation Manual 22 / 25 Revision 2.00 - 25.10.2019...
- Page 23 • No battery, external power supply (7-36V, 5W) required • Dimensions: 110 x 53 x 26mm (with latches) • Dimensions: 84 x 55 x 26mm (without latches) • Mass: 135g ADL190 ADL200 User and Installation Manual 23 / 25 Revision 2.00 - 25.10.2019...
- Page 24 32 ADL190 Label Below is a copy of the label printed on the top of every ADL190 device for reference Figure 24 ADL190 Label 33 ADL200 Label Below is a copy of the label printed on the top of every ADL200 device for reference...
- Page 25 34 Contact Golze Engineering Bredowstr. 29 10551 Berlin http://www.ing-golze.de mail@ing-golze.de +49 30 39805204 ADL190 ADL200 User and Installation Manual 25 / 25 Revision 2.00 - 25.10.2019...
