- Page 1 ADL165 User and Installation Manual Premilinary information – Device is not yet available Version 1.00 07.02.2024 ADL165 User and Installation Manual 1 / 10 Version 1.00 - 07.02.2024...

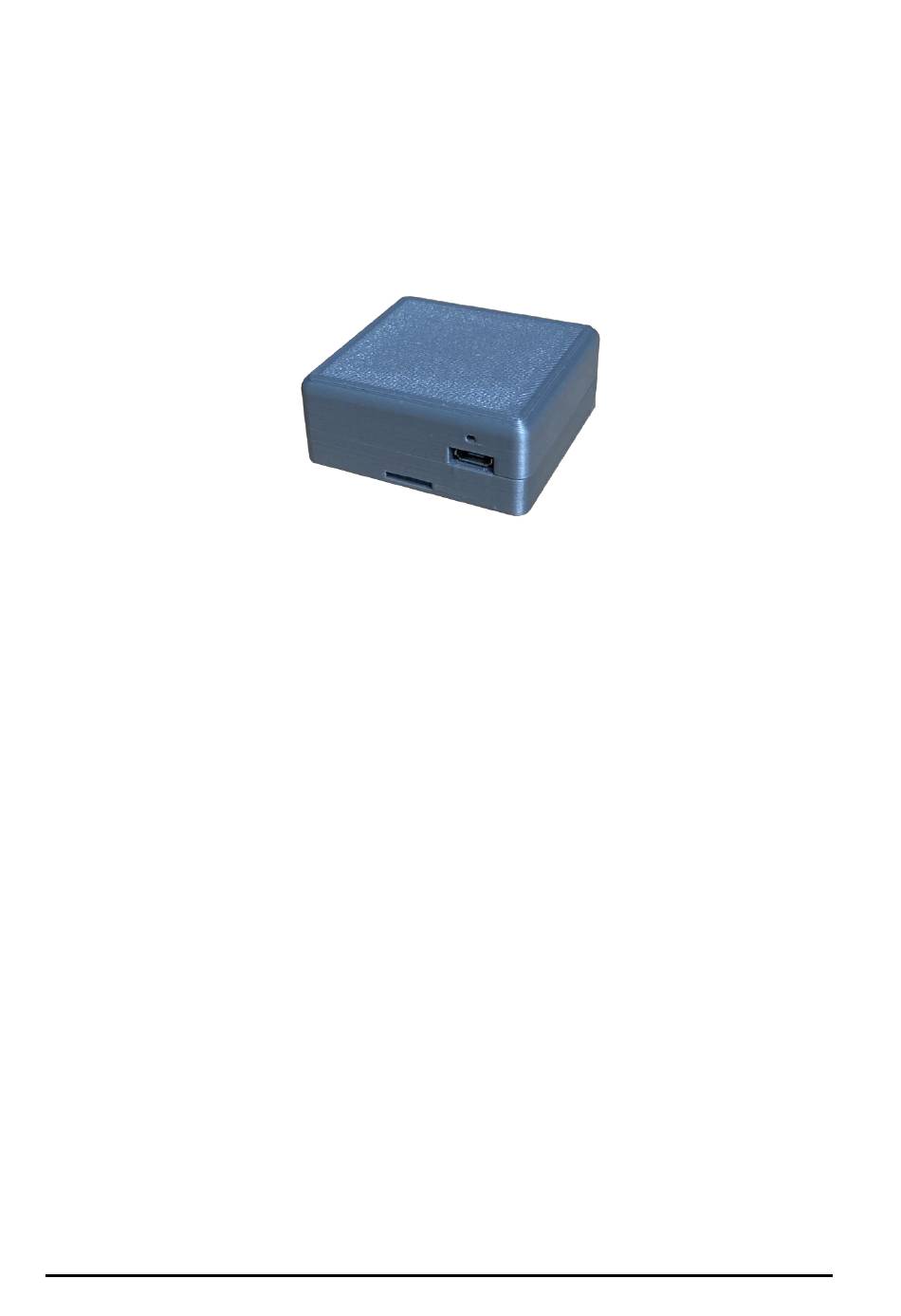

- Page 2 The ADL165 is a small size satellite weather receiver designed to be placed on the glare shield in the aircraft. It is powered via Micro USB (5V). The ADL165 can be used as a mobile device or can be installed permanently.
- Page 3 General Operation The ADL165 is designed to be as simple as possible. Place the device on the glare shield with the rounded side facing up. This is important as the internal antenna will not work when upside down.
- Page 4 Avidyne IFD440/540, EX5000 but please note those can usually be connected in an easier way with a direct RS232 link (see above) According to the device type and capabilities set the ADL165 UAT in the hardware configuration on the Conif page of the ADLAonnect app. Available settings are “Avidyne”...
- Page 5 ADL165 on the glare shield in the right orientation If you wish to install the ADL165 permanently, attach it to the glare shield with double sided adhesive or velcro. You can also place the device below the glare shield if it is made from non conductive material.
- Page 6 Make sure there are no metal parts like fasteners or similar above the device. 17 Connecting your iPad/iPhone/Android device to the ADL165 After powering up the ADL device you have to connect your portable device to the WiFi access point provided by the ADL device.
- Page 7 ADLConnect will only use this privilege when connected to an ADL device, else it will not use your location. But disabling the location can cause severe issues regarding the WiFi communication between the ADLConnect app and the ADL device. ADL165 User and Installation Manual 7 / 10 Version 1.00 - 07.02.2024...
- Page 8 Figure 5 Download Page ADL165 User and Installation Manual 8 / 10 Version 1.00 - 07.02.2024...
- Page 9 21 ADL165 Technical data Operating and storage temperature range -20 to 60°C Dimensions: 50 x 47 x 20mm Mass: 60g Requires USB micro power, 5V, 500mA minimum ADL165 User and Installation Manual 9 / 10 Version 1.00 - 07.02.2024...
- Page 10 22 Contact Golze Engineering Bredowstr. 29 10551 Berlin http://www.ing-golze.de mail@ing-golze.de +49 30 39805204 ADL165 User and Installation Manual 10 / 10 Version 1.00 - 07.02.2024...
