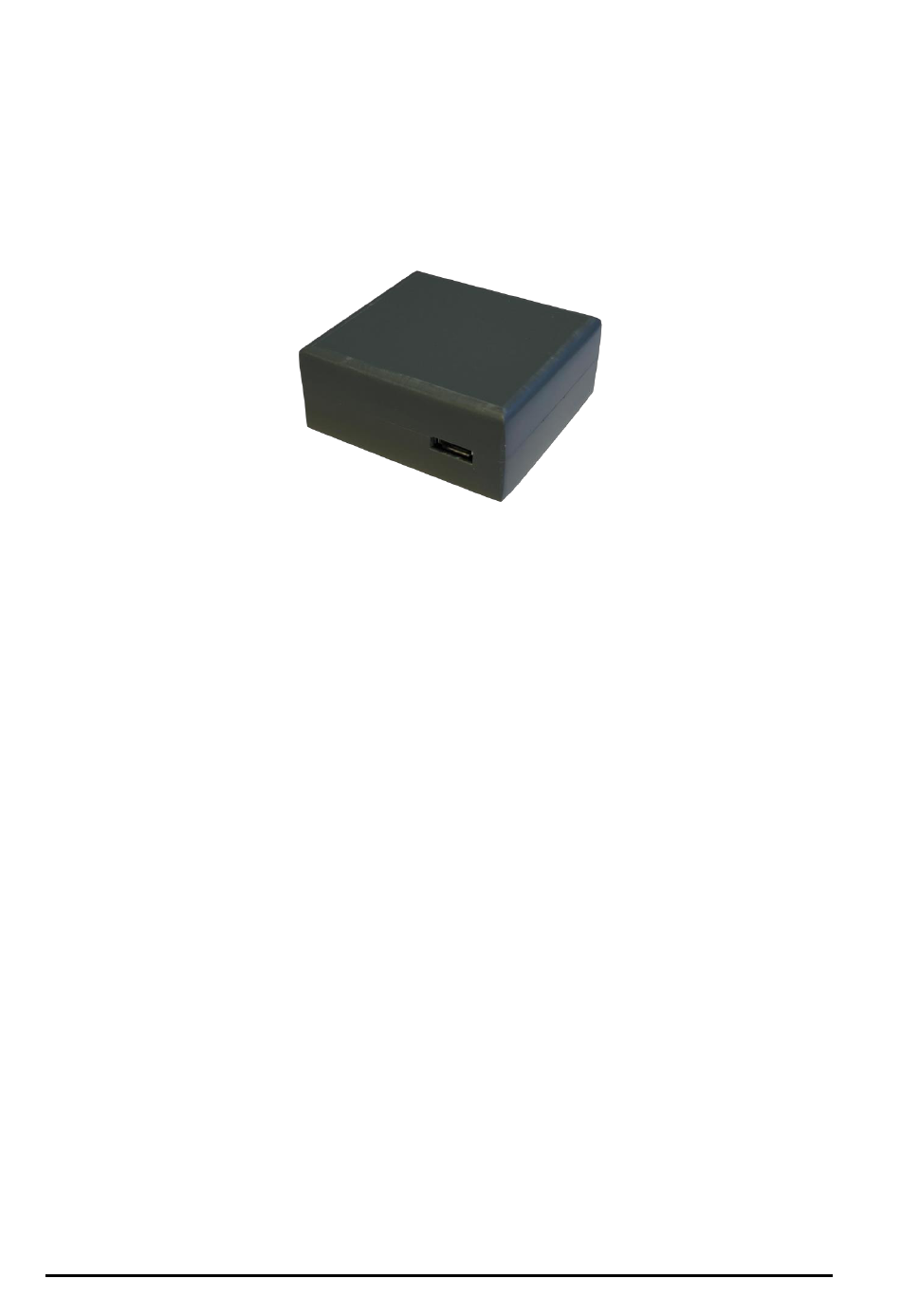

- Page 1 ADL160 User and Installation Manual Version 1.00 17.01.2022 ADL160 User and Installation Manual 1 / 9 Version 1.00 - 17.01.2022...

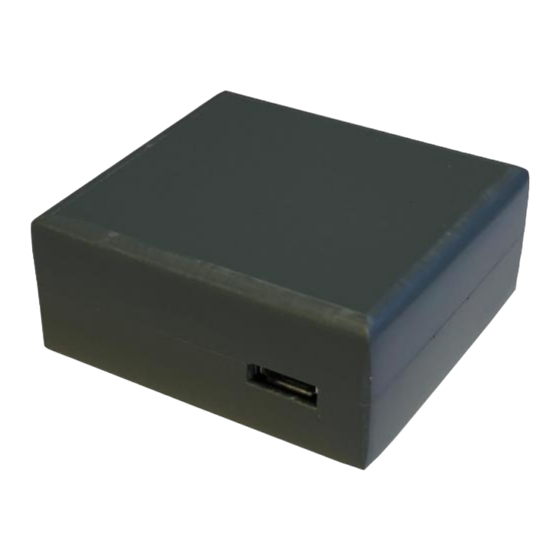

- Page 2 The ADL160 is a small size satellite weather receiver designed to be placed on the glare shield in the aircraft. It is powered via Micro USB (5V). The ADL160 can be used as a mobile device or can be installed permanently.
- Page 3 General Operation The ADL160 is designed to be as simple as possible. Place the device on the glare shield with the rounded side facing up. This is important as the internal antenna will not work when upside down.
- Page 4 ADL160 on the glare shield in the right orientation If you wish to install the ADL160 permanently, attach it to the glare shield with double sided adhesive or velcro. You can also place the device below the glare shield if it is made from non conductive material.
- Page 5 Make sure there are no metal parts like fasteners or similar above the device. 14 Connecting your iPad/iPhone/Android device to the ADL160 After powering up the ADL device you have to connect your portable device to the WiFi access point provided by the ADL device.
- Page 6 ADLConnect will only use this privilege when connected to an ADL device, else it will not use your location. But disabling the location can cause severe issues regarding the WiFi communication between the ADLConnect app and the ADL device. ADL160 User and Installation Manual 6 / 9 Version 1.00 - 17.01.2022...
- Page 7 Figure 4 Download Page ADL160 User and Installation Manual 7 / 9 Version 1.00 - 17.01.2022...
- Page 8 Operating and storage temperature range -20 to 60°C Dimensions: 50 x 47 x 20mm Mass: 65g Requires USB micro power, 5V, 500mA minimum 19 ADL160 Label Figure 5 ADL160 Label ADL160 User and Installation Manual 8 / 9 Version 1.00 - 17.01.2022...
- Page 9 20 Contact Golze Engineering Bredowstr. 29 10551 Berlin http://www.ing-golze.de mail@ing-golze.de +49 30 39805204 ADL160 User and Installation Manual 9 / 9 Version 1.00 - 17.01.2022...
