HARDWARE FEATURES

Hardware Features

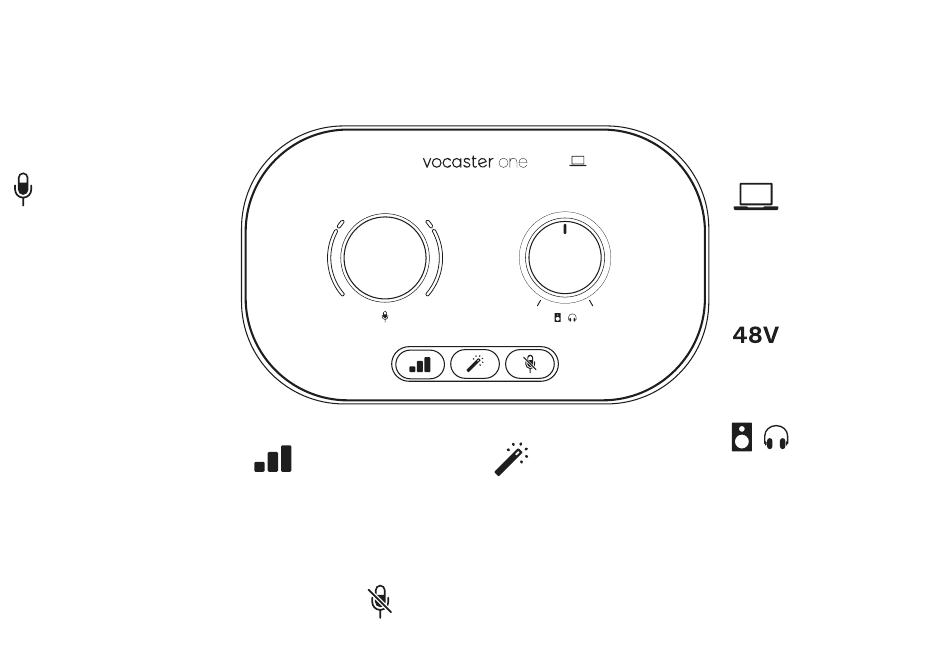

Top Panel

The large rotary control adjusts the gain
for the microphone input.
The gain control has two 'halo' LED arcs.
These have several functions.
• In normal operation they confirm
microphone level: green means
normal operation, amber shows the
signal is close to clipping, and red
shows digital clipping, which should
always be avoided.
• Following an Auto Gain calibration,
the arcs illuminate either green or red
to show a successful or unsuccessful
operation (respectively).
• The left-hand arc illuminates white
while microphone gain is being
adjusted, to show the current gain
setting
• Both arcs pulse red when the
microphone is muted
focusrite.com
Buttons
Press to start the Auto Gain function:
speak normally into your microphone for
10 seconds to set the microphone gain.
The LED pulses amber during the process.
Microphone mute button. Press to mute
or unmute the microphone channel. LED
illuminates red when muting is active.
Tell the world
48V
Enhance button. Press to activate/
deactivate the Enhance function. LED
illuminates green when Enhance is active.
Indicators
An LED which illuminates white when the
interface has established communication
with the computer it is connected to, and
red if communication fails.
Illuminates red when 48V phantom power
is active.
Monitor output level control - sets the
output level at both the front panel
headphone output and the rear panel
speaker outputs.
