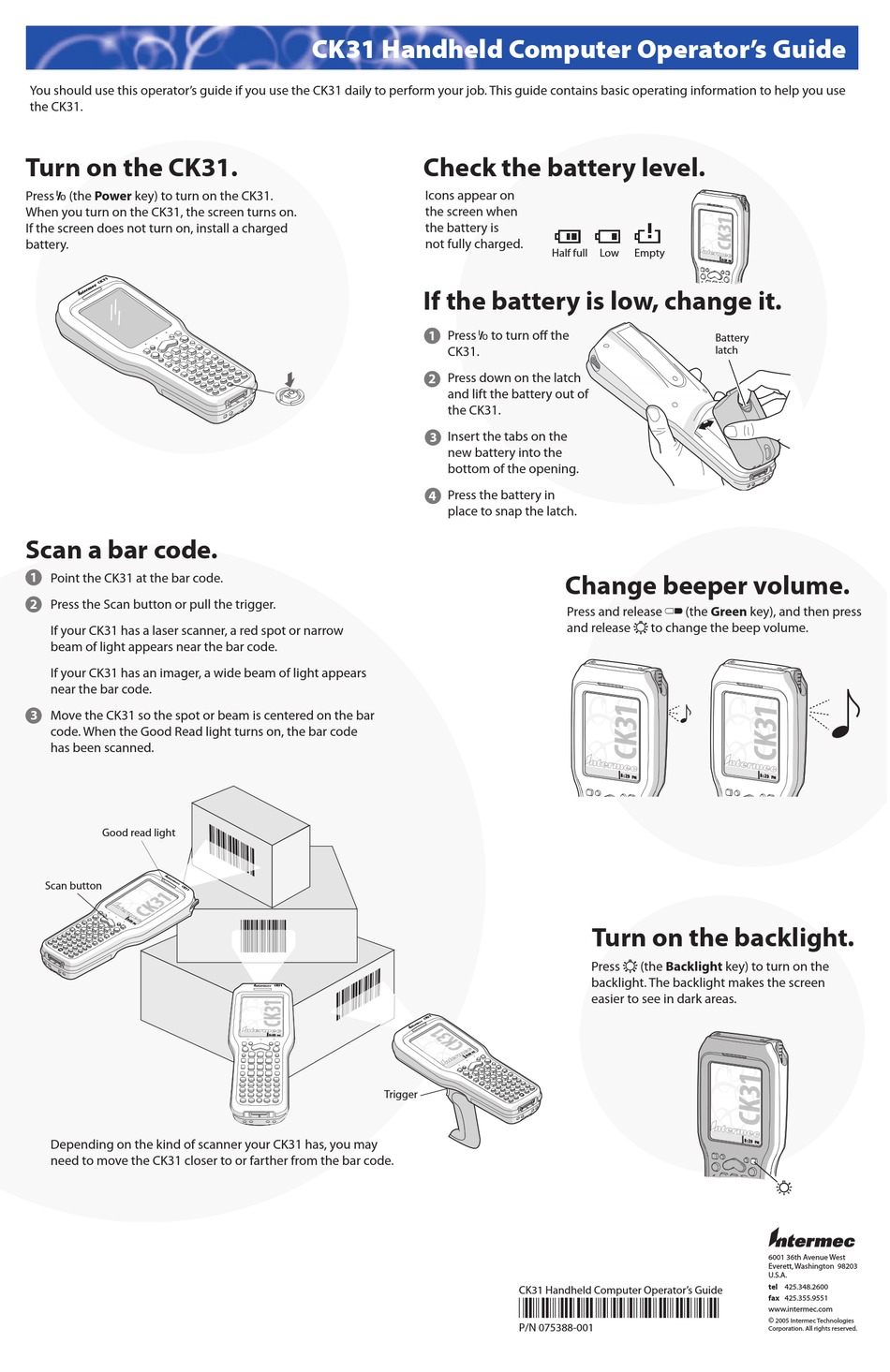

Intermec CK31 Operator's Manual

You should use this operator's guide if you use the CK31 daily to perform your job. This guide contains basic operating information to help you use
the CK31.
Turn on the CK31.
Press I (the Power key) to turn on the CK31.
I
When you turn on the CK31, the screen turns on.
If the screen does not turn on, install a charged
battery.
Scan a bar code.
1
Point the CK31 at the bar code.
2 Press the Scan button or pull the trigger.
If your CK31 has a laser scanner, a red spot or narrow
beam of light appears near the bar code.
If your CK31 has an imager, a wide beam of light appears
near the bar code.
3 Move the CK31 so the spot or beam is centered on the bar
code. When the Good Read light turns on, the bar code
has been scanned.
���������������
�����������
Depending on the kind of scanner your CK31 has, you may
need to move the CK31 closer to or farther from the bar code.
CK31 Handheld Computer Operator's Guide
Check the battery level.
Icons appear on
the screen when
the battery is
not fully charged.
If the battery is low, change it.
1
2
3
4
����
�������
��������� ���
Press I to turn off the
I
CK31.
Press down on the latch
and lift the battery out of
the CK31.
Insert the tabs on the
new battery into the
bottom of the opening.
Press the battery in
place to snap the latch.
Change beeper volume.
Press and release C (the Green key), and then press
and release
Turn on the backlight.
Press
backlight. The backlight makes the screen
easier to see in dark areas.
CK31 Handheld Computer Operator's Guide
*075388-001*
P/N 075388-001
�
�����
Battery
latch
E
to change the beep volume.
E
(the Backlight key) to turn on the
6001 36th Avenue West
Everett, Washington 98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
www.intermec.com
©
2005 Intermec Technologies
Corporation. All rights reserved.
