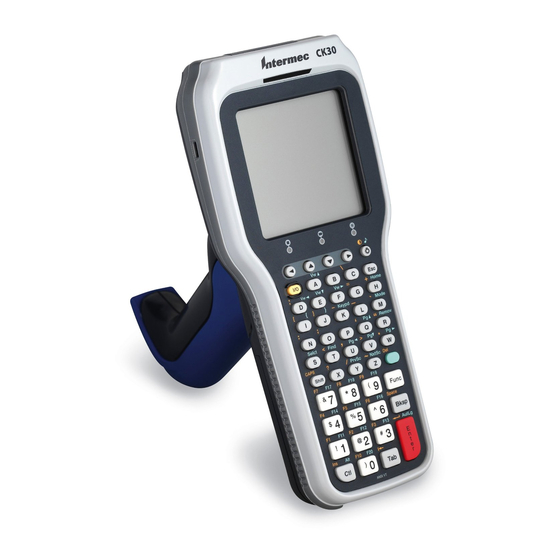

Intermec CK30 Instructions

Decoded serial adapter

Hide thumbs Also See for CK30:

See also: Service Manual , Operator's Manual

Enlarged version

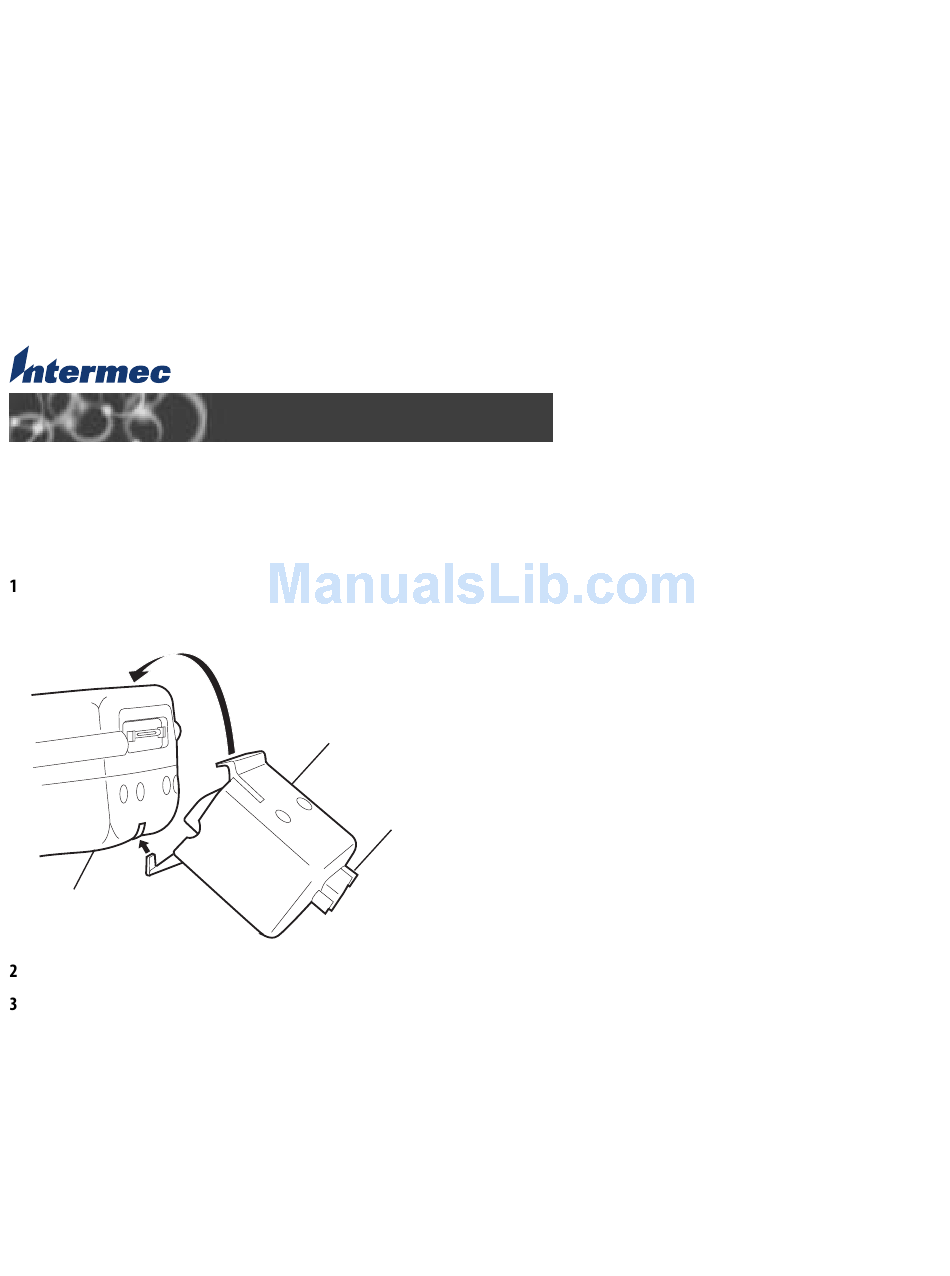

Decoded Serial Adapter Instructions

Use the Decoded Serial Adapter to turn the 26-pin serial port on the

CK30 and CK31 Handheld Computers into a DB9 (9-pin) male

serial connector that you can connect to a decoded scanner.

Hook the serial adapter into the battery on the CK30 or CK31 and

then snap it into place.

Battery

Connect a scanner to the DB9 connector on the serial adapter.

Use Intermec Settings to configure the serial port. For help using

Intermec Settings, see your computer user's manual.

Serial adapter

DB9 connector
