Simpli Home brooklyn + max WyndenHall Milverton AXCMIL11-RNAB Assembly Instructions Manual

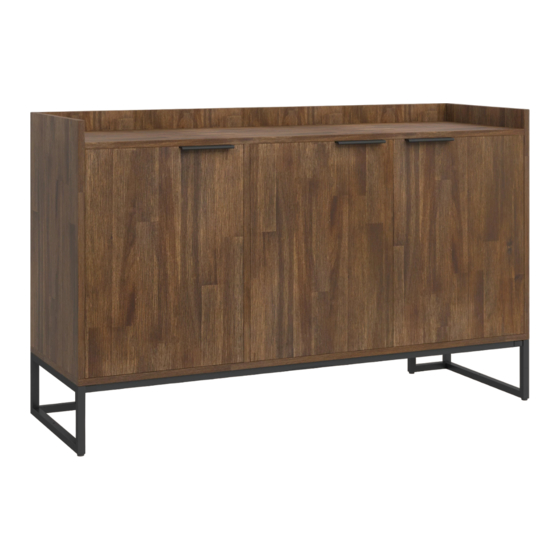

Sideboard buffet
Hide thumbs

Advertisement

Quick Links

Download this manual
Milverton / Bolton / Royce
Sideboard Buffet
Model # AXCMIL11-RNAB
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall Milverton AXCMIL11-RNAB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpli Home brooklyn + max WyndenHall Milverton AXCMIL11-RNAB

Summary of Contents for Simpli Home brooklyn + max WyndenHall Milverton AXCMIL11-RNAB

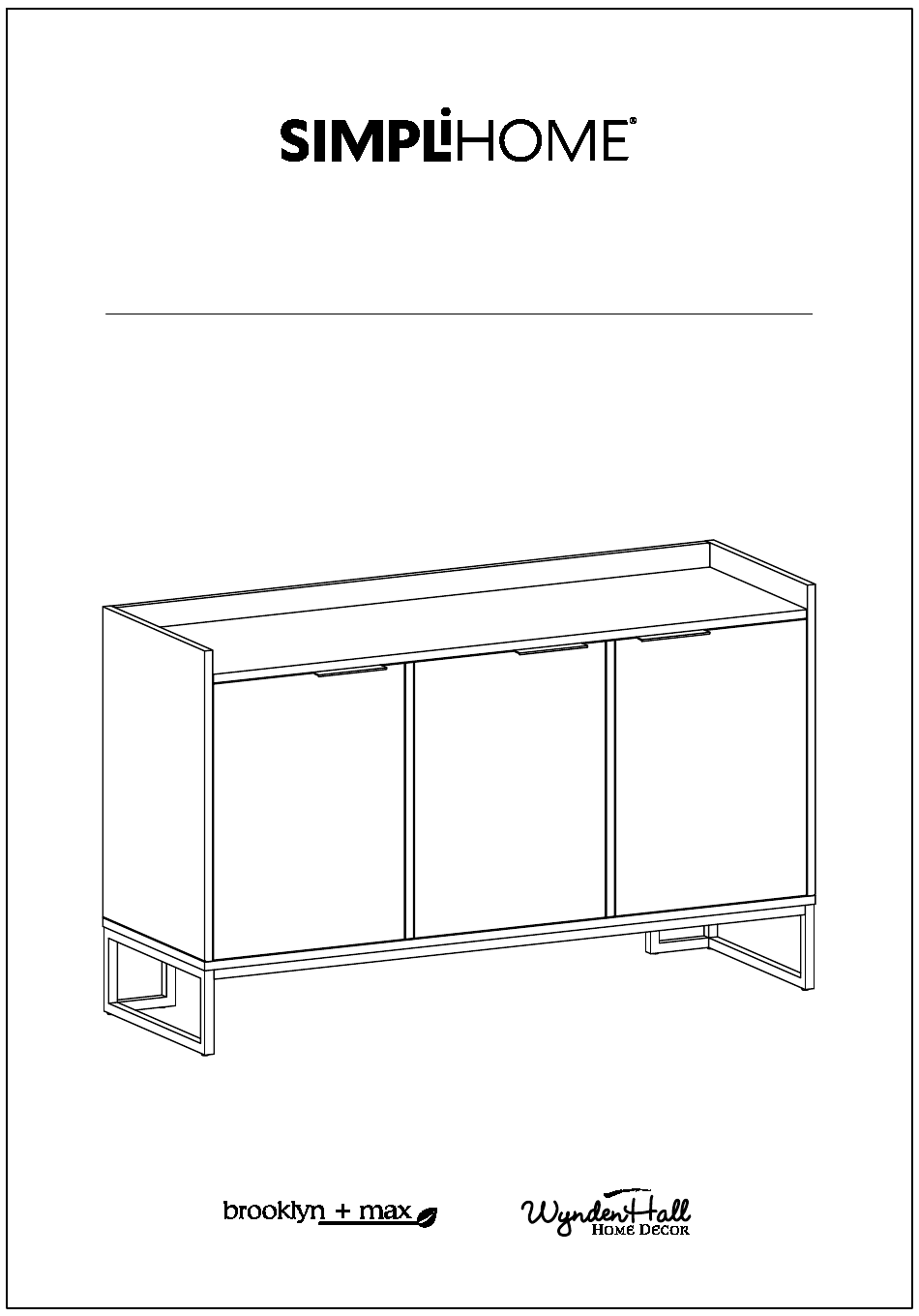

  • Page 1 Milverton / Bolton / Royce Sideboard Buffet Model # AXCMIL11-RNAB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty Automatic entry to win a $500 gift certificate ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
  • Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
  • Page 7 Pre-Assembly Information Model # AXCMIL11-RNAB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 RIGHT DIVIDER BOTTOM SHELF LEFT DIVIDER QTY 1 QTY 1 QTY 1 SHELF LEFT DOOR RIGHT DOOR QTY 3 QTY 2 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCMIL11-RNAB Part Description Warning Label JOINING STRIP UPPER BACK LOWER BACK QTY 1 QTY 1 QTY 1 LEFT LEG RIGHT LEG FRONT BAR QTY 1 QTY 1 QTY 1...
  • Page 9 Pre-Assembly Information Model # AXCMIL11-RNAB Hardware Description PHILLIPS SCREW ROUND HEAD WOOD DOWEL ALLEN KEY SCREW SHELF SUPPORT M4 X 15mm M6 X 30mm Ø8 X 30mm QTY 18 QTY 32 QTY 24 QTY 12 PHILIPS SCREW HANDLE ADJUSTABLE HINGE MAGNET AND PLATE M4 x 15mm QTY 3...
  • Page 10 Components - Key Diagram Model # AXCMIL11-RNAB...
  • Page 11 Assembly Model # AXCMIL11-RNAB Step 1 1. Insert four Dowels 2 into drilled holes on Top A . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Insert two Dowels 2 into drilled holes on each Side BL , BR . 4.
  • Page 12 Assembly Model # AXCMIL11-RNAB Step 2 1. Insert two Dowels 2 into drilled holes on Divider D . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Insert two Dowels 2 into drilled holes on Divider E . 4.
  • Page 13 Assembly Model # AXCMIL11-RNAB Step 3 1. Align Wood Dowels with guide holes on Top A and attach Top A to Left Side BL . 2. Use three Allen Key Screws 1 to attach Top A through guide holes. 3. Use Allen Key 13 to tighten Screws. Do not over-tighten.
  • Page 14 Assembly Model # AXCMIL11-RNAB Step 4 1. Repeat Step 3 for Right Side BR .
  • Page 15 Assembly Model # AXCMIL11-RNAB Step 5 1. Use three Allen Key Screws 1 to attach each Divider D , E through guide holes. 2. Use Allen Key 13 to tighten Screws. Do not over-tighten.
  • Page 16 Assembly Model # AXCMIL11-RNAB Step 6 1. Align Wood Dowels with guide holes on Bottom Shelf C and attach parts BL , BR , D , E to Bottom Shelf C . 2. Use twelve Allen Key Screws 1 to attach Bottom C through guide holes. 3.
  • Page 17 Assembly Model # AXCMIL11-RNAB Step 7 13 10 11 1. Align Bar L and attach Bar L to Legs KL , KR . 2. Use two Allen key Bolts 10 , two Lock Washers 11 and two Washers 12 to secure part L with KL , KR .
  • Page 18 Assembly Model # AXCMIL11-RNAB Step 8 1. Attach metal frame to Bottom C . 2. Use six Allen key Bolts 10 , six Lock Washers 11 and six Washers 12 to secure Bottom C and metal frame. 3. Use Allen Key 13 to tighten Bolts. Do not over-tighten. 4.
  • Page 19 Assembly Model # AXCMIL11-RNAB Note: Step 9 Warning Label 1. Attach the Top Back Panel H to back frame by using Phillips Screws 3 . Only 1st top row of screws to be screwed in advance. 2. Insert the Bottom Back Panel I into the slot of Plastic Joining Strip J . 3.
  • Page 20 Assembly Model # AXCMIL11-RNAB Step 10 1. Attach Magnet Plates 8 to top corner of Doors HL , HR using Phillips Screws 6 into pre-drilled holes on Doors HL , HR . 2. Attach Adjustable Hinges 7 to Doors HL , HR using Phillips Screws 6 into guide holes on Doors HL , HR .
  • Page 21 Assembly Model # AXCMIL11-RNAB Step 11 1. Attach Adjustable Hinges 6 on Doors GL , GR to parts BL , BR , D using Phillips Screws 7 into guide holes on parts BL , BR , D . 2. Use three Phillips Screws 5 to attach each Handle 6 to each Door GL , GR. 3.

  • Page 22: Important Note

    Assembly Model # AXCMIL11-RNAB Step 12 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 23 Assembly Model # AXCMIL11-RNAB Step 13 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
  • Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
  • Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
