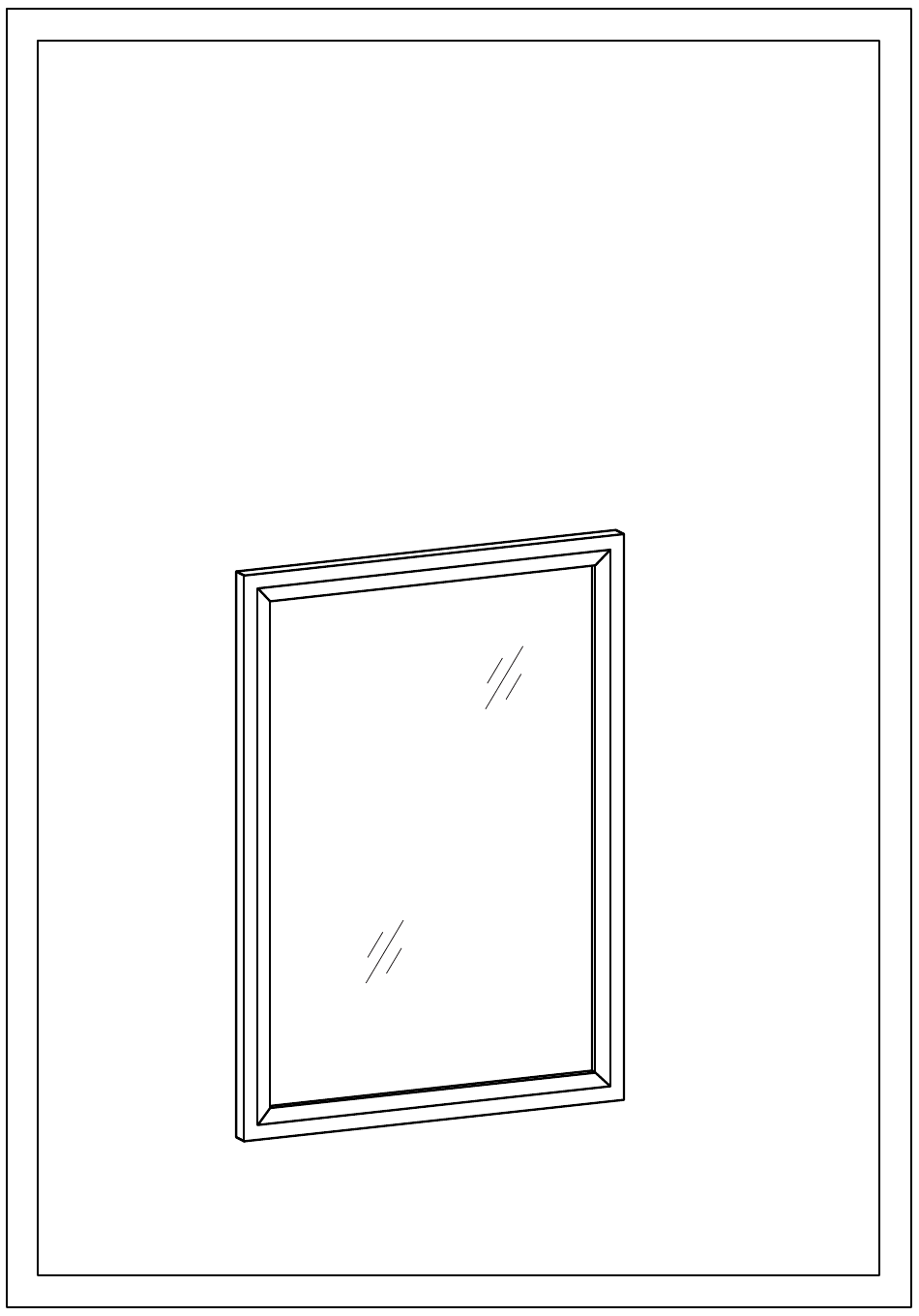

- Page 1 MIRROR 1/10...
-
Page 2: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 3: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION MIRROR WALL ANCHOR SCREW QTY 1 QTY 2 QTY 2 4/10... - Page 4 ASSEMBLY NOTE: Do not mount the mirror directly onto the vanity surface or back splash. A minimum gap of 10 mm must be left on the top of the vanity. STEP 1 Determining Measurements • Lay the Mirror (1) face down on a soft no scratch surface. •...
- Page 5 ASSEMBLY STEP 2 Measuring Mirror Placement • Subtract Measurement A from Measurement B to get Measurement C (this will give the height position of the Screws (3) on the wall). • On the vertical center line mark Measurement C. • Use a level to draw a horizontal line. •...
- Page 6 ASSEMBLY WARNING: When drilling the holes in the wall, please be sure to avoid any internal cables and pipelines. STEP 3 Drilling Holes in the Wall • Take the measurement distance between the mirror brackets and divide by 2. • Mark this dimension on both sides of the center line and on the horizontal line.
- Page 7 ASSEMBLY STEP 4 Hanging the Mirror • Tap the Wall Anchors (2) into the holes and insert the Screws (3) leaving 5 mm of the Screw exposed. • Lift the Mirror above the Screws (3) at an angle and align with the clips. •...
- Page 8 ASSEMBLY STEP 5 Securing the Mirror • Check that the Mirror clips are secured in the Mirror brackets. 9/10...
-
Page 9: Warranty
WARRANTY Thank you for purchasing a product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. We reserve the right to repair or replace the defective product, at its discretion.
