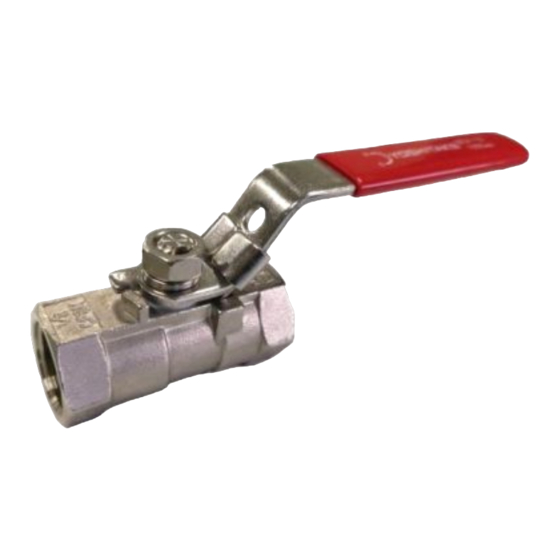

Yoshitake BLV-1S Product Manual

Ball valve

Download this manual

BALL VALVE

Thank you very much for choosing the Yoshitake product. To ensure the correct and safe use of the product,

please read this manual before use. This manual shall be kept with care for future references.

The symbols used in this manual have the following meanings.

Warning

Caution

Model

Nominal size

Application

Maximum pressure

Maximum temperature

Body

Material

Ball

Ball seat

Connection

Please confirm that the indications on the product correspond with the specifications of the ordered

product model before use.

* If they are different, please contact us without using the product.

PRODUCT MANUAL

This symbol indicates a potentially hazardous situation that, if not avoided,

could result in death or serious injury.

This symbol indicates a hazardous situation that, if not avoided, may result in

minor or moderate injury or may result in only property damage.

1. Specification

Steam, Air, Cold and hot water, Oil, Other non-dangerous fluids

According to pressure and temperature rating

Pressure and temperature rating

BLV-1S

8A-50A

Stainless steel

PTFE

JIS Rc, NPT

Caution

EPDT-363

Page 1 BLV-1S PRODUCT MANUAL Thank you very much for choosing the Yoshitake product. To ensure the correct and safe use of the product, please read this manual before use. This manual shall be kept with care for future references. The symbols used in this manual have the following meanings.
Page 2 2. Storage / Installation / Operation Warning Before applying fluid, make sure that there is no danger if the fluid flow into the end of the piping. *Failure to follow this notice may result in property damage due to fluid leakage. Caution (1) Store the product indoors in a dust free, low humidity, dry and ventilated environment.
Page 3 Yoshitake warrants the product to be free from any defects in material and workmanship under normal usage for a period of one year from the date of receipt by the original user, but no longer than 24 months from the date of shipment from Yoshitake’s factory.
