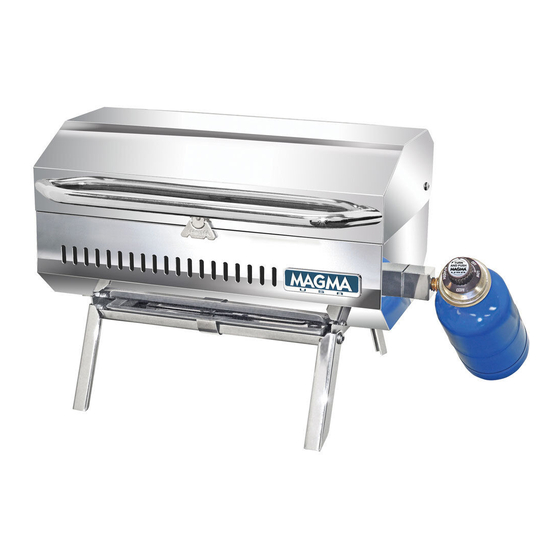

Magma Connoisseur ChefsMate A10-803 Owner's Manual
Hide thumbs
Also See for Connoisseur ChefsMate A10-803:
- Owner's manual (11 pages) ,
- Owner's manual (8 pages) ,
- Owner's manual (9 pages)
Advertisement
Quick Links
OWNER'S MANUAL
ChefsMate
™
Connoisseur Series Gas Grill
Model A10-803
For questions regarding performance, assembly,
operation, parts, or returns, contact the experts
at MAGMA by calling (562) 627-0500
7:00 a.m. - 4:00 p.m. Pacific Time Monday thru
Friday or e-mail us at mail@MagmaProducts.com
IMPORTANT, read these instructions carefully before use. Familiarize yourself with the appliance
before connecting it to its gas container. Keep these instructions for future reference.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Magma Connoisseur ChefsMate A10-803
Summary of Contents for Magma Connoisseur ChefsMate A10-803
- Page 1 Model A10-803 For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA by calling (562) 627-0500 7:00 a.m. - 4:00 p.m. Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com IMPORTANT, read these instructions carefully before use. Familiarize yourself with the appliance...
- Page 2 IMPORTANT SAFETY WARNINGS READ ALL INSTRUCTIONS BEFORE OPERATING. ® Each Magma Gas Grill is individually fire tested before it leaves the factory. For this reason, the burner on your grill may be slightly discolored. INSTALLATION INSTRUCTIONS CONTROL VALVE REGULATOR Valve will feel loose and will rotate easily. Even though the valve feels loose, it is designed that way and will not leak.
- Page 3 MOUNT HARDWARE Fasteners are supplied for both Single Mount and Dual Mount grill mounting options. See Magma Catalog or Website for best mount selection. Single mount through-bolt applications Dual mount applications 4 Carriage bolts, washers & lock nuts. 4 Carriage bolts, washers & lock nuts. Only 4 bolts required for grill mounting.
-
Page 4: Operating Procedures
OPERATE ONLY ON “LOW” WHEN LID IS CLOSED. ALWAYS OPERATE WITH GREASE TRAY IN PLACE. WARNING: Do not overheat grill. Magma Grills do not require pre-heating. Stainless Steel loses anti-corrosive characteristics when subjected to extreme heat. Most grilling is done on low temperature with the lid closed. If medium or high heat is required, grill with lid open. - Page 5 DISASSEMBLY & RE-ASSEMBLY A - Lift radiant plate up & out of left slot. B - Remove by sliding it out of right slot. C - Remove burner screw and remove burner. Check burner for grease residue or spider webs that may obstruct gas flow. CAUTION: WHEN REPLACING BURNER, CUT SLOTS IN BURNER MUST FACE DOWN.
- Page 6 Control Valve - All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve in any way. Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice.
-
Page 7: Troubleshooting Guide
USING GRILL WITH ON-BOARD CNG (NATURAL GAS) SYSTEMS TROUBLE SHOOTING GUIDE Possible Cause Possible Solution Problem No gas flow Check fuel level, replace canister or Burner will not refill cylinder light with match Obstructed gas flow Clean burner and valve orifice. Remove debris/spider webs Excessive cooking temperature Operate only on low when lid is... - Page 8 B) Pack of (4) 1/4”-20 x 5/8” carriage bolts, washers and lock nuts for dual mount and single mount applications and table legs. LIMITED WARRANTY 65 – – known by Magma Products, Inc. 3940 Pixie Avenue, Lakewood, CA 90712 • USA Phone (562) 627-0500 • mail@MagmaProducts.com MagmaProducts.com...
- Page 9 ADDENDUM FOR GAS GRILL MODELS A10-803NZ-3 SOLD IN NEW ZEALAND Accessible parts may be very hot. Keep young children away. ONLY USE IN WELL-VENTILATED -- DO NOT rapidly dispersed by wind and natural convection. Outdoor Area Example 1 Within a partial enclosure that includes an overhead cover and no more than two walls. Both ends open Outdoor Area...
