Before operating the tool

Ensure that the motor unit is in the upright
position. The yellow mark of the UNLOCK button
is visible.
Check that the blade is correctly fi tted, in good
condition and suitable for the material to be cut.
Ensure the pipe saw guide wheels rotate.
Ensure the support wheels rotate.
Check the operation of the lower blade guard.
Ensure the pipe is empty.
If plastic pipes have been cut with the pipe saw
(resulting in long, statically charger slivers), open
the blade guard cover, and clean carefully the
lower blade guard and the entire pipe saw.

Connection to the mains power supply

Ensure that the mains voltage is the same as
indicated on the rating plate (Figure A/14).
Connect the pipe saw to the power outlet only
after having checked this.

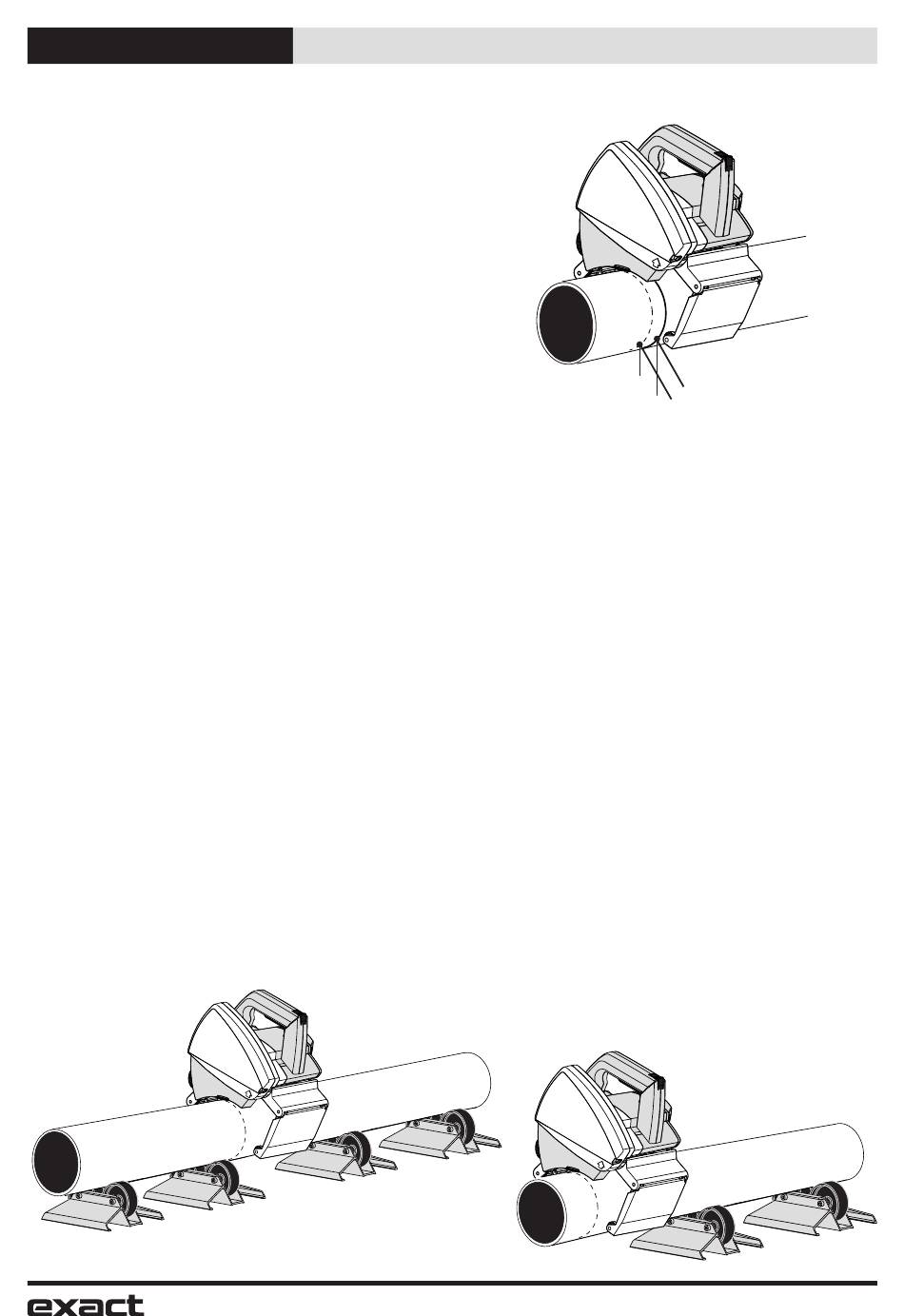

Fig B
Fig C
Cutting mark
Cutting point

Precise setting of the cutting point

When you mark the cutting point on the pipe
to be cut, deduct 10 mm from the required
dimension (Easy-to-remember rule: The cutting
mark location requires a measurement of -
10 mm.) (Figure C)

Setting the pipe on supports

Use the system supports when cutting pipes.
This will ensure safe working and optimum
result. Work on fl at surface. Place the pipe on
two supports so that the cutting point is between
the supports. Place two more support under both
ends of the pipe. Check that all support wheel
contact the pipe (adjust if required e.g. with
pieces of lumber) (Figure B).
When cutting short pipes (25 cm or less) place
the supports so that the cutting point is outside
supports (Figure D). Support the pipe with your
left leg, if required. Proper arrangements will
prevent the blade from jamming as the pipe is
cut through.
