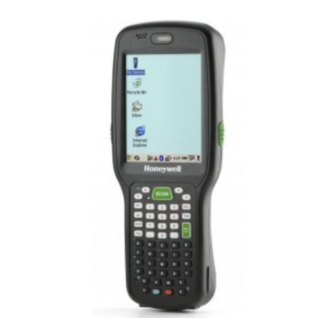

6500/6550 Computer
TECHNICAL
REFERENCE
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
P/N: 977-047-042
Revision B
May 1999

Advertisement

Table of Contents
loading

Related Manuals for Intermec 6500

Summary of Contents for Intermec 6500

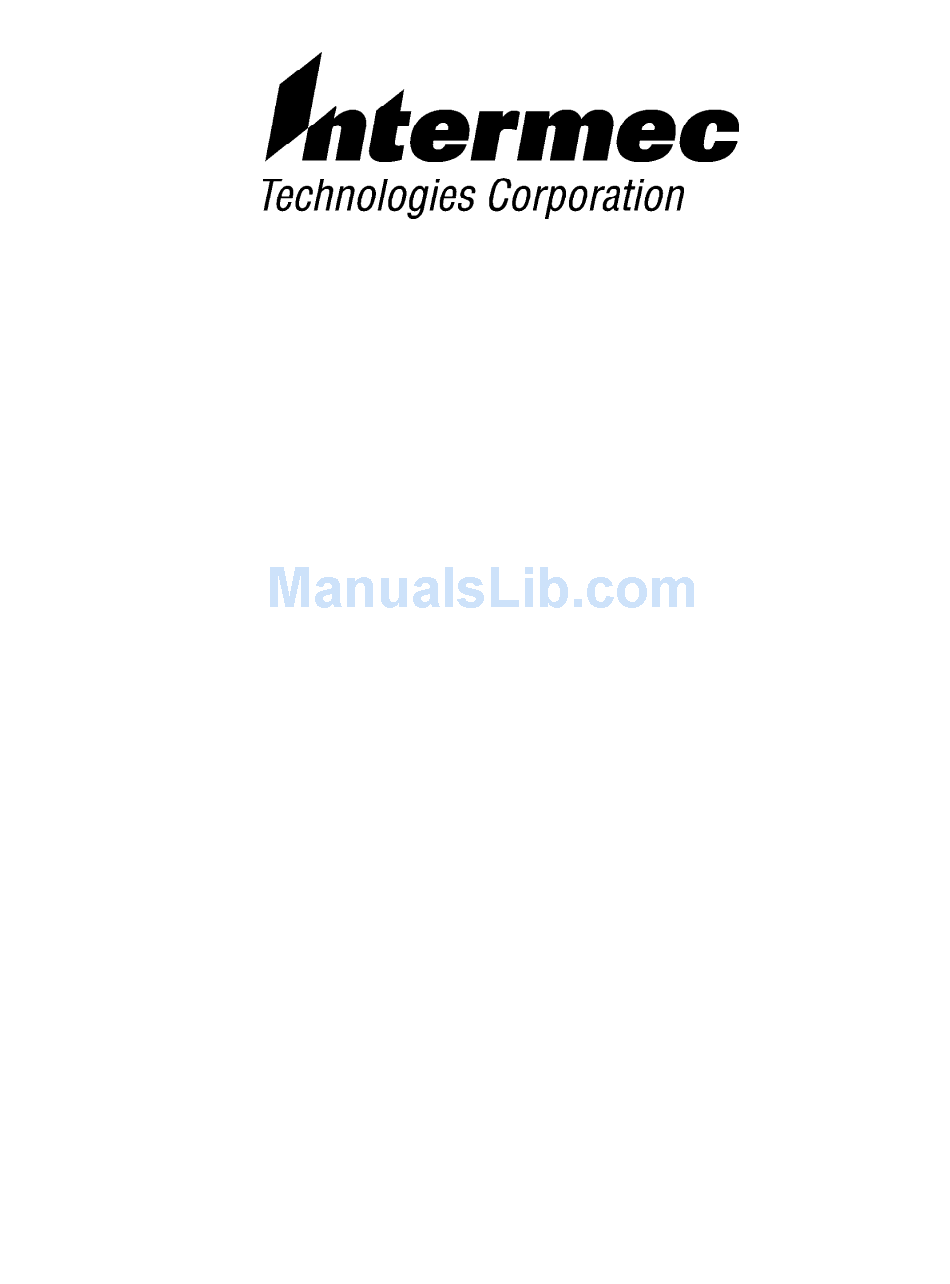

  • Page 1 6500/6550 Computer TECHNICAL REFERENCE " " " " " " " " " " " " " " " " " " " " " " " " " " " " P/N: 977-047-042 Revision B May 1999...
  • Page 2 " NOTICE The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and service Intermec manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec.
  • Page 3 Canadian Computer Compliance This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecte toutes les exigences du Reglèment sur le material boilleur du Canada...

  • Page 5: Table Of Contents

    ........... . 6500/6550 Computer Technical Reference CONTENTS "...
  • Page 6 Tethered Scanning Wedge Scanning 6500/6550 Computer Technical Reference ..............
  • Page 7 ........6500/6550 Computer Technical Reference...
  • Page 8 Table 4-1 65SCN7B Options INDEX 6500/6550 Computer Technical Reference ....... . .

  • Page 9: Introduction

    This material is intended for experienced application pro- grammers and information systems engineers. Related Publications Contact your Systems Engineer or Value-Added Reseller for the following supporting publications: PEN*KEY Model 6500/6550 Mobile Mount Radio " Data Terminal User’s Guide (P/N: 961-047-099) VT220/ANSI Terminal Emulation Programmer’s Ref- "...

  • Page 10: About The Technical Reference

    About the Technical Reference The following shows how this publication is structured: Section 1 - - Introduction Introduces the 6500/6550 Computer and describes the mini- mal Windows 95 load improvements, various disk loads, free space adjustments, abnormal shutdown procedure, etc.

  • Page 11: Customer Support

    SECTION 1 Customer Support If you have questions about application development for the 6500/6550 Computer or need additional technical support, contact Customer Support of the Norand Mobile Systems Division of Intermec Technologies Corporation at 800-755-5505 (U.S.A and Canada) or 425-356-1799 for per- sonal consultation.

  • Page 12: Intermec Web Site

    Tethered scanner driver (65SCN7B.EXE) is supported. Sec- tion 4 has information with options to beep, append charac- ters, etc. The 6500/6550 User’s Guide has bar codes that contain default settings to set up the tethered scanner. Standard DOS supports double-wide characters (columns by 25 lines) for both mode 40 and mode 80.

  • Page 13: Windows 95

    The 6550 Computer contains an X5 133 MHz processor with the benchmark at 75 MHz Pentium. Memory The 6500 Computer comes with a maximum of 16 MB. The 6550 Computer comes with a maximum of 32 MB. 20 MB (65HD9520) (see Appendix C)

  • Page 14: Ram

    Introduction SECTION 1 The 6500/6550 Computer comes with 4, 8, or 16 MB of RAM. The 6550 Computer is expandable to 20 or 32 MB total. Flash The 6500/6550 Computer has a writeable flash file system that provides storage for executable and system files. Cur- rently, a 4 or 8 MB flash disk configuration is supported.

  • Page 15: Terminal Emulation Support

    The screen can be custom- ized to touchdown, time, and tap. Network Interfaces The 6500/6550 Computer has 2.4 GHz frequency hopping spread-spectrum radio. There is an Ethernet, AMD PC Net chipset onboard every unit, and an option for a token ring (ISA Card).

  • Page 16: Input/Output Connectors

    Introduction Input/Output Connectors The following connectors are on the 6500/6550 Computer: Power: " Keyboard: " Serial I/O: " Parallel I/O: " Network Antenna: " Audio: " 6500/6550 Computer Technical Reference SECTION 1 3-pin locking circular 5-pin circular mini-DIN (IBM PS/2 standard) and...

  • Page 17: System Configuration Utility (Scu)

    (LPT) ports, the Ethernet port, and keyboard set- tings. Set the Ethernet port to: DISABLED if the onboard Ethernet controller is not " ENABLED to activate the controller. " if using DOS or Windows 3.X if using Windows 95 in use. 6500/6550 Computer Technical Reference Introduction...

  • Page 18: Booting

    If Windows is installed, the system loads the Windows Graphical User Interface (GUI). PC Cards appear as unique drives of the 6500/6550 Com- puter operating system. The drive designation depends on the PC Card slot in which it is installed.

  • Page 19: Warm Boot

    1. Unplug the power supply from the wall outlet or turn off the power ON/OFF switch on the DC power con- verter to remove power from the 6500/6550 Computer. 2. Plug in the power supply or turn on the power ON/ OFF switch on the DC converter to resort power to the computer.

  • Page 20: Free Space Adjustments

    C:\ compressed “virtual” drive space can be moved to the H:\ uncompressed “real” drive. 1. Select Start ® ® Programs ® ® Accessories ® ® System Tools ® ® Drive Space to access the “Drive Space” window. 1-12 6500/6550 Computer Technical Reference SECTION 1...
  • Page 21 SECTION 1 Introduction The “Drive Space” window appears: 2. Highlight “C: Compressed drive” to indicate this is the drive to adjust. 6500/6550 Computer Technical Reference 1-13...
  • Page 22 Introduction SECTION 1 3. Select Drive ® ® Adjust Free Space from the “Drive Space” title bar for the “Adjust Free Space” window. 1-14 6500/6550 Computer Technical Reference...
  • Page 23 4. Click and drag the slider on the bar to adjust the space according to your needs. " NOTE: You cannot make either the C: drive or H: drive free space zero. Place as much space to the C: drive as possible. 6500/6550 Computer Technical Reference Introduction 1-15...
  • Page 24 Defragmenting makes this area more useable. It is important to routinely defragment the drives on a periodic basis, possibly once each quarter. 1-16 6500/6550 Computer Technical Reference SECTION 1...

  • Page 25: Abnormal Windows 95 Shutdown

    Hard disk errors can occur when Windows 95 is not properly shut down, thus scandisk must be run once booted up (within Windows 95) to find and correct errors that occurred. 6500/6550 Computer Technical Reference Introduction 1-17...

  • Page 26: Stacker On Hard Drive

    Internet connections -- AT&T, AOL, etc. " Microsoft NetMeeting " Various Help files " Wang Imaging software " 1-18 6500/6550 Computer Technical Reference Table 1-1 Windows 95 Loads C: (Compressed) Free Used 24 KB 33.5 MB 6.25 MB 294 KB 80.6 MB 7.43 MB...

  • Page 27: Config.sys

    386Grabber=vgafull.3gr display.drv=pnpdrvr.drv mouse.drv=mouse.drv *DisplayFallback=0 SCRNSAVE.EXE=C:\WINDOWS\SYSTEM\FLYING~1.SCR [keyboard] subtype= type=4 keyboard.dll= oemansi.bin= [boot.description] keyboard.typ=Standard 101/102-Key or Microsoft Natural Keyboard aspect=100,96,96 display.drv=Chips & Tech. Super VGA mouse.drv=Standard mouse system.drv=Standard PC 61THRSCN.DRV=61THRSCN v0.60 - Feb 12, 1998 6500/6550 Computer Technical Reference Introduction 1-19...
  • Page 28 ; the scanner. If TRUE it does NOT allow multiplexing of the scanner and ; external comm 1 connections. ; values: TRUE and FALSE. 1-20 6500/6550 Computer Technical Reference Valid values are: OFF, INTERNAL, Valid values are: OFF, INTERNAL, Valid values: TRUE and FALSE.
  • Page 29 ; appended onto the end of each valid scan. Valid values for ; AppendCharacterare: TRUE or FALSE. The AppendCharacterValue value can ; be anything from 0 to 255. Default is not to append the character. AppendCharacter=FALSE AppendCharacterValue=13 [iccvid.drv] [mciseq.drv] [mci] cdaudio=mcicda.drv sequencer=mciseq.drv 6500/6550 Computer Technical Reference 1-21...
  • Page 30 MSACM.msadpcm=msadp32.acm MSACM.msgsm610=msgsm32.acm MSACM.trspch=tssoft32.acm [NonWindowsApp] [vcache] [display] [nwnp32] [MSNP32] [Password Lists] [TTFontDimenCache] 0 12=5 12 0 13=6 12 0 14=7 14 0 15=7 15 0 16=8 16 0 18=10 18 0 20=10 20 0 22=12 22 1-22 6500/6550 Computer Technical Reference...

  • Page 31: Rangelan2 Radio Driver

    PEN*KEY Installation " NOTE: The RangeLAN2 Radio driver should already be factory-installed on your 6500/6550 Computer. The installation procedure is normally not necessary. Ensure no other applications are running before you insert the RangeLAN2 driver disk into the 6500/6550 Computer.
  • Page 32 2. Type C:\Proxim\setup.exe in the Open field, then click the OK button to begin the installation. The “Se- curity Setup” window appears, prompting you to close any applications that may be running: 3. Click the OK button to continue. 6500/6550 Computer Technical Reference SECTION 2...
  • Page 33 The “Destination File” window appears to mea- sure the files loaded onto the unit. Before any files are loaded, a window appears to warn that existing files may be replaced: 5. Click the No button to continue. RangeLAN2 Radio Driver 6500/6550 Computer Technical Reference...
  • Page 34 6. Click the Yes button to continue. The “Destination File” window displays the files as they are loaded, then a final “Security Successful” window appears. 7. Click the OK button to return to the desktop. 6500/6550 Computer Technical Reference SECTION 2...

  • Page 35: Status Monitor

    The “Status Monitor” window may minimize onto the system tray area of the Windows desktop. If it does, click the right mouse button on the icon next to the audio icon to bring up the window. RangeLAN2 Radio Driver 6500/6550 Computer Technical Reference...
  • Page 36 RangeLAN2 Radio Driver SECTION 2 The “Status Monitor” window appears: Click the Hide button to keep the System Monitor active, but hidden on the Windows desktop toolbar. Click the Re- move button to exit the “System Monitor” window. 6500/6550 Computer Technical Reference...

  • Page 37: Site Survey And Configuration Tool

    ROM version, and coun- try code of the RangeLAN2 card in this computer. From the Windows desktop, select Start ® ® Programs ® ® RangeLAN2 Utilities ® ® RangeLAN2 Site Survey & Configuration Tool. RangeLAN2 Radio Driver 6500/6550 Computer Technical Reference...
  • Page 38 Each function within this window is accompanied with its online help. Use this help for definitions and information about each function. The following pages contain a summa- ry of each of the functions provided in the program: 6500/6550 Computer Technical Reference...

  • Page 39: Masters

    Click the Search All button to survey all fifteen network domains (or channels). Click the Search One button, then select from the drop-down list for a given channel to survey. Click the Done button to exit the “Master List” window, the system reinitializes this unit. 6500/6550 Computer Technical Reference...

  • Page 40: Snoop

    Click the Slow bullet to sample each frequency 300 " times. Click the Medium bullet to sample each frequency 30 " times. Click the Fast bullet to sample each frequency 3 " times. 2-10 6500/6550 Computer Technical Reference SECTION 2...

  • Page 41: Configuration

    Click the Use Defaults button to revert the unit to its de- fault settings. Use the online help to define the functions of the “Configuration” window. 6500/6550 Computer Technical Reference 2-11...

  • Page 42: Site Survey

    Use the online help for explanations and definitions of these features. 2-12 6500/6550 Computer Technical Reference...

  • Page 43: Improper Configuration

    SECTION 2 Improper Configuration? If your 6500/6550 Computer does not have the Proxim RangeLAN2 7100 ISA Adapter (0001) network adapter, an error message window appears with this message: Your network adapter Proxim RangeLAN2 7100 ISA Adapter (0001) is not working properly. You may need to set it up again. For more information, see the Networking Troubleshooter in Windows Help.
  • Page 44 RangeLAN2 Radio Driver SECTION 2 The “Control Panel” window appears: 3. Double-click the System icon to access the “System Properties” window. 2-14 6500/6550 Computer Technical Reference...
  • Page 45 SECTION 2 RangeLAN2 Radio Driver The “System Properties” window appears: 4. Click the Device Manager tab to access the “6500/6550 Computer” tree: 6500/6550 Computer Technical Reference 2-15...
  • Page 46 RangeLAN2 Radio Driver SECTION 2 The contents of the “6500/6550 Computer” tree ap- pears: 5. Double-click on “Network Adapter” to expose its tree: 2-16 6500/6550 Computer Technical Reference...
  • Page 47 SECTION 2 RangeLAN2 Radio Driver The contents of “Network Adapter” appears: 6. Select to highlight “Proxim RangeLAN2 7100 ISA Adapter”, then click the Properties button to access the properties of the Proxim RangeLAN2 adapter. 6500/6550 Computer Technical Reference 2-17...
  • Page 48 7. Check the Disable in this hardware profile box, then click the OK button to exit the “Properties” win- dow. Click the Close button to exit the “System Properties” win- dow. 2-18 6500/6550 Computer Technical Reference SECTION 2...
  • Page 49 This driver for Windows 95 may be installed after the Windows 95 installation is complete. Online help information is available. Select Start ® ® Pro- grams ® ® Touch ® ® Touchscreen Driver Help to access the online T5 driver user information. 6500/6550 Computer Technical Reference...
  • Page 50 To install the T5driver touchscreen, make sure no other ap- plications are running. Insert the T5 driver disk into a floppy drive on the 6500/6550 Computer, then do the follow- ing: 1. From the Windows desktop, select Start ® ® Run to access the “Run”...
  • Page 51 SECTION 3 TouchBase Driver The “Run” window appears: 2. Type A:\T5setup.exe in the Open field, then click the OK button to begin the installation. 6500/6550 Computer Technical Reference...
  • Page 52 TouchBase Driver SECTION 3 The “Touch Driver Installation (vX.XX)” window ap- pears, prompting you for the correct directory to load the touchscreen driver. The C:\WINDOWS directory should be highlighted. 3. Click the OK button to continue. 6500/6550 Computer Technical Reference...
  • Page 53 SECTION 3 TouchBase Driver The “License Agreement” window appears. 4. Click the Agree button to continue. The “Installing” window appears, measuring the files loaded onto the unit. 6500/6550 Computer Technical Reference...
  • Page 54 TouchBase Driver SECTION 3 The “Select Touchscreen” window appears. 5. Select to highlight the Carroll Touch HBC - - Bus touchscreen, then click the OK button to continue. 6500/6550 Computer Technical Reference...
  • Page 55 6. Select a group to store the T5 programs and help, or click the OK button to accept “Touch” as the group and continue. A “Hardware Configuration” prompt ap- pears. 7. Click the OK button to continue. TouchBase Driver 6500/6550 Computer Technical Reference...
  • Page 56 A “Hardware Controls (Bus)” window appears. 8. Set the Irq field to 9 and set the Address field to the 200h port (6500 Computer) or the 2a0h port (6550 Computer). Click the OK button to continue. A read- me window appears: 9.

  • Page 57: Optional Parameters

    OK button is clicked. T5ctrl /C:CALIBRATE " Goes straight to calibration, and exits right after cali- brating. You may wish to call the program in this mode from within your own applications. TouchBase Driver 6500/6550 Computer Technical Reference...

  • Page 58: How To Use Touch Screen Control

    2. Use arrow keys to select Programs ® ® Touch ® ® Touchscreen Control, then press Enter to access the “Touch Screen Control” program. 3. Once the program starts, press <Ctrl> + <C> to start the calibration. 3-10 6500/6550 Computer Technical Reference SECTION 3...
  • Page 59 The T5 driver online help provides extensive information about the “Touch Screen Control” program. The following pages contain a summary of each of the functions provided in the program. 6500/6550 Computer Technical Reference 3-11...

  • Page 60: Hardware Controls

    Note that this button cannot activate a new set of COM port parameters. Changes to the hardware or communications parameters never take effect until you restart your system. 3-12 6500/6550 Computer Technical Reference...

  • Page 61: User Controls

    Right Mouse Button toggle. You can elect left (de- fault), right, or both mouse buttons. Click the Apply button to save your changes, or click the Cancel button to exit without any changes. TouchBase Driver 6500/6550 Computer Technical Reference 3-13...

  • Page 62: Left Right Mouse Button Toggle

    You can click either the left or right mouse button on the mouse to toggle the setting, but you must bring down a menu (upper left corner) to select both mouse buttons. 3-14 6500/6550 Computer Technical Reference...

  • Page 63: Button Modes

    Click the Default button to revert to the factory settings. Click the Apply button to save any changes, or click the Cancel button exit this screen without saving any changes. 6500/6550 Computer Technical Reference 3-15...

  • Page 64: Advanced Settings

    (packets) to be ignored; and adjust the hardware touch mode are available. Click the Apply button to save these changes, or restart your Windows 95 to apply the changes. 3-16 6500/6550 Computer Technical Reference...

  • Page 65: Calibration

    Click OK to continue: You can call the program to perform calibration immediate- ly from entry as follows. You may wish to build this call into your application: T5ctrl /c:CALIBRATE TouchBase Driver s appear, the posi- 6500/6550 Computer Technical Reference 3-17...
  • Page 66 TouchBase Driver SECTION 3 3-18 6500/6550 Computer Technical Reference...

  • Page 67: Appending Bar Code Control Characters

    " " " " " " " " " " 6500/6550 Computer. Valid values for The AppendCharacterValue can be Default is not to append the character. 6500/6550 Computer Technical Reference Section 4 " " " " " " " "...

  • Page 68: Dos Scanning

    Time between outputting data, where n=0--9 timer ticks (~55ms). For example: if “n” = 5, then five additional timer ticks (or 5*55 = 275ms) are put between each character sent to the keyboard buffer. 6500/6550 Computer Technical Reference Table 4-1 65SCN7B Options...

  • Page 69: Scanning Methods

    SECTION 4 Scanning Methods The 6500/6550 Computer supports scanning, with an exter- nal tethered serial laser scanner connected to the serial communication port. Scanner data can be sent to an ap- plication via the keyboard (Wedge Mode). The following paragraphs describe the scanning operation for: Tethered Scanning, using an external serial scanner.

  • Page 70: Wedge Scanning

    The operator gets a good scan indication even though the application may later reject the data. When the application rejects the scanner data, the operator must figure out which scans were accepted and which were not and rescan the rejected scans. 6500/6550 Computer Technical Reference...

  • Page 71: Tcp/Ip Network Driver

    " " " " This section contains installation information about the Transmission Control Protocol/Internet Protocol (TCP/IP) network driver supported for the PEN*KEY 6500/6550 Computer. This driver for Windows 95 readies the hand- held computer for communications. 6500/6550 Computer Technical Reference...

  • Page 72: Installation

    TCP/IP Network Driver Installation " NOTE: The TCP/IP network driver should already be factory-installed on your 6500/6550 Computer. The installation procedure is normally not necessary. To install the TCP/IP network driver, make sure no other applications are running, then do the following: 1.
  • Page 73 SECTION 5 2. Double-click the Control Panel icon for the “Control Panel” window: 3. Double-click the Network icon to access the “Net- work” window. TCP/IP Network Driver 6500/6550 Computer Technical Reference...
  • Page 74 TCP/IP Network Driver SECTION 5 The “Network” window appears with the “Configura- tion” page: 4. Click the Add button to access the “Select Network Component Type” window. 6500/6550 Computer Technical Reference...
  • Page 75 SECTION 5 TCP/IP Network Driver The “Select Network Component Type” window ap- pears: 5. Select “Protocol” then click the Add button to access the “Select Network Protocol” window. 6500/6550 Computer Technical Reference...
  • Page 76 6. Select “Microsoft” under Manufacturers, then select “TCP/IP” under Network Protocols. 7. Click the OK button to save and return to the “Net- work” window with “Configuration” page displayed. At this point, you can configure file and printer sharing. 6500/6550 Computer Technical Reference SECTION 5...

  • Page 77: File And Printer Sharing

    Microsoft via Network Service. At this point you should be on the “Network” window with the “Configuration” page displayed. 1. Click the File and Print Sharing button to access the “File and Print Sharing” window. TCP/IP Network Driver 6500/6550 Computer Technical Reference...
  • Page 78 TCP/IP Network Driver SECTION 5 The “File and Print Sharing” window appears: 2. Check both boxes on, then click the OK button to save and return to the “Network” window. 6500/6550 Computer Technical Reference...
  • Page 79 At this point, you must do a cold reboot for the changes to take effect. Click the OK button to save your entries and follow the steps in rebooting the system. TCP/IP Network Driver 6500/6550 Computer Technical Reference...

  • Page 80: System Reboot

    1. Click the OK button to continue. A “Copying Files” window appears: 2. Type “c:\windows\options\cabs” in the Copy files from field, then click the OK button. A status win- dow appears monitoring the files copied from the Win- dows 95 CD-ROM. 5-10 6500/6550 Computer Technical Reference SECTION 5...
  • Page 81 When done, the system prompts you to restart the computer. 3. Click the Yes button to continue. The system shuts down, then restarts, returning to the Windows desktop with the “Control Panel” and “My Com- puter” windows still open. TCP/IP Network Driver 6500/6550 Computer Technical Reference 5-11...
  • Page 82 TCP/IP Network Driver SECTION 5 5-12 6500/6550 Computer Technical Reference...

  • Page 83: Terminal Emulations

    PEN*KEY Terminal Emulation The terminal emulations on the 6500/6550 Computer are the same as other hand-held computers and vehicle mounts. The standard combination terminal emulation, FWP650H0, is not compatible with Windows 3.11 or Windows 95. You cannot run emulations from the Windows 95 MS-DOS win- dow.

  • Page 84: Loading Terminal Emulations

    Terminal Emulations Loading Terminal Emulations The 6500/6550 Computer can be configured to use both Windows 95 and the terminal emulations. In the Windows 95 load, the C: drive is the internal hard drive (such as San- Disk or other PC Cards). With the terminal emulation load, the C: drive is the 4MB of flash.

  • Page 85: Keyboard Overlays

    SECTION 6 Terminal Emulations Keyboard Overlays Figure 6-1 PEN*KEY 65X0 DOS/PC Keyboard P/N: 340-044-001 6500/6550 Computer Technical Reference...

  • Page 86: Figure 6-2 Pen*Key 65X0 Vt220 Keyboard P/N: 340-044-002

    Terminal Emulations SECTION 6 Figure 6-2 PEN*KEY 65X0 VT220 Keyboard P/N: 340-044-002 6500/6550 Computer Technical Reference...
  • Page 87 SECTION 6 Terminal Emulations Figure 6-3 PEN*KEY 65X0 NORAND Native Keyboard P/N: 340-044-003 6500/6550 Computer Technical Reference...

  • Page 88: Figure 6-4 Pen*Key 65X0 5250 Keyboard P/N: 340-044-004

    Terminal Emulations SECTION 6 Figure 6-4 PEN*KEY 65X0 5250 Keyboard P/N: 340-044-004 6500/6550 Computer Technical Reference...

  • Page 89: Figure 6-5 Pen*Key 65X0 3270 Keyboard P/N: 340-044-005

    SECTION 6 Terminal Emulations Figure 6-5 PEN*KEY 65X0 3270 Keyboard P/N: 340-044-005 6500/6550 Computer Technical Reference...
  • Page 90 Terminal Emulations SECTION 6 6500/6550 Computer Technical Reference...

  • Page 91: Full Load - 65Hdwn95

    8:55a NETLOG.TXT 09-08-97 4:35p AUTOEXEC.BAT 02-18-98 5:04p OPTI931 02-18-98 5:04p Program Files 02-18-98 5:05p Proxim 02-18-98 5:05p T5 03-04-98 3:43p WINDOWS 02-18-98 5:10p RECYCLED 111,222 bytes 6500/6550 Computer Technical Reference Appendix A " " " " " " " " "...
  • Page 92 <DIR> 0 file(s) Directory of C:\Program Files\Accessories <DIR> <DIR> MSPAINT 311,808 WORDPAD 183,296 HYPERTER <DIR> 2 file(s) 6500/6550 Computer Technical Reference 07-25-97 2:26p RM93XDRV.DAT 07-22-97 3:58p RM93XDRV.EXE 01-21-97 4:35p SETUP.INF 08-11-97 10:35a SND931P.DRV 08-15-97 4:53p SND931P.INF 08-14-97 1:52p SND931P.VXD 02-11-97 4:12p SNDM401P.DRV...
  • Page 93 08-24-96 11:11a MSICW.ISP 08-24-96 11:11a MSN.ISP 08-24-96 11:11a PHONE.ICW 08-24-96 11:11a STATE.ICW 304,704 bytes 08-24-96 11:11a IEXPLORE.EXE 08-24-96 11:11a INFINST.EXE 08-24-96 11:11a INST16.DLL 08-24-96 11:11a INST32.DLL 08-24-96 11:11a RALICENS.TXT 08-24-96 11:11a RAREADME.TXT 08-24-96 11:11a REGEXP.EXE 08-24-96 11:11a SWINST4.EXE 6500/6550 Computer Technical Reference...
  • Page 94 15,280 MNMTDDS_ DLL 13,360 SOEDPER 126,464 TYPE 9,200 WB32 641,536 6500/6550 Computer Technical Reference 08-24-96 11:11a BLIP.WAV 08-24-96 11:11a CB32.EXE 08-24-96 11:11a CONF.EXE 08-24-96 11:11a GCC32.DLL 08-24-96 11:11a GCCNC.DLL 08-24-96 11:11a MCATIPX.DLL 08-24-96 11:11a MCATPSTN.DLL 08-24-96 11:11a MCS32.DLL 08-24-96 11:11a MCSNC.DLL 08-24-96 11:11a MNMALP.EXE...
  • Page 95 08-24-96 11:11a MSCONFFT.EXE 08-24-96 11:11a MSGCCMCS.DLL 08-24-96 11:11a MSMCSTCP.DLL 08-24-96 11:11a NETMEET.TXT 08-24-96 11:11a OBSCURE.BMP 08-24-96 11:11a OSSAPI.DLL 02-18-98 5:04p AOL 02-18-98 5:04p AT&T 02-18-98 5:04p CompuServe 0 bytes 08-24-96 11:11a AOLSETUP.EXE 08-24-96 11:11a SETUP25I.EXE 08-24-96 11:11a SETUP32.EXE 6500/6550 Computer Technical Reference...
  • Page 96 Directory of C:\Program Files\Online Services\CompuServe <DIR> <DIR> CS3KIT 5,783,436 CSSETUP 113,664 2 file(s) 5,897,100 bytes 6500/6550 Computer Technical Reference 08-24-96 11:11a ACCESBTN.GIF 08-24-96 11:11a ATTLOGO.GIF 08-24-96 11:11a ATTWNS.ICO 08-24-96 11:11a ATTWNS1.HTM 08-24-96 11:11a ATTWNSVC.ISP 08-24-96 11:11a BALLOON.JPG 08-24-96 11:11a BLGLOBE.GIF 08-24-96 11:11a CANCEL.INS 08-24-96 11:11a CUSTCARE.GIF...
  • Page 97 2:06p statmon.exe 500,148 bytes 05-22-96 9:01p Security.exe 08-28-97 10:43a ST4UNST.LOG 19,498 bytes 08-24-96 11:11a BILLADD.DLL 08-24-96 11:11a MSNSIG13.EXE 08-24-96 11:11a MSNVER.TXT 08-24-96 11:11a SIGNUP.EXE 08-24-96 11:11a SUUTIL.DLL 578,052 bytes 08-24-96 11:11a MLSET32.EXE 08-24-96 11:11a MLSHEXT.DLL 68,112 bytes 6500/6550 Computer Technical Reference...
  • Page 98 68,972 ST4UNST 32,997 STKIT432 DL_ 12,439 VB40032 471,576 VEN2232 23,637 WIN95NT <DIR> 22 file(s) 2,478,506 bytes 6500/6550 Computer Technical Reference 05-22-96 9:01p CTL3D32.DL_ 04-05-96 1:07p DIALOGS.DLL 05-22-96 9:01p MSVCRT20.DL_ 05-22-96 9:01p MSVCRT40.DL_ 05-29-96 3:25p NETPROXM.INF 07-25-96 1:55p OEMSETUP.INF 05-22-96 10:01p OLEPRO32.DL_ 07-31-96 11:36a README95.TXT...
  • Page 99 3:07p SETUP.INS 07-14-96 3:38p SETUP.PKG 04-09-97 4:10p win95nt.exe 10-18-96 8:43a _INST32I.EX_ 09-07-95 7:22p _ISDEL.EXE 09-30-96 8:06a _SETUP.DLL 10-16-96 2:08p _SETUP.LIB 0 bytes 11-29-96 12:01a PACKING.LST 11-29-96 12:01a README.T5 11-29-96 12:01a SUPPORT.INF 11-29-96 12:01a T5SETUP.EXE 624,515 bytes 6500/6550 Computer Technical Reference...
  • Page 100 PINSTRIP BMP POWERPNT INI PRINTERS TXT 16,690 PROGMAN 113,456 PROGMAN A-10 6500/6550 Computer Technical Reference 08-24-96 11:11a ACCSTAT.EXE 08-24-96 11:11a ASPI2HLP.SYS 08-24-96 11:11a Black Thatch.bmp 08-24-96 11:11a Blue Rivets.bmp 08-24-96 11:11a Bubbles.bmp 08-24-96 11:11a CALC.EXE 08-24-96 11:11a Carved Stone.bmp 08-24-96 11:11a CDPLAYER.EXE 08-24-96 11:11a Circles.bmp...
  • Page 101 9:29a TEST.PWL 08-24-96 11:11a Tiles.bmp 08-24-96 11:11a TIPS.TXT 08-24-96 11:11a Triangles.bmp 08-24-96 11:11a TWAIN.DLL 08-24-96 11:11a TWAIN_32.DLL 08-24-96 11:11a TWUNK_16.EXE 08-24-96 11:11a REGEDIT.EXE 10-15-96 6:01p uninst.exe 08-24-96 11:11a WABMIG.EXE 08-24-96 11:11a WANGIMG.EXE 08-28-97 12:23p WAVEMIX.INI 6500/6550 Computer Technical Reference A-11...
  • Page 102 INTERNET TXT 11,794 10,444 JVIEW 12,288 LOGOS 129,078 LOGOW 129,078 A-12 6500/6550 Computer Technical Reference 08-24-96 11:11a Waves.bmp 08-24-96 11:11a WELCOME.EXE 08-24-96 11:11a WIN.COM 08-28-97 12:11p WIN.INI 09-08-97 4:45p WIN386.SWP 08-24-96 11:11a WINFILE.EXE 08-24-96 11:11a WINHELP.EXE 08-24-96 11:11a WINHLP32.EXE 08-28-97 9:16a WININIT.BAK...
  • Page 103 5:05p DESKTOP 02-18-98 5:05p FONTS 02-18-98 5:05p HELP 02-18-98 5:05p History 02-18-98 5:06p INF 02-18-98 5:06p JAVA 02-18-98 5:06p MEDIA 02-18-98 5:06p PIF 02-18-98 5:06p Recent 02-18-98 5:06p SendTo 02-18-98 5:06p ShellNew 02-18-98 5:06p spool 6500/6550 Computer Technical Reference A-13...
  • Page 104 49,543 KEYB 19,927 KEYBOARD SYS 34,566 KEYBRD2 31,942 LABEL 9,324 32,146 A-14 6500/6550 Computer Technical Reference 02-18-98 5:06p Start Menu 02-18-98 5:06p SYSBCKUP 02-18-98 5:05p CONFIG 08-24-96 11:11a ANSI.SYS 08-24-96 11:11a ATTRIB.EXE 08-24-96 11:11a CHKDSK.EXE 08-24-96 11:11a CHOICE.COM 08-24-96 11:11a COUNTRY.SYS 08-24-96 11:11a DEBUG.EXE...
  • Page 105 08-28-97 11:52a MM256.DAT 16,384 bytes 08-24-96 11:11a APPSTART.ANI 08-24-96 11:11a HOURGLAS.ANI 07-23-96 2:01a DOTTED.CUR 07-23-96 2:01a TARGET.CUR 07-23-96 2:01a BLANK.CUR 21,396 bytes 08-28-97 9:19a Set Up The Microsoft Network.lnk 02-18-98 5:05p Online Services 331 bytes 6500/6550 Computer Technical Reference A-15...
  • Page 106 VERDANAZ TTF 59,636 WINGDING TTF 71,196 DESKTOP IMPACT 126,056 23 file(s) 1,648,535 bytes A-16 6500/6550 Computer Technical Reference 08-24-96 11:11a About The Online Services.txt 08-28-97 9:19a AOL & Internet FREE Trial!.lnk 08-28-97 9:19a AT&T WorldNet Signup.lnk 08-28-97 9:19a Setup CompuServe 3.0.lnk...
  • Page 107 08-24-96 11:11a DIALER.HLP 08-24-96 11:11a DISPLAY.HLP 08-24-96 11:11a EXPO.HLP 08-24-96 11:11a FILEXFER.CNT 08-24-96 11:11a FILEXFER.HLP 08-24-96 11:11a HYPERTRM.CNT 08-24-96 11:11a HYPERTRM.HLP 08-24-96 11:11a IEXPLORE.CNT 08-24-96 11:11a IEXPLORE.HLP 08-24-96 11:11a QFECHECK.HLP 08-24-96 11:11a RAPLAYER.HLP 08-24-96 11:11a RATINGS.HLP 6500/6550 Computer Technical Reference A-17...
  • Page 108 NOTEPAD 11,708 PACKAGER CNT PACKAGER HLP 23,529 PINGNAME BAT PINGNUM PROGMAN A-18 6500/6550 Computer Technical Reference 08-24-96 11:11a REGEDIT.CNT 08-24-96 11:11a REGEDIT.HLP 08-24-96 11:11a RNAAPP.HLP 08-24-96 11:11a SERVER.HLP 08-24-96 11:11a SNDVOL32.CNT 08-24-96 11:11a SNDVOL32.HLP 08-24-96 11:11a SOUNDREC.CNT 08-24-96 11:11a SOUNDREC.HLP 08-24-96 11:11a TELEPHON.HLP...
  • Page 109 08-24-96 11:11a ADAPTER.INF 08-24-96 11:11a APPLETPP.INF 08-24-96 11:11a APPLETS.INF 08-24-96 11:11a APPS.INF 08-24-96 11:11a ATHENA.INF 08-24-96 11:11a AWFAX.INF 08-24-96 11:11a AWUPD.INF 08-24-96 11:11a BKUPAGNT.INF 08-24-96 11:11a CEMMF.INF 08-24-96 11:11a CHEYENNE.INF 08-24-96 11:11a CLIP.INF 08-24-96 11:11a DECPSMW4.INF 6500/6550 Computer Technical Reference A-19...
  • Page 110 NETCPQ 6,816 NETDCA 16,782 NETDEC 20,208 NETDEF 10,267 NETDLC 12,751 A-20 6500/6550 Computer Technical Reference 08-24-96 11:11a DESKMGMT.INF 08-24-96 11:11a DISKDRV.INF 08-28-97 2:00p DRVDATA.BIN 08-28-97 2:00p DRVIDX.BIN 08-24-96 11:11a NETNCR.INF 08-24-96 11:11a NETNICE.INF 08-24-96 11:11a NETNOVEL.INF 08-24-96 11:11a NETOLI.INF 08-24-96 11:11a NETOSI.INF 08-24-96 11:11a NETPCI.INF...
  • Page 111 08-24-96 11:11a MDMDICOM.INF 08-24-96 11:11a MDMDISCO.INF 08-24-96 11:11a MDMDSI.INF 08-24-96 11:11a MDMDYNA.INF 08-24-96 11:11a MDMELINK.INF 08-24-96 11:11a MDMELPRO.INF 08-24-96 11:11a MDMELSA.INF 08-24-96 11:11a MDMERIC.INF 08-24-96 11:11a MDMETECH.INF 08-24-96 11:11a MDMEXP.INF 08-24-96 11:11a MDMEYP.INF 08-24-96 11:11a MDMGAL.INF 6500/6550 Computer Technical Reference A-21...
  • Page 112 MDMHAEUS INF 22,368 MDMHANDY INF 24,220 MDMHAYES INF 42,229 MDMICO 21,695 A-22 6500/6550 Computer Technical Reference 08-24-96 11:11a MDMGATEW.INF 08-24-96 11:11a MDMGEN.INF 08-24-96 11:11a MSPRINT2.INF 08-24-96 11:11a MSWEBSVR.INF 08-24-96 11:11a MTD.INF 08-24-96 11:11a MULLANG.INF 08-24-96 11:11a MULTILNG.INF 08-24-96 11:11a NDSCLI.INF 08-24-96 11:11a NET.INF...
  • Page 113 08-24-96 11:11a IMAGEVUE.INF 08-24-96 11:11a INETMAIL.INF 08-24-96 11:11a INFRARED.INF 08-24-96 11:11a IRDALAN.INF 08-24-96 11:11a JOYSTICK.INF 08-24-96 11:11a KEYBOARD.INF 08-24-96 11:11a LAYOUT.INF 08-24-96 11:11a LAYOUT1.INF 08-24-96 11:11a LOCALE.INF 08-24-96 11:11a MACHINE.INF 08-24-96 11:11a MDM3X.INF 08-24-96 11:11a MDMACEEX.INF 6500/6550 Computer Technical Reference A-23...
  • Page 114 MDMOSI 9,964 MDMPACE 26,351 MDMPBIT 25,092 MDMPHILS INF 27,530 A-24 6500/6550 Computer Technical Reference 08-24-96 11:11a MDMYORIK.INF 08-24-96 11:11a MDMZOOM.INF 08-24-96 11:11a MDMZYP.INF 08-24-96 11:11a MDMZYXEL.INF 08-24-96 11:11a MDMZYXLD.INF 08-24-96 11:11a MDMZYXLG.INF 08-24-96 11:11a MDMZYXLN.INF 08-24-96 11:11a MF.INF 08-24-96 11:11a MFOSI.INF 08-24-96 11:11a MIDI.INF...
  • Page 115 08-24-96 11:11a MDMSONIX.INF 08-24-96 11:11a MDMSPEC.INF 08-24-96 11:11a MDMSRT.INF 08-24-96 11:11a MDMSUPRA.INF 08-24-96 11:11a MDMTDK.INF 08-24-96 11:11a MDMTELBT.INF 08-24-96 11:11a MDMTELIN.INF 08-24-96 11:11a MDMTELNK.INF 08-24-96 11:11a MDMTEXAS.INF 08-24-96 11:11a MDMTGER.INF 08-24-96 11:11a MDMTI.INF 02-18-98 5:06p OTHER 6500/6550 Computer Technical Reference A-25...
  • Page 116 CANYON 20,861 CHIMES 15,932 CLASSGA3 MID 37,676 DANCEOFT RMI 20,906 DEBUSSY’ RMI 27,940 A-26 6500/6550 Computer Technical Reference 08-24-96 11:11a MicrosoftMSHDC.INF 08-15-97 4:53p OPTi Inc.SND931P.INF 28,187 bytes 02-18-98 5:06p CLASSES 02-18-98 5:06p TRUSTLIB 0 bytes 08-24-96 11:11a CLASSES.ZIP 812,406 bytes 08-24-96 11:11a TCLASSES.ZIP...
  • Page 117 9:50a Utopia Close.wav 07-11-95 9:50a Utopia Critical Stop.wav 07-11-95 9:50a Utopia Default.wav 07-11-95 9:50a Utopia Error.wav 07-11-95 9:50a Utopia Exclamation.wav 07-11-95 9:50a Utopia Maximize.wav 07-11-95 9:50a Jungle Default.wav 07-11-95 9:50a Jungle Error.wav 07-11-95 9:50a Jungle 6500/6550 Computer Technical Reference A-27...
  • Page 118 74,722 ROBOTZME WAV 13,920 ROBOTZM0 WAV 71,868 ROBOTZMI WAV 150,442 ROBOTZOP WAV 81,390 ROBOTZQU WAV 79,002 A-28 6500/6550 Computer Technical Reference Exclamation.wav 07-11-95 9:50a Jungle Maximize.wav 07-11-95 9:50a Jungle Menu Command.wav 07-11-95 9:50a Musica Exclamation.wav 07-11-95 9:50a Musica Maximize.wav 07-11-95 9:50a Musica Menu Command.wav...
  • Page 119 9:50a Utopia Windows Exit.wav 07-11-95 9:50a Utopia Windows Start.wav 11-17-96 12:00a WHOOSH.WAV 07-11-95 9:50a Musica Windows Start.wav 06-27-97 8:09p panther.wav 07-11-95 9:50a PASSPORT.MID 11-17-96 12:00a REMINDER.WAV 07-11-95 9:50a Robotz Asterisk.wav 0 bytes 02-18-98 5:10p CABS 0 bytes 6500/6550 Computer Technical Reference A-29...
  • Page 120 WIN95_20 CAB 1,716,224 WIN95_21 CAB 1,716,224 WIN95_22 CAB 1,716,224 WIN95_23 CAB 1,716,224 A-30 6500/6550 Computer Technical Reference 08-24-96 11:11a ATTRIB.EXE 08-24-96 11:11a AUTOEXEC.BAT 08-24-96 11:11a CHKDSK.EXE 08-24-96 11:11a COMMAND.COM 08-24-96 11:11a CONFIG.SYS 08-24-96 11:11a COUNTRY.SYS 08-24-96 11:11a CS3KIT.EXE 08-24-96 11:11a DEBUG.EXE 08-24-96 11:11a DELCABS.INF...
  • Page 121 08-24-96 11:11a DISK27.DMF 08-24-96 11:11a DISK28.DMF 08-24-96 11:11a DISK3.DMF 08-24-96 11:11a DISK4.DMF 08-24-96 11:11a WIN95_25.CAB 08-24-96 11:11a WIN95_26.CAB 08-24-96 11:11a WIN95_27.CAB 08-24-96 11:11a WIN95_28.CAB 08-24-96 11:11a WINSETUP.BIN 08-24-96 11:11a WOWKIT.EXE 08-24-96 11:11a XMSMMGR.EXE 08-24-96 11:11a WIN95_09.CAB 6500/6550 Computer Technical Reference A-31...
  • Page 122 SWINST4 1,009,600 18,967 UNINSTAL EXE 76,496 WB16OFF 119 file(s) 84,256,980 bytes A-32 6500/6550 Computer Technical Reference 08-24-96 11:11a WIN95_10.CAB 08-24-96 11:11a WIN95_11.CAB 08-24-96 11:11a WIN95_12.CAB 08-24-96 11:11a WIN95_13.CAB 08-24-96 11:11a WIN95_14.CAB 08-24-96 11:11a WIN95_15.CAB 08-24-96 11:11a WIN95_16.CAB 08-24-96 11:11a WIN95_17.CAB 08-24-96 11:11a SAVE32.COM...
  • Page 123 08-24-96 11:11a EXCEL4.XLS 08-24-96 11:11a LOTUS.WK4 08-24-96 11:11a POWERPNT.PPT 08-24-96 11:11a PRESENTA.SHW 08-24-96 11:11a QUATTRO.WB2 08-24-96 11:11a WINWORD.DOC 08-24-96 11:11a WINWORD2.DOC 08-24-96 11:11a WORDPFCT.WPD 08-24-96 11:11a WORDPFCT.WPG 37,398 bytes 02-18-98 5:06p PRINTERS 0 bytes 0 bytes 6500/6550 Computer Technical Reference A-33...
  • Page 124 ONLINERE LNK PAINT PHONEDIA LNK WORDPAD INTERNET <DIR> MULTIMED <DIR> SYSTEMTO <DIR> 8 file(s) A-34 6500/6550 Computer Technical Reference 02-18-98 5:06p Programs 0 bytes 08-28-97 9:19a Internet Explorer.lnk 08-28-97 9:19a Internet Mail.lnk 08-28-97 9:19a Internet News.lnk 08-28-97 9:19a Microsoft NetMeeting.lnk 09-08-97 4:39p MS-DOS Prompt.pif...
  • Page 125 1,748 bytes 08-28-97 9:19a Disk Defragmenter.lnk 08-28-97 9:19a ScanDisk.lnk 548 bytes 08-28-97 9:19a AOL & Internet FREE Trial!.lnk 08-28-97 9:19a AT&T WorldNet Signup.lnk 08-28-97 9:19a Setup CompuServe 3.0.lnk 08-28-97 9:19a Setup WOW! from CompuServe.lnk 1,548 bytes 6500/6550 Computer Technical Reference A-35...
  • Page 126 DISPDIB 6,992 LZEXPAND DLL 23,696 MCIAVI 67,696 MCIOLE 5,584 MIDIMAP 16,976 A-36 6500/6550 Computer Technical Reference 08-28-97 2:04p RangeLAN2 Site Survey & Configuration Tool.lnk 08-28-97 12:27p RangeLAN2 Status Monitor.lnk 732 bytes 0 bytes 08-28-97 12:12p Touchscreen Control.lnk 08-28-97 12:12p Touchscreen Driver Help.lnk...
  • Page 127 08-24-96 11:11a 3D Pipes.scr 08-24-96 11:11a 3D Text.scr 08-24-96 11:11a ACCESS.CPL 08-24-96 11:11a ACTMOVIE.EXE 08-24-96 11:11a ACTXPRXY.DLL 08-24-96 11:11a ADDREG.EXE 08-24-96 11:11a ADVAPI32.DLL 08-24-96 11:11a ADVPACK.DLL 08-24-96 11:11a AMOVIE.OCX 08-24-96 11:11a APPWIZ.CPL 08-01-96 5:51p ASYCPICT.DLL 08-24-96 11:11a AVICAP.DLL 6500/6550 Computer Technical Reference A-37...
  • Page 128 VERSION 6,656 5,857 52,064 VGAFULL 14,624 VLB32 42,496 A-38 6500/6550 Computer Technical Reference 08-24-96 11:11a AVICAP32.DLL 08-24-96 11:11a OIDIS400.DLL 08-24-96 11:11a OIFIL400.DLL 08-24-96 11:11a OIGFS400.DLL 08-24-96 11:11a OIPRT400.DLL 08-24-96 11:11a OISLB400.DLL 08-24-96 11:11a OISSQ400.DLL 08-24-96 11:11a OITWA400.DLL 08-24-96 11:11a OIUI400.DLL 08-24-96 11:11a OLE2.DLL...
  • Page 129 08-24-96 11:11a INDICDLL.DLL 08-24-96 11:11a INET16.DLL 08-24-96 11:11a INETAB32.DLL 08-24-96 11:11a INETCFG.DLL 08-24-96 11:11a INETCPL.CPL 08-24-96 11:11a INFRARED.DLL 08-24-96 11:11a INLOADER.DLL 08-24-96 11:11a INTERNAT.EXE 08-24-96 11:11a INTL.CPL 08-24-96 11:11a INTRINSC.OCX 08-28-97 8:56a MSWEBNDI.DLL 08-24-96 11:11a NAC.DLL 6500/6550 Computer Technical Reference A-39...
  • Page 130 UNIMODEM VXD 55,438 87,552 URLMON 182,752 USASCII USER 462,112 USER32 44,544 A-40 6500/6550 Computer Technical Reference 08-24-96 11:11a NDIS.VXD 08-24-96 11:11a NDIS2SUP.VXD 08-24-96 11:11a NETAPI.DLL 08-24-96 11:11a NETAPI32.DLL 08-24-96 11:11a NETBEUI.VXD 08-24-96 11:11a NETBIOS.DLL 08-24-96 11:11a NETCPL.CPL 08-28-97 8:56a NETDI.DLL 08-28-97 8:56a NETOS.DLL...
  • Page 131 08-24-96 11:11a WSOCK32.DLL 08-24-96 11:11a WSOCK32N.DLL 08-24-96 11:11a WSVV.VXD 08-24-96 11:11a XFILEXR.DLL 11-29-96 2:01a T5driver.VXD 08-24-96 11:11a OLECNV32.DLL 08-24-96 11:11a OLEDLG.DLL 08-24-96 11:11a OLEPRO32.DLL 08-24-96 11:11a OLESVR.DLL 08-24-96 11:11a OLESVR32.DLL 08-24-96 11:11a OLETHK32.DLL 08-24-96 11:11a OPENGL32.DLL 6500/6550 Computer Technical Reference A-41...
  • Page 132 LOCALE 134,022 LOGGER 11,637 35,511 LPTENUM 17,192 LZ32 5,632 A-42 6500/6550 Computer Technical Reference 08-02-96 12:38p P2D.DLL 08-24-96 11:11a PANMAP.DLL 08-24-96 11:11a PARALINK.VXD 08-24-96 11:11a PASSWORD.CPL 08-24-96 11:11a PCCARD.VXD 08-24-96 11:11a PCI.VXD 08-24-96 11:11a PCIMP.PCI 08-24-96 11:11a PCNTN3.VXD 08-02-96 1:11p PEDCAB1.INF 08-24-96 11:11a NSCL.VXD...
  • Page 133 08-24-96 11:11a DESKCP16.DLL 08-24-96 11:11a DEVMGR32.DLL 08-24-96 11:11a DIALMON.EXE 08-24-96 11:11a AVIFIL32.DLL 08-24-96 11:11a AVIFILE.DLL 08-24-96 11:11a AWADPR32.EXE 08-24-96 11:11a AWCODC32.DLL 08-24-96 11:11a AWDCXC32.DLL 08-24-96 11:11a AWDENC32.DLL 08-24-96 11:11a AWFXEX32.EXE 08-24-96 11:11a AWKRNL32.DLL 08-24-96 11:11a AWRESX32.DLL 6500/6550 Computer Technical Reference A-43...
  • Page 134 D3DRG8F 217,088 D3DRGBF 110,080 SETUP4 6,240 SETUPX 592,720 A-44 6500/6550 Computer Technical Reference 08-24-96 11:11a AWVIEW32.DLL 08-24-96 11:11a BLANK.HTM 08-24-96 11:11a CACHEVU.DLL 08-24-96 11:11a CARDDRV.EXE 08-24-96 11:11a CCAPI.DLL 08-24-96 11:11a CHIPS.DLL 08-24-96 11:11a CHIPS.DRV 08-24-96 11:11a MSACM.DRV 08-24-96 11:11a MSACM32.DLL 08-24-96 11:11a MSADP32.ACM...
  • Page 135 08-24-96 11:11a CP_28592.NLS 08-28-97 8:56a LZEXPAND.DLL 08-24-96 11:11a MAILNEWS.DLL 08-24-96 11:11a MAILNEWS.TXT 08-24-96 11:11a MAIN.CPL 08-24-96 11:11a MAINCP16.DLL 08-24-96 11:11a MAPI32.DLL 08-24-96 11:11a MARQUEE.OCX 08-24-96 11:11a MCIAVI.DRV 08-24-96 11:11a MCICDA.DRV 08-24-96 11:11a MCIOLE.DLL 08-24-96 11:11a MCIPIONR.DRV 6500/6550 Computer Technical Reference A-45...
  • Page 136 MSNEXCH 17,408 MSNP32 67,584 MSNSSPC 75,792 MSPCIC 36,480 A-46 6500/6550 Computer Technical Reference 08-24-96 11:11a MCIQTZ.DRV 08-24-96 11:11a MCIQTZ32.DLL 08-24-96 11:11a MCISEQ.DRV 08-24-96 11:11a MCIVISCA.DRV 08-24-96 11:11a MCIWAVE.DRV 08-24-96 11:11a PIFMGR.DLL 08-24-96 11:11a PKPD.DLL 08-24-96 11:11a PKPD32.DLL 08-24-96 11:11a PLUGIN.OCX 08-24-96 11:11a PMSPL.DLL...
  • Page 137 08-24-96 11:11a MF3216.DLL 08-24-96 11:11a MFC30.DLL 08-24-96 11:11a MFC40.DLL 08-24-96 11:11a MFCANS32.DLL 08-24-96 11:11a MFCD30.DLL 08-24-96 11:11a MFCN30.DLL 08-24-96 11:11a MFCO30.DLL 08-24-96 11:11a MFCO40.DLL 08-24-96 11:11a MFCUIA32.DLL 08-24-96 11:11a MFCUIW32.DLL 08-24-96 11:11a MIDIMAP.CFG 08-24-96 11:11a MIDIMAP.DRV 6500/6550 Computer Technical Reference A-47...
  • Page 138 REGSVR32 EXE 23,552 REGWIZ 176,640 RICHED20 DLL 385,536 RICHED32 DLL 173,536 A-48 6500/6550 Computer Technical Reference 08-24-96 11:11a MKCOMPAT.EXE 08-24-96 11:11a MMCI.DLL 08-24-96 11:11a MMDEVLDR.VXD 08-24-96 11:11a STDOLE2.TLB 08-24-96 11:11a STDOLE32.TLB 08-24-96 11:11a STEM0409.DLL 08-24-96 11:11a STORAGE.DLL 08-24-96 11:11a SUPERVGA.DRV 08-24-96 11:11a SVCPROP.DLL...
  • Page 139 08-24-96 11:11a MNEBUG21.ICM 08-24-96 11:11a MNP22G15.ICM 08-24-96 11:11a MNP22G18.ICM 08-24-96 11:11a MNP22G21.ICM 545,038 bytes 08-24-96 11:11a AIC78XX.MPD 08-24-96 11:11a AMSINT.MPD 08-24-96 11:11a APIX.VXD 08-24-96 11:11a ATAPCHNG.VXD 08-24-96 11:11a BIGMEM.DRV 08-24-96 11:11a CDFS.VXD 08-24-96 11:11a CDTSD.VXD 6500/6550 Computer Technical Reference A-49...
  • Page 140 <DIR> CACHE2 <DIR> CACHE3 <DIR> CACHE4 <DIR> 0 file(s) A-50 6500/6550 Computer Technical Reference 08-24-96 11:11a CDVSD.VXD 08-24-96 11:11a DISKTSD.VXD 08-24-96 11:11a DISKVSD.VXD 08-24-96 11:11a ESDI_506.PDR 08-24-96 11:11a HSFLOP.PDR 08-24-96 11:11a NCRC710.MPD 08-24-96 11:11a NCRC810.MPD 08-24-96 11:11a NECATAPI.VXD 08-24-96 11:11a RMM.PDR 08-24-96 11:11a SCSI1HLP.VXD...
  • Page 141 08-28-97 11:52a MM2048.DAT 08-28-97 11:52a MM256.DAT 16,384 bytes 08-28-97 11:52a MM2048.DAT 08-28-97 11:52a MM256.DAT 16,384 bytes 08-28-97 11:52a MM2048.DAT 08-28-97 11:52a MM256.DAT 16,384 bytes 08-24-96 11:11a GOTODLG.FRM 08-24-96 11:11a IMGSAMP.FRM 08-24-96 11:11a IMGSAMPL.VBP 46,476 bytes 6500/6550 Computer Technical Reference A-51...

  • Page 142: Hidden Files

    CCEI 13,312 CCPSH 13,824 ENGCT 68,096 GUIDE 121,344 MOSCOMP 149,504 MOSCP 69,632 A-52 6500/6550 Computer Technical Reference 08-24-96 11:11a IO.SYS 09-08-97 1:45p MSDOS.SYS 08-24-96 11:11a DRVSPACE.BIN 08-28-97 9:50a BOOTLOG.PRV 08-28-97 2:20p BOOTLOG.TXT 08-28-97 8:55a DETLOG.OLD 08-28-97 9:41a DETLOG.TXT 08-24-96 11:11a logo.sys 08-28-97 8:49a MSDOS.---...
  • Page 143 08-24-96 11:11a 8514SYS.FON 08-24-96 11:11a COURE.FON 08-24-96 11:11a COURF.FON 08-24-96 11:11a SERIFF.FON 08-24-96 11:11a SMALLE.FON 08-24-96 11:11a SMALLF.FON 08-24-96 11:11a SSERIFE.FON 08-24-96 11:11a SSERIFF.FON 08-24-96 11:11a SYMBOLE.FON 08-24-96 11:11a SYMBOLF.FON 08-24-96 11:11a VGAFIX.FON 08-24-96 11:11a VGAOEM.FON 6500/6550 Computer Technical Reference A-53...
  • Page 144 DESKTOP 1 file(s) Total files listed: 75 file(s) 4,950,072 bytes 0 dir(s) 2,147,450,880 bytes free A-54 6500/6550 Computer Technical Reference 08-24-96 11:11a VGASYS.FON 08-24-96 11:11a DOSAPP.FON 08-24-96 11:11a MARLETT.TTF 08-24-96 11:11a MODERN.FON 08-24-96 11:11a SERIFE.FON 650,724 bytes 08-28-97 9:19a windows.GID...

  • Page 145: Visible Files

    4:43p OPTI931 10-21-97 4:43p Program Files 10-21-97 4:43p T5 10-21-97 4:43p WINDOWS 03-02-98 4:15p CONFIG.SYS 03-02-98 4:13p AUTOEXEC.BAT 11-10-97 9:36a DBLSPACE.BIN 11-12-97 12:04p Proxim 177,120 bytes 6500/6550 Computer Technical Reference Appendix B " " " " " " " " "...
  • Page 146 <DIR> PLUS! <DIR> INTERN~2 <DIR> 1 file(s) Directory of C:\Program Files\Accessories <DIR> <DIR> MSPAINT 311,808 1 file(s) 6500/6550 Computer Technical Reference 11-10-97 9:50a . 11-10-97 9:50a .. 07-25-97 2:26p RM93XDRV.DAT 01-21-97 4:35p SETUP.INF 08-11-97 10:35a SND931P.DRV 08-15-97 4:53p SND931P.INF 08-14-97 1:52p SND931P.VXD...
  • Page 147 11-12-97 9:05a . 11-12-97 9:05a .. 11-12-97 9:05a Inbox.idx 11-12-97 9:05a Inbox.mbx 11-12-97 9:05a Outbox.idx 11-12-97 9:05a Outbox.mbx 11-12-97 9:05a Sent Items.idx 11-12-97 9:05a Sent Items.mbx 11-12-97 9:05a Deleted Items.idx 11-12-97 9:05a Deleted Items.mbx 656 bytes 6500/6550 Computer Technical Reference...
  • Page 148 2,090 ST4UNST 2,595 3 file(s) Directory of C:\Program Files\Windows Messaging <DIR> <DIR> MLSET32 41,616 MLSHEXT 26,496 2 file(s) 6500/6550 Computer Technical Reference 11-10-97 9:51a . 11-10-97 9:51a .. 11-10-97 9:54a SYSTEM 08-24-96 11:11a CMPAGENT.EXE 239,600 bytes 11-10-97 9:54a . 11-10-97 9:54a ..
  • Page 149 08-24-96 11:11a DBLBUFF.SYS 08-28-97 9:10a MSOFFICE.INI 11-10-97 9:32a MULTIMED.GRP 08-24-96 11:11a NDDEAPI.DLL 08-24-96 11:11a NDDENB.DLL 08-24-96 11:11a NDISHLP.SYS 08-24-96 11:11a NET.EXE 08-24-96 11:11a NET.MSG 08-24-96 11:11a NETDDE.EXE 08-24-96 11:11a NETDET.INI 08-24-96 11:11a NETH.MSG 08-24-96 11:11a NOTEPAD.EXE 6500/6550 Computer Technical Reference...
  • Page 150 TWAIN 87,328 TWAIN_32 DLL 77,312 TWUNK_16 EXE 48,560 REGEDIT 105,984 RM93XDRV DAT 1,368 6500/6550 Computer Technical Reference 11-10-97 1:48p WINFILE.INI 08-24-96 11:11a HIMEM.SYS 08-24-96 11:11a IFSHLP.SYS 08-24-96 11:11a Internet Mail. 08-24-96 11:11a Internet News. 11-10-97 9:20a IOS.INI 08-24-96 11:11a JVIEW.EXE 08-24-96 11:11a LOGOS.SYS...
  • Page 151 10-21-97 4:43p CONFIG 10-21-97 4:43p Cookies 10-21-97 4:43p CURSORS 10-21-97 4:43p DESKTOP 10-21-97 4:43p FONTS 10-21-97 4:43p HELP 10-21-97 4:44p History 10-21-97 4:44p INF 10-21-97 4:44p JAVA 10-21-97 4:44p MEDIA 10-21-97 4:44p PIF 10-21-97 4:44p Recent 6500/6550 Computer Technical Reference...
  • Page 152 24,099 HOSTS LMHOSTS 3,691 NETWORKS PROTOCOL SERVICES 6,007 PROTMAN 14,952 TEST001 118 file(s) 6,136,627 bytes 6500/6550 Computer Technical Reference 10-21-97 4:44p SendTo 10-21-97 4:44p ShellNew 10-21-97 4:44p Start Menu 10-21-97 4:44p SYSTEM 10-21-97 4:45p TEMP 10-21-97 4:45p Temporary Internet Files...
  • Page 153 08-24-96 11:11a LABEL.EXE 08-24-96 11:11a MEM.EXE 08-24-96 11:11a MODE.COM 08-24-96 11:11a MORE.COM 08-24-96 11:11a SCANDISK.EXE 08-24-96 11:11a SCANDISK.INI 08-24-96 11:11a SORT.EXE 08-24-96 11:11a DRVSPACE.SYS 802,845 bytes 11-10-97 9:55a . 11-10-97 9:55a .. 08-24-96 11:11a GENERAL.IDF 654 bytes 6500/6550 Computer Technical Reference...
  • Page 154 COURBD 84,360 COURBI 85,152 COURI 82,092 TIMESBI 77,080 TIMESI 79,672 DESKTOP TIMES 85,240 B-10 6500/6550 Computer Technical Reference 11-10-97 9:55a . 11-10-97 9:55a .. 11-13-97 4:27p MM2048.DAT 11-13-97 4:27p MM256.DAT 16,384 bytes 11-10-97 9:55a . 11-10-97 9:55a .. 08-24-96 11:11a APPSTART.ANI 08-24-96 11:11a HOURGLAS.ANI...
  • Page 155 08-24-96 11:11a PROGMAN.CNT 08-24-96 11:11a PSSPOS.CNT 08-24-96 11:11a REGEDIT.CNT 08-24-96 11:11a SNDVOL32.CNT 08-24-96 11:11a SOUNDREC.CNT 08-24-96 11:11a UPDATE.CNT 08-24-96 11:11a WAB.CNT 08-24-96 11:11a WANGIMG.CNT 08-24-96 11:11a WANGOCX.CNT 08-24-96 11:11a WANGOCXD.CNT 08-24-96 11:11a WANGSHL.CNT 08-24-96 11:11a WINDOWS.CNT 6500/6550 Computer Technical Reference B-11...
  • Page 156 NETOLI 21,733 NETOSI 3,811 NETPCI 11,080 NETPPP 2,898 NETPROT 12,890 B-12 6500/6550 Computer Technical Reference 08-24-96 11:11a WINFILE.CNT 08-24-96 11:11a WINHLP32.CNT 08-24-96 11:11a WINPOPUP.CNT 08-24-96 11:11a WORDPAD.CNT 08-24-96 11:11a DRVSPACE.CNT 08-24-96 11:11a MSPAINT.HLP 109,257 bytes 10-21-97 4:44p . 10-21-97 4:44p ..
  • Page 157 08-24-96 11:11a MDMDYNA.INF 08-24-96 11:11a MDMELINK.INF 08-24-96 11:11a MDMELPRO.INF 08-24-96 11:11a MDMELSA.INF 08-24-96 11:11a MDMERIC.INF 08-24-96 11:11a MDMETECH.INF 08-24-96 11:11a MDMEXP.INF 08-24-96 11:11a MDMEYP.INF 08-24-96 11:11a MDMGAL.INF 08-24-96 11:11a MDMGATEW.INF 08-24-96 11:11a MDMGEN.INF 08-24-96 11:11a MDMARCHT.INF 6500/6550 Computer Technical Reference B-13...
  • Page 158 NDSCLI 11,587 21,759 NET3COM 31,895 NETAMD 19,827 NETAUXT B-14 6500/6550 Computer Technical Reference 08-24-96 11:11a MDMARN.INF 08-24-96 11:11a MDMATI.INF 08-24-96 11:11a MDMATT.INF 08-24-96 11:11a MDMAUS.INF 08-24-96 11:11a MDMBLATZ.INF 08-24-96 11:11a MDMBOCA.INF 08-24-96 11:11a MDMBSB.INF 08-24-96 11:11a MDMBSCH.INF 08-24-96 11:11a MDMCMCM.INF 08-24-96 11:11a MDMCODEX.INF...
  • Page 159 08-24-96 11:11a MDMPBIT.INF 08-24-96 11:11a MDMPHILS.INF 08-24-96 11:11a MDMPNB.INF 08-24-96 11:11a MDMPP.INF 08-24-96 11:11a MDMPRODM.INF 08-24-96 11:11a MDMRACAL.INF 08-24-96 11:11a MDMRFI.INF 08-24-96 11:11a MDMROCK.INF 08-24-96 11:11a MDMROCK2.INF 08-24-96 11:11a MDMROCK3.INF 08-24-96 11:11a MDMROCK4.INF 08-24-96 11:11a MDMSIER.INF 6500/6550 Computer Technical Reference B-15...
  • Page 160 MDMUSRG 30,396 MDMUSRSP INF 44,991 MDMUSRWP INF 50,051 MDMVAYRS INF 24,069 B-16 6500/6550 Computer Technical Reference 08-24-96 11:11a MDMSMART.INF 08-24-96 11:11a MDMSNITN.INF 08-24-96 11:11a MDMSONIX.INF 08-24-96 11:11a MDMSPEC.INF 08-24-96 11:11a MDMSRT.INF 08-24-96 11:11a MDMSUPRA.INF 08-24-96 11:11a MDMTDK.INF 08-24-96 11:11a MDMTELBT.INF 08-24-96 11:11a MDMTELIN.INF...
  • Page 161 08-24-96 11:11a MDMACEEX.INF 08-24-96 11:11a MOS.INF 08-24-96 11:11a MOTOWN.INF 08-24-96 11:11a MSCDROM.INF 08-24-96 11:11a MSDET.INF 08-24-96 11:11a MSDISP.INF 08-24-96 11:11a MSDOS.INF 08-24-96 11:11a MSDX.INF 08-24-96 11:11a MSFDC.INF 08-24-96 11:11a MSHDC.INF 08-24-96 11:11a MSINFO.INF 08-24-96 11:11a MSMAIL.INF 6500/6550 Computer Technical Reference B-17...
  • Page 162 TRUSTLIB <DIR> 0 file(s) Directory of C:\WINDOWS\JAVA\CLASSES <DIR> <DIR> 0 file(s) B-18 6500/6550 Computer Technical Reference 08-24-96 11:11a MSMOUSE.INF 08-24-96 11:11a MSNETMTG.INF 08-24-96 11:11a MSPORTS.INF 08-24-96 11:11a MSPRINT.INF 08-24-96 11:11a MDMGVC.INF 08-24-96 11:11a MDMGVCD.INF 08-24-96 11:11a MDMHAEU.INF 08-24-96 11:11a MDMHAEUS.INF 08-24-96 11:11a MDMHANDY.INF...
  • Page 163 11-13-97 9:50a Autoexec.dos.lnk 11-13-97 9:50a Config.dos.lnk 11-13-97 9:52a Autoexec.pss.lnk 11-13-97 9:52a Config.emm.lnk 11-13-97 9:53a Config.pss.lnk 11-13-97 10:16a 64leftc.jpg.lnk 11-13-97 10:16a sl81154.gif.lnk 11-13-97 10:17a Norand72.bmp.lnk 11-13-97 10:18a 6622_s.jpg.lnk 11-13-97 4:34p System.da0.lnk 11-13-97 4:34p System.dat.lnk 3,061 bytes 6500/6550 Computer Technical Reference B-19...
  • Page 164 SECURITY LNK MS-DOS~1 PIF WINDOW~1 LNK ACCESS~1 <DIR> RANGEL~1 <DIR> STARTUP <DIR> TOUCH <DIR> 6 file(s) B-20 6500/6550 Computer Technical Reference 10-21-97 4:44p . 10-21-97 4:44p .. 08-28-97 9:19a Removable Disk (A).lnk 125 bytes 11-10-97 9:55a . 11-10-97 9:55a ..
  • Page 165 2:18p Media Player.lnk 08-28-97 9:50a Sound Recorder.lnk 08-28-97 9:49a Volume Control.lnk 823 bytes 10-21-97 4:44p . 10-21-97 4:44p .. 11-13-97 4:44p Disk Defragmenter.lnk 08-28-97 9:19a ScanDisk.lnk 03-04-98 11:54a DriveSpace.lnk 11-10-97 9:32a Compression Agent.lnk 1,157 bytes 6500/6550 Computer Technical Reference B-21...
  • Page 166 31,744 RSABASE 71,440 RSACI 3,186 RUNONCE 11,264 SAGE 69,120 SAPNSP 9,216 B-22 6500/6550 Computer Technical Reference 10-21-97 4:44p . 10-21-97 4:44p .. 11-12-97 4:22p RangeLAN2 Site Survey & Configuration Tool.lnk 11-12-97 12:11p RangeLAN2 Status Monitor.lnk 732 bytes 11-10-97 10:10a .
  • Page 167 08-24-96 11:11a INETCFG.DLL 08-24-96 11:11a INETCPL.CPL 08-24-96 11:11a INFRARED.DLL 08-24-96 11:11a INLOADER.DLL 08-24-96 11:11a INTERNAT.EXE 08-24-96 11:11a INTL.CPL 08-24-96 11:11a INTRINSC.OCX 08-24-96 11:11a GAPIA32.DLL 08-24-96 11:11a GDI.EXE 08-24-96 11:11a GDI32.DLL 08-24-96 11:11a GLU32.DLL 08-24-96 11:11a HLINK.DLL 6500/6550 Computer Technical Reference B-23...
  • Page 168 OLE2DISP DLL 169,440 OLE2NLS 153,040 OLE32 558,704 OLEAUT32 DLL 473,872 B-24 6500/6550 Computer Technical Reference 08-24-96 11:11a HLINKPRX.DLL 08-24-96 11:11a HTMLEDIT.DLL 08-24-96 11:11a ICCVID.DLL 08-24-96 11:11a ICHRCNV.DLL 08-24-96 11:11a ICM32.DLL 08-24-96 11:11a ICMUI.DLL 08-24-96 11:11a ICWDIAL.DLL 08-24-96 11:11a ICWPHBK.DLL 08-24-96 11:11a IEDKCS32.DLL 08-24-96 11:11a IMAADP32.ACM...
  • Page 169 08-24-96 11:11a PCNTN3.VXD 08-02-96 1:11p PEDCAB1.INF 08-24-96 11:11a NSCL.VXD 08-24-96 11:11a NTDLL.DLL 08-24-96 11:11a NW16.DLL 08-24-96 11:11a NWAB32.DLL 08-24-96 11:11a NWLINK.VXD 08-24-96 11:11a NWLSCON.EXE 08-24-96 11:11a NWLSPROC.EXE 08-28-97 8:56a NWNDS.DLL 08-24-96 11:11a NWNET32.DLL 08-24-96 11:11a NWNP32.DLL 6500/6550 Computer Technical Reference B-25...
  • Page 170 ASIFONT ASIPORT 11,597 IE32DSW INTRO 7,080 DCIMAN 6,928 B-26 6500/6550 Computer Technical Reference 08-24-96 11:11a NWPP32.DLL 08-24-96 11:11a NWREDIR.VXD 08-24-96 11:11a NWSP.VXD 08-24-96 11:11a ODBCJT32.DLL 08-24-96 11:11a OIADM400.DLL 08-24-96 11:11a OICOM400.DLL 08-24-96 11:11a JSCRIPT.DLL 08-24-96 11:11a KBDUS.KBD 08-24-96 11:11a KERNEL32.DLL 08-24-96 11:11a KEYBOARD.DRV...
  • Page 171 08-24-96 11:11a MSGSRV32.EXE 08-24-96 11:11a MSHTML.DLL 08-24-96 11:11a MSIPRT.DLL 08-24-96 11:11a MSJAVA.DLL 08-24-96 11:11a MSJT3032.DLL 08-24-96 11:11a MSMIXMGR.DLL 08-24-96 11:11a MSMOUSE.VXD 06-24-96 5:32p MSNAUDIO.ACM 08-24-96 11:11a MSNET32.DLL 08-24-96 11:11a CP_28593.NLS 08-24-96 11:11a CP_28594.NLS 08-24-96 11:11a CP_28597.NLS 6500/6550 Computer Technical Reference B-27...
  • Page 172 CONAGENT EXE 14,596 CONFCP 113,664 CONFLNK 51,200 CONTROL 2,497 CP_1252 9,194 B-28 6500/6550 Computer Technical Reference 08-24-96 11:11a CP_437.NLS 08-24-96 11:11a CP_850.NLS 08-24-96 11:11a CRTDLL.DLL 08-24-96 11:11a CSMAPPER.SYS 08-24-96 11:11a CTL3DV2.DLL 07-16-96 6:36p M5DRVR32.RSR 07-16-96 6:46p M5IF32.DLL 07-16-96 6:08p SWADCMPR.X32 07-22-96 6:38p SWASTRM.X32...
  • Page 173 08-02-96 12:43p ISCTRLS.OCX 08-24-96 11:11a ISIGN32.DLL 08-24-96 11:11a ISO88591.TRN 08-24-96 11:11a JAVAPRXY.DLL 08-24-96 11:11a JAVART.DLL 08-24-96 11:11a JAVASUP.VXD 08-24-96 11:11a JDBGMGR.EXE 08-24-96 11:11a JGDWMIE.DLL 08-24-96 11:11a JIT.DLL 08-24-96 11:11a JPEG1X32.DLL 08-24-96 11:11a JPEG2X32.DLL 08-24-96 11:11a MSNP32.DLL 6500/6550 Computer Technical Reference B-29...
  • Page 174 15,872 MFCO30 133,392 MFCO40 384,512 MFCUIA32 DLL 5,632 MFCUIW32 DLL 4,096 B-30 6500/6550 Computer Technical Reference 08-24-96 11:11a MSNSSPC.DLL 08-24-96 11:11a MSPCIC.DLL 08-24-96 11:11a MSPP32.DLL 08-28-97 8:56a MSPRINT.DLL 08-24-96 11:11a MSPRINT2.DLL 08-24-96 11:11a MSPWL32.DLL 08-24-96 11:11a MSRATING.DLL 08-24-96 11:11a MSRLE32.DLL 08-24-96 11:11a MSSHRUI.DLL...
  • Page 175 08-24-96 11:11a TSD32.DLL 08-24-96 11:11a TSSOFT32.ACM 08-24-96 11:11a TYPELIB.DLL 08-24-96 11:11a ULCLIENT.DLL 08-24-96 11:11a MSVIDC32.DLL 08-24-96 11:11a MSVIDEO.DLL 08-28-97 8:56a MSWEBNDI.DLL 08-24-96 11:11a NAC.DLL 08-24-96 11:11a NDIS.VXD 08-24-96 11:11a NDIS2SUP.VXD 08-24-96 11:11a NETAPI.DLL 08-24-96 11:11a NETAPI32.DLL 6500/6550 Computer Technical Reference B-31...
  • Page 176 RPCLTS6 9,696 RPCNS4 30,832 RPCRT4 202,240 W95INF32 DLL 4,608 WAB32 205,072 B-32 6500/6550 Computer Technical Reference 08-24-96 11:11a NETBEUI.VXD 08-24-96 11:11a NETBIOS.DLL 08-24-96 11:11a NETCPL.CPL 08-28-97 8:56a NETDI.DLL 08-28-97 8:56a NETOS.DLL 08-24-96 11:11a NETWARE.DRV 08-24-96 11:11a NORWEG.TRN 08-24-96 11:11a NPRA32.DLL 08-24-96 11:11a ULSVC.EXE...
  • Page 177 08-24-96 11:11a DSKAPI16.DLL 08-24-96 11:11a DSKAPI32.DLL 05-22-96 10:01p STKIT432.DLL 08-24-96 11:11a VDHCP.386 08-24-96 11:11a VIP.386 08-24-96 11:11a VNBT.386 08-24-96 11:11a VTCP.386 08-24-96 11:11a ICMP.DLL 08-24-96 11:11a RPCLTC3.DLL 08-24-96 11:11a RPCLTS3.DLL 08-24-96 11:11a AFVXD.VXD 08-24-96 11:11a WSHTCP.VXD 6500/6550 Computer Technical Reference B-33...
  • Page 178 TORISAN3 VXD 11,063 VOLTRACK VXD 18,487 DRVSPACX VXD 57,466 22 file(s) B-34 6500/6550 Computer Technical Reference 11-10-97 10:12a . 11-10-97 10:12a .. 08-24-96 11:11a HPSJTW.ICM 08-24-96 11:11a MNB22G15.ICM 08-24-96 11:11a MNB22G18.ICM 08-24-96 11:11a MNB22G21.ICM 08-24-96 11:11a MNEBUG15.ICM 08-24-96 11:11a MNEBUG18.ICM 08-24-96 11:11a MNEBUG21.ICM...
  • Page 179 11-10-97 10:12a . 11-10-97 10:12a .. 08-24-96 11:11a IFSMGR.VXD 08-24-96 11:11a IOS.VXD 08-24-96 11:11a QEMMFIX.VXD 08-24-96 11:11a MRCI2.VXD 318,022 bytes 11-10-97 9:55a . 11-10-97 9:55a .. 0 bytes 10-21-97 4:45p . 10-21-97 4:45p .. 0 bytes 6500/6550 Computer Technical Reference B-35...

  • Page 180: Hidden Files

    SYSTEM 838,408 TTFCACHE 1,677 SHELLI~1 282,600 SPOOL <DIR> SYSBCKUP <DIR> 6 file(s) 2,092,469 bytes B-36 6500/6550 Computer Technical Reference 08-24-96 11:11a IO.SYS 12-18-97 2:06p MSDOS.SYS 08-24-96 11:11a DRVSPACE.BIN 08-28-97 9:50a BOOTLOG.PRV 08-28-97 2:20p BOOTLOG.TXT 08-28-97 8:55a DETLOG.OLD 08-28-97 9:41a DETLOG.TXT 08-24-96 11:11a logo.sys...
  • Page 181 08-24-96 11:11a SERIFE.FON 08-24-96 11:11a SERIFF.FON 08-24-96 11:11a SMALLE.FON 08-24-96 11:11a SMALLF.FON 08-24-96 11:11a SSERIFE.FON 08-24-96 11:11a SSERIFF.FON 08-24-96 11:11a SYMBOLE.FON 08-24-96 11:11a SYMBOLF.FON 650,724 bytes 08-28-97 9:19a windows.GID 225,350 bytes 08-28-97 9:18a desktop.ini 65 bytes 6500/6550 Computer Technical Reference B-37...
  • Page 182 Small Load — 65HD9540 APPENDIX B B-38 6500/6550 Computer Technical Reference...

  • Page 183: Small Load - 65Hd9520

    1:05p DRVCOPY.INF 11-07-91 7:12a HIMEM.SYS 08-28-97 8:55a NETLOG.TXT 09-19-97 11:13a Program Files 09-19-97 11:13a Proxim 09-19-97 11:13a WINDOWS 09-22-97 10:14a CONFIG.SYS 09-22-97 9:36a AUTOEXEC.BAT 111,637 bytes 6500/6550 Computer Technical Reference Appendix C " " " " " " " " "...
  • Page 184 4 file(s) Directory of C:\Program Files\Security <DIR> <DIR> SECURITY EXE 17,408 ST4UNST 2,090 2 file(s) 6500/6550 Computer Technical Reference 09-19-97 11:13a . 09-19-97 11:13a .. 09-19-97 11:13a Plus! 09-19-97 11:13a rl2 09-19-97 11:13a Security 0 bytes 09-19-97 2:48p . 09-19-97 2:48p ..
  • Page 185 08-24-96 11:11a IFSHLP.SYS 08-28-97 12:23p WAVEMIX.INI 08-24-96 11:11a NDDEAPI.DLL 08-24-96 11:11a NDDENB.DLL 03-04-98 3:23p IOS.LOG 08-24-96 11:11a RAMDRIVE.SYS 08-24-96 11:11a NET.MSG 08-24-96 11:11a DRVSPACE.EXE 08-24-96 11:11a DEFRAG.EXE 08-24-96 11:11a NETH.MSG 08-24-96 11:11a CONTROL.EXE 08-24-96 11:11a EMM386.EXE 6500/6550 Computer Technical Reference...
  • Page 186 SYSTEM <DIR> TEMP <DIR> NETHOOD <DIR> TEST000 TEST001 52 file(s) 2,632,473 bytes 6500/6550 Computer Technical Reference 08-24-96 11:11a EXPLORER.EXE 08-24-96 11:11a NET.EXE 08-24-96 11:11a NETDDE.EXE 08-24-96 11:11a NOTEPAD.EXE 08-24-96 11:11a REGEDIT.EXE 08-24-96 11:11a RUNDLL.EXE 08-24-96 11:11a RUNDLL32.EXE 08-28-97 9:18a SYSTEM.CB 08-24-96 11:11a SCANDSKW.EXE...
  • Page 187 08-24-96 11:11a HOURGLAS.ANI 20,418 bytes 09-19-97 2:48p . 09-19-97 2:48p .. 0 bytes 09-19-97 2:48p . 09-19-97 2:48p .. 0 bytes 09-19-97 2:48p . 09-19-97 2:48p .. 08-24-96 11:11a LICENSE.TXT 08-24-96 11:11a DRVSPACE.HLP 08-24-96 11:11a DRVSPACE.CNT 100,078 bytes 6500/6550 Computer Technical Reference...
  • Page 188 Directory of C:\WINDOWS\Recent <DIR> <DIR> 0 file(s) Directory of C:\WINDOWS\spool <DIR> <DIR> PRINTERS <DIR> 0 file(s) 6500/6550 Computer Technical Reference 09-19-97 2:48p . 09-19-97 2:48p .. 08-24-96 11:11a ENABLE.INF 08-24-96 11:11a LAYOUT.INF 08-24-96 11:11a SETUPC.INF 08-24-96 11:11a LAYOUT1.INF 08-24-96 11:11a LOCALE.INF 08-24-96 11:11a SETUP.INF...
  • Page 189 & Configuration Tool.lnk 09-22-97 10:13a RangeLAN2 Status Monitor.lnk 732 bytes 09-19-97 2:49p . 09-19-97 2:49p .. 0 bytes 09-19-97 11:13a . 09-19-97 11:13a .. 09-19-97 3:49p Touchscreen Control.lnk 08-28-97 12:12p Left_right Mouse Button Toggle.lnk 550 bytes 6500/6550 Computer Technical Reference...
  • Page 190 DESK 8,704 CCAPI 30,208 CHIPS 9,216 CHOOSUSR DLL 22,016 COMCAT 21,264 6500/6550 Computer Technical Reference 09-19-97 11:13a . 09-19-97 11:13a .. 08-24-96 11:11a CHIPS.DRV 08-24-96 11:11a COMM.DRV 08-24-96 11:11a FRAMEBUF.DRV 03-05-97 1:34p RL2WIN95.SYS 08-24-96 11:11a ACCESS.CPL 08-24-96 11:11a KEYBOARD.DRV 08-24-96 11:11a MMSOUND.DRV 08-24-96 11:11a APPWIZ.CPL...
  • Page 191 08-24-96 11:11a DPSERIAL.DLL 08-24-96 11:11a LOGGER.VXD 08-24-96 11:11a LPT.VXD 08-24-96 11:11a DPWSOCK.DLL 08-24-96 11:11a DSOUND.DLL 08-24-96 11:11a KBDUS.KBD 08-24-96 11:11a ENABLE3.DLL 08-24-96 11:11a ENUMFILE.DLL 08-24-96 11:11a LPTENUM.VXD 08-24-96 11:11a FONTEXT.DLL 08-24-96 11:11a FRAMEBUF.DLL 08-24-96 11:11a MMDEVLDR.VXD 6500/6550 Computer Technical Reference...
  • Page 192 MSIPRT 10,752 MSMIXMGR DLL 1,264 PARALINK VXD 23,105 MSNET32 60,416 C-10 6500/6550 Computer Technical Reference 08-24-96 11:11a LOCALE.NLS 08-24-96 11:11a MSMOUSE.VXD 08-24-96 11:11a MSSP.VXD 08-24-96 11:11a NDIS.VXD 08-24-96 11:11a GAPIA32.DLL 08-24-96 11:11a GDI32.DLL 08-24-96 11:11a MAIN.CPL 08-24-96 11:11a NDIS2SUP.VXD 08-24-96 11:11a NETBEUI.VXD 08-24-96 11:11a MMSYS.CPL...
  • Page 193 08-24-96 11:11a NPRA32.DLL 08-24-96 11:11a NTDLL.DLL 08-24-96 11:11a NW16.DLL 08-24-96 11:11a NWAB32.DLL 08-28-97 8:56a NWNDS.DLL 08-24-96 11:11a NWNET32.DLL 08-24-96 11:11a NWNP32.DLL 08-24-96 11:11a NWPP32.DLL 08-24-96 11:11a OLE2.DLL 08-24-96 11:11a OLE2CONV.DLL 08-24-96 11:11a OLE2DISP.DLL 08-24-96 11:11a OLE2NLS.DLL 6500/6550 Computer Technical Reference C-11...
  • Page 194 10,736 T5DRIVER VXD 11,495 RPCLTS6 9,696 312,208 RPCNS4 30,832 RPCRT4 202,240 C-12 6500/6550 Computer Technical Reference 08-24-96 11:11a OLE32.DLL 08-24-96 11:11a OLEAUT32.DLL 08-24-96 11:11a OLECLI.DLL 08-24-96 11:11a VFD.VXD 08-24-96 11:11a PASSWORD.CPL 08-28-97 9:13a VMM32.VXD 08-24-96 11:11a VNETBIOS.VXD 08-02-96 1:11p PEDCAB1.INF 08-24-96 11:11a OLECLI32.DLL...
  • Page 195 08-24-96 11:11a TAPI.DLL 08-24-96 11:11a TOOLHELP.DLL 08-24-96 11:11a TREENVCL.DLL 08-24-96 11:11a TSD32.DLL 08-24-96 11:11a UNICODE.BIN 08-24-96 11:11a UNICODE.NLS 08-24-96 11:11a TYPELIB.DLL 08-24-96 11:11a ULCLIENT.DLL 08-24-96 11:11a UMDM16.DLL 08-24-96 11:11a UMDM32.DLL 08-24-96 11:11a UMDMXFRM.DLL 08-24-96 11:11a URL.DLL 6500/6550 Computer Technical Reference C-13...
  • Page 196 6,960 COLOR <DIR> IOSUBSYS <DIR> VMM32 <DIR> 276 file(s) 16,450,603 bytes C-14 6500/6550 Computer Technical Reference 08-24-96 11:11a REDIR32.EXE 08-24-96 11:11a VGAFULL.3GR 08-24-96 11:11a USER32.DLL 08-24-96 11:11a VDMDBG.DLL 08-24-96 11:11a RPCSS.EXE 08-28-97 9:05a VER.DLL 08-24-96 11:11a RUNONCE.EXE 08-24-96 11:11a SPOOL32.EXE 08-24-96 11:11a VTDI.386...
  • Page 197 08-24-96 11:11a DISKVSD.VXD 08-24-96 11:11a ESDI_506.PDR 08-24-96 11:11a HSFLOP.PDR 08-24-96 11:11a NCRC710.MPD 08-24-96 11:11a NCRC810.MPD 08-24-96 11:11a NECATAPI.VXD 08-24-96 11:11a RMM.PDR 08-24-96 11:11a DRVSPACX.VXD 08-24-96 11:11a SMARTVSD.VXD 08-24-96 11:11a TORISAN3.VXD 08-24-96 11:11a VOLTRACK.VXD 408,535 bytes 6500/6550 Computer Technical Reference C-15...
  • Page 198 <DIR> <DIR> 0 file(s) Total files listed: 414 file(s) 21,925,195 bytes 87 dir(s) 6,553,600 bytes free C-16 6500/6550 Computer Technical Reference 09-19-97 2:49p . 09-19-97 2:49p .. 08-24-96 11:11a IFSMGR.VXD 08-24-96 11:11a IOS.VXD 08-24-96 11:11a QEMMFIX.VXD 08-24-96 11:11a MRCI2.VXD 318,022 bytes 09-19-97 2:48p .

  • Page 199: Hidden Files

    3:23p SYSTEM.DAT 08-28-97 9:26a ttfCache 03-04-98 3:24p USER.DAT 09-19-97 12:11p SYSBCKUP 08-24-96 11:11a 8514FIX.FON 08-24-96 11:11a 8514OEM.FON 08-24-96 11:11a 8514SYS.FON 08-24-96 11:11a COURE.FON 08-24-96 11:11a COURF.FON 08-24-96 11:11a DOSAPP.FON 08-24-96 11:11a MARLETT.TTF 08-24-96 11:11a MODERN.FON 6500/6550 Computer Technical Reference C-17...
  • Page 200 19 file(s) Total files listed: 39 file(s) 3,558,121 bytes 2 dir(s) 6,553,600 bytes free C-18 6500/6550 Computer Technical Reference 08-24-96 11:11a SERIFE.FON 08-24-96 11:11a SERIFF.FON 08-24-96 11:11a SMALLE.FON 08-24-96 11:11a SMALLF.FON 08-24-96 11:11a SSERIFE.FON 08-24-96 11:11a SSERIFF.FON 08-24-96 11:11a SYMBOLE.FON 08-24-96 11:11a SYMBOLF.FON...
  • Page 201 " " " " " " 65DBCKST -- Korean Hangu1, 65DBCSJT -- Japanese Kanji, 65FL1000 -- common 6500 soft- ware, 1-4 65FL2000 -- common 6550 soft- ware, 1-4 65HD9520 -- 20 MB Win95 small load, 1-18 files hidden, C-17 visible, C-1 functions not available, 1-18 MSDOS.SYS, 1-17...
  • Page 202 FWP650H0 -- terminal emula- Lines by characters supported, tions, 1-7, 6-1 Goldstar Color LCD, 1-6 Memory, 1-5 Index-2 6500/6550 Computer Technical Reference Microsoft selection file and printer sharing, 5-7 TCP/IP, 5-6 Mode 40 support, DOS 6.22, 1-4 Mode 80 support, DOS 6.22, 1-4...
  • Page 203 Web site, 1-4 Wedge mode, 4-3 Wedge scanning, 4-4 Windows units boot settings, 1-9 DOS 6.22, 1-4 shutdowns -- abnormal, 1-17 Workgroup identification, 5-9 tons, 3-14 X/Y coordinates, 3-16 X5 133 MHz processor, 1-5 Zthreshold, 3-16 6500/6550 Computer Technical Reference INDEX Index-3...
  • Page 204 INDEX Index-4 6500/6550 Computer Technical Reference...

This manual is also suitable for:

6550

Table of Contents
