Intermatic RC613 Installation, Operation & Service Manual

LIST OF AVAILABLE MODELS AND COMPONENTS
Model Description
RC613 Single Channel Receiver
3-way switching module
RC613L Single Channel Receiver
with 36 in. Lead
RC613R Heavy-Duty Receiver
and Relay Assembly
RC615 Single Channel Receiver
Timer Override Module
RC939 3 Channel Transmitter
P1103ME 24 hr. Timer
Mechanism Only
TROUBLESHOOTING
Symptom Possible Cause(s)
No response to transmitter No power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Turn ON power at main panel
signal at anytime Loose connection(s) at receiver and/or load . . . . . . . . . .Check connections
Transmitter battery dead . . . . . . . . . . . . . . . . . . . . . . . . .Replace battery
Receiver and transmitter are on two different codes . . . .Change code settings (see page 3)
Faulty transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Check battery connections, replace transmitter
Faulty receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Replace Receiver Module
No response to transmitter Weak Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Replace battery
signal some of the time Appliance with brush type motor is in use . . . . . . . . . . .Relocate appliance and/or connect to another circuit
Other radio transmitter (police, etc)
is operating nearby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Change master code of transmitter (See page 3)
Receiver is at edge of range . . . . . . . . . . . . . . . . . . . . . . .Mount Receiver closer or higher
Insufficient Range Weak battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Replace battery
Antenna too close to ground . . . . . . . . . . . . . . . . . . . . . .Relocate Receiver Module
Transmitter is held too close to ground . . . . . . . . . . . . . .Hold transmitter at least 3 ft. above ground
Weak signal due to obstruction . . . . . . . . . . . . . . . . . . . .Remote/relocate Receiver Module
Nuisance operation Other radio transmitter (police, etc)
is operating nearby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Change master code of transmitter (See page 3)
Fluctuating supply voltage due to surge, etc. . . . . . . . . .If frequent - install surge suppressor
Faulty receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Replace receiver module

LIMITED ONE YEAR WARRANTY

If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace
it, at its sole option, the unit free of charge. This warranty applies only to the original purchaser and is not transferable. This warranty does not apply
to: (a) damage caused by accident, abuse, mishandling, dropping, acts of God, or any negligent use; (b) units which have been subject to unautho-
rized repair, opened, taken apart, or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the
product. Some states do not allow a limitation of damages, so the foregoing limitation may not apply to you. This warranty gives you specific legal
rights and you may have other rights that vary from state to state.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THIS WARRANTY IS IN LIEU OF ALL OTHER
EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE
OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE.
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing the product,
along with proof of purchase, postage prepaid to the authorized service center listed below. This warranty is made by: Intermatic Incorporated/After
Sales Service, 7777 Winn Rd., Spring Grove, IL 60081-9698/815-675-7000 http://www/intermatic.com Please be sure to wrap the product
securely when mailing to avoid shipping damage.
Because of our commitment to continuing research and improvements, Intermatic Incorporated reserves the right to make changes, without notice, in the specifications and material
contained herein and shall not be responsible for any damages, direct or consequential, caused by reliance on the material presented.
I I N N T T E E R R M M A A T T I I C C I I N N C C O O R R P P O O R R A A T T E E D D , ,
http://www.intermatic.com
158RC12810
Specifications
15 Amp Resistive, 10 Amp (1200 Watt) Tungsten,
1 HP Motor Load - 120 Volt
15 Amp Resistive, 10 AMp (1200 Watt) Tungsten,
1 HP - 120 Volt, Single Pole Single Throw Contacts.
30 Amp Resistive - 120/240 Volt, 12.5 Amp (1500 Watt)
Tungsten - 120 Volt, 1.5 HP - 120 Volt, 3 HP - 240 Volt
Double Pole Single Throw Contacts..
15 Amp Resistive, 10 Amp (1200 Watt) Tungsten
1 HP Motor Load - 120 Volt
Operates on 9 Volt Battery
20A. Resistive, 120-240V; 10A. Tungsten 120V;
1.5 HP-120V, 3HP-240V; 50/60 Hz; DPST
Note: Remove and discard leads between clock terminals
1 and 3 (jumper only) and 5 and relay. Connect BLUE leads from
Receiver to clock terminals 3 and 5. Connect RED lead from Receiver
to Relay coil. Connect BLACK and WHITE from Receiver to BLACK
and WHITE of Timer and to 120 volt supply. Connect 120V. load to
BLUE and WHITE, cap unused leads. For 240V. connections follow
instructions supplied with timer.
Corrective Action
SPRING GROVE, IL 60081-9698
4
RC SERIES

REMOTE CONTROLS

S S I I N N G G L L E E C C H H A A N N N N E E L L R R A A D D I I O O R R E E C C E E I I V V E E R R S S
M M o o d d e e l l : : R R C C 6 6 1 1 3 3 , , R R C C 6 6 1 1 3 3 L L S S w w i i t t c c h h i i n n g g M M o o d d u u l l e e / / M M o o d d e e l l : : R R C C 6 6 1 1 5 5 T T i i m m e e r r O O v v e e r r r r i i d d e e M M o o d d u u l l e e
For indoor and outdoor use, suitable for Pool/Spa equipment control
ELECTRICAL RATING: 15 Amp Resistive, 1200 Watt Tungsten, 1 HP Motor Load - 120 Volt.
THIS DEVICE COMPLIES WITH FCC RULES PART 15. Operation of this device is subject to the following two conditions
1. This device may not cause harmful interference. 2. This device must accept any interference that may be received,
including interference that may cause undesired operation. FCC rules prohibit adjustments to or modification of receiver and
transmitter circuitry except for replacing the remote control battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
IMPORTANT SAFETY INSTRUCTIONS
1. This Control must be installed by a qualified electrician, according to National and Local Electrical Codes.
2. USE COPPER CONDUCTORS ONLY. If applicable, install this Control not less than 5 feet (3 meters for Canadian
installations) of inside edge of pool or spa.
3. Do not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors.
4. For grounding of the installation, refer to section 250 and 680 of the National Electrical Code.
5. This Control should not operate any equipment which would cause bodily injury or property damage should it be
activated unexpectedly.
6. Always disconnect electricity at main panel before servicing this Control or the equipment(s) connected to it.
THIS CONTROL IS NOT TO BE USED AS A POWER DISCONNECT.
READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL

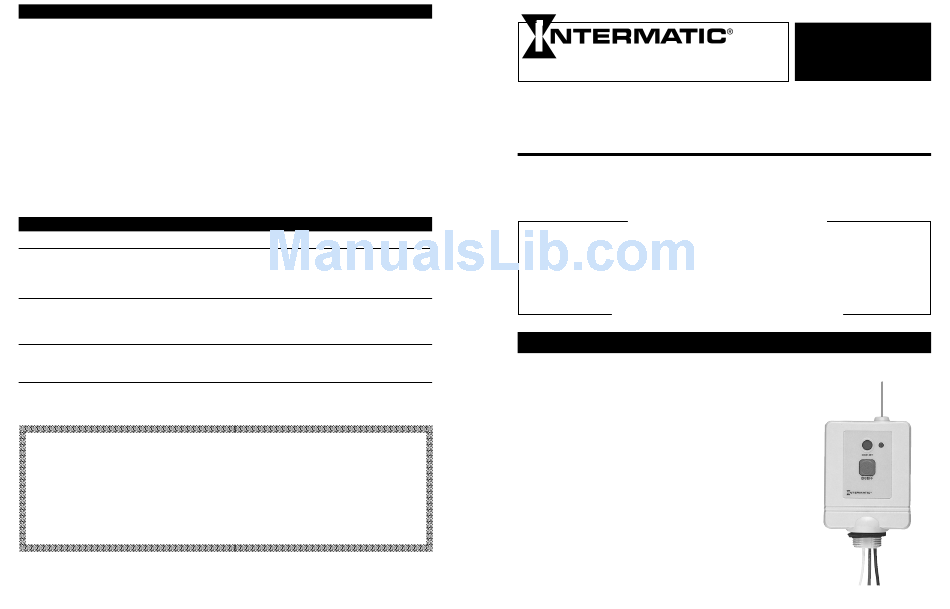

GENERAL INFORMATION

These Modular Radio Receivers are one half of a two part remote control system.
They operate as ordinary ON/OFF switches but they also respond to the signals of
a hand held transmitter - the other half of the system. The modules are designed for
indoor or outdoor use, and can handle a variety of switching applications, typical
around the house or farm. By the push of a button on the face of the transmitter, the
user is able to turn ON/OFF the connected load (lights, pump, etc.) from any remote
location*, safely and conveniently. In addition, a single transmitter can operate up to
four Receivers and is able to "teach" each Module a different code. (Transmitters are
sold separately).
Model RC613 Receiver Module comes with its own manual ON/OFF button and
it is intended to be installed at the location of the load. The connected load may be
turned ON/OFF using the hand-held transmitter or turned ON/OFF by pushing the red
button on the face of the Receiver.
Model RC613L Receiver Module is the same as RC613 except that it comes with
extra long (36 in.) leads.
Model RC615 Receiver Module is the same as the RC613L Module above, except
it has no manual ON/OFF button on its face. This Module is designed to be con-
nected to a timer and will override its pre-set program, without affecting the next
automatic operation. At-site control of the load is possible by the ON/OFF switch of
the timer.
* The open field range is 200 feet but depends on many factors like the age of the battery, proximity of
large metal objects, the location of the receiver and environmental conditions at the time of transmission.
INSTALLATION
OPERATION &
SERVICE MANUAL
1
