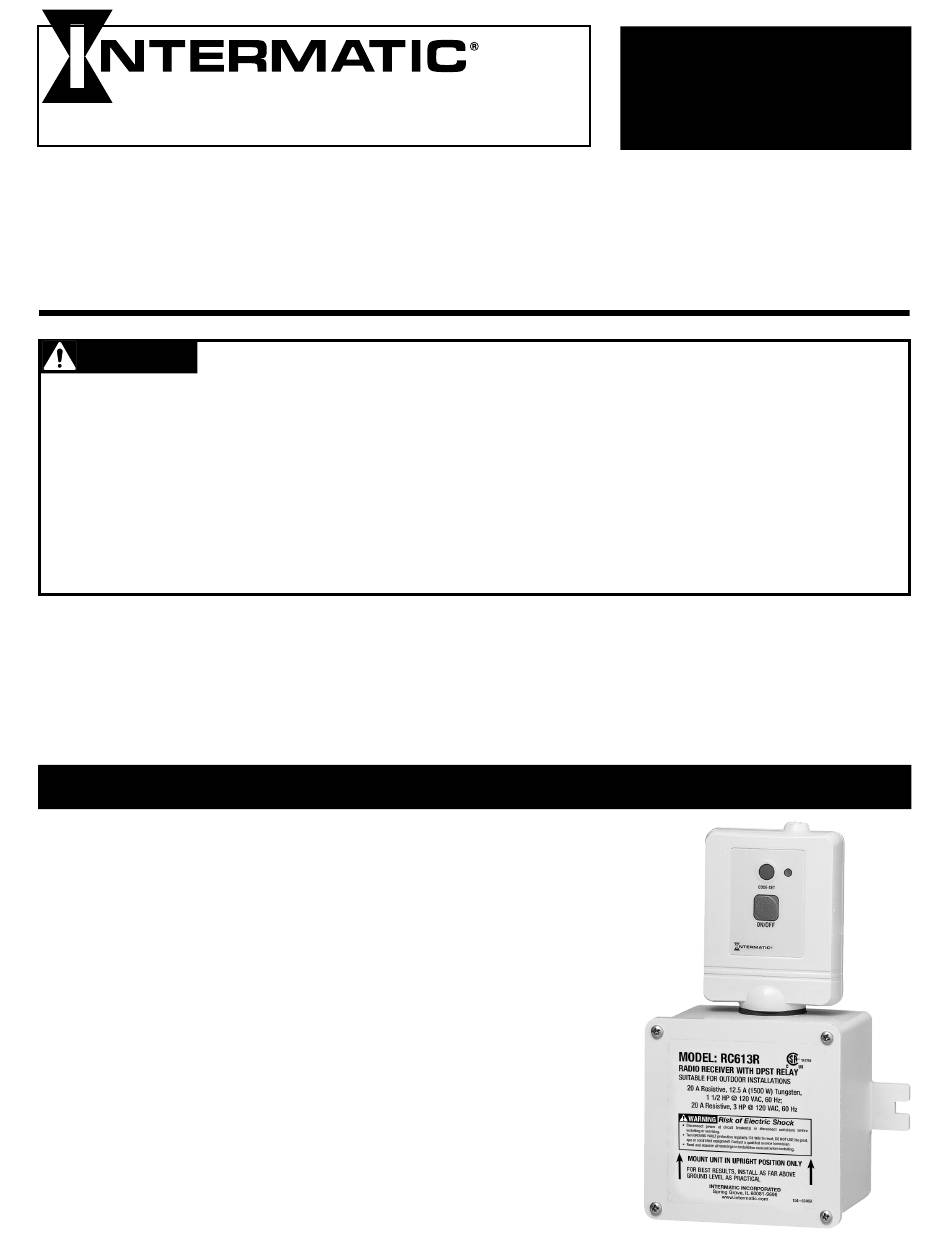

Intermatic RC Series Installation, Operation & Service Manual

RC SERIES
REMOTE-CONTROLS
SINGLE-CHANNEL RADIO RECEIVER WITH DPST RELAY
Model: RC613R
For indoor and outdoor use, suitable for Pool/Spa equipment control
ELECTRICAL RATINGS: 20 A Resistive @ 120/240 VAC, 60 Hz; 1500 W Tungsten, 1 1/2 HP @ 120 VAC, 60 Hz; 3 HP @
240 VAC, 60 Hz
NOTE: Neutral wire required for 120 AND 240 VAC applications
WARNING Risk of Fire or Electric Shock
• Installation and/or wiring must be in accordance with national and local electrical code.
• Use COPPER conductors ONLY.
• The control panel to be a minimum of 3 M. (in Canada) or 5 ft. (in USA) from the inside wall of the pool, spa, or pond, unless separated from
the body of water by a fence, wall or other permanent barrier that will make the unit inaccessible to persons in the water.
• Do NOT exceed maximum current carrying capacity.
• This enclosure does not provide grounding between conduit connections. When metallic conduit is used, you must also install grounding type
bushings and jumper wire, in accordance with the (NEC) National Electrical Code requirements.
• This control should not be connected to any equipment which would cause bodily injury or property damage should it be activated
unexpectedly.
• Disconnect power at circuit breaker(s) or disconnect switch(es) before installing or servicing.
• Test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE THE POOL or SPA! Contact a qualified service technician.
THIS DEVICE COMPLIES WITH FCC RULES PART 15. Operation of this device is subject to the following two conditions
1) This device may not cause harmful interference. 2) This device must accept any interference that may be received,
including interference that may cause undesired operation. FCC rules prohibit adjustments to or modification of receiver
and transmitter circuitry except for replacing the remote control battery. THERE ARE NO OTHER USER SERVICEABLE
PARTS.
This Heavy Duty Modular Radio Receiver is one-half of a two-part remote-
control system. It operates as an ordinary ON/OFF switch but also responds
to the signals of a hand-held transmitter - the other half of the system. The
module is designed for indoor or outdoor use, can control 120 or 240 VAC
loads, and can handle a variety of residential switching applications. By
the push of a button on the face of the transmitter, the user is able to turn
ON/OFF the connected load (lights, pump, etc.) from a remote location*,
safely and conveniently. In addition, a single RC939 transmitter can operate
up to three receivers and is able to "teach" each module a different code.
(Transmitters are sold separately).
The module consists of a receiver unit and a relay box permanently connected
together with a seal between them. The receiver unit is welded and has no user
serviceable parts inside. The relay box has two compartments, one for the 120 volt
coil, double-pole relay and the other for making the field connections.
* The open field range is approximately 100 feet, but depends on many
factors like the age of the battery, proximity of large metal objects, the
location of the receiver and environmental conditions at the time of
transmission.

GENERAL INFORMATION

1
Installation
Operation &
SERVICE MANUAL
