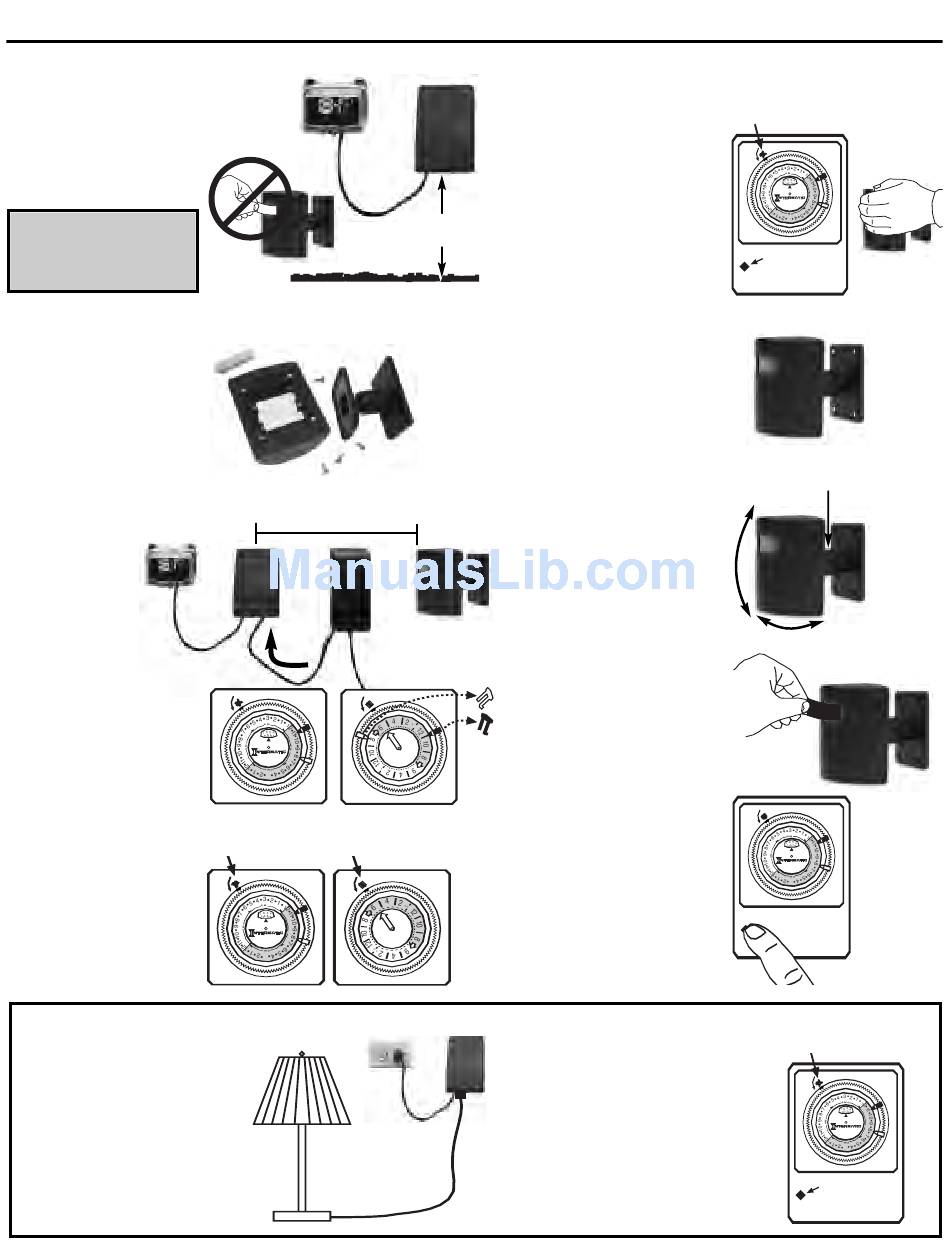

Intermatic AL1200TK Setup Instructions

AL1200TK
When used in conjunction with Intermatic Inc. Low Voltage Lights:
Hang timer/receiver and
1
plug into a GFCI outdoor
electrical outlet that has
a weather resistant cover.
Do not remove the label
covering the photocell.
IMPORTANT: See warning
information located on the
label inside the cover lid
of the timer/receiver.
2 Install 4 AA batteries into
the transmitter unit. The
transmitter unit will take
approximately one minute
to become active.
3 Plug the Intermatic Inc.
power pack into the
timer/receiver.
The timer/receiver will
now be used for the
timer operation.
4 Position the trippers
on the timer/receiver
at the "ON" and "OFF"
times used for the
lighting power pack;
then, remove the
trippers from the
lighting power pack.
Turn the timer/receiver
5
and the lighting Timer to
the "ON" position. The
lights should now be on.
When using something other than Intermatic Inc. Low Voltage Lights:
Outdoors: Hang timer/receiver
1
a
and plug into a GFCI outdoor
electrical outlet that has a
weather resistant cover.
(see fig.1 above)
Indoors: Hang timer/receiver
1
b
and plug into a grounded, indoor
electrical outlet.
2 Plug the light or other product
into the timer/receiver.
Transmitter and receiver setup instructions
Fig. 1
Remove back plate screws
to access battery compartment.
Batteries not included.
Locate sensor up to 40 ft.
away from timer/receiver.
ON/OFF
ON/OFF
TIME OF DAY
TIME TIME
HEAVY DUTY
3
Lighting power pack timer control
Receiver/timer control
Rotate switches clockwise to "ON" position.
ON/OFF
ON/OFF
TIME OF DAY
TIME TIME
HEAVY DUTY
3
Turn off the timer/receiver.
6
Press and hold the setup/test
mode button (located to the
lower left of the timer dial) for
two seconds.The receiver is
now in "setup" mode. The
photocell must be covered.
3 ft. minimum
Test by moving your hand in
(91.44 cm) front of the transmitter. The
lights will be switched on for
15 seconds.
In normal operation the
lights will be turned on
for 5 minutes.
7
You should now be able
to mount the transmitter up
to 40 feet from the timer/
receiver depending on
conditions.
Place the transmitter in the
approximate location desired.
Move your hand in front of
the transmitter and verify that
it is turning the lights on.
Using the screws provided,
mount the transmitter and
aim it towards the area you
want to protect.
Test the distance and
peripheral sensitivity of the
transmitter by standing out
Remove trippers from
of sight of the transmitter
power pack timer.
and moving into range
while observing when the
lights turn on.
Adjust the transmitter to
cover the largest, or specific
area desired. Tighten the
locking bolt.
8 Press and hold the test/setup
button for two seconds to exit
the setup mode on the
timer/receiver. Remove the
label covering the photocell.
9 To test operation at any time,
press the test/setup button
and verify that the transmitter
and receiver are working.
Position the trippers on the
3
timer/receiver at the "ON" and
"OFF" times desired.
4 Turn the timer/receiver and the
light or other product to the "ON"
position. The light, or product
should now be on.
5 Follow steps 6 thru 9 (above) to
complete the setup and testing.
Turn timer/receiver switch clockwise
one more "click' to turn timer off.
ON/OFF
TIME OF DAY
HEAVY DUTY
3
Setup Test Button
Loosen the locking nut to aim sensor
as needed. Tighten nut to secure at
the desired angle.
ON/OFF
TIME OF DAY
HEAVY DUTY
3
Turn timer/receiver switch
clockwise one more "click"
to turn timer off.
ON/OFF
TIME OF DAY
HEAVY DUTY
3
Setup Test Button
