Intermatic RC613R Installation, Operation & Service Manual

LIST OF AVAILABLE MODELS AND COMPONENTS
Model Description
RC613 Single Channel Receiver
3-way Switching Module
RC613R Heavy-Duty Receiver
and Relay Assembly
RC615 Single Channel Receiver
Timer Override Module
RC939 3 Channel Transmitter
P1103M 24 hr. Timer
Mechanism Only
TROUBLESHOOTING
Symptom Possible cause(s)
No response to transmitter No power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Turn ON power at main panel
signal at anytime Loose connection(s) at receiver and/or load. . . . . . . . . . .Check connections
Transmitter battery dead . . . . . . . . . . . . . . . . . . . . . . . . . .Replace battery
Receiver and transmitter are on two different codes . . . .Change code settings (see page 3)
Faulty transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Check battery connections, replace transmitter
Faulty receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Replace Receiver Module
No response to transmitter Weak Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Replace battery
signal some of the time Appliance with brush type motor is in use . . . . . . . . . . . .Relocate appliance and/or connect to another circuit
Other radio transmitter (police, etc.)
is operating nearby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Change master code of transmitter (See page 3)
Receiver is at edge of range . . . . . . . . . . . . . . . . . . . . . . .Mount Receiver closer or higher
Insufficient Range Weak battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Replace battery
Antenna too close to ground. . . . . . . . . . . . . . . . . . . . . . .Relocate Receiver Module
Transmitter is held too close to ground . . . . . . . . . . . . . .Hold transmitter at least 3 ft. above ground
Weak signal due to obstruction . . . . . . . . . . . . . . . . . . . .Remove/relocate Receiver Module
Nuisance operation Other radio transmitter operating nearby . . . . . . . . . . . . .Change master code of transmitter (See page 3)
Fluctuating supply voltage due to surge, etc. . . . . . . . . . .If frequent - install surge suppressor
Faulty receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Replace receiver module
WARRANTY
If within one (1) year from the date of installation, this product fails due to a defect in material or workmanship, Intermatic Incorporated
will repair or replace it free of charge.
The warranty does not cover labor for removal or reinstallation and does not apply to: (a) damage caused by accident, abuse, mishandling,
or dropping; (b) a unit which has been subject to unauthorized repair; (c) units not used in accordance with directions; (d) damages exceeding
the cost of the product. Some states do not allow a limitation of damages so the foregoing warranty may not apply to you. This warranty gives
you specific legal rights and you may also have other rights which vary from state to state.
This warranty service is available, if the defective product or its defective component is returned with proof of purchase and date of
installation, either (a) to the dealer from whom the unit was purchased or (b) by shipping prepaid to the Intermatic Service Center, Intermatic
Incorporated, Intermatic Plaza, Spring Grove IL 60081-9698
Because of our commitment to continuing research and improvements, Intermatic Incorporated reserves the right to make changes, without notice, in the specifications and material
contained herein and shall not be responsible for any damages, direct or consequential, caused by reliance on the material presented.
INTERMATIC INCORPORATED, SPRING GROVE, IL 60081
158RC10000
Specifications
10 Amp Resistive, 5 Amp (600 Watt) Tungsten,
1/3 HP Motor Load - 120 Volt.
30 Amp Resistive - 120/240 Volt, 12.5 Amp (1500 Watt)
Tungsten - 120 Volt, 1.5 HP - 120 Volt, 3 HP - 240 Volt
Double Pole Single Throw Contacts.
10 Amp Resistive, 5 Amp (600 Watt) Tungsten
1/3 HP Motor Load - 120 Volt.
Operates on 9 Volt Battery
Mechanical Timer Mechanism -
replaces Intermatic T100 Series timers and compatible
with RC615 Receiver. Same rating as RC613R
corrective action
4
RC SERIES
REMOTE CONTROLS

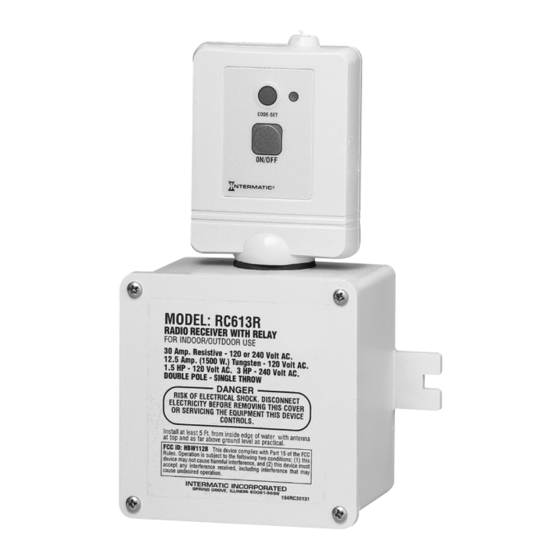

SINGLE CHANNEL RADIO RECEIVER with RELAY
Model: RC613R
For indoor and outdoor use, suitable for Pool/Spa equipment control
ElEctrical rating: 30 amp resistive-120V or 240Vac, 12.5 amp (1500 Watt)
tungsten - 120Vac, 1.5 H.P. - 120Vac, 3.0 H.P. - 240Vac DPSt
tHiS DEVicE cOMPliES WitH Fcc rUlES Part 15. Operation of this device is subject to the following two conditions:
1. This device may not cause harmful interference. 2. This device must accept any interference that may be received,
including interference that may cause undesired operation. FCC rules prohibit adjustments to or modification of receiver and
transmitter circuitry except for replacing the transmitter battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
IMPORTANT SAFETY INSTRUCTIONS
1. This Control must be installed by a qualified electrician, according to National Electric Code (Including article 680) or Canadian Electric
Code (Including Section 68) and Local Electrical Codes.
2. USE COPPER CONDUCTORS ONLY. If applicable, install this Control not less than 5 feet (3 meters for Canadian instructions)
from inside edge of pool or spa.
3. Do not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors.
4. For grounding of the installation, refer to article 250 and 680 of the National Electrical Code. (For Canadian Installations:
Section 10 and 68 of the Canadian Electric Code)
5. This Control should not operate any equipment which would cause bodily injury or property damage should it be activated unexpectedly.
6. Always disconnect electricity at main panel before servicing this Control or the equipment(s) connected to it.
THIS CONTROL IS NOT TO BE USED AS A POWER DISCONNECT.
READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL
GENERAL INFORMATION
this Heavy Duty Modular radio receiver is one half of a two part remote
control system. It operates as an ordinary ON/OFF switch, but it also responds
to the signals of a hand-held transmitter - the other half of the system. The Module
is designed for indoor and outdoor use, works on either 120 or 240 volts and can
handle a variety of switching applications, typical around the house or farm.
By the push of a button on the face of the transmitter, the user is able to turn ON/
OFF the connected load (lights, pump, etc.) from any remote location*,
inside or outside of the house, safely and conveniently. In addition, a single
transmitter can operate up to three receivers and is able to "teach" each Module
a different code. (Transmitters are sold separately.)
the Module comes with its own manual ON/OFF button and it is intended to be
used as a three-way switch, one at the location and the other being the transmitter.
The connected load will respond to either of the two controls or may be turned
ON using the hand-held transmitter and turned OFF by pushing the red button
on the face of the receiver or vice versa.
the Module consists of a Receiver Unit and a Relay Box permanently connected
together with a seal between them. The Receiver Unit is welded and has no user
serviceable parts inside. The Relay Box has two compartments, one for the 120
volt coil, double pole relay and the other for making the field connections.
Operation: Upon receiving a valid signal from a designated transmitter,
the Receiver Unit will reverse the state of the relay contacts, that is, it will
turn ON or OFF the connected load. In order to prevent bodily injury and/or
equipment damage after a power failure, the contacts of the relay remain open
until the button on the face of the Receiver Unit or on the transmitter is pushed.
* The range is 200 feet but depends on many factors like the age of the battery,
proximity of large metal objects, the location of the receiver and environmental
conditions at the time of transmission.
INSTALLATION
OPERATION &
SERVICE MANUAL
1
