RC SERIES
REMOTE CONTROLS
SINGLE CHANNEL RADIO RECEIVERS
Model: RC613, RC613L Switching Module
For indoor and outdoor use, suitable for Pool/Spa equipment control
ELECTRICAL RATING: 15 A Resistive, 1200 W Tungsten, 1 HP Motor Load - 120 V
THIS DEVICE COMPLIES WITH FCC RULES PART 15. Operation of this device is subject to the following two conditions
1) This device may not cause harmful interference. 2) This device must accept any interference that may be received,
including interference that may cause undesired operation. FCC rules prohibit adjustments to or modification of receiver
and transmitter circuitry except for replacing the remote control battery. THERE ARE NO OTHER USER SERVICEABLE
PARTS.
Risk of Fire or Electric Shock
WARNING
• Installation and/or wiring must be in accordance with national and local electrical code.
• Use COPPER conductors ONLY.
• The control panel to be a minimum of 3m (in Canada) or 5ft (in USA) from the inside wall of the pool, spa, or pond, unless separated from the
body of water by a fence, wall or other permanent barrier that will make the unit inaccessible to persons in the water.
• Do NOT exceed maximum current carrying capacity.
• This enclosure does not provide grounding between conduit connections. When metallic conduit is used, you must also install grounding type
bushings and jumper wire, in accordance with the (NEC) National Electrical Code requirements.
• This control should not be connected to any equipment which would cause bodily injury property damage should it be activated unexpectedly.
• Disconnect power at circuit breaker(s) or disconnect switch(es) before installing or servicing.
• Test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE THE POOL or SPA! Contact a qualified service technician.
These Modular Radio Receivers are one half of a two part remote control
system. They operate as ordinary ON/OFF switches but they also respond
to the signals of a hand held transmitter - the other half of the system.
The modules are designed for indoor or outdoor use, and can handle a
variety of switching applications, typical around the house or farm. By the
push of a button on the face of the transmitter, the user is able to turn
ON/OFF the connected load (lights, pump, etc.) from any remote location*,
safely and conveniently. In addition, a single transmitter can operate up
to three Receivers and is able to "teach" each Module a different code.
(Transmitters are sold separately).

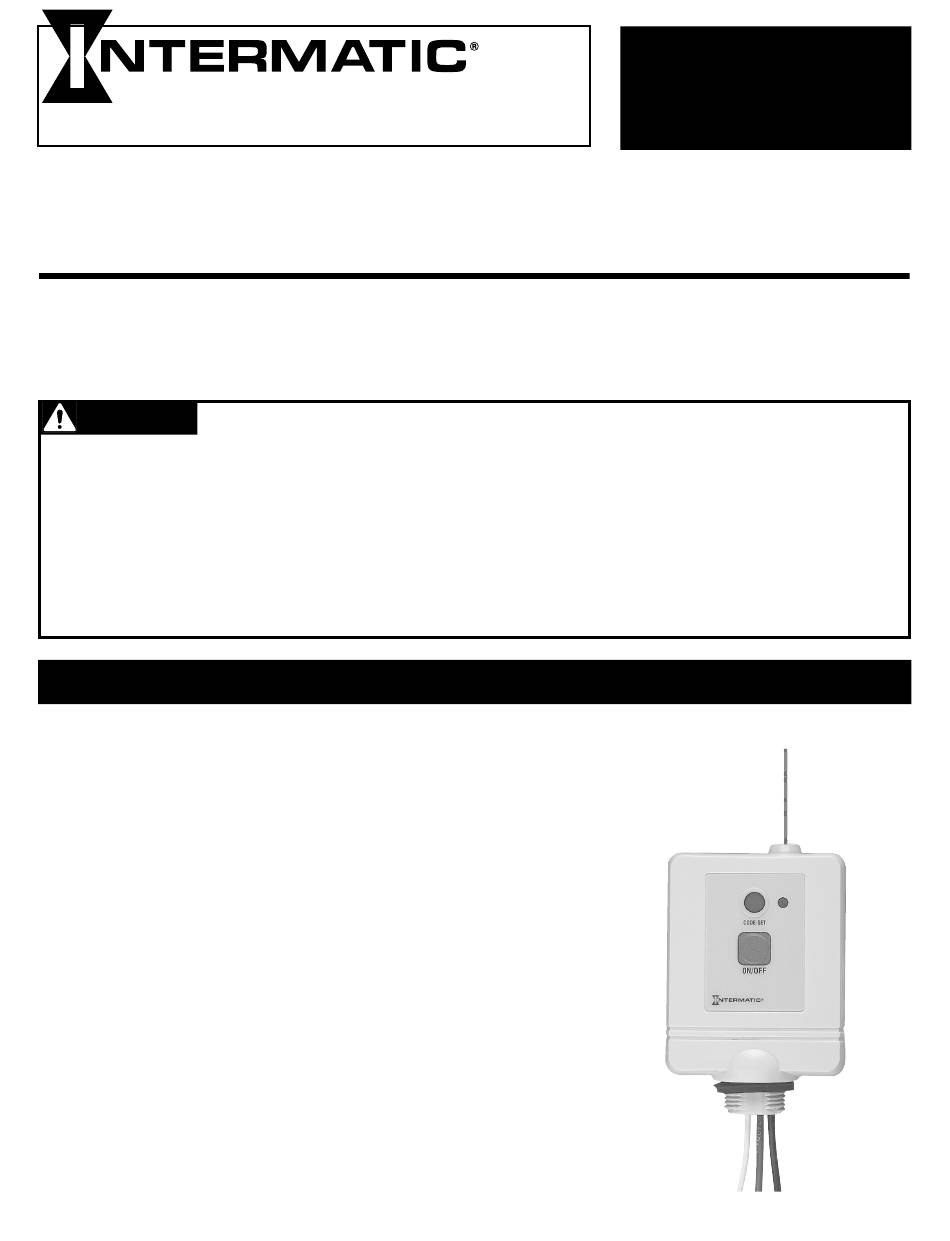

Model RC613 Receiver Module comes with its own manual ON/OFF
button and it is intended to be installed at the location of the load. The
connected load may be turned ON/OFF using the hand-held transmitter
or turned ON/OFF by pushing the red button on the face of the Receiver.
Model RC613L Receiver Module is the same as RC613 except that it
comes with extra long (36 in.) leads.
* The open field range is approximately 200 feet or less, but depends on
many factors like the age of the battery, proximity of large metal objects,
the location of the receiver and environmental conditions at the time of
transmission.
GENERAL INFORMATION
