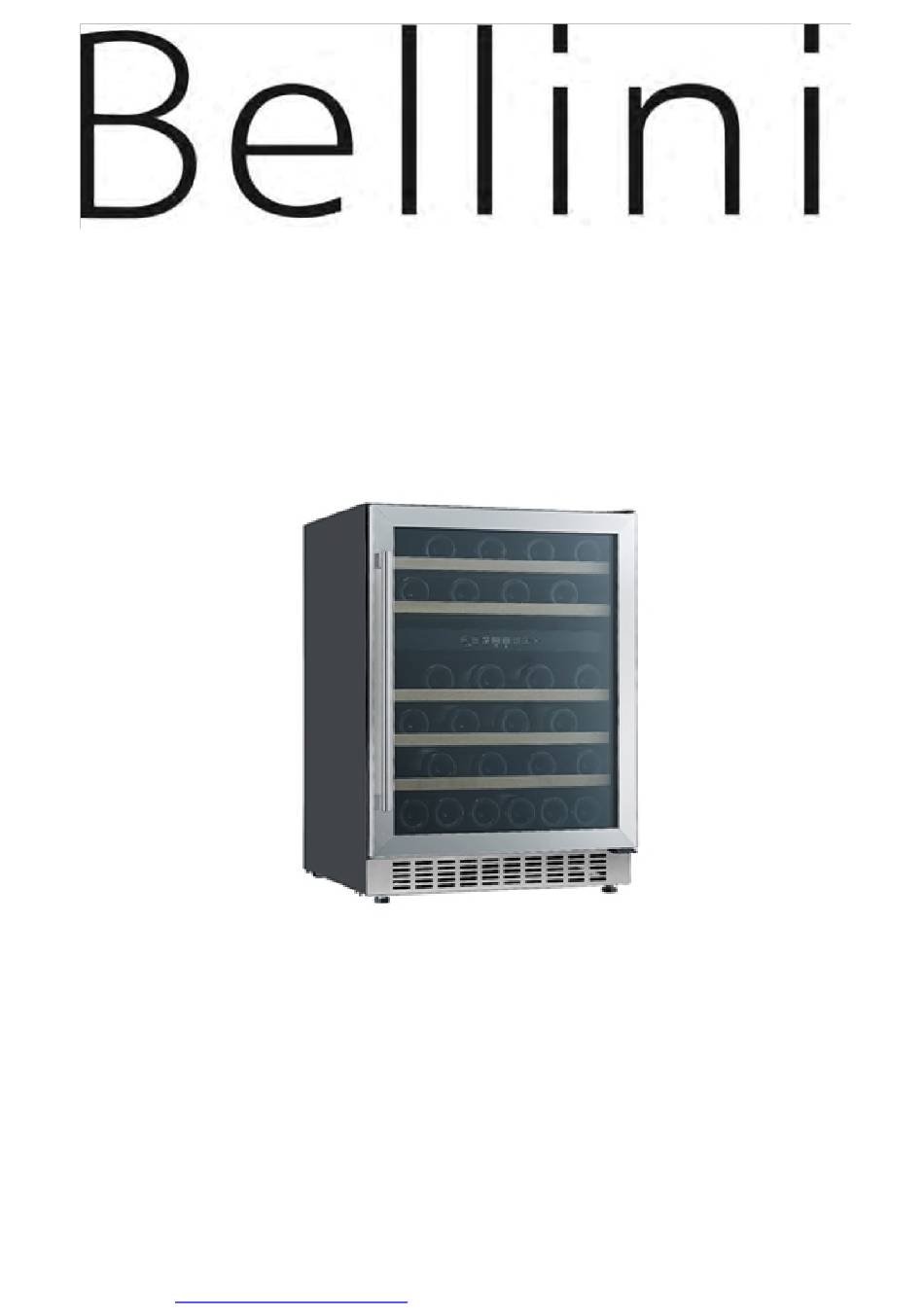

- Page 1 INSTALLATION & OPERATION INSTRUCTIONS Bellini 145 litre Wine Fridge Model No. BWF145BI V2 April20 GSM Retail Australia Pty Ltd ABN 53 007 582 475 For Technical queries: 1300 373 199 AUst or 0800 764 912 NZ Model: BWF145BI www.belliniappliances.com.au...
- Page 2 Thank you purchasing Bellini Wine Fridge, the appliance carries a 2 year replacement warranty, be sure to retain this Instruction Manual and receipt. For Technical queries please contact Aust: 1300 373 199 NZ: 0800 764 912 GSM Retail Australia Pty Ltd ABN: 53 007 582 475...
-
Page 3: Table Of Contents
Content Safety instructions & warnings………………………………..…………………………….1-2 Installation………………………………..………………………………………………………….3 Description of the appliance………………………………..………………………………..4-5 Operation………………………………..…………………………………………………………….6-8 Troubleshooting………………………………..…………………………………………………..8 Maintenance and cleaning………………………………..…………………………………..9 Technical parameters………………………………..…………………………………………..10 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Technical queries: 1300 373 199 Aust OR 0800 764 912 NZ Model: Beverage Cooler - BBF145BI / BBF145BI-F... -
Page 4: Safety Instructions & Warnings
Safety instructions & warnings Your safety is of the utmost importance to our company. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Consumer Service Support hot line. - Page 5 ●Do not store inflammables, explosives, ●Unplug the appliance when not in use acid & alkaline liquids etc.in the compartment of the appliance. ●Unplug appliance when conducting maintenance or cleaning activities on the appliance ●Do not operate other appliances in the ●Unplug the appliance in the event of a power compartment.
-
Page 6: Installation
Installation Position Do not lean the appliance over more than 45°when moving it to position. The appliance must be placed on flat,firm & dry floor or similar noncombustible pad; do not use the package foam pad. 酒柜结构及安装示意图 Do not place the appliance on wet surfaces. Do not place this appliances in covered areas where its exposed to extreme cold temperatures. -
Page 7: Description Of The Appliance
Description of the appliance Accessories & name 11. Upper hinge 1. Enclosure 10. Door seal 2. Shelf 3. Display panel 9. Handle 4. Rear Panel 8. Door 5. Vent 7. Lower hinge 6. Adjustable foot Note: Shelves, door frame, handle and other accessories could be different according to different models and configuration. - Page 8 Reversing the door Our wine cooler is delivered with the door opening from left to right. To reverse the opening direction: Open the door at 90 degrees and keep it steady. Unscrew the two screws① from the right lower hinge② [Figure 1]. ...
-
Page 9: Operation
Operation Start operation 1. Clean storage compartment Before switching appliance On, give the storage compartment a clean to remove any dust deposits, at the same time check that drainage pipe is satisfactorily connected .（For details, please refer to the “Maintenance and cleaning”） 2. - Page 10 Press UP Key once , LED display flashes the current set temperature, repeated pressing increases temperature incrementally by 1 Degree, increase until you reach desired temperature, Press Zone Key to set. Note: Display will flash for 5 Seconds only, if no action is taken during this time or the zone key pressed to lock in new selected temperature, the flashing stops and engages the last set temperature.
- Page 11 Wine storage The appliance is equipped with sufficient shelf space to allow your collection of wine to mature quietly. 5 shelves loading capacity: 46 bottles. (standard Bordeaux with 750ml ) Loading capacity will vary in terms of different way of bottle arrangement or different bottle sizes.
-
Page 12: Troubleshooting
Troubleshooting The appliance makes lots Please adjust the front foot, keep the appliance of noise? level. Please keep the appliance a bit space from walls. Liquid flowing sound It is normal because of the refrigerant working inside the cabinet? inside. -
Page 13: Maintenance And Cleaning
Maintenance and cleaning Cleaning Disconnect the appliance before cleaning. Clean the appliance with soft cloth or sponge by water. Do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc. Do not flush the compartment of the appliance. The below items will damage the surface of wine cooler: Power cut Most power cuts could be resolved within a short time. -
Page 14: Technical Parameters
Technical parameters BWF145BI Product model Voltage/frequency 220-240V~/50Hz Refrigerant/weight R600a/35g Gross volume 145 L Loading capacity 46 bottles Net weight 44.5kg Unit dimension 595×570×825-870mm (WxDxH) Packing dimension 680×670×900mm (WxDxH) Remarks： 1. The Net weight includes shelves and the Unit dimension is without handle on the door. - Page 15 *The in Home warranty does not apply to Commercial and or industrial usage. *Please see 1.7.7 for additional information 1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of two (2) year (Warranty Period).
- Page 16 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
