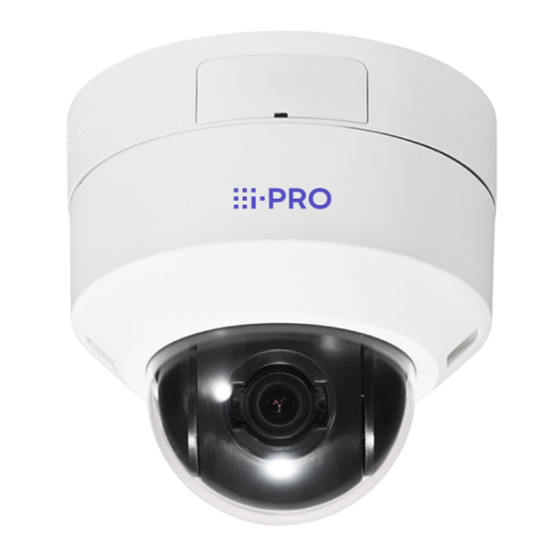

i-PRO WV-U61300-ZY Basic Information
  1. Manuals
  2. Brands
  3. i-PRO Manuals
  4. Security Camera
  5. WV-U61300-ZY
  6. Basic information

i-PRO WV-U61300-ZY Basic Information

Hide thumbs Also See for WV-U61300-ZY:
Table of Contents

Advertisement

Quick Links

Download this manual
About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (accessory): Provides information about "Precautions", "Precautions for
installation" and the installation method.
• Basic Information (this document): Provides information about "Precautions for use", "Parts and
functions" and "Detail specifications".
• Operating Instructions (Refer to the link on the following support website): Explains how to
perform the settings and how to operate this camera.
https://i-pro.com/global/en/surveillance/training-support/documentation-database-list
"<Control No.: C****>" used in these documents should be used to search for information on our
technical information website (https://i-pro.com/global/en/surveillance/training-support/support/
technical-information) and will guide you to the right information.
• microSDXC/ microSDHC/ microSD memory card is described as microSD
memory card.
• The external appearance and other parts shown in this manual may differ
from the actual product within the scope that will not interfere with normal
use due to improvement of the product.
Basic Information
WV-U61300-ZY
Model No.
Network Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WV-U61300-ZY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for i-PRO WV-U61300-ZY

Summary of Contents for i-PRO WV-U61300-ZY

  • Page 1 “<Control No.: C****>” used in these documents should be used to search for information on our technical information website (https://i-pro.com/global/en/surveillance/training-support/support/ technical-information) and will guide you to the right information. • microSDXC/ microSDHC/ microSD memory card is described as microSD memory card.

  • Page 2: Table Of Contents

    Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 About notations ..........................4 System requirements for a PC ...................... 4 Network security ........................... 5 Precautions for use ........................6 Parts and functions ........................9 Insert / remove a microSD memory card ..................14 Troubleshooting ...........................

  • Page 3: Limitation Of Liability

    IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:...

  • Page 4: About Notations

    About notations Some functions are expressed with the following notations in this document. C Clear dome cover Smoke dome cover System requirements for a PC CPU: Intel ® Core Processor family ® - Intel Core i5-6500 or faster - Intel ®...

  • Page 5: Network Security

    Network security As you will use this unit connected to a network, your attention is called to the following security risks. Leakage or theft of information through this unit Use of this unit for illegal operations by persons with malicious intent Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks.

  • Page 6: Precautions For Use

    Precautions for use When the product is accessible from the About the automatic status detection function When this product malfunctions due to exoge- Internet nous noise, etc. for 30 seconds or more, the To prevent unauthorized access, note the product will automatically restart and will return following.
  • Page 7 AVC Patent Portfolio License • When shooting fast-moving subjects or THIS PRODUCT IS LICENSED UNDER THE performing panning/tilting operations, AVC PATENT PORTFOLIO LICENSE FOR THE objects crossing the shooting area may PERSONAL USE OF A CONSUMER OR look to be bending askew. OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE Cleaning this product body...
  • Page 8 Product disposal/transfer Data saved on this product or a storage device used with this product may lead to personal information leakage. When it is necessary to dispose or give this product to someone, even when for repair, make sure that there is no data on this product.

  • Page 9: Parts And Functions

    Parts and functions ■ Terminals [5] EXT I/O terminal [4] Audio output terminal [3] Audio input terminal [2] Power supply terminal (12 V DC) [1] RJ45 network terminal [1] RJ45 network terminal Connect an Ethernet cable (category 5e or better, straight, 4 pairs (8 pins)) to the RJ45 network terminal.
  • Page 10 [2] Power supply terminal (12 V DC) / Power cord plug (accessory) Connect the output cable of the DC power supply to the power cord plug. IMPORTANT: • Be sure to use the power cord plug provided with this product. •...
  • Page 11 [5] EXT I/O terminals Note: • Off, input, and output of the ALARM IN2 and 3 can be switched by configuring the setting. Refer to the Operating Instructions for further information about the ALARM IN2 and 3 settings (“Off”, “Alarm input”, “Alarm output” or “AUX output”). <Ratings>...
  • Page 12 ■ Indicators and buttons ⑤ SD ON/OFF button ① INITIAL SET button ② LINK indicator ③ ACT indicator ④ SD MOUNT indicator INITIAL SET button (Initializing / NTSC ⇔ PAL switch button) Follow the steps below to initialize the network camera. (1) Turn off the power of the camera. When using a PoE hub, disconnect the Ethernet cable from the camera.
  • Page 13 LINK indicator • When the camera is able to communicate with Lights orange the connected device ACT indicator • When data is being sent via the network camera Blinks green (accessing) SD MOUNT indicator Lights off → Blinks green → Lights off •...

  • Page 14: Insert / Remove A Microsd Memory Card

    Insert / remove a microSD memory card Note: • Use a microSD memory card dedicated to i-PRO cameras. • Refer to the Operating Instructions on our support website for further information about the microSD memory card settings. ■ Insert a microSD memory card Open the SD memory card cover.
  • Page 15 ■ Remove a microSD memory card When removing a microSD memory card, reverse the procedure. • To remove the microSD memory card, hold down the SD ON/OFF button for about 2 seconds. When the flashing SD MOUNT indicator goes out, you can remove the microSD memory card. IMPORTANT: •...

  • Page 16: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE device for power supply...
  • Page 17 Reference Symptom Cause/solution pages This indicator lights up green when the microSD memory card is recognized correctly and ready for use. • Has the inserted microSD memory card been formatted on a PC? The SD MOUNT Use a microSD memory card formatted on the camera. indicator does not Or install the software to format the microSD memory light even when a...

  • Page 18: Detail Specifications

    Approx. 800 g {1.77 lbs} Mass: Finish: Main body: Aluminum die cast/ABS resin, i-PRO white Dome cover: Acrylic resin C (Transmittance: 30 %) *1 Refer to our technical information website <Control No.: C0106> for further information about Power source and Power consumption information.
  • Page 19 • Camera Image sensor: Approx. 1/2.8 type CMOS image sensor Effective pixels: Approx. 2.1 megapixels Scanning area: 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)} Scanning system: Progressive Minimum illumination: Color: 0.007 lx {0.00065 footcandle} (30IRE, F1.3, Maximum shutter: Off (1/30 s), AGC: 11)* 0.01 lx {0.00093 footcandle} (50IRE, F1.3, Maximum shutter: Off (1/30 s), AGC: 11)
  • Page 20 Shutter speed: [60 fps mode] 1/60 Fix, 1/100 Fix, 1/120 Fix, 1/250 Fix, 1/500 Fix, 1/1000 Fix, 1/2000 Fix, 1/4000 Fix, 1/10000 Fix [30 fps/ 15 fps mode] 1/30 Fix, 3/120 Fix, 2/100 Fix, 2/120 Fix, 1/100 Fix, 1/120 Fix, 1/250 Fix, 1/500 Fix, 1/1000 Fix, 1/2000 Fix, 1/4000 Fix, 1/10000 Fix [50 fps mode] 1/50 Fix, 1/100 Fix, 1/250 Fix, 1/500 Fix, 1/1000 Fix, 1/2000 Fix, 1/4000 Fix, 1/10000 Fix [25 fps/ 12.5 fps mode] 1/25 Fix, 3/100 Fix, 2/100 Fix, 1/100 Fix, 1/250 Fix, 1/500 Fix, 1/1000 Fix, 1/2000 Fix, 1/4000 Fix, 1/10000 Fix Maximum shutter:...
  • Page 21 • Lens Zoom ratio: Optical zoom 3.1x (Motorized zoom / Motorized focus) Extra optical zoom max 4.6x (3.1x – 4.6x when resolution is 1280x720) Focal length: 2.9 mm – 9 mm {1/8 inches – 11/32 inches} Maximum aperture ratio: 1:1.3 (WIDE) – 1:2.5 (TELE) Focus range: 0.3 m {11-13/16 inches} –...
  • Page 22 • Network Network: 10BASE-T/100BASE-TX, RJ45 connector Resolution: [16:9 mode(60 fps mode)][16:9 mode(30 fps mode)] H.265/ H.264* [16:9 mode(50 fps mode)][16:9 mode(25 fps mode)] JPEG (MJPEG) 1920×1080/ 1280×720/ 640×360/ 320×180 [4:3 mode(30 fps mode)] [4:3 mode(25 fps mode)] 1280×960/ VGA/ QVGA [4:3 mode(15 fps mode)] [4:3 mode(12.5 fps mode)] 2048×1536 * / 1280×960/ VGA/ QVGA Image compression method*...
  • Page 23 JPEG (MJPEG) Image quality: 0 SUPER FINE/ 1 FINE/ 2/ 3/ 4/ 5 NORMAL/ 6/ 7/ 8/ 9 LOW (10 steps: 0-9) Transmission type: Pull (Refresh interval)/ Push (MJPEG) Refresh interval: [60 fps mode] 0.1 fps/ 0.2 fps/ 0.33 fps/ 0.5 fps/ 1 fps/ 2 fps/ 3 fps/ 5 fps/ 6 fps/ 10 fps/ 12 fps/ 15 fps/ 30 fps/ 60 fps [30 fps mode] 0.1 fps/ 0.2 fps/ 0.33 fps/ 0.5 fps/ 1 fps/ 2 fps/ 3 fps/ 5 fps/ 6 fps/...
  • Page 24 <Control No.: C0132>. *6 When using MJPEG/JPEG (Refresh interval) only. *7 Use a microSD memory card dedicated to i-PRO cameras. *8 For possible number of images and duration (an indication) that can be saved on the microSD memory card, refer to our technical information website below.
  • Page 25 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Fukuoka, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 N0822-0 PGQP3487ZA...
